AXA Echo 15 Front Light User Manual

1. ആമുഖം

Thank you for choosing the AXA Echo 15 Front Light. This universal dynamo headlight is designed to provide reliable illumination for your bicycle, enhancing your visibility and safety on the road. With a powerful 15 Lux LED light, integrated reflector, and compatibility with various power sources, the Echo 15 is a versatile and durable choice for cyclists.

പ്രധാന സവിശേഷതകൾ:

• High power 15 lux LED light with a lifespan of more than 50,000 hours.
• Integrated retro reflector for improved visibility to oncoming traffic.
• Ergonomic switch button for easy operation.
• Compatible with 6V e-bike batteries.
• Suitable for use with both standard and hub dynamos.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read all safety instructions carefully before installing and using the AXA Echo 15 Front Light. Failure to follow these instructions may result in injury or damage to the product.

• ലൈറ്റ് ബീമിലേക്ക് നേരിട്ട് നോക്കരുത് when the light is on, as it can cause temporary vision impairment.
• Ensure the light is securely mounted and does not obstruct your view or interfere with bicycle controls.
• ഈ ഉൽപ്പന്നം വാട്ടർ റെസിസ്റ്റൻ്റ് അല്ല. Avoid exposing the light to heavy rain or submerging it in water.
• കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• All electrical connections should be made by a competent person to avoid short circuits or damage.

3. പാക്കേജ് ഉള്ളടക്കം

The AXA Echo 15 Front Light package contains the following items:

• 1x AXA Echo 15 Head Light

ഇൻസ്റ്റാളേഷനുമായി മുന്നോട്ടുപോകുന്നതിനുമുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ദയവായി പരിശോധിക്കുക.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The AXA Echo 15 Front Light is designed for handlebar mounting and can be powered by a dynamo or a 6V e-bike battery.

4.1 ലൈറ്റ് സ്ഥാപിക്കൽ

1. Identify a suitable mounting position on your bicycle's handlebar or front fork crown. The light comes with a sturdy mounting bracket.
2. Attach the light's mounting bracket to the chosen position using appropriate tools. Ensure it is tightened securely to prevent movement during cycling.

ചിത്രം 4.1: വശം view of the AXA Echo 15 Front Light, highlighting the robust mounting bracket for secure attachment to your bicycle.

Figure 4.2: The AXA Echo 15 Front Light, showcasing its compact design and integrated mounting bracket ready for installation.

Figure 4.3: The AXA Echo 15 Front Light mounted on the front fork of a bicycle, demonstrating its typical installed position.

4.2 ഇലക്ട്രിക്കൽ കണക്ഷൻ

The Echo 15 can be connected to a bicycle dynamo or a 6V e-bike battery system. Refer to the diagram on the back of the light for correct polarity.

1. For dynamo connection: Connect the dynamo wires to the designated terminals on the back of the light. Ensure a secure and insulated connection.
2. For 6V e-bike battery connection: Connect the light to your e-bike's 6V lighting output. Consult your e-bike's manual for specific wiring instructions.

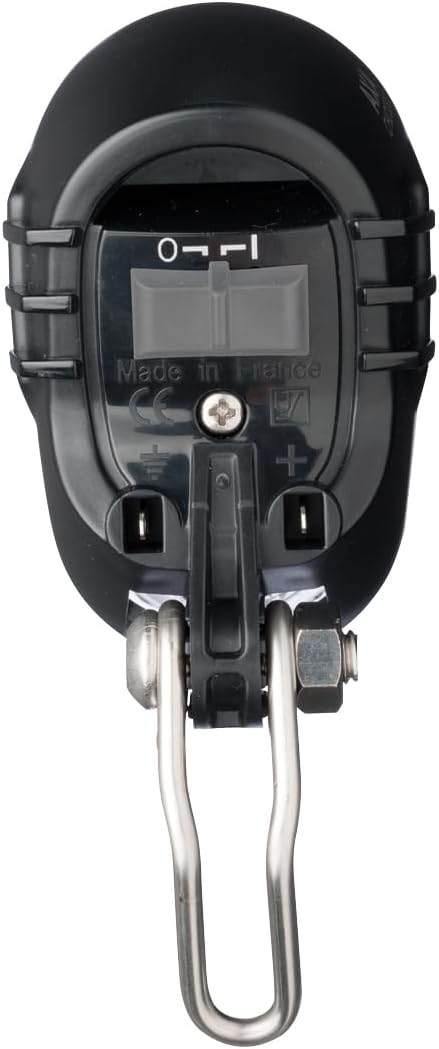

ചിത്രം 4.4: പിൻഭാഗം view of the AXA Echo 15 Front Light, showing the clearly marked terminals for electrical connections to a dynamo or e-bike battery.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The AXA Echo 15 Front Light features a simple ergonomic switch button for operation.

1. Once properly installed and connected to a power source (dynamo or 6V e-bike battery), the light is ready for use.
2. ലൈറ്റ് തിരിക്കാൻ ON, press the ergonomic switch button located on the top or side of the light.
3. ലൈറ്റ് തിരിക്കാൻ ഓഫ്, press the switch button again.

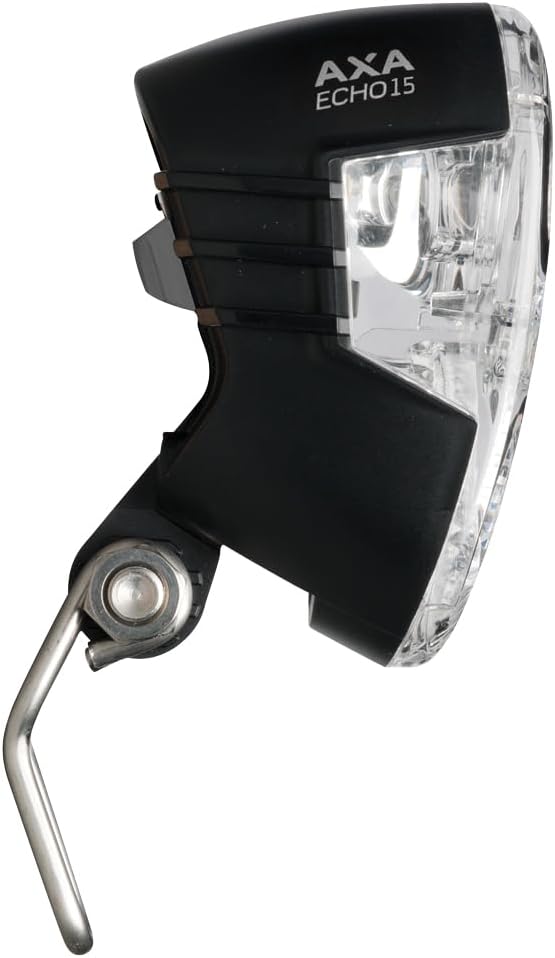

ചിത്രം 5.1: മുൻഭാഗം view of the AXA Echo 15 Front Light, illustrating the clear lens and reflector designed for optimal light output and visibility.

കുറിപ്പ്: When powered by a dynamo, the light's brightness will vary with your cycling speed. For consistent illumination, ensure your dynamo is functioning correctly.

6. പരിപാലനം

To ensure the longevity and optimal performance of your AXA Echo 15 Front Light, follow these simple maintenance guidelines:

• വൃത്തിയാക്കൽ: Wipe the light's exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents, as they may damage the plastic housing or lens.
• പരിശോധന: Periodically check the mounting bracket and electrical connections for tightness and signs of wear. Re-tighten any loose screws and replace damaged wires if necessary.
• സംഭരണം: If storing your bicycle for an extended period, ensure the light is clean and dry. Store in a cool, dry place.

The LED light source is designed for a long lifespan (50,000+ hours) and is not user-replaceable.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your AXA Echo 15 Front Light, please refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact AXA customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the AXA Echo 15 Front Light:

9. വാറൻ്റിയും പിന്തുണയും

9.1 വാറൻ്റി വിവരങ്ങൾ

The AXA Echo 15 Front Light comes with a 2 വർഷത്തെ നിർമ്മാതാവിന്റെ വാറന്റി. സാധാരണ ഉപയോഗത്തിലുള്ള മെറ്റീരിയലുകളിലെയും നിർമ്മാണത്തിലെയും വൈകല്യങ്ങൾ ഈ വാറന്റി ഉൾക്കൊള്ളുന്നു. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.

The warranty does not cover damage resulting from improper installation, misuse, neglect, accidents, or unauthorized modifications.

9.2 ഉപഭോക്തൃ പിന്തുണ

For technical assistance, warranty claims, or any other inquiries regarding your AXA Echo 15 Front Light, please contact AXA customer service through their official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങൾ ഉൽപ്പന്നം വാങ്ങിയ റീട്ടെയിലർ.

Please have your product model name (Echo 15) and part number (LAA016) ready when contacting support.
