1. ആമുഖം
This manual provides comprehensive information for the installation, operation, and maintenance of the Mobotix MX-B079 Standard Lens. Designed for select Mobotix 5/6MP cameras and sensors, this lens offers a focal length of 7.9 mm and an aperture of f/1.8, providing a 45° horizontal and 34° vertical image angle with a 6MP sensor. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Mobotix MX-B079 is a fixed focal length lens engineered for high-resolution surveillance applications. Its robust design ensures reliable performance in various environments. Key features include:
- ഫോക്കൽ ലെങ്ത്: 7.9 മി.മീ
- അപ്പേർച്ചർ: f/1.8
- Image Angle (with 6MP sensor): 45° തിരശ്ചീന x 34° ലംബം
- അനുയോജ്യത: Designed for select Mobotix 5/6MP cameras/sensors.
- Equivalent Focal Length (35mm): Approximately 43mm.

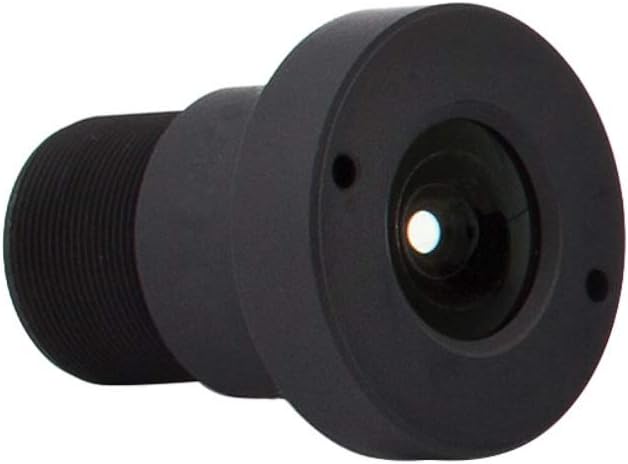

ചിത്രം 2.1: മുൻഭാഗം view of the Mobotix MX-B079 Standard Lens. This image shows the compact, cylindrical design of the lens, with the optical elements visible at the front. The lens body is black, indicating its durable construction.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The MX-B079 lens is designed for straightforward installation onto compatible Mobotix camera modules. Ensure the camera is powered off before proceeding with installation.
- Prepare the Camera Module: Carefully remove any existing lens or protective cap from the camera's sensor module. Handle the sensor area with extreme care to avoid dust or damage.
- ലെൻസ് ഘടിപ്പിക്കുക: Align the threads of the MX-B079 lens with the lens mount on the camera module. Gently screw the lens into place clockwise until it is finger-tight. Do not overtighten.
- Secure the Lens: Some camera models may have a locking mechanism or set screw to secure the lens. Refer to your specific camera's manual for details on securing the lens to prevent accidental rotation or detachment.
- പവർ ഓണും ടെസ്റ്റും: Once the lens is securely attached, power on the camera. Access the camera's web interface or monitoring software to verify the image quality and field of view. Adjust the focus if necessary, though fixed lenses typically have a broad depth of field.
For optimal performance, ensure the lens is clean and free from smudges or dust before and after installation.
4. പ്രവർത്തന സവിശേഷതകൾ
The MX-B079 is a fixed lens, meaning its focal length and aperture are constant. Its operational characteristics are primarily defined by its optical properties:
- ഫീൽഡ് View: With a 6MP sensor, the lens provides a 45° horizontal and 34° vertical field of view. This makes it suitable for general surveillance applications where a standard perspective is required.
- ഫീൽഡിൻ്റെ ആഴം: Due to its fixed aperture and focal length, the lens offers a consistent depth of field. Objects within a certain range will appear in focus without manual adjustment.
- കുറഞ്ഞ പ്രകാശ പ്രകടനം: The f/1.8 aperture allows for good light gathering capabilities, contributing to better image quality in low-light conditions compared to lenses with higher f-numbers.
Figure 4.1: Comparison table of various Mobotix lenses, including the B079. This table illustrates the different image angles, focal lengths, and apertures across the Mobotix lens range, helping to contextualize the B079's specifications relative to other options like fisheye, ultra-wide, and telephoto lenses.
Figure 4.2: Diagram illustrating the horizontal field of view for the Mobotix B079 (L43) lens with a 6MP sensor. The diagram shows a 45-degree horizontal angle and provides metric and US measurements for image width and height at various distances from the camera position, demonstrating the lens's coverage area.
5. പരിപാലനവും പരിചരണവും
Proper maintenance ensures the longevity and optimal performance of your MX-B079 lens.
- ലെൻസ് വൃത്തിയാക്കൽ: Use a soft, lint-free microfiber cloth specifically designed for optical surfaces. For stubborn smudges, a small amount of lens cleaning solution can be applied to the cloth (not directly to the lens).
- പൊടി നീക്കം: Use a blower brush or compressed air (designed for electronics) to remove dust particles from the lens surface. Avoid wiping dry dust, as it can scratch the lens.
- സംഭരണം: When not in use, store the lens in a clean, dry environment, ideally with lens caps attached to protect the optical surfaces from dust and scratches.
- കഠിനമായ രാസവസ്തുക്കൾ ഒഴിവാക്കുക: Do not use abrasive cleaners, solvents, or strong chemicals on the lens or its housing, as these can damage the coatings or material.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your MX-B079 lens, consider the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Blurry or Out-of-Focus Image | Lens not fully screwed in; dirty lens surface; camera sensor issue. | Ensure lens is securely attached. Clean the lens carefully. Check camera settings or consult camera manual. |
| Dark Spots or Smudges on Image | Dust or dirt on lens surface or camera sensor. | Clean the lens. If spots persist, carefully inspect and clean the camera sensor (refer to camera manual). |
| ചിത്ര വികലമാക്കൽ | Incorrect lens for camera model; software settings. | Verify lens compatibility with your specific Mobotix camera model. Check camera's image correction settings. |
| ചിത്രമില്ല | Lens not installed; camera not powered; cable issue. | Ensure lens is installed correctly. Check camera power and network connections. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡലിൻ്റെ പേര് | MX-B079 |
| നിർമ്മാതാവ് | Mobotix |
| ഫോക്കൽ ലെങ്ത് | 7.9 മി.മീ |
| അപ്പേർച്ചർ | f/1.8 |
| Image Angle (H x V, with 6MP sensor) | 45° x 34° |
| 35 എംഎം തുല്യമായ ഫോക്കൽ ലെങ്ത് | 43 മി.മീ |
| Compatible Cameras/Sensors | Select Mobotix 5/6MP Cameras/Sensors |
| ലെൻസ് തരം | Standard, Fixed Lens |
| ഉൽപ്പന്ന അളവുകൾ | 60 x 60 x 85 cm (approximate, from product data) |
| ഭാരം | 2 kg (approximate, from product data) |
8. വാറൻ്റിയും പിന്തുണയും
Mobotix products are manufactured to high quality standards. For specific warranty terms and conditions, please refer to the warranty information provided with your original camera system or visit the official Mobotix webസൈറ്റ്. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.
For technical support, product inquiries, or service, please contact Mobotix customer support through their official channels. Up-to-date contact information can typically be found on the Mobotix webസൈറ്റ്.
ഓൺലൈൻ ഉറവിടങ്ങൾ: For the latest documentation, firmware updates, and FAQs, please visit the official Mobotix support portal.
