1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Prosport Performance Series 52mm (2 1/16 inch) Electrical Oil Temperature Gauge is designed for accurate monitoring of your vehicle's oil temperature. This gauge features a black face, black bezel, red needle, and white numbers with a 270° LED display for quick and precise readings. It is engineered to be waterproof, rust-proof, and UV protected, ensuring durability in various conditions.
Utilizing precision electric senders, this gauge system keeps hazardous fluids safely out of the passenger compartment. The white LED illumination can be used continuously or activated only at night, providing clear visibility in all lighting conditions.

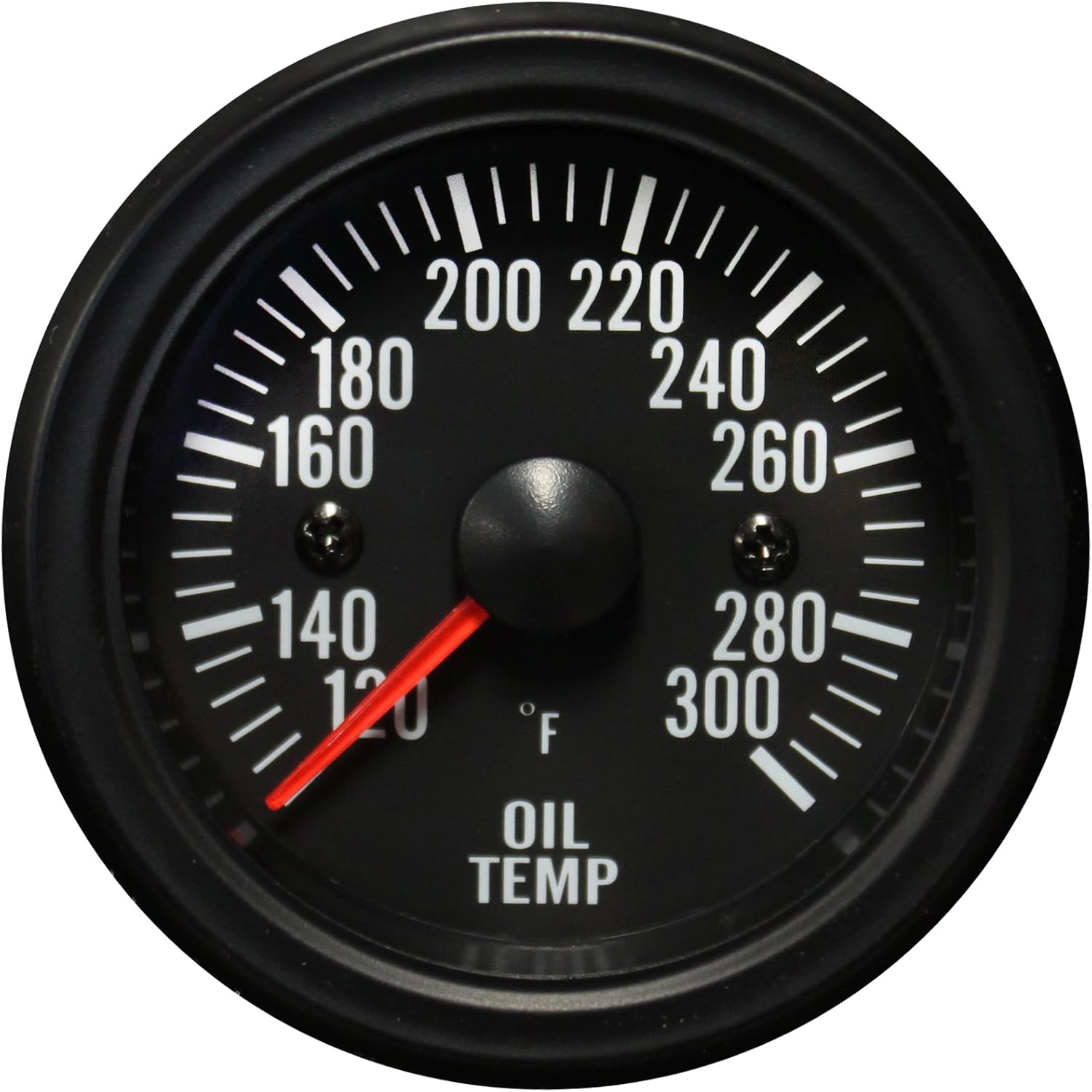

ചിത്രം 1: ഫ്രണ്ട് view of the Prosport 52mm Electrical Oil Temperature Gauge. The gauge features a black face with white numbers ranging from 100°F to 300°F, a red needle, and "OIL TEMP" labeling at the bottom.
2. പാക്കേജ് ഉള്ളടക്കം
താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:
- Prosport 52mm Electrical Oil Temperature Gauge
- Electric Oil Temperature Sender (1/8 inch NPT threads, approximately 1 inch long)
- Twist-on Mounting Ring
- ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
3 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | പ്രോസ്പോർട്ട് |
| മോഡൽ നമ്പർ | PSYOT270-12.F |
| OEM ഭാഗം നമ്പർ | PSTOT270-12 |
| ഗേജ് തരം | Electrical Oil Temperature Gauge |
| ഗേജ് വലുപ്പം | 52 മിമി (2 1/16 ഇഞ്ച്) |
| വാല്യംtage | 12 വോൾട്ട് |
| ഡിസ്പ്ലേ തരം | White LED, 270° Dial Sweep |
| താപനില പരിധി | 100°F - 300°F |
| Sender Thread Size | 1/8 ഇഞ്ച് എൻപിടി |
| ഡ്യൂറബിലിറ്റി സവിശേഷതകൾ | Waterproof, Rust Proof, UV Protection |
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for accurate readings and product longevity. It is recommended that installation be performed by a qualified automotive technician.
4.1. Sender Installation
The electric oil temperature sender has 1/8 inch NPT threads and is approximately one inch long. It should be installed in a location that accurately reflects the oil temperature, such as an oil pan, oil filter sandwich plate, or an oil gallery plug.
- Ensure the engine is cool and depressurized before attempting installation.
- Apply thread sealant to the sender threads to prevent leaks.
- Tighten the sender securely, but do not overtighten to avoid damaging the threads or the sender.
- For easier installation, consider using an oil filter adapter plate (sold separately) if a suitable port is not available.
4.2. Gauge Wiring
The gauge requires a 12-volt power source, a ground connection, and a signal wire from the sender.
- Power (12V Switched): Connect the gauge's positive wire to a switched 12-volt power source that is active when the ignition is on.
- ഗ്രൗണ്ട്: Connect the gauge's ground wire to a clean, chassis ground point.
- Sender Signal: Connect the signal wire from the gauge to the terminal on the oil temperature sender.
- Illumination (Optional): If applicable, connect the illumination wire to a switched 12-volt source (e.g., headlight switch) for night-time lighting, or to a constant 12-volt source if you wish for the LED to be lit all the time.
4.3. Mounting the Gauge
The gauge is designed for a 52mm (2 1/16 inch) mounting hole. Use the included twist-on mounting ring to secure the gauge in place.
- Carefully insert the gauge into the dashboard or gauge pod opening.
- Thread the twist-on mounting ring onto the back of the gauge and tighten it until the gauge is secure.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once properly installed and wired, the Prosport Electrical Oil Temperature Gauge will display the oil temperature in Fahrenheit. The 270° dial sweep provides a wide range for precise readings.
- Upon vehicle ignition, the gauge will power on and the needle will sweep to indicate the current oil temperature.
- The white LED illumination can be configured to operate only when vehicle lights are on (for night driving) or to remain lit continuously, depending on how the illumination wire was connected during installation.
- Monitor the gauge regularly to ensure oil temperature remains within safe operating parameters for your vehicle.
6. പരിപാലനം
The Prosport Oil Temperature Gauge is designed for minimal maintenance due to its durable construction, including waterproof, rust-proof, and UV protection features.
- വൃത്തിയാക്കൽ: Wipe the gauge face with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the lens or bezel.
- കണക്ഷൻ പരിശോധന: Periodically inspect all electrical connections to ensure they are secure and free from corrosion.
- Sender Check: Ensure the oil temperature sender remains securely installed and free of leaks.
7. പ്രശ്നപരിഹാരം
If you experience issues with your Prosport Oil Temperature Gauge, refer to the following common troubleshooting steps:
- Gauge Not Powering On / No Display:
- Check the 12V power connection for proper voltage.
- ഗ്രൗണ്ട് കണക്ഷൻ സുരക്ഷിതവും വൃത്തിയുള്ളതുമാണെന്ന് ഉറപ്പാക്കുക.
- Inspect the fuse in the circuit, if applicable.
- Incorrect or Erratic Readings:
- Ensure the sender wire is securely connected at both the gauge and the sender.
- Check for any damage to the sender wire insulation.
- Verify the sender is properly installed and making good contact with the oil.
- Ensure the sender is the correct type for this gauge.
- Needle Stuck or Not Moving:
- Confirm the gauge is receiving power and ground.
- Check the sender connection.
- If the engine is cold, the reading should be low. Allow the engine to warm up to see a change.
For further assistance, please contact Prosport technical support.
8. വാറൻ്റിയും പിന്തുണയും
This Prosport Electrical Oil Temperature Gauge comes with a ഒരു വർഷത്തെ വാറൻ്റി വാങ്ങിയ തീയതി മുതൽ, മെറ്റീരിയലുകളിലെയും ജോലിയിലെയും പോരായ്മകൾ ഉൾക്കൊള്ളുന്നു.
For technical support, installation questions, or warranty claims, please contact Prosport directly:
- ഫോൺ: 727-572-9011
- നിർമ്മാതാവ്: Prosport Gauges Inc.
- ബ്രാൻഡ് സ്റ്റോർ: Visit the PROSPORT Store on Amazon
Please have your model number and purchase information ready when contacting support.
