AXA Solid Plus Fixed Square Wide 5

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The AXA Solid Plus is a high-quality bicycle frame lock designed to provide optimal security for your bike. It features an extra-wide opening to accommodate various tire sizes and fenders, an anti-drilling cylinder, and a hardened steel bracket for enhanced protection. This lock also offers the convenience of linking a plug-in cable or chain, allowing you to secure your bicycle to a fixed object.

The ergonomic design of the push button ensures ease of use, and the online key service provides additional comfort and support for key management.

Image: The AXA Solid Plus frame lock shown with its accompanying plug-in cable and keys. The lock is black with the AXA logo and 'Solid Plus' branding visible. The cable is coiled and also black.

2 ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ

• 1 x AXA Solid Plus Frame Lock
• 1 x Plug-in Cable (Newton PI 150)
• 2 x കീകൾ
• Flexible Fixing Set (for mounting)

Image: The AXA Solid Plus frame lock and the Newton PI 150 plug-in cable displayed together on their retail packaging, highlighting the product's components.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The AXA Solid Plus lock can be mounted in several ways to suit various bicycle frames. Choose the method that best fits your bike.

മൗണ്ടിംഗ് രീതികൾ:

1. Method 1: Flexible Fixing Set

   This is the standard mounting procedure and is suitable for a wide variety of frame shapes. Use the provided flexible fixing set to attach the lock securely to your bicycle's frame.
2. Method 2: Standard Frame Mounting

   If your bicycle frame has pre-drilled holes in the seatstay specifically designed for a ring lock, you can mount the AXA Solid Plus directly using these holes. Ensure proper alignment and secure fastening.

3. Method 3: Cantilever Brake Mounting

   For bicycles with cantilever brakes, an additional mounting plate (not included) may be required to attach the ring lock. Consult a bicycle mechanic if you are unsure about this method.

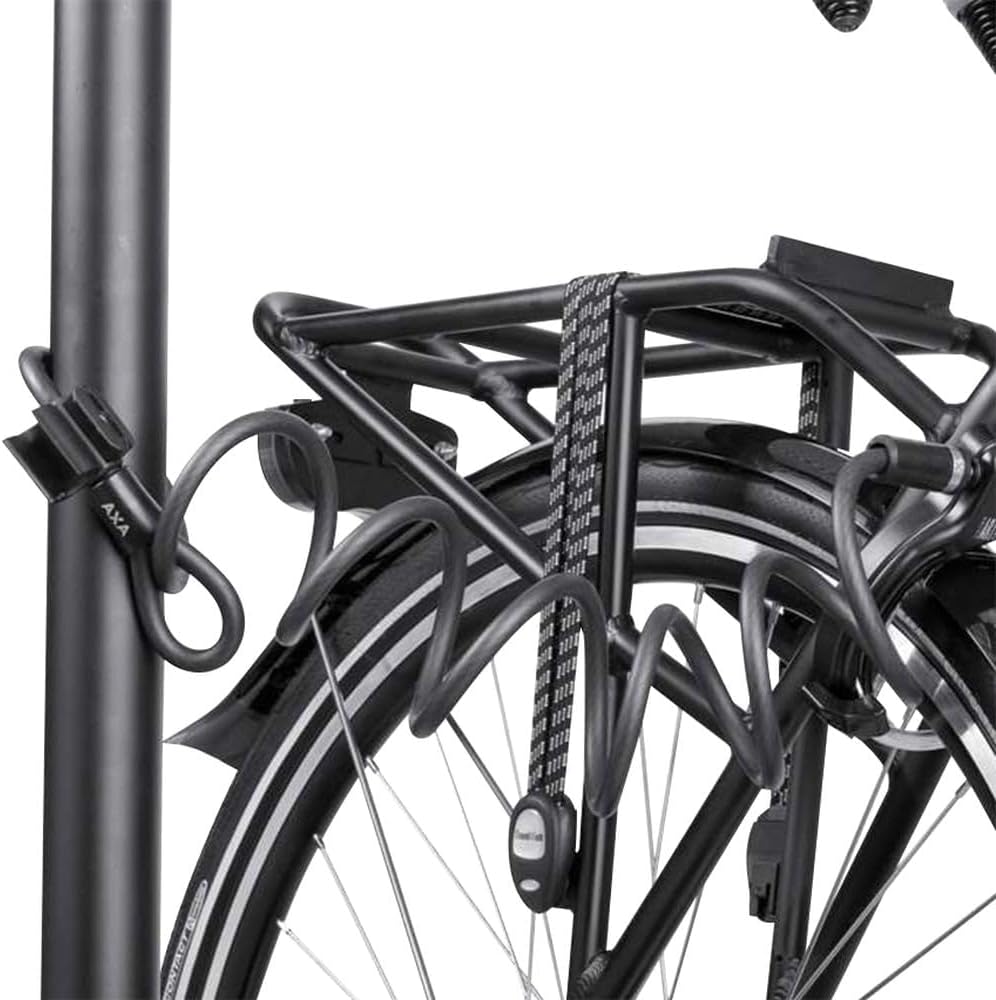

Image: The AXA Solid Plus lock is shown installed on the rear wheel of a bicycle. The plug-in cable extends from the lock to secure the bicycle to a nearby pole, demonstrating a common use case.

4. ഓപ്പറേഷൻ

നിങ്ങളുടെ സൈക്കിൾ ലോക്കുചെയ്യുന്നു:

1. Ensure the lock is properly mounted on your bicycle frame.
2. ലോക്ക് സിലിണ്ടറിലേക്ക് കീ ചേർക്കുക.
3. Push the ergonomic button to engage the locking mechanism, securing the rear wheel.
4. Remove the key. Your bicycle's rear wheel is now immobilized.

Using the Plug-in Cable/Chain:

For added security, the AXA Solid Plus allows you to connect a plug-in cable or chain (such as the included Newton PI 150 cable) to secure your bike to a fixed object like a lamppost or bike rack.

1. With the frame lock engaged, locate the plug-in port on the side of the AXA Solid Plus lock.
2. Insert the pin of the plug-in cable or chain into this port.
3. Wrap the cable/chain around a fixed object and then back to the lock, ensuring it passes through a part of your bicycle frame or wheel.
4. The plug-in cable/chain will be secured by the main lock mechanism.

Unlocking Your Bicycle:

1. ലോക്ക് സിലിണ്ടറിലേക്ക് കീ ചേർക്കുക.
2. Turn the key to disengage the locking mechanism. The lock will open, and any connected plug-in cable/chain will be released.
3. കീ നീക്കം ചെയ്യുക.

Online Key Service:

AXA offers an online key service for convenience. In case you lose your keys or need duplicates, you can utilize this service. Ensure you have noted the key number, which is typically found on the key itself, not the lock.

5. പരിപാലനം

Proper maintenance will ensure the longevity and smooth operation of your AXA Solid Plus lock.

• വൃത്തിയാക്കൽ: Periodically wipe down the lock body with a damp cloth to remove dirt and grime. Avoid harsh chemicals that could damage the finish.
• ലൂബ്രിക്കേഷൻ: The lock mechanism benefits from occasional lubrication. Use a high-quality, long-lasting grease or a specialized lock lubricant. Avoid thin lubricating oils, as they may not provide adequate protection or may attract dirt. Apply lubricant sparingly to the keyhole and moving parts of the shackle.
• പ്രധാന പരിചരണം: Keep your keys clean and free of debris. Avoid forcing the key if it feels stiff.
• സംഭരണം: When not in use for extended periods, store your bicycle in a dry environment to prevent corrosion, especially if the lock is exposed to moisture.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your AXA Solid Plus lock, consider the following common solutions:

• Stiff Key or Mechanism: If the key is difficult to insert or turn, or the lock mechanism feels stiff, apply a small amount of lock lubricant into the keyhole and work the key in and out several times. Ensure the key is fully inserted before attempting to turn it.
• ലോക്ക് ഇടപഴകുന്നില്ല/വിച്ഛേദിക്കുന്നു: Check for any obstructions around the shackle or within the mechanism. Ensure the lock is clean and properly lubricated. If the issue persists, verify that the lock is correctly mounted and not misaligned.
• നഷ്ടപ്പെട്ട താക്കോലുകൾ: Utilize the AXA online key service. You will need the key number to order replacements. It is advisable to record your key number in a safe place immediately after purchase.

For persistent issues not resolved by these steps, contact AXA customer support.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

വാറൻ്റി:

AXA Bike Security products, including the Solid Plus lock, come with a 10 വർഷത്തെ ഗ്യാരണ്ടി. This guarantee reflects AXA's commitment to quality and durability, utilizing European components and controlled hardening processes for greater resistance and consistency.

ഉപഭോക്തൃ പിന്തുണ:

For further assistance, technical inquiries, or warranty claims, please refer to the official AXA Bike Security website or contact their customer service department. Ensure you have your product model name and number readily available when seeking support.

Note: Always keep your key number in a safe and separate location from your keys for future reference, especially for key replacement services.
