1. ആമുഖം
This manual provides essential information for the safe and effective use of your Front Runner 67L (17.7 Gallon) Water Tank. Designed for versatile water storage, this tank is suitable for various applications including showering, drinking, and cooking during outdoor adventures or RV travel. Please read these instructions thoroughly before installation and operation.
2 പ്രധാന സവിശേഷതകൾ
- Universal Capacity: A 67L (17.7 gallon) water tank suitable for various uses.
- മൗണ്ടിംഗ് വൈദഗ്ധ്യം: Designed to mount to the Front Runner Slimline II Roof Rack or any flat, secure surface.
- Secure Tie-Down: Features molded slots along the sides of the tank to accommodate tie-down straps for stable transport.
- Hose Kit Ready: Includes a plastic pipe fitting to facilitate the connection of a hose kit for easy dispensing.
- ഫുഡ്-ഗ്രേഡ് മെറ്റീരിയൽ: Constructed from food-grade polyethylene and is BPA-free, ensuring safe storage of potable water.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation is crucial for the safe and reliable operation of your water tank. Ensure the tank is securely mounted before filling or transport.
3.1 അൺപാക്കിംഗ്
Carefully remove the water tank from its packaging. Inspect for any signs of damage. The package should include the water tank itself.
3.2 ടാങ്ക് സ്ഥാപിക്കൽ
The tank can be mounted on a Front Runner Slimline II Roof Rack or any other suitable flat surface. Utilize the molded slots on the tank's sides with appropriate tie-down straps (not included) to secure it firmly. Ensure the mounting location can support the weight of the tank when full (approximately 67 kg / 147 lbs).

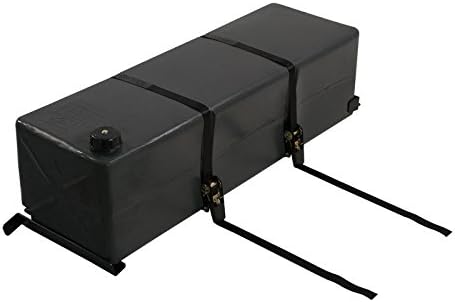

Image: Front Runner 67L Water Tank securely mounted with tie-down straps, demonstrating a typical installation on a vehicle's roof rack.
3.3 Connecting a Hose Kit
The tank is equipped with a plastic pipe fitting. Connect a compatible hose kit (not included) to this fitting for convenient water dispensing. Ensure all connections are tight to prevent leaks.
ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the plastic pipe fitting on the water tank, where a hose kit can be attached for water access.
4. ഓപ്പറേഷൻ
4.1 ടാങ്ക് നിറയ്ക്കൽ
Unscrew the large cap on the top of the tank. Fill the tank with potable water. Ensure the cap is securely tightened after filling to prevent spills and contamination.
Image: The top of the water tank showing the large fill cap in an open position, ready for water input.
4.2 വെള്ളം വിതരണം ചെയ്യൽ
Once a hose kit with a tap is connected to the plastic fitting, open the tap to dispense water. Close the tap firmly after use to prevent leakage.
Video: This video demonstrates various water storage solutions by Front Runner, including the general process of dispensing water from a tank, which is applicable to the 67L Water Tank.
5. പരിപാലനം
5.1 വൃത്തിയാക്കൽ
Regularly clean the interior of the tank, especially if storing potable water. Use a mild, food-safe cleaning solution and rinse thoroughly with clean water. Ensure no residue remains before refilling.
5.2 സംഭരണം
When not in use, drain the tank completely and store it in a cool, dry place away from direct sunlight. Ensure the cap is securely closed to prevent dust and debris from entering.
5.3 പരിശോധന
Periodically inspect the tank for any cracks, damage, or wear on the plastic pipe fitting and cap. Replace any damaged components immediately to maintain water integrity.
6. പ്രശ്നപരിഹാരം
- Leakage from Cap/Fittings: Ensure the cap is tightly screwed on. Check the plastic pipe fitting for proper installation and tightness. If a hose kit is attached, verify its connections are secure.
- മന്ദഗതിയിലുള്ള ജലപ്രവാഹം: Check if the tap on your hose kit is fully open. Ensure there are no kinks or blockages in the hose.
- Water Contamination: Always use potable water for filling. Ensure the tank is regularly cleaned and stored properly to prevent algae or bacterial growth.
7 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | മൂല്യം |
|---|---|
| ബ്രാൻഡ് | ഫ്രണ്ട് റണ്ണർ |
| മോഡൽ നമ്പർ | WTAN023 |
| നിറം | കറുപ്പ് |
| മെറ്റീരിയൽ | Tank: BPA-free polyethylene, Fittings: Plastic |
| ശേഷി | 67 ലിറ്റർ (17.7 ഗാലൺ) |
| ഇനത്തിൻ്റെ ഭാരം | 6.8 കിലോഗ്രാം (14.99 പൗണ്ട്) |
| സ്പെസിഫിക്കേഷൻ മെറ്റ് | ഫുഡ് ആൻഡ് ഡ്രഗ് അഡ്മിനിസ്ട്രേഷൻ |
| ആകൃതി | ദീർഘചതുരം |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | വാട്ടർ ടാങ്ക് |
Image: Technical drawing illustrating the dimensions and overall shape of the Front Runner 67L Water Tank.
8. വാറൻ്റിയും പിന്തുണയും
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or further inquiries, please visit the official Front Runner webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുക.
