PRO ELEC PELB1703 6-Way Surge Protected Extension Lead User Manual

ആമുഖം

Thank you for choosing the PRO ELEC PELB1703 6-Way Surge Protected Extension Lead. This manual provides essential information for the safe and efficient use of your new extension lead. Please read these instructions carefully before use and retain them for future reference.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

വൈദ്യുതാഘാതം, തീപിടുത്തം അല്ലെങ്കിൽ പരിക്ക് എന്നിവയുടെ അപകടസാധ്യത കുറയ്ക്കുന്നതിന്, എല്ലായ്പ്പോഴും ഈ അടിസ്ഥാന സുരക്ഷാ മുൻകരുതലുകൾ പാലിക്കുക:

• Do not exceed the maximum load: The total current draw of all connected appliances must not exceed 13 Amps. Overloading can cause overheating and fire.
• ഇൻഡോർ ഉപയോഗം മാത്രം: This extension lead is designed for indoor use in dry conditions. Do not use it outdoors or in damp/ ആർദ്ര ചുറ്റുപാടുകൾ.
• Uncoil fully: Always uncoil the extension lead completely before use to prevent overheating.
• കേടുപാടുകൾ ഒഴിവാക്കുക: Do not use if the cable or plug is damaged. Do not run the cable under carpets or rugs, or place heavy objects on it.
• കുട്ടികളിൽ നിന്ന് അകന്നു നിൽക്കുക: Store the extension lead out of reach of children.
• Do not dismantle: Do not attempt to open or modify the extension lead. There are no user-serviceable parts inside.
• Proper insertion: Ensure plugs are fully inserted into the sockets.
• ഗ്രൗണ്ടിംഗ്: This product is designed for use with grounded (earthed) outlets.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The PRO ELEC PELB1703 is a 6-way extension lead featuring surge protection to safeguard your electronic devices from power surges and spikes. It includes an integrated neon indicator to show the status of the surge protection.

ഫീച്ചറുകൾ:

• 6 UK Type G outlets
• സംയോജിത സർജ് സംരക്ഷണം
• Neon surge protection indicator
• 5-meter cable length
• 13 Amp റേറ്റുചെയ്തത്
• മതിൽ കയറാവുന്ന ഡിസൈൻ
• Compliant with BS 1363/A standards

ഘടകങ്ങൾ:

1. Extension Lead Unit with 6 sockets
2. Integrated 5-meter power cable
3. Molded 3-pin UK Type G plug
4. Surge Protected Indicator (Green Neon)

ചിത്രം 1: മുൻഭാഗം view of the PRO ELEC PELB1703 extension lead, highlighting its 6 outlets, 5m lead length, surge protection, neon indicator, wall mountable feature, and 13A maximum load.

സജ്ജമാക്കുക

1. അൺപാക്ക്: Carefully remove the extension lead from its packaging. Inspect it for any signs of damage. Do not use if damaged.
2. കേബിൾ അൺകോയിൽ ചെയ്യുക: Fully uncoil the 5-meter power cable before plugging it into a wall socket. This prevents heat buildup.
3. പവറിലേക്ക് ബന്ധിപ്പിക്കുക: Insert the 3-pin UK Type G plug firmly into a standard wall power socket.
4. സർജ് സംരക്ഷണം പരിശോധിക്കുക: Once plugged in, the green neon indicator on the extension lead should illuminate, confirming that the surge protection is active.
5. ഉപകരണങ്ങൾ ബന്ധിപ്പിക്കുക: Plug your electronic devices into the 6 available outlets on the extension lead. Ensure each plug is fully inserted.
6. വാൾ മൗണ്ടിംഗ് (ഓപ്ഷണൽ): The extension lead features keyhole slots on the back for wall mounting. Use appropriate screws and wall plugs (not supplied) to securely mount the unit to a suitable surface.

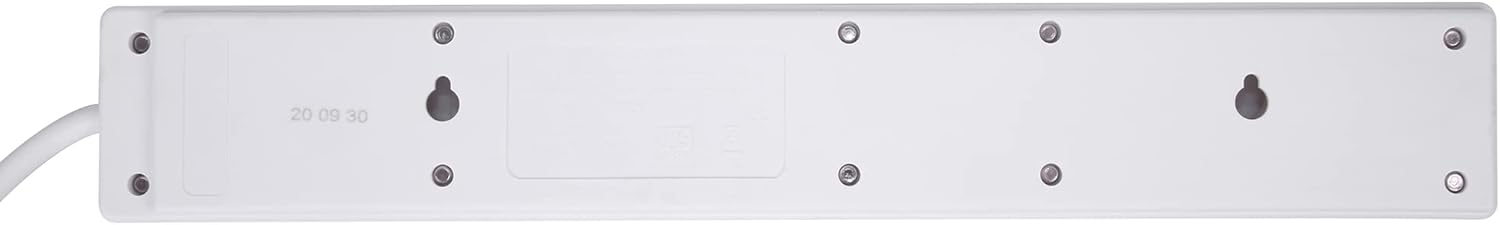

ചിത്രം 2: പിൻഭാഗം view of the extension lead, showing the keyhole slots for optional wall mounting.

Image 3: The extension lead in a typical usage scenario, providing power to a laptop and other electronic devices.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Using the PRO ELEC PELB1703 is straightforward:

• പവർ ചെയ്യുന്ന ഉപകരണങ്ങൾ: Once the extension lead is plugged into a wall socket and the green neon indicator is lit, you can plug up to six electrical appliances into its outlets.
• സർജ് പ്രൊട്ടക്ഷൻ ഇൻഡിക്കേറ്റർ: The green neon light indicates that the surge protection circuitry is active and functioning. If this light goes out, it means the surge protection has been activated by a power surge and is no longer providing protection. The extension lead may still provide power, but without surge protection. In this case, it is recommended to replace the unit.
• പരമാവധി ലോഡ്: Ensure the total power consumption of all connected devices does not exceed 13 Amps (approximately 3120 Watts at 240V). Refer to the power ratings of your appliances.

ചിത്രം 4: ഒരു ക്ലോസപ്പ് view of the green neon 'SURGE PROTECTED' indicator, which illuminates when the surge protection is active.

മെയിൻ്റനൻസ്

Regular maintenance ensures the longevity and safe operation of your extension lead:

• വൃത്തിയാക്കൽ: Disconnect the extension lead from the wall socket before cleaning. Wipe the unit with a dry, soft cloth. Do not use liquid cleaners or abrasive materials.
• പരിശോധന: Periodically inspect the cable, plug, and housing for any signs of damage, fraying, cracks, or discoloration. If any damage is found, discontinue use immediately and replace the unit.
• സംഭരണം: When not in use, store the extension lead in a dry, cool place, away from direct sunlight and moisture. Avoid tightly coiling the cable.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

Specific warranty information for the PRO ELEC PELB1703 is not provided in the product details. For warranty claims or technical support, please refer to the retailer where the product was purchased or contact PRO ELEC directly through their official webസൈറ്റ് അല്ലെങ്കിൽ ഉപഭോക്തൃ സേവന ചാനലുകൾ.

സ്പെയർ പാർട്സ് ലഭ്യത സംബന്ധിച്ച വിവരങ്ങൾ നൽകിയിട്ടില്ല.
