ബ്യൂട്ടിറെസ്റ്റ് 3M സ്കോച്ച്ഗാർഡ് ചൂടാക്കിയ മെത്ത പാഡ് - ക്വീൻ സൈസ് ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the safe and effective use of your Beautyrest 3M Scotchgard Heated Mattress Pad. Please read all instructions carefully before operation and retain this manual for future reference. This heated mattress pad is designed to provide customizable warmth and comfort, featuring advanced safety technology and easy maintenance.

2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Your safety is paramount. This product is UL certified and independently tested to meet the highest safety standards. It features Secure Comfort technology, designed to virtually eliminate Electromagnetic Field (EMF) emissions, and includes overheating protection.

പൊതു സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ:

• ശിശുക്കൾ, വികലാംഗർ, അല്ലെങ്കിൽ ചൂടിനോട് സംവേദനക്ഷമതയില്ലാത്ത ആരുടെയെങ്കിലും കാര്യത്തിൽ ഉപയോഗിക്കരുത്.
• Do not use with damaged cords or controls.
• Ensure the mattress pad is laid flat and not bunched or pinched during use.
• Do not cover the controller when in use to avoid overheating.
• ഉപയോഗത്തിലില്ലാത്തപ്പോൾ ഉൽപ്പന്നം അൺപ്ലഗ് ചെയ്യുക.
• Keep pets away from the product to prevent damage.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x Beautyrest 3M Scotchgard Heated Mattress Pad (Queen Size)
• 2 x Digital Controllers (for Queen size)
• 2 x Power Cords (attached to controllers)
• 1 x ഇൻസ്ട്രക്ഷൻ മാനുവൽ

4. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

4.1. Mattress Pad Placement

Place the heated mattress pad directly on your mattress. The fitted skirt with all-around elastic is designed to accommodate mattresses up to 18 inches thick, ensuring a secure and snug fit. Ensure the pad is spread flat and smooth across the mattress surface, avoiding any wrinkles or folds.

4.2. Controller Connection

For Queen, King, and Cal King sizes, two controllers are provided for dual-zone temperature control. Locate the connector ports on the mattress pad, typically positioned at the foot end. Firmly plug each controller's cord into its respective port on the mattress pad. Ensure a secure connection.

4.3. പവർ കണക്ഷൻ

Plug the power cord from each controller into a standard 110V-120V AC wall outlet. The controller cord is 12 feet long, and the power cord is 6 feet long, providing ample reach. Ensure the outlet is easily accessible and not obstructed. The mattress pad is compatible with smart home outlets and automatic timers.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. പവർ ഓൺ/ഓഫ്

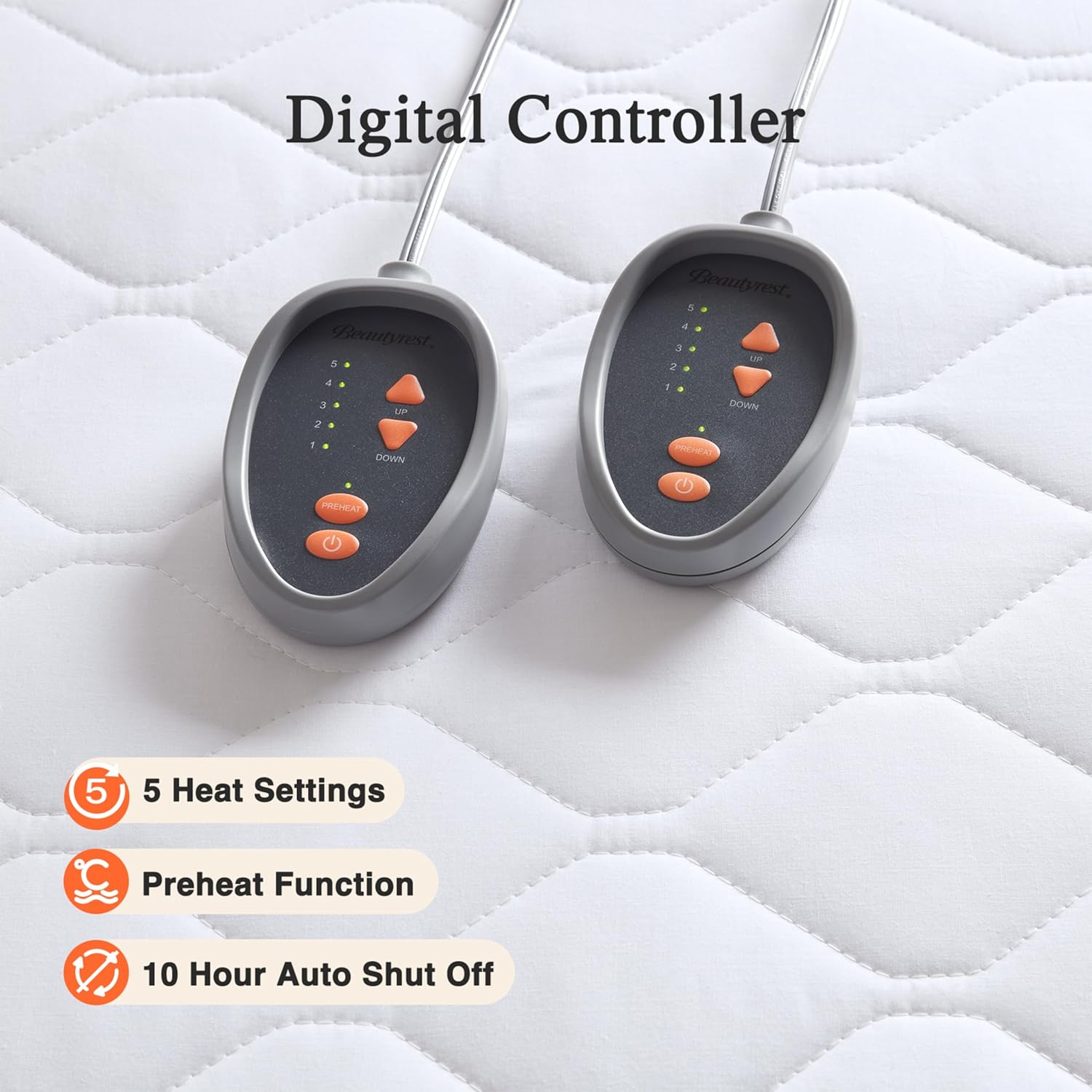

Press the power button on the controller to turn the mattress pad on or off. The digital display will illuminate to show the current settings.

5.2. ചൂട് ക്രമീകരണങ്ങൾ ക്രമീകരിക്കൽ

Use the 'UP' and 'DOWN' arrow buttons on the controller to select your desired heat level. There are 5 heat settings available, from low to high. The selected heat level will be displayed on the screen.

5.3. Using the Pre-Heat Function

Press the 'PRE-HEAT' button to quickly warm up your bed. This feature provides a 1-hour boost to rapidly reach your desired temperature before settling into your chosen heat setting.

5.4. Setting the Auto Shut-Off Timer

The mattress pad features a 10-hour auto shut-off timer for safety and energy conservation. This timer is pre-set and will automatically turn off the heating elements after 10 hours of continuous operation.

5.5. Dual Zone Temperature Control (Queen Size)

As your Queen size mattress pad comes with two controllers, each side of the bed can be independently adjusted for heat settings. This allows you and your partner to customize your individual comfort levels without affecting the other side.

6. പരിപാലനവും പരിചരണവും

6.1. ക്ലീനിംഗ് നിർദ്ദേശങ്ങൾ

The Beautyrest Heated Mattress Pad is machine washable for easy care. Always detach the controllers and power cords from the mattress pad before washing. The 3M Scotchgard treatment helps stains release easily in the wash.

• കഴുകൽ: Machine wash in cold water on a gentle cycle. Do not bleach.
• ഉണക്കൽ: Tumble dry on low heat. Ensure the mattress pad is completely dry before reattaching controllers and using. Do not iron.

7. പ്രശ്‌നപരിഹാരം

7.1. Controller Light Blinking

If an ERROR is detected, the controller display will show an 'E' followed by a number, and the power to the heating element will not be turned on. If you encounter this 'ERROR' condition, refer to the detailed troubleshooting section in your full manual or contact customer support.

7.2. Uneven Heating

Uneven heating is normally caused by one area of the heating element being bunched or pinched. First, ensure that the heated mattress pad is laid flat and not tucked in, bunched, and does not have anything heavy on it. Lay the heated mattress pad flat and run your fingers along the wire, paying special attention to the top and bottom of the heated mattress pad where the wire bends. If any portion of the wire is twisted on itself, manually twist it back.

7.3. Controller Feels Warm

It is normal for the control to feel warm (not hot) to the touch when functioning properly. Even when the controller is on, small amounts of electricity will cycle through it, which may make the controller warm. If the controller gets hot to the touch, please discontinue use and contact customer service immediately.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

This Beautyrest Heated Mattress Pad is backed by a manufacturer's 5-year warranty. For warranty claims, technical support, or any product-related inquiries, please contact Beautyrest customer service. Refer to the product packaging or the official Beautyrest webബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങൾക്കുള്ള സൈറ്റ്.
