ZALMAN CNPS80G Rev.1 CPU Cooler User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The ZALMAN CNPS80G Rev.1 is a compact CPU cooler designed for efficient heat dissipation in various computer systems. It features an 85mm fan and an aluminum heatsink, providing cooling for both Intel and AMD processors. This manual provides detailed instructions for installation, operation, and maintenance.

• ഫാൻ വലിപ്പം: 85 മി.മീ
• ഫാൻ വേഗത: 1000 - 2000 RPM (PWM നിയന്ത്രിതം)
• ഫാൻ എയർഫ്ലോ: 27.18 CFM
• സോക്കറ്റ് അനുയോജ്യത:
  • Intel: LGA115X / 775 / LGA1200
  • AMD: AM4 / AM3+ / AM3
• മെറ്റീരിയൽ: Pure Aluminum heatsink

Figure 1: ZALMAN CNPS80G Rev.1 CPU Cooler. This image displays the cooler from a top-down perspective, highlighting its fan and aluminum fin structure.

2. പാക്കേജ് ഉള്ളടക്കം

Before proceeding with installation, verify that all components are present in the package:

• ZALMAN CNPS80G Rev.1 CPU Cooler (with pre-attached fan)
• Intel Clip Support
• Intel Push-Pin Fasteners
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
• Thermal Grease (ZM-STG2M)

Figure 2: Included components. This image shows the cooler, its packaging, Intel mounting hardware, thermal grease, and the instruction manual.

3. ഇൻസ്റ്റാളേഷൻ ഗൈഡ്

This section details the installation process for the ZALMAN CNPS80G Rev.1 CPU Cooler. Ensure your system is powered off and disconnected from the power source before beginning installation.

3.1. Prepare the CPU and Motherboard

1. Ensure your CPU is correctly seated in its socket on the motherboard.
2. Clean the surface of the CPU and the cooler's base plate with isopropyl alcohol to remove any dust or old thermal paste.
3. Apply a small amount of the provided thermal grease (ZM-STG2M) to the center of the CPU's integrated heat spreader (IHS). A pea-sized dot is generally sufficient. Do not spread the paste; the pressure from the cooler will distribute it evenly.

3.2. Mounting the Cooler (Intel Sockets: LGA115X / 775 / LGA1200)

1. Attach the Intel Clip Support to the cooler's base if not already pre-installed.
2. Align the four push-pins on the cooler's mounting bracket with the four mounting holes around the CPU socket on the motherboard.
3. Press down firmly on each push-pin in a diagonal pattern (e.g., top-left, bottom-right, top-right, bottom-left) until you hear a click, indicating they are securely fastened.
4. Gently tug on the cooler to ensure it is securely attached and does not wobble.

3.3. Mounting the Cooler (AMD Sockets: AM4 / AM3+ / AM3)

The ZALMAN CNPS80G Rev.1 utilizes a clip-based mounting system for AMD sockets. Ensure the motherboard's original AMD retention brackets are in place.

1. Hook one side of the cooler's retention clip onto the corresponding tab of the AMD retention bracket on the motherboard.
2. Apply gentle downward pressure on the opposite side of the cooler while pushing the lever down to secure the second clip onto the other tab of the AMD retention bracket.
3. Ensure the cooler is firmly seated and does not move freely.

Figure 3: Socket Compatibility. This image illustrates the cooler and lists compatible Intel (LGA1200/115X/775) and AMD (AM4/AM3+/AM3) sockets.

Figure 4: Cooler with 4-pin fan connector. This image shows the cooler with its attached 4-pin PWM fan cable, ready for connection to the motherboard.

3.4. Connect the Fan Cable

Locate the "CPU_FAN" header on your motherboard. Connect the cooler's 4-pin fan cable to this header. Ensure the connector is oriented correctly.

4. ഓപ്പറേഷൻ

The ZALMAN CNPS80G Rev.1 CPU Cooler operates automatically once installed and connected. The 4-pin PWM (Pulse Width Modulation) fan adjusts its speed based on the CPU temperature, as controlled by your motherboard's BIOS/UEFI settings or operating system software.

• Automatic Speed Control: The fan speed will increase under higher CPU loads and decrease during idle periods to maintain optimal temperature and minimize noise.
• ശബ്ദ നില: The fan is designed for quiet operation, with a maximum noise level of 25.3 Decibels at full speed.

Figure 5: Optimized Cooling Solution. This image highlights the cooler's design for efficient heat dissipation and the benefits of its ultra-quiet 85mm PWM fan, which adjusts RPM based on CPU temperature for high performance and low noise.

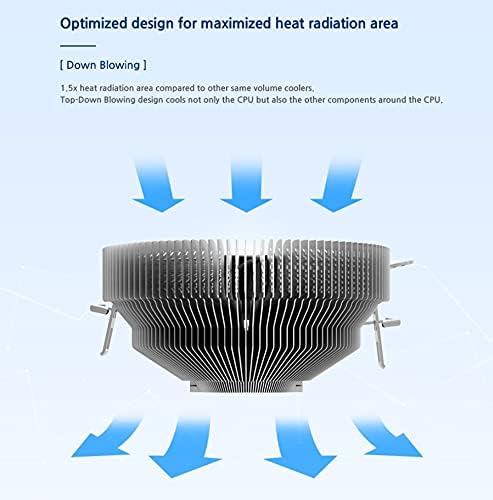

Figure 6: Optimized Heat Radiation. This diagram illustrates the down-blowing design of the cooler, which not only cools the CPU but also provides airflow to surrounding motherboard components, maximizing heat radiation area.

5. പരിപാലനം

Regular maintenance ensures optimal performance and longevity of your CPU cooler.

• പൊടി നീക്കം: Periodically inspect the heatsink fins and fan blades for dust accumulation. Use compressed air or a soft brush to gently remove dust. Ensure the fan is held stationary when using compressed air to prevent over-spinning and potential damage.
• തെർമൽ പേസ്റ്റ് ആവർത്തന പ്രയോഗം: ഏതെങ്കിലും കാരണത്താൽ കൂളർ നീക്കം ചെയ്യുകയാണെങ്കിൽ, വീണ്ടും ഇൻസ്റ്റാൾ ചെയ്യുന്നതിന് മുമ്പ് സിപിയുവിൽ നിന്നും കൂളറിന്റെ ബേസിൽ നിന്നും പഴയ തെർമൽ പേസ്റ്റ് വൃത്തിയാക്കി പുതിയ തെർമൽ പേസ്റ്റ് പുരട്ടാൻ ശുപാർശ ചെയ്യുന്നു.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your ZALMAN CNPS80G Rev.1 CPU Cooler, refer to the following common problems and solutions:

• ഉയർന്ന സിപിയു താപനിലകൾ:
  • Ensure the cooler is securely mounted and making proper contact with the CPU.
  • Verify that thermal paste was applied correctly and evenly.
  • Check if the fan is spinning. If not, ensure the fan cable is properly connected to the "CPU_FAN" header.
  • Clean any dust accumulation from the heatsink fins and fan blades.
  • Confirm that your motherboard's BIOS/UEFI settings are configured to control the CPU fan speed based on temperature.
• ഫാൻ കറങ്ങുന്നില്ല:
  • Check the 4-pin fan cable connection to the "CPU_FAN" header on the motherboard.
  • സിസ്റ്റം പവർ ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
  • In some low-load scenarios, PWM fans may spin at very low RPM or temporarily stop if the CPU temperature is extremely low. Monitor CPU temperature to confirm.
• അമിതമായ ശബ്ദം:
  • Check for any cables or obstructions interfering with the fan blades.
  • Ensure the fan is securely mounted and not vibrating against other components.
  • Dust accumulation can cause imbalance and noise; clean the fan.
  • Verify fan speed settings in BIOS/UEFI. If set to run at maximum speed constantly, it will be louder.

7 സ്പെസിഫിക്കേഷനുകൾ

Figure 7: Compact Size Diagram. This image provides dimensional specifications, showing the cooler's height of 50mm and overall dimensions, emphasizing its compact design for various system builds.

8. വാറൻ്റിയും പിന്തുണയും

ZALMAN products are manufactured under strict quality control standards. For specific warranty terms and conditions, please refer to the warranty information provided with your purchase or visit the official ZALMAN webസൈറ്റ്.

For technical support, troubleshooting assistance beyond this manual, or inquiries regarding product parts, please contact ZALMAN customer service through their official webഉൽപ്പന്നം വാങ്ങിയ സൈറ്റ് അല്ലെങ്കിൽ റീട്ടെയിലർ.

Official ZALMAN Webസൈറ്റ്: www.zalman.com
