Taurus D1000 Discone Antenna User Manual

1. ആമുഖം

This manual provides essential information for the proper installation, operation, and maintenance of your Taurus D1000 Discone Antenna. The D1000 is a wide-band base antenna designed for reception across 25-1300 MHz and transmit capabilities on specific amateur bands including 144, 220, 440, 900, and 1290 MHz. Constructed from rust-free stainless steel, it offers durability and reliable performance.

2 സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety during installation and operation. Improper installation can lead to serious injury or property damage. Consult a qualified professional if you are unsure about any step.

• Avoid Power Lines: Never install the antenna near power lines. Contact with power lines can be fatal.
• സ്ഥിരതയുള്ള മൗണ്ടിംഗ്: Ensure the antenna is securely mounted to a sturdy mast or structure capable of withstanding wind and environmental conditions.
• ഗ്രൗണ്ടിംഗ്: Properly ground the antenna and mast to protect against lightning strikes and static discharge.
• കാലാവസ്ഥാ സാഹചര്യങ്ങൾ: Avoid installation during adverse weather conditions such as strong winds, rain, or lightning.
• ടൂൾ സുരക്ഷ: Use appropriate tools and safety gear, including gloves and eye protection.

3. പാക്കേജ് ഉള്ളടക്കം

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.

• Antenna main body (center hub)
• Upper radial elements (shorter rods)
• Lower radial elements (longer rods)
• Vertical element frequency extender
• Mounting hardware (U-bolts, nuts, washers)
• Hex key (Allen wrench)

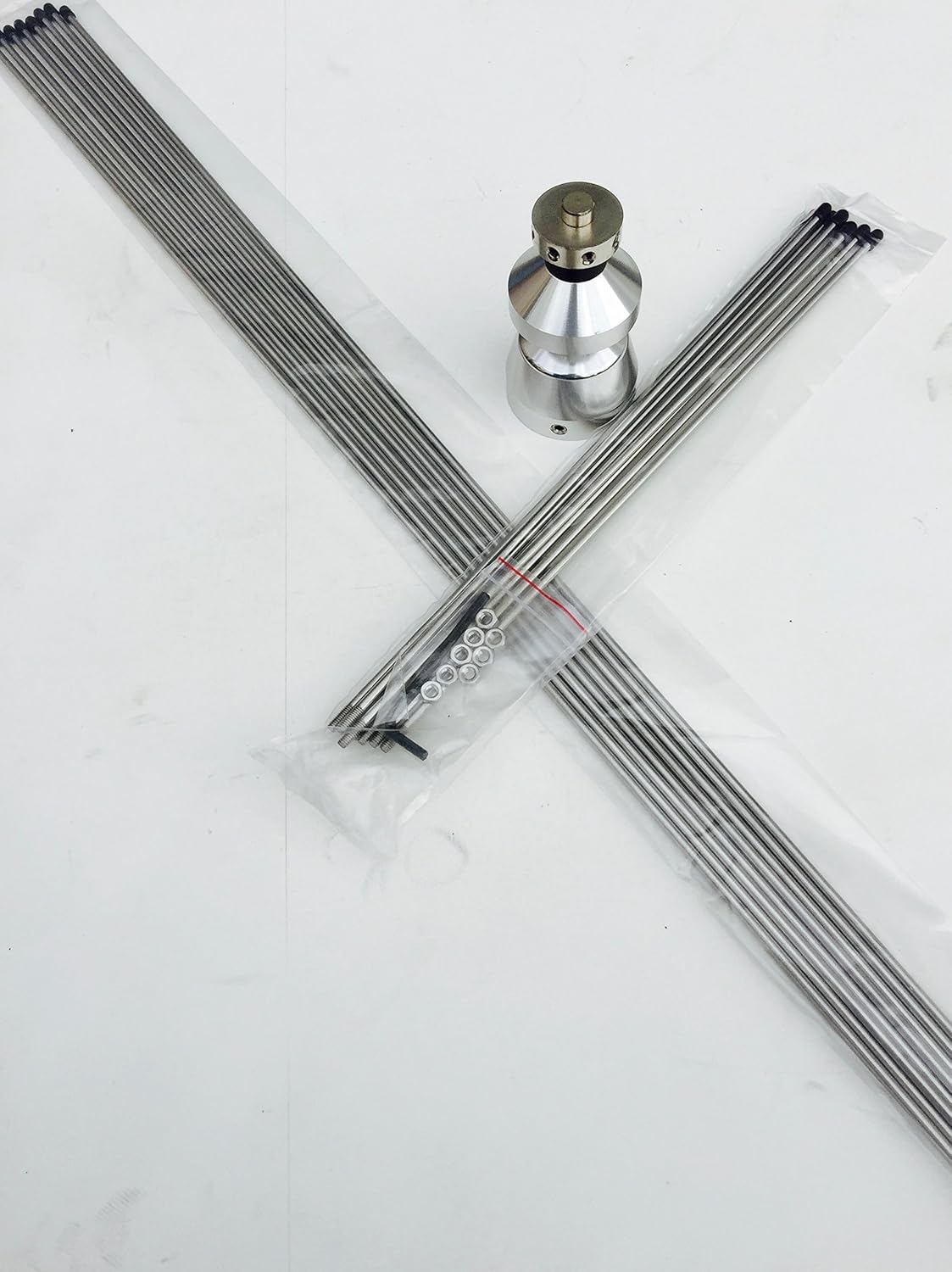

Figure 3.1: Taurus D1000 Antenna Components

ചിത്രം 3.2: വിശദമായി view of Antenna Hub and Elements

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps carefully for proper assembly and installation of your D1000 antenna.

4.1 അസംബ്ലി

1. Attach Radial Elements: Carefully screw the upper (shorter) and lower (longer) radial elements into their designated threaded holes on the antenna's central hub. Ensure they are finger-tight, then use the provided hex key to gently secure them. Do not overtighten.
2. Install Vertical Element: Attach the vertical element frequency extender to the top of the central hub.
3. കണക്റ്റർ: The antenna features an SO-239 connector at the base for coaxial cable attachment.

4.2 മൗണ്ടിംഗ്

The Taurus D1000 is designed for mast mounting. The maximum mast diameter supported is 1-3/8 inches (35mm).

1. ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Choose a mounting location that is as high and clear as possible, away from obstructions like buildings, trees, and power lines.
2. Secure Mast: Ensure your mast is securely installed and properly grounded.
3. ആന്റിന ഘടിപ്പിക്കുക: Use the provided U-bolts and mounting hardware to attach the antenna to the mast. Tighten the nuts evenly to secure the antenna without deforming the mast or antenna base.
4. കോക്സിയൽ കേബിൾ ബന്ധിപ്പിക്കുക: Connect a high-quality 50-ohm coaxial cable with a PL-259 connector to the SO-239 connector on the antenna. Ensure the connection is tight and weatherproofed.

Figure 4.1: Assembled Taurus D1000 Discone Antenna

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Taurus D1000 is a versatile antenna for both receiving and transmitting across a broad spectrum.

• Wide-Band Reception: The antenna is designed for wide-band reception from 25 MHz to 1300 MHz, making it suitable for various scanning applications.
• Multi-Band Transmit: For transmitting, the D1000 is optimized for amateur bands at 144 MHz, 220 MHz, 440 MHz, 900 MHz, and 1290 MHz.
• SWR: The antenna maintains a Standing Wave Ratio (SWR) of 1.5:1 maximum, ensuring efficient power transfer.
• പരമാവധി ശക്തി: The antenna can handle a maximum power of 200 watts. Do not exceed this power rating to prevent damage to the antenna or connected equipment.

6. പരിപാലനം

Regular maintenance ensures optimal performance and longevity of your antenna.

• വിഷ്വൽ പരിശോധന: Periodically inspect the antenna for any signs of damage, corrosion, or loose connections, especially after severe weather.
• ശുചിത്വം: Keep the antenna elements clean from dirt, dust, and debris. A soft cloth and mild detergent can be used if necessary.
• കണക്ഷൻ പരിശോധന: Ensure the coaxial cable connection at the antenna base remains tight and weatherproofed. Reapply weatherproof tape or sealant as needed.
• Mast Stability: Verify the stability of the mounting mast and its grounding connection.

7. പ്രശ്‌നപരിഹാരം

If you experience issues with your D1000 antenna, consider the following common problems and solutions:

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the documentation provided with your purchase or contact Taurus customer service. Keep your proof of purchase for warranty claims.
