ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your new Igloo Replacement Spigot. Designed for Igloo 2, 3, 5, and 10 Gallon Beverage Coolers, this spigot features an easy-install design with front access and a button-style mechanism for efficient liquid dispensing. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
സുരക്ഷാ വിവരങ്ങൾ
Always handle the spigot and cooler with care. Ensure the cooler is empty and clean before attempting to replace the spigot. Do not use excessive force during installation, as this may damage the spigot or the cooler. Keep small parts away from children to prevent choking hazards.
ഭാഗങ്ങളുടെ പട്ടിക
നിങ്ങളുടെ പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനം അടങ്ങിയിരിക്കണം:
- One (1) Igloo Replacement Spigot (White)

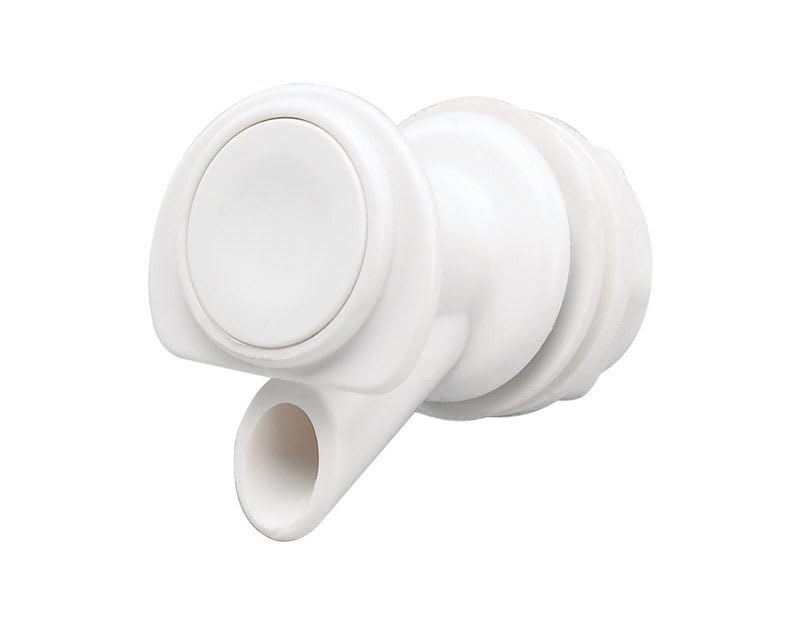

Image: The Igloo Replacement Spigot, white in color, featuring a button-style dispenser and threaded base for installation.
സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
- Prepare the Cooler: Ensure your Igloo beverage cooler is empty and clean. If replacing an old spigot, remove it by unscrewing the nut from the inside of the cooler and pulling the spigot out from the front.
- Insert New Spigot: From the outside of the cooler, insert the new Igloo Replacement Spigot through the spigot hole. Ensure the button mechanism is facing upwards.
- Secure the Spigot: From the inside of the cooler, place the washer (if applicable, typically included with the cooler or old spigot) onto the threaded part of the spigot. Then, screw the retaining nut onto the threaded part of the spigot.
- മുറുക്കുക: Hand-tighten the retaining nut until the spigot is snug and secure. Do not overtighten, as this may damage the cooler or spigot.
- ചോർച്ചയ്ക്കുള്ള പരിശോധന: Fill the cooler with water and check for any leaks around the spigot. If leaks occur, tighten the nut slightly more until the leak stops.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
To dispense liquid from your cooler using the Igloo Replacement Spigot:
- കണ്ടെയ്നറിന്റെ സ്ഥാനം: Place your cup or container directly under the spigot's nozzle.
- ബട്ടൺ അമർത്തുക: Firmly press the button on the front of the spigot. Liquid will begin to flow.
- റിലീസ് ബട്ടൺ: Release the button to stop the flow of liquid. The drip-resistant valve is designed to minimize post-dispensing drips.
മെയിൻ്റനൻസ്
Regular cleaning of your Igloo Replacement Spigot will ensure hygienic use and prolong its lifespan.
- പ്രതിദിന ശുചീകരണം: After each use, rinse the spigot thoroughly with warm water.
- ആഴത്തിലുള്ള വൃത്തിയാക്കൽ: Periodically, remove the spigot from the cooler and wash it with mild soap and water. Use a small brush if necessary to clean inside the nozzle and around the button mechanism.
- ഉണക്കൽ: Allow the spigot to air dry completely before re-installing or storing.
- സംഭരണം: Store the spigot in a clean, dry place when not in use.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Spigot leaks | Nut not tightened sufficiently; damaged washer; improper installation. | Ensure the retaining nut is hand-tightened securely. Check the washer for damage and replace if necessary. Re-install the spigot following the setup instructions carefully. |
| Liquid flow is slow or blocked | Debris or residue inside the spigot; airlock in cooler. | Remove and thoroughly clean the spigot. Ensure the cooler's vent (if applicable) is open. |
| Button is stiff or stuck | Residue buildup; internal mechanism issue. | Remove and clean the spigot, paying attention to the button area. If the issue persists, the spigot may need replacement. |
സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ നമ്പർ: 24009
- നിറം: വെള്ള
- മെറ്റീരിയൽ: പ്ലാസ്റ്റിക്
- Compatible Cooler Capacity: 2, 3, 5, 10 Gallons
- ആക്സസ് ലൊക്കേഷൻ: ഫ്രണ്ട്
- ഇനത്തിൻ്റെ ഭാരം: 1.6 ഔൺസ്
- Product Dimensions (approximate, packaging): 25 x 3.5 x 5.75 ഇഞ്ച്
വാറൻ്റിയും പിന്തുണയും
For information regarding product warranty or if you require further assistance, please contact Igloo customer support directly. Refer to the official Igloo webഏറ്റവും പുതിയ കോൺടാക്റ്റ് വിശദാംശങ്ങൾക്കും വാറന്റി നിബന്ധനകൾക്കുമായി സൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗ്.
