CORNELIUS 161862005 Temp Sensor User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Cornelius 161862005 Temperature Sensor is a high-quality component designed for precise temperature measurement in various industrial and scientific applications. This sensor is an essential part for maintaining optimal operational conditions in compatible systems.

പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:

• High Quality construction ensuring reliability.
• Designed for accurate temperature sensing.
• Lightweight with a weight of 0.35 Lbs.

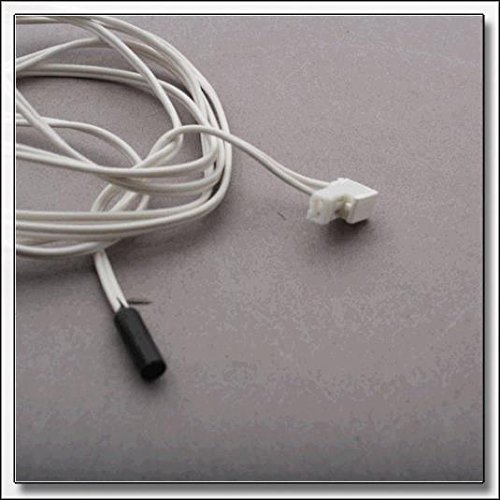

Figure 1: Cornelius 161862005 Temperature Sensor. This image shows the white insulated wire leading to a small black cylindrical sensor tip on one end and a white plastic connector on the other end. The wire is coiled loosely.

2 സുരക്ഷാ വിവരങ്ങൾ

Always observe the following safety precautions when handling, installing, or maintaining the temperature sensor:

• Ensure power is disconnected from the system before installation or removal of the sensor.
• Handle the sensor carefully to avoid damage to the wiring or sensing element.
• Do not expose the sensor to temperatures or environments outside its specified operating range.
• Consult a qualified technician for installation if you are unsure of the procedure.
• This product is not classified as a hazardous material.

3. പാക്കേജ് ഉള്ളടക്കം

The package for the Cornelius 161862005 Temperature Sensor typically includes:

• 1 x Cornelius 161862005 Temperature Sensor (Model CN161862005)

Note: Additional components or tools required for installation are sold separately.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Cornelius 161862005 Temperature Sensor is designed for straightforward integration into compatible systems. Installation typically involves connecting the sensor to the appropriate control unit or circuit board.

4.1 പ്രീ-ഇൻസ്റ്റലേഷൻ ചെക്ക്‌ലിസ്റ്റ്

• Verify the sensor's compatibility with your equipment models (e.g., IACS227E50, IAC530, IACS227, IAC330, IACS227E60, IAC522, IWCS224, AC322, IACS224, IAC322).
• Ensure the power to the system is completely off and locked out.
• Gather necessary tools (e.g., screwdrivers, wire strippers if needed).

4.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. Locate the existing temperature sensor or the designated sensor port on your equipment.
2. Carefully disconnect and remove the old sensor, if applicable.
3. Connect the white plastic connector of the new Cornelius 161862005 sensor to the corresponding receptacle on your equipment. Ensure a secure fit.
4. Position the black cylindrical sensor tip in the area where temperature measurement is required. The flange mount design facilitates secure placement.
5. Route the sensor wire to prevent interference with moving parts or exposure to excessive heat/cold.
6. Once installed, restore power to the system and verify proper operation.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Cornelius 161862005 Temperature Sensor operates passively by providing temperature data to the connected system. Its operation is integrated with the equipment it is installed in.

• Once properly installed, the sensor will automatically begin transmitting temperature readings to the control unit.
• Monitor your equipment's display or control interface to confirm that temperature readings are accurate and within expected parameters.
• Refer to your equipment's specific user manual for details on how it utilizes the temperature data from this sensor.

6. പരിപാലനം

The Cornelius 161862005 Temperature Sensor requires minimal maintenance. Regular inspection can help ensure its longevity and accurate performance.

• വൃത്തിയാക്കൽ: If necessary, gently wipe the sensor tip and wire with a soft, dry cloth. Do not use abrasive cleaners or immerse the sensor in liquids.
• പരിശോധന: Periodically check the sensor wire for any signs of wear, fraying, or damage. Ensure the connection remains secure.
• കാലിബ്രേഷൻ: This sensor typically does not require user calibration. If temperature readings appear inaccurate, consult the equipment's manual or a qualified technician.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Cornelius 161862005 Temperature Sensor, consider the following troubleshooting steps:

For complex issues or if troubleshooting steps do not resolve the problem, contact Cornelius customer support or a certified service technician.

8 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the Cornelius 161862005 Temperature Sensor:

9. വാറൻ്റിയും പിന്തുണയും

For information regarding warranty coverage, technical support, or replacement parts for your Cornelius 161862005 Temperature Sensor, please contact Cornelius directly or refer to their official webസൈറ്റ്.

This product is returnable as per the seller's policy.
