TECKNET Wireless Doorbell HDB01806 Instruction Manual

ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of your TECKNET Wireless Doorbell (Model HDB01806). Please read this manual thoroughly before using the product to ensure proper function and longevity. This doorbell system offers a convenient and reliable solution for your home or office.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The TECKNET Wireless Doorbell is a battery-free, waterproof doorbell system designed for ease of use and reliability. It features a plug-in receiver with an integrated EU socket, a self-powered transmitter, multiple ringtones, and adjustable volume levels. The system is engineered to provide a stable wireless connection over a significant range.

Image: The TECKNET Wireless Doorbell system, showing the plug-in receiver with an integrated socket and the sleek, white transmitter unit.

എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്

പാക്കേജ് തുറക്കുമ്പോൾ, ഇനിപ്പറയുന്ന എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ദയവായി ഉറപ്പാക്കുക:

• 1 x TECKNET Wireless Doorbell Receiver (Plug-in unit)
• 1 x TECKNET Wireless Doorbell Transmitter (Push button unit)
• Mounting Accessories (Screws, anchors, double-sided adhesive tape)
• 1 x ഉപയോക്തൃ മാനുവൽ

പ്രധാന സവിശേഷതകൾ

• Plug-in Receiver with Integrated Socket: The receiver plugs directly into a standard EU wall socket and includes a pass-through socket, ensuring no power outlet is lost.


Image: The receiver unit plugged into a wall socket, demonstrating the integrated pass-through socket for continued use of the power outlet.

• Battery-Free Transmitter (Self-Powered): The transmitter generates its own power when pressed, eliminating the need for batteries and reducing environmental impact.

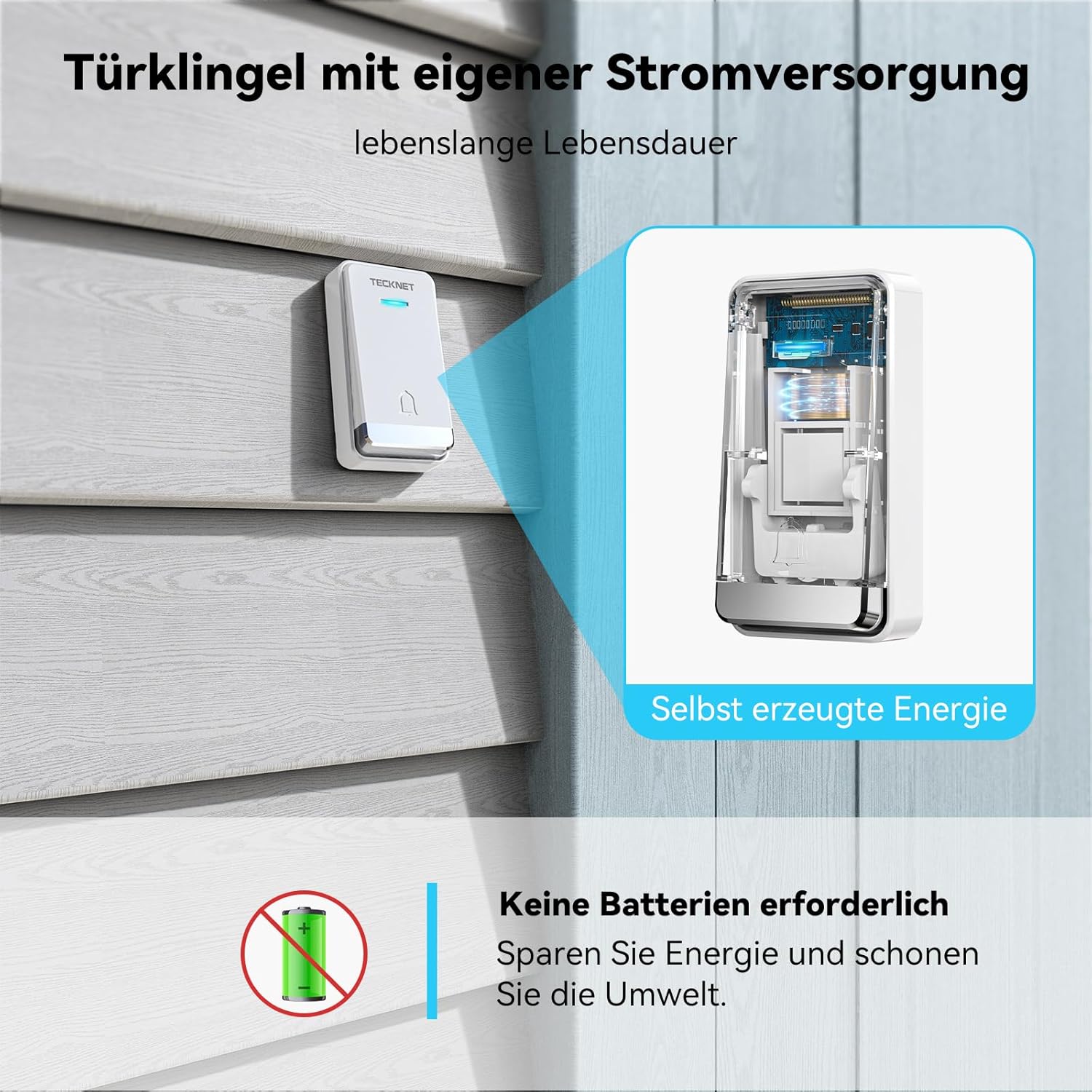

ചിത്രം: ഒരു മുറിച്ചെടുത്ത ഭാഗം view of the transmitter, illustrating the internal self-powering mechanism that eliminates the need for batteries.
• Digital Code System: Utilizes a digital code system to prevent interference from other wireless devices, ensuring reliable operation.
• വിപുലീകരിച്ച വയർലെസ് ശ്രേണി: Offers a wireless range of up to 400 meters (1300 feet) in open areas, suitable for large homes or properties.


Image: An illustration showing the doorbell's effective range through various common building materials like wooden doors, brick walls, and concrete, extending up to 400 meters.

• 32 Selectable Ringtones: Choose from a variety of 32 melodies to personalize your doorbell sound.
• 5 ക്രമീകരിക്കാവുന്ന വോളിയം ലെവലുകൾ: Adjust the volume from 25 dB to 90 dB to suit your preference and environment.


Image: A visual representation of the doorbell's 0-110 dB volume levels and 60 ringtones (note: product description states 32 ringtones, 5 volume levels, using product description for accuracy).

• Visual LED Signal: A blue LED light flashes on the receiver when the doorbell is pressed, providing a visual alert, especially useful in noisy environments or for individuals with hearing impairments.
• IP65 വാട്ടർപ്രൂഫ് ട്രാൻസ്മിറ്റർ: The transmitter is rated IP65 waterproof, making it suitable for outdoor installation and resistant to dust and water splashes.

Image: The transmitter unit shown with water droplets, illustrating its IP65 waterproof rating and suitability for various weather conditions, from cold to hot climates.

സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

1. റിസീവർ ഇൻസ്റ്റാളേഷൻ

1. Select a suitable indoor EU wall socket for the receiver. Ensure it is within the desired range of the transmitter.
2. Plug the receiver directly into the chosen wall socket. The integrated socket on the receiver allows you to continue using the power outlet for other devices.

2 ട്രാൻസ്മിറ്റർ ഇൻസ്റ്റാളേഷൻ

Choose a location for the transmitter (push button unit) outside your door. Consider factors like direct sunlight, rain exposure, and ease of access for visitors. The transmitter is IP65 waterproof, but placing it under a small overhang can offer additional protection.

Image: An illustration detailing two methods for installing the transmitter: using double-sided adhesive tape for a quick setup, or using screws and anchors for a more permanent fixture.

There are two primary methods for mounting the transmitter:

• Using Double-Sided Adhesive Tape:
  1. മൗണ്ടിംഗ് ഉപരിതലം വരണ്ടതും പൊടിയോ ഗ്രീസോ ഇല്ലാത്തതുമാണെന്ന് ഉറപ്പാക്കാൻ അത് നന്നായി വൃത്തിയാക്കുക.
  2. Peel off one side of the protective film from the double-sided adhesive tape and attach it to the back of the transmitter.
  3. Peel off the other side of the protective film and firmly press the transmitter onto the desired surface for at least 30 seconds.
• Using Screws and Anchors:
  1. Mark the desired drilling points on the wall using the transmitter as a template.
  2. Drill two holes at the marked positions.
  3. തുളച്ച ദ്വാരങ്ങളിൽ പ്ലാസ്റ്റിക് ആങ്കറുകൾ തിരുകുക.
  4. Align the transmitter with the holes and secure it with the provided screws.

The transmitter and receiver are pre-paired at the factory. If re-pairing is ever needed, refer to the troubleshooting section.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. റിംഗ്‌ടോണുകൾ മാറ്റൽ

To change the ringtone, locate the 'Music Selection' button on the side of the receiver. Press this button repeatedly to cycle through the 32 available melodies. The receiver will play each melody as you press the button. Once you hear your preferred melody, stop pressing the button, and it will be set.

2. വോളിയം ക്രമീകരിക്കുന്നു

To adjust the volume, locate the 'Volume Control' button on the side of the receiver. Press this button to cycle through the 5 available volume levels (ranging from 25 dB to 90 dB). Select the volume level that best suits your needs.

3. LED ഇൻഡിക്കേറ്റർ

When the transmitter button is pressed, the receiver's blue LED light will flash simultaneously with the chosen ringtone. This visual indicator is helpful in loud environments or for individuals who may not hear the chime.

Image: The receiver unit plugged into a wall, with a visual representation of its memory function, indicating that selected ringtones and volume levels are retained even after power loss.

The doorbell system features a memory function, retaining your selected ringtone and volume level even after a power outage or if the receiver is unplugged.

മെയിൻ്റനൻസ്

To ensure the optimal performance and longevity of your TECKNET Wireless Doorbell, follow these simple maintenance guidelines:

• വൃത്തിയാക്കൽ: Wipe both the transmitter and receiver with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the surfaces.
• ട്രാൻസ്മിറ്റർ പ്ലേസ്മെന്റ്: Periodically check the transmitter's mounting to ensure it remains securely attached to the surface. If using adhesive tape, ensure the surface is still clean and dry.
• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ ഇല്ല: The transmitter is self-powered, so no battery replacement is ever required.
• പരിസ്ഥിതി വ്യവസ്ഥകൾ: While the transmitter is waterproof (IP65), extreme temperatures or prolonged exposure to direct harsh weather conditions (e.g., blizzards, intense heat waves) should be minimized if possible to extend its lifespan.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter any issues with your TECKNET Wireless Doorbell, please refer to the following common problems and solutions:

സാങ്കേതിക സവിശേഷതകൾ

വാറൻ്റിയും പിന്തുണയും

TECKNET products are designed and manufactured to the highest quality standards. This product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included in your product packaging or visit the official TECKNET webസൈറ്റ്.

If you require technical assistance or have any questions regarding your TECKNET Wireless Doorbell, please contact TECKNET customer support through their official website or the contact information provided in your product documentation. Please have your model number (HDB01806) and purchase details ready when contacting support.
