1. ആമുഖവും അവസാനവുംview

The Scheppach UMF1600 Universal Mitre Saw Stand is designed to provide a stable and versatile work platform for various power tools, primarily mitre saws. Its robust construction supports a maximum load of 200 kg, making it suitable for heavy-duty tasks. The stand features adjustable extensions and supports, allowing for comfortable and ergonomic handling of long workpieces. Its foldable and lightweight design ensures easy transport and compact storage.

This manual provides essential information for the safe assembly, operation, and maintenance of your UMF1600 stand. Please read it thoroughly before initial use and keep it for future reference.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

പൊതു സുരക്ഷാ മുന്നറിയിപ്പുകൾ:

Always wear appropriate personal protective equipment (PPE) such as safety glasses, hearing protection, and gloves when operating power tools with the stand.
Ensure the stand is placed on a firm, level, and stable surface before use. Uneven surfaces can cause instability and lead to accidents.
Do not exceed the maximum load capacity of 200 kg. Overloading can cause structural failure and injury.
Ensure all locking mechanisms and fasteners are securely tightened before operating any power tool on the stand.
ജോലിസ്ഥലത്ത് നിന്ന് കുട്ടികളെയും കാഴ്ചക്കാരെയും അകറ്റി നിർത്തുക.
Never modify the stand. Use only original replacement parts and accessories.
Disconnect power tools from the power supply before making any adjustments or performing maintenance on the stand or tool.

Specific Safety for Mitre Saw Stands:

Ensure the mitre saw or other power tool is securely mounted to the stand's mounting brackets according to the tool manufacturer's instructions.
When cutting long workpieces, ensure they are adequately supported by the extendable arms to prevent tipping or loss of control.
Adjust the workpiece supports to the correct height to match the cutting surface of your power tool.
Be aware of the tool's kickback potential and position yourself safely.

3. പാക്കേജ് ഉള്ളടക്കം

Verify that all components are present and undamaged upon unpacking. The package should contain:

1 x Scheppach UMF1600 Universal Mitre Saw Stand
Mounting hardware for attaching power tools
ഇൻസ്ട്രക്ഷൻ മാനുവൽ

4. സജ്ജീകരണവും അസംബ്ലിയും

Follow these steps to assemble and set up your Scheppach UMF1600 stand:

സ്റ്റാൻഡ് തുറക്കുന്നു: Place the folded stand on a flat surface. Carefully unfold the legs until they lock into position. Ensure all four legs are fully extended and stable. The stand features a foldable aluminum construction ideal for mobile use.
Attaching the Machine Mounts: The stand comes with easy-to-fix machine mounts. Secure these to the main beam of the stand using the provided hardware. Ensure they are positioned correctly to accommodate your power tool.
Extending Side Supports: The lateral arms can be extended from 100 cm to 165 cm to support long workpieces. Pull out the extensions to the desired length and secure them with the locking knobs. These extendable side extensions are crucial for sawing long workpieces.
Adjusting Workpiece Stops: The adjustable workpiece stops can be adjusted by 100 mm in height. Loosen the adjustment knob, slide the stop to the required height, and tighten the knob securely. This allows for precise support of your material.
Mounting Your Power Tool: Place your mitre saw or other compatible power tool onto the machine mounts. Use the tool's mounting holes and the provided hardware to securely fasten the tool to the stand. Ensure the tool is centered and balanced.

Man unfolding the Scheppach UMF1600 mitre saw stand — Figure 1: Unfolding the stand. The foldable aluminum construction is ideal for mobile use.

Close-up of hand fixing a machine mount on the stand — Figure 2: Securing a machine mount. This easy-to-fix machine mount ensures safe and ergonomic work.

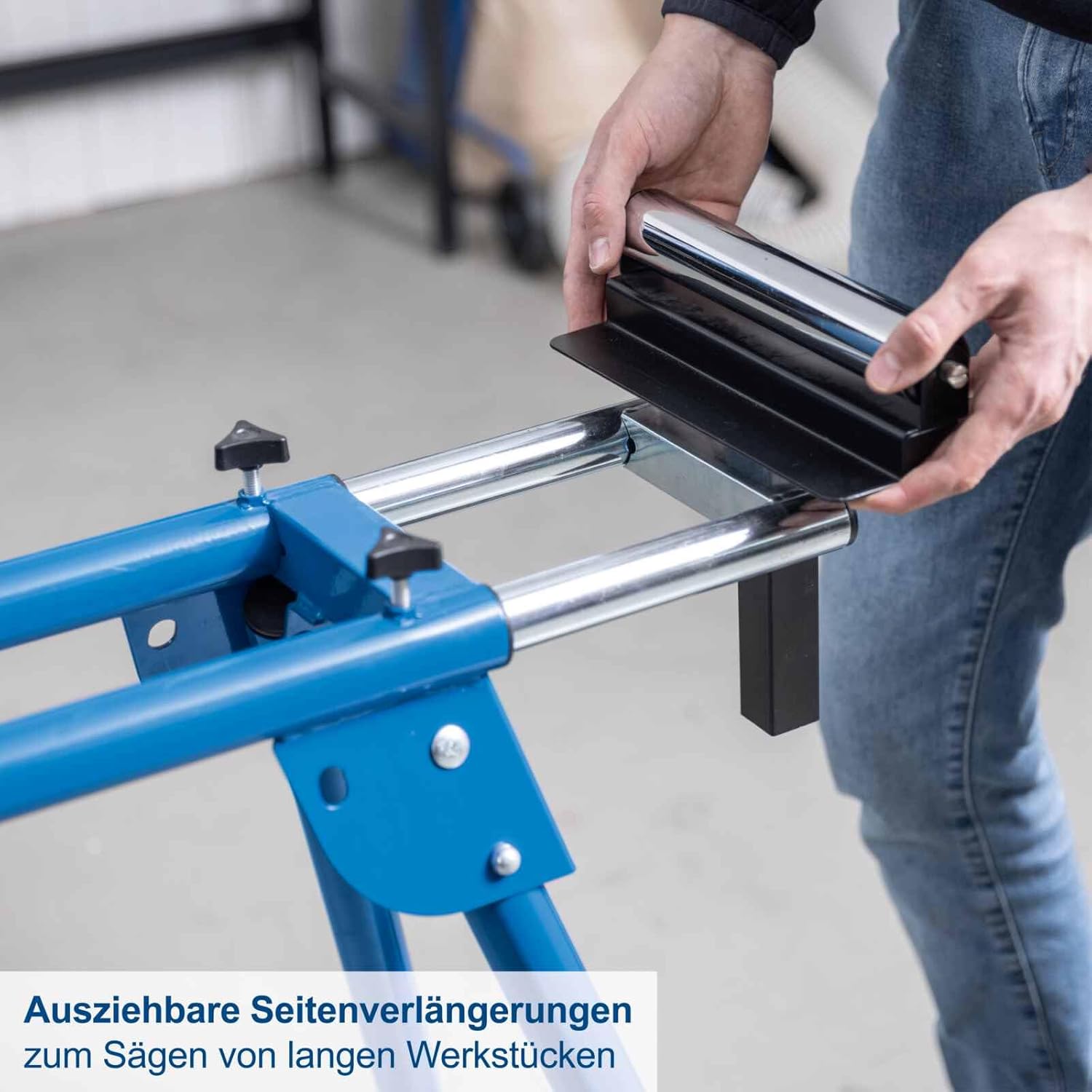

Close-up of the extendable side support on the mitre saw stand — Figure 3: Extending the side supports. These extendable side extensions are for sawing long workpieces.

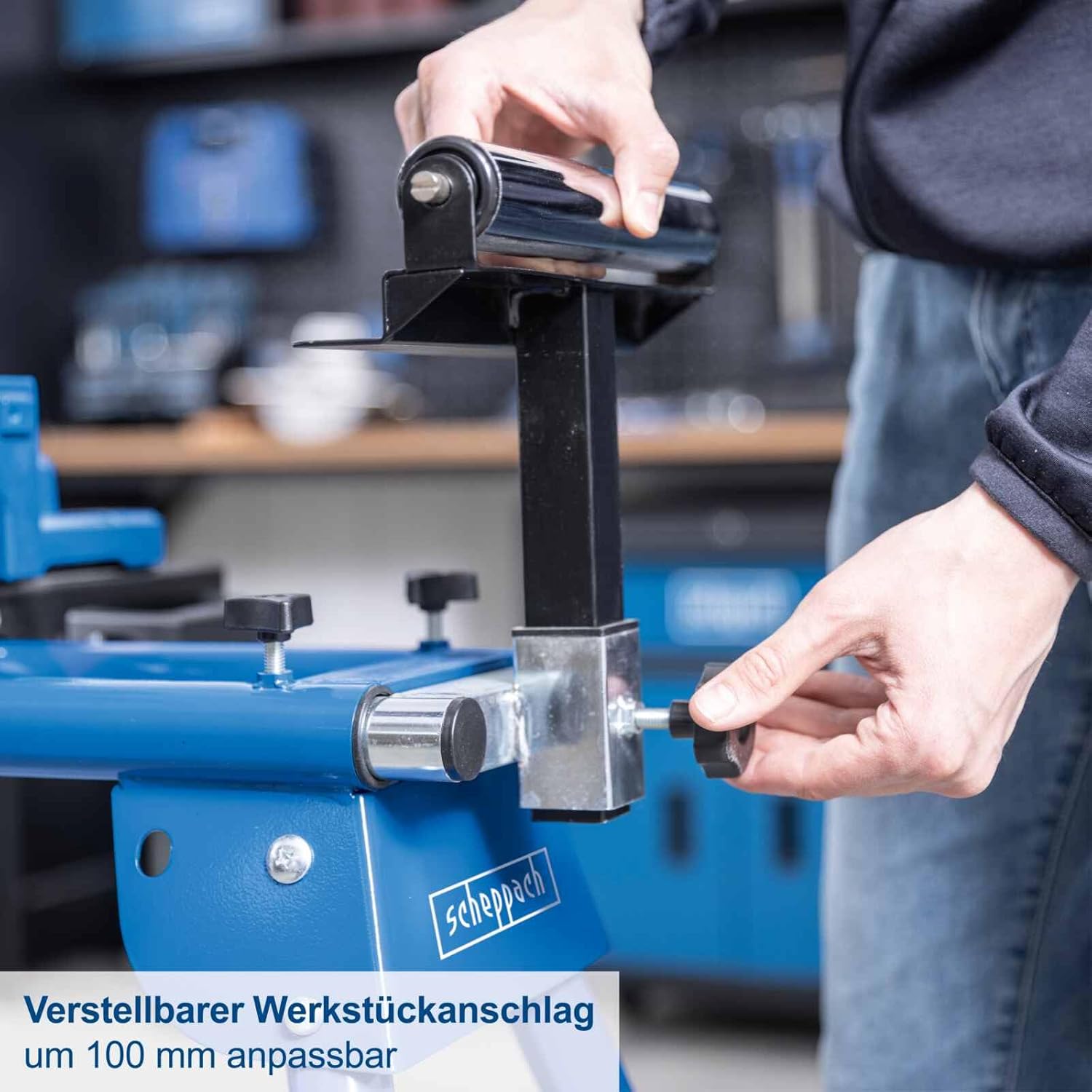

Close-up of hand adjusting a workpiece stop on the stand — Figure 4: Adjusting the workpiece stop. The adjustable workpiece stop can be adjusted by 100 mm.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once your power tool is securely mounted and the stand is stable, you can begin operation:

വർക്ക്പീസ് പ്ലേസ്മെന്റ്: Place your workpiece on the stand, ensuring it rests evenly across the main beam and, if necessary, the extended side supports.
Adjusting Support Height: The supports are height adjustable by 100 mm. Adjust them so the workpiece is level with the cutting surface of your mitre saw. The fixed working height of the stand is 74 cm, ensuring ergonomic handling.
Securing Workpiece: For added safety and precision, use clamps (not included) to secure the workpiece to the stand, especially for intricate cuts or heavy materials.
പ്രവർത്തനം: Operate your power tool according to its own instruction manual. Always maintain a firm grip on the tool and workpiece.

User operating a mitre saw mounted on the Scheppach UMF1600 stand — Figure 5: User operating a mitre saw on the UMF1600 stand, demonstrating proper usage with extended supports.

Diagram illustrating key dimensions and load capacity of the Scheppach UMF1600 stand — Figure 6: Key specifications diagram. Max load capacity: 200 kg. Supports height adjustable: 100 mm. Extendable length: 1000 – 1650 mm. Working height: 740 mm.

Diagram showing compatibility of the stand with various machine types — Figure 7: Compatibility. The stand is suitable for almost all machine types, including mitre saws, scroll saws, drill presses, and sanders.

6. പരിപാലനം

Regular maintenance ensures the longevity and safe operation of your stand:

വൃത്തിയാക്കൽ: After each use, wipe down the stand with a dry cloth to remove dust and debris. For stubborn grime, use a mild detergent and water, then dry thoroughly.
പരിശോധന: Periodically inspect all bolts, nuts, and locking mechanisms for tightness. Tighten any loose fasteners. Check for any signs of damage, cracks, or wear on the frame and supports.
ലൂബ്രിക്കേഷൻ: Apply a light lubricant to moving parts, such as the extension slides, to ensure smooth operation.
സംഭരണം: When not in use, fold the stand for compact storage in a dry, clean area, away from direct sunlight and moisture.

7. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഇതാ:

പ്രശ്നം	സാധ്യമായ കാരണം	പരിഹാരം
സ്റ്റാൻഡ് അസ്ഥിരമോ ഇളകുന്നതോ ആണ്.	Uneven surface; loose fasteners; legs not fully locked.	Move stand to a level surface. Check and tighten all bolts and nuts. Ensure legs are fully extended and locked.
Power tool does not sit level on mounts.	Mounts incorrectly positioned or tightened.	Adjust the position of the machine mounts. Ensure they are securely tightened and level. Check tool manufacturer's instructions for mounting.
Extension arms are difficult to slide.	Dirt/debris in slides; lack of lubrication.	Clean the extension slides thoroughly. Apply a light lubricant to the sliding surfaces.
Workpiece supports do not hold position.	Locking knob is loose or worn.	Ensure the locking knob is fully tightened. If worn, contact customer support for replacement parts.

8 സ്പെസിഫിക്കേഷനുകൾ

മോഡൽ: UMF1600
ബ്രാൻഡ്: സ്കെപാച്ച്
ഇനം മോഡൽ നമ്പർ: 5907103900
ശുപാർശ ചെയ്യുന്ന പരമാവധി ലോഡ്: 200 കി.ഗ്രാം (440 പൗണ്ട്)
Product Dimensions (Extended): 165 സെ.മീ L x 58 സെ.മീ W x 91 സെ.മീ H (64.96"L x 22.83"W x 35.83"H)
പ്രവർത്തന ഉയരം: 74 സെ.മീ (29.1 ഇഞ്ച്)
Adjustable Extensions: 100 സെ.മീ മുതൽ 165 സെ.മീ വരെ (39.4 ഇഞ്ച് മുതൽ 64.96 ഇഞ്ച് വരെ)
പിന്തുണ ഉയരം ക്രമീകരണം: 100 എംഎം (3.9 ഇഞ്ച്)
ഇനത്തിൻ്റെ ഭാരം: 12.3 കി.ഗ്രാം (27.1 പൗണ്ട്)
മെറ്റീരിയൽ: Aluminum (frame), Steel (supports)
ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ: 1 x Universal Mitre Saw Stand

9. വാറൻ്റിയും പിന്തുണയും

The Scheppach UMF1600 Universal Mitre Saw Stand comes with a Limited Warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and claim procedures.

For technical assistance, replacement parts, or warranty claims, please contact Scheppach customer support through their official website or the retailer where the product was purchased. Ensure you have your model number (UMF1600) and proof of purchase available when contacting support.
