Steinbach Classic 250N Filtration System

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Steinbach Classic 250N Filtration System is a high-performance sand filter designed to maintain clean and clear water in above-ground pools. This powerful unit is suitable for pools with a capacity of up to 19,000 liters, ensuring efficient removal of impurities. It features a robust pump and a versatile 7-way valve for various operational modes.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read all safety instructions carefully before installation and operation to prevent injury or damage. Keep this manual for future reference.

• Always disconnect the power supply before performing any maintenance or cleaning on the filter system.
• Ensure the electrical outlet is protected by a Ground Fault Circuit Interrupter (GFCI) for safety.
• വെള്ളത്തിന്റെ താപനില 35°C (95°F) കവിയുന്നുവെങ്കിൽ പമ്പ് പ്രവർത്തിപ്പിക്കരുത്.
• Keep children away from the filter system during operation.
• Ensure all connections are secure and leak-free to prevent water damage or electrical hazards.
• The pump is not self-priming; ensure it is filled with water before starting.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the optimal performance of your filtration system. Follow these steps carefully:

3.1 പായ്ക്ക് അൺപാക്ക് ചെയ്യലും ഘടക പരിശോധനയും

എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക:

• Filter Tank (250 mm diameter)

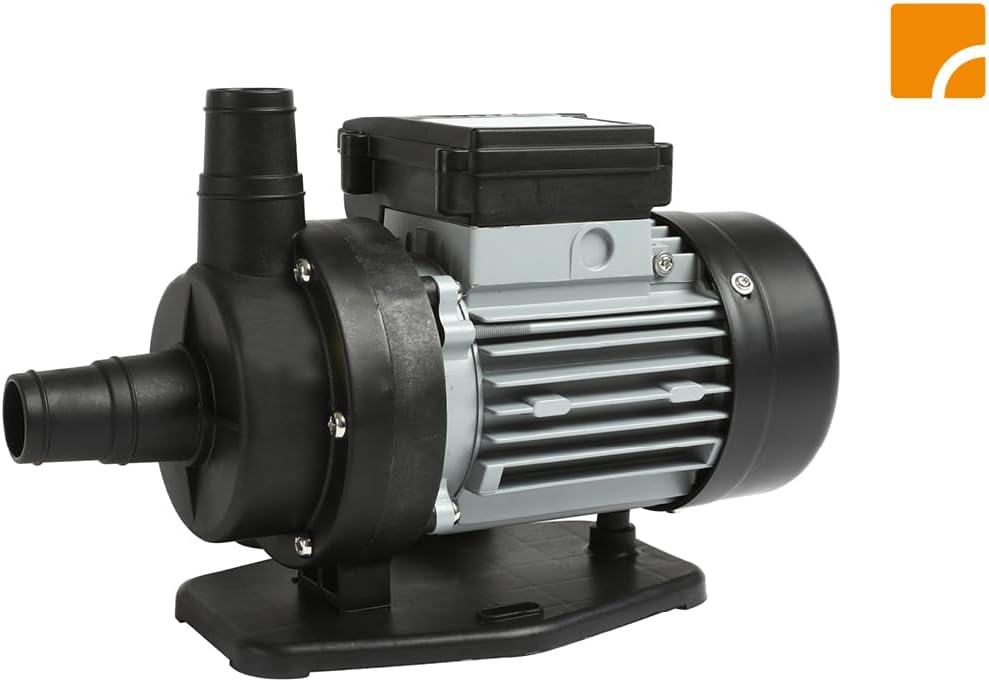

• Pump Unit (230V / 200W)
• 7-Way Multi-Port Valve with Pressure Gauge
• Connecting Hoses (32/38 mm diameter)
• അടിസ്ഥാന പ്ലേറ്റ്
• Clamps and Fittings

3.2 Filter Media Preparation

The system requires approximately 10 kg of filter sand with a granule size of 0.7 - 1.2 mm, or compatible filter balls. Refer to the specific instructions for filling the filter tank with your chosen media.

3.3 അസംബ്ലിയും കണക്ഷനും

1. Place the base plate on a firm, level surface near your pool.
2. Mount the filter tank and pump securely onto the base plate.
3. Connect the pump to the filter tank and the multi-port valve using the provided hoses and fittings. Ensure all connections are tight to prevent leaks.
4. Connect the system to your pool's skimmer and return lines using 32/38 mm hoses.

3.4 ഒപ്റ്റിമൽ പ്ലേസ്മെന്റ്

For gravity-fed operation, the water level in the pool should be above the sand filter. Avoid situations where the water level is below the filter, as this can hinder proper flow and operation.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The 7-way multi-port valve allows for different operational modes. Always turn off the pump before changing the valve position.

• ഫിൽട്ടർ: This is the standard operating mode for daily filtration. Water is pumped through the filter media, and clean water is returned to the pool.
• ബാക്ക്വാഷ്: Used to clean the filter media. Water flows in reverse through the filter, dislodging trapped debris, which is then discharged to waste. Perform when pressure gauge indicates high pressure.
• കഴുകുക: Used after backwashing to flush out any remaining debris from the filter media and lines before returning to FILTER mode. Water is discharged to waste.
• WASTE (EMPTY): Bypasses the filter and pumps water directly out of the pool to waste. Useful for lowering pool water level or vacuuming heavy debris directly to waste.
• RECIRCULATE (CIRCULATE): Bypasses the filter and circulates water directly back to the pool. Useful for distributing chemicals without filtering.
• അടച്ചു: Closes all flow to the filter. Use only when the pump is off and for maintenance tasks that require isolating the filter.

To start operation, ensure the valve is set to FILTER, then turn on the pump. Monitor the pressure gauge for normal operating pressure.

5. പരിപാലനം

Regular maintenance ensures the longevity and efficiency of your Steinbach filtration system.

5.1 ബാക്ക് വാഷിംഗും റിൻസിംഗും

Perform backwashing when the pressure gauge reading is 0.2-0.3 bar (3-5 psi) above the clean filter pressure, or when water flow to the pool decreases significantly. Follow with a rinse cycle.

1. പമ്പ് ഓഫ് ചെയ്യുക.
2. ബാക്ക്വാഷിലേക്ക് വാൽവ് സജ്ജമാക്കുക.
3. Turn on the pump and backwash until the water in the sight glass (if present) runs clear (typically 2-3 minutes).
4. പമ്പ് ഓഫ് ചെയ്യുക.
5. വാൽവ് RINSE ആയി സജ്ജമാക്കുക.
6. Turn on the pump and rinse for 30-60 seconds.
7. പമ്പ് ഓഫ് ചെയ്യുക.
8. Set the valve back to FILTER.
9. Turn on the pump to resume normal filtration.

5.2 ഫിൽറ്റർ മീഡിയ മാറ്റിസ്ഥാപിക്കൽ

Filter sand typically needs replacement every 3-5 years, depending on usage and water quality. Filter balls may require periodic cleaning or replacement as per their specific instructions.

5.3 ശീതകാലം

Before freezing temperatures, drain all water from the pump, filter tank, and hoses. Store the pump and valve in a dry, frost-free location. Cover the filter tank if it remains outdoors.

6. പ്രശ്‌നപരിഹാരം

പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ സാധ്യമായ പരിഹാരങ്ങളും അറിയാൻ ഈ വിഭാഗം കാണുക.

7 സാങ്കേതിക സവിശേഷതകൾ

8. വാറൻ്റിയും പിന്തുണയും

For specific warranty details and terms, please refer to the documentation provided with your purchase. In general, products purchased through Amazon may be eligible for returns or replacements within 30 days, subject to Amazon's return policy.

For technical support, spare parts, or further assistance, please contact Steinbach customer service. Contact information can typically be found on the manufacturer's webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.
