1 സുരക്ഷാ വിവരങ്ങൾ
പ്രധാനപ്പെട്ടത്: Read and understand all instructions and warnings in this manual before installing, operating, or performing maintenance on this appliance. Failure to follow these instructions may result in fire, explosion, property damage, personal injury, or death.
This appliance is equipped with an ഓക്സിജൻ ഡിപ്ലീഷൻ സെൻസർ (ODS) ഒപ്പം ഒരു അമിത ചൂടാക്കൽ സുരക്ഷ device. These safety features automatically shut off the heater if oxygen levels drop or if the unit operates at higher than normal temperatures. Do not tamper with or bypass these safety mechanisms.
നിർദ്ദേശം 65 മുന്നറിയിപ്പ്: ഈ ഉൽപ്പന്നത്തിന് നിങ്ങളെ കാർബൺ മോണോക്സൈഡ് ഉൾപ്പെടെയുള്ള രാസവസ്തുക്കൾ തുറന്നുകാട്ടാൻ കഴിയും, ഇത് ജനന വൈകല്യങ്ങൾക്കോ മറ്റ് പ്രത്യുൽപാദന വൈകല്യങ്ങൾക്കോ കാരണമാകുമെന്ന് കാലിഫോർണിയ സംസ്ഥാനത്തിന് അറിയാം. കൂടുതൽ വിവരങ്ങൾക്ക് പോകുക www.P65Warnings.ca.gov.
പ്രാദേശിക നിയന്ത്രണങ്ങൾ: This product is not for sale in California or Canada. Always check your local regulations and building codes regarding installation restrictions and requirements for vent-free gas appliances.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Pleasant Hearth VFL-VO24DR Valley Oak Series Vent-Free Gas Log Set offers a convenient and efficient heating solution for your home. This unit features dual-fuel technology, allowing operation with either Natural Gas or Propane.
- ഹീറ്റ് ഔട്ട്പുട്ട്: Up to 33,000 BTUs per hour, capable of heating areas up to 1,100 square feet.
- കാര്യക്ഷമത: 99.9% efficient, converting nearly all fuel into heat.
- Burner System: Features a dual burner system for realistic flames, complemented by a third ember fiber (rock wool) burning pan that simulates a glowing bed of ashes.
- നിയന്ത്രണം: Includes a 2-in-1 millivolt remote controller for ON/OFF functionality and programmable thermostat control. The remote monitors the temperature near its location.
- ശക്തി: No electricity is required for operation, providing reliable backup heating during power outages.
- ഡിസൈൻ: Hand-painted, highly detailed concrete logs inspired by nature, designed for minimum clearance installation in most fireplace masonry.
- സൗന്ദര്യശാസ്ത്രം: Comes with decorative lava rock and ember fibers to enhance the visual depth and realism of the fire.
Figure 1: Pleasant Hearth VFL-VO24DR gas log set installed in a living room fireplace.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of the gas log set requires careful attention to detail and adherence to all local codes. Professional installation is recommended.
3.1 അൺപാക്കിംഗും ഘടക തിരിച്ചറിയലും
Carefully remove all components from the packaging. Verify that all parts are present according to the packing list. The set includes multiple concrete logs, a burner assembly, a remote control, decorative lava rock, and ember fibers.

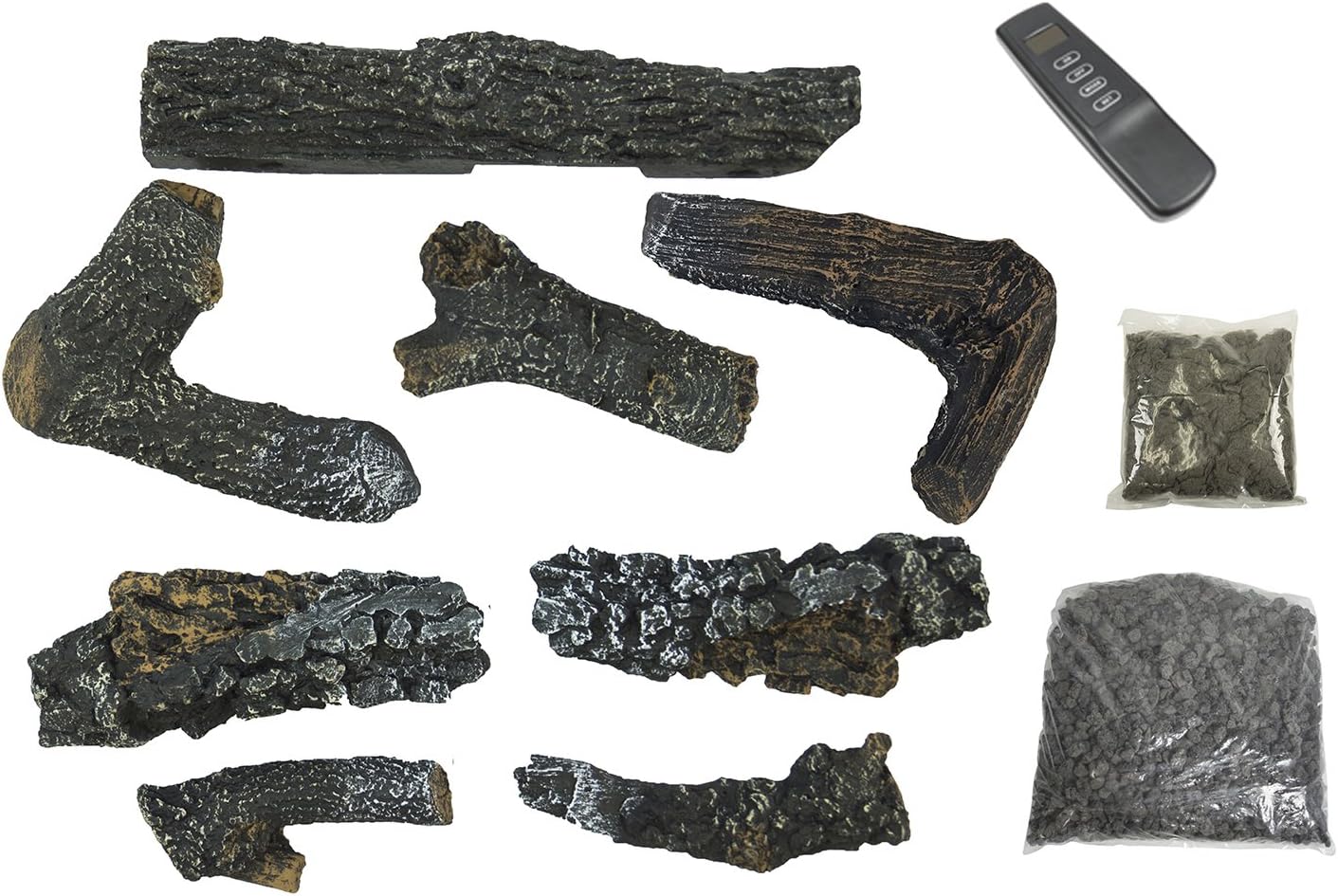

Figure 2: All components included in the VFL-VO24DR gas log set.
3.2 Fireplace Preparation
Ensure your fireplace masonry meets the minimum clearance requirements for vent-free appliances. The gas line connection is typically located at the rear of the fireplace. For propane use, a 100-lb. tank or larger with a two-stage adjustable regulator is required, available from your local gas company.
3.3 Log Placement
The concrete logs are designed to fit together like a puzzle. Refer to the included log placement diagram for the correct arrangement. Proper log placement is crucial for optimal flame appearance and safe operation. Do not obstruct the burner ports or the pilot light.
Figure 3: Correct log arrangement for the VFL-VO24DR set.
3.4 Ember Fiber and Lava Rock Application
Distribute the ember fibers and decorative lava rock around the burner and logs as instructed in the detailed manual. This enhances the realism of the fire by simulating glowing embers.
Figure 4: Close-up of the burner with ember fibers and lava rock.
3.5 ഗ്യാസ് കണക്ഷൻ
Connect the gas supply to the burner assembly. Ensure all connections are tight and leak-free. A qualified technician should perform gas connections and initial startup.
Figure 5: Gas control valve and igniter mechanism.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 പ്രാരംഭ ആരംഭം
Before first use, ensure all gas connections are secure and the pilot light is lit according to the detailed instructions in the full manual. The push-button igniter is used to light the pilot.
4.2 റിമോട്ട് കൺട്രോൾ ഉപയോഗിക്കുന്നു
The included 2-in-1 remote control allows you to turn the unit ON/OFF and set a desired room temperature. The remote constantly monitors the ambient temperature near its location.
- ഓൺ/ഓഫ് ഫംഗ്ഷൻ: Press the ON button to ignite the main burner. Press the OFF button to turn off the main burner. The pilot light will remain lit.
- Thermostat Mode: Set your desired temperature using the remote. The gas log set will automatically cycle on and off to maintain this temperature, similar to a central heating system.
Figure 6: Gas logs with active flames.
4.3 വീഡിയോ പ്രദർശനം
Video 1: This video demonstrates the operation and features of a Pleasant Hearth Vent Free Gas Log Set, highlighting the flame appearance and remote control functionality. Note: The model shown may vary slightly from VFL-VO24DR.
വീഡിയോ 2: ഈ വീഡിയോയിൽ പൊതുവായ ഒരു വിവരണം നൽകുന്നുview of a HearthSense Ventless Dual Fuel Gas Log Set, showcasing its flame patterns and dual fuel capability. Note: The model shown may vary slightly from VFL-VO24DR.
5. പരിപാലനം
Regular maintenance ensures safe and efficient operation of your gas log set. Always turn off the gas supply and allow the unit to cool completely before performing any maintenance.
- വൃത്തിയാക്കൽ: Periodically clean the logs and burner area to remove dust, lint, or debris that may accumulate. Use a soft brush or vacuum. Do not use abrasive cleaners.
- Pilot Light and Burner Inspection: Annually inspect the pilot light and main burner for proper flame appearance and any obstructions.
- ഗ്യാസ് കണക്ഷനുകൾ: Check gas connections for leaks using a soapy water solution. Bubbles indicate a leak.
- Log Condition: Inspect logs for cracks or damage. Replace any damaged logs to maintain safe operation and aesthetic appeal.
6. പ്രശ്നപരിഹാരം
If your gas log set is not operating correctly, refer to the following common issues:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Pilot light will not light | No gas supply, air in line, faulty igniter, clogged pilot orifice. | Check gas valve, bleed air from line, inspect igniter electrode, clean pilot orifice. |
| Main burner will not ignite | Pilot not lit, low gas pressure, faulty thermopile, remote control issue. | Ensure pilot is lit, check gas supply, inspect thermopile connection, check remote batteries. |
| യൂണിറ്റ് അപ്രതീക്ഷിതമായി അടച്ചുപൂട്ടി | ODS activation (low oxygen), overheat safety activation, low gas pressure. | Ventilate area, allow unit to cool, check gas supply. |
| അസാധാരണമായ ദുർഗന്ധം | Gas leak, new unit burn-off, dust/debris on burner. | Immediately shut off gas and ventilate if gas odor. Allow new unit to burn off. Clean unit. |
If troubleshooting steps do not resolve the issue, contact a qualified service technician or the manufacturer for assistance.
7 സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: സുഖകരമായ ഹൃദ്യം
- മോഡൽ നമ്പർ: VFL-VO24DR
- UPC: 872076024293
- ഊർജ്ജ സ്രോതസ്സ്: Fuel Powered (Natural Gas or Propane)
- ഹീറ്റ് ഔട്ട്പുട്ട്: 33,000 ബി.ടി.യു
- ചൂടാക്കൽ കവറേജ്: 1,100 ചതുരശ്ര അടി വരെ
- ഉൽപ്പന്ന അളവുകൾ: 13.5"D x 24"W x 12.25"H
- Log Size: 24 ഇഞ്ച്
- മെറ്റീരിയൽ: Concrete / Ceramic Fiber
- ഇൻസ്റ്റലേഷൻ തരം: ഫ്രീസ്റ്റാൻഡിംഗ്
- വെന്റിലേഷൻ തരം: വെന്റ് ഫ്രീ
- പ്രത്യേക സവിശേഷത: Adjustable Thermostat, Remote Control
- ഇനത്തിൻ്റെ ഭാരം: 33 പൗണ്ട്
- നിർമ്മാതാവ്: GHP ഗ്രൂപ്പ്, Inc.
8. വാറൻ്റിയും പിന്തുണയും
This Pleasant Hearth gas log set comes with a 2-വർഷ പരിമിത വാറൻ്റി. For warranty claims, technical support, or replacement parts, please contact GHP Group, Inc., the manufacturer. Retain your proof of purchase for warranty service.
നിർമ്മാതാവ്: GHP ഗ്രൂപ്പ്, Inc.
For further assistance, refer to the complete user manual included with your product or visit the official Pleasant Hearth webസൈറ്റ്.
