TASCAM DR-10L Micro Portable Digital Audio Recorder User Manual

ആമുഖം

This manual provides essential information for the safe and effective use of your TASCAM DR-10L Micro Portable Digital Audio Recorder. Please read this manual thoroughly before using the product to ensure proper operation and to prevent damage. The TASCAM DR-10L is a compact, lightweight digital audio recorder designed for professional-quality audio capture, particularly for interviews, presentations, and field recording. It features a lavalier microphone for discreet placement and high-resolution recording capabilities.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The TASCAM DR-10L unit is a micro portable recorder with an integrated display and control buttons. It is designed for discreet, high-quality audio capture.

ഫ്രണ്ട് view of the TASCAM DR-10L recorder, showing the display and control buttons.

The included lavalier microphone connects to the recorder, offering flexibility for various recording scenarios.

The lavalier microphone with its clip and 3.5mm connector.

The back of the unit features a belt clip for secure attachment to clothing or other surfaces.

പിൻഭാഗം view of the DR-10L, highlighting the integrated belt clip.

സജ്ജമാക്കുക

1. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

The DR-10L operates on a single AAA battery. For optimal performance, use an alkaline or NiMH rechargeable battery. Open the battery compartment cover, insert the battery with the correct polarity, and close the cover securely.

Image showing the battery compartment open with a AAA battery being inserted.

2. മൈക്രോ എസ്ഡി കാർഡ് ഇൻസ്റ്റാളേഷൻ

The DR-10L records to microSD/SDHC cards (up to 32GB). Locate the microSD card slot on the side of the unit. Insert the card until it clicks into place. To remove, push the card in again until it springs out.

വശം view of the DR-10L, indicating the USB port, microSD card slot, and headphone jack.

3. Attaching the Lavalier Microphone

Connect the included lavalier microphone to the DR-10L's microphone input jack located on the top of the unit. Ensure the connection is secure.

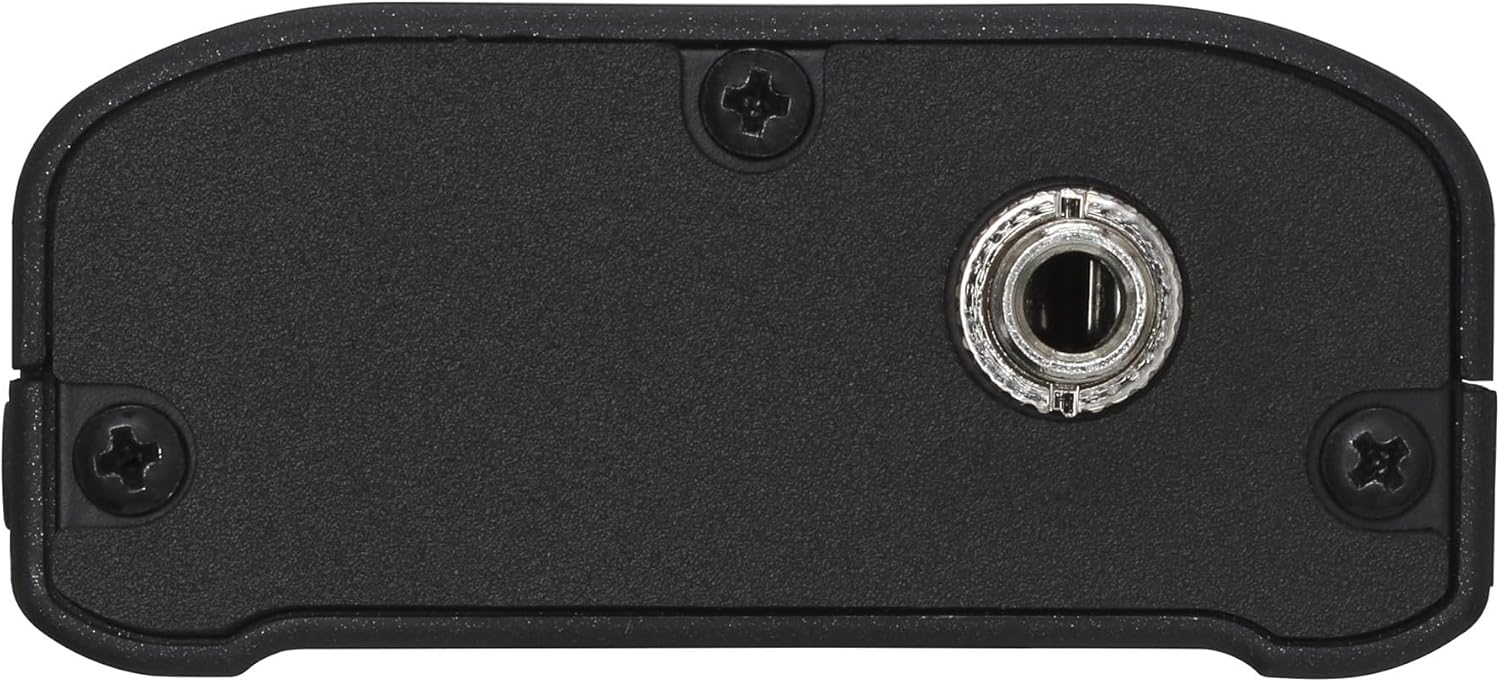

മുകളിൽ view of the DR-10L, showing the microphone input jack.

4. പവർ ഓൺ/ഓഫ്

To power on the unit, slide the POWER switch to the ON position. The display will light up. To power off, slide the switch to OFF. Always ensure the unit is powered off before removing the battery or microSD card.

വശം view of the DR-10L, showing the power switch, record switch, and headphone volume controls.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. അടിസ്ഥാന റെക്കോർഡിംഗ്

To start recording, slide the REC switch to the REC position. The recording indicator will illuminate, and the display will show recording time. To stop recording, slide the REC switch back to its original position. The recorded file ഓട്ടോമാറ്റിക്കായി സേവ് ചെയ്യപ്പെടും.

2. ഓഡിയോ മോണിറ്ററിംഗ്

Connect headphones to the PHONES jack to monitor the audio during recording or playback. Use the PHONES +/- buttons on the side of the unit to adjust the monitoring volume.

3. മെനു നാവിഗേഷൻ

Use the MENU button to access the system settings. The arrow buttons (left/right) navigate through options, and the ENTER button confirms selections. Common settings include recording level, low-cut filter, limiter, and dual recording.

4. Dual Recording Function

The DR-10L features a dual recording function that records a second, lower-level safety track simultaneously. This helps prevent clipping in situations where unexpected loud sounds occur. Activate this feature through the menu settings.

5. File കൈമാറ്റം

രേഖപ്പെടുത്തിയത് കൈമാറാൻ files to a computer, connect the DR-10L using a USB cable. The unit will appear as a removable storage device, allowing you to copy files directly from the microSD card.

6. നിർദ്ദേശ വീഡിയോകൾ

Watch these videos for visual guidance on operating your TASCAM DR-10L.

മെയിൻ്റനൻസ്

വൃത്തിയാക്കൽ

Wipe the unit with a soft, dry cloth. Do not use liquid cleaners, abrasive materials, or solvents, as these can damage the finish or internal components.

സംഭരണം

When not in use for extended periods, remove the battery to prevent leakage and potential damage to the unit. Store the DR-10L in a cool, dry place away from direct sunlight and extreme temperatures.

ട്രബിൾഷൂട്ടിംഗ്

• യൂണിറ്റ് പവർ ഓൺ ചെയ്യുന്നില്ല: Check battery installation and charge level. Ensure the power switch is firmly in the ON position. Replace the battery if necessary.
• ഓഡിയോ റെക്കോർഡ് ചെയ്തിട്ടില്ല: Verify that the lavalier microphone is securely connected. Check the recording level settings in the menu. Ensure a microSD card is inserted and has sufficient free space.
• വികലമായ ഓഡിയോ: Adjust the input level to prevent clipping. Ensure the microphone is not placed too close to the sound source. Activate the dual recording function for a safety track.
• കൈമാറാൻ കഴിയില്ല fileകമ്പ്യൂട്ടറിലേക്ക് എസ്: Ensure the USB cable is securely connected to both the DR-10L and the computer. Check if the DR-10L is in USB Mass Storage mode (refer to menu settings for activation). Try a different USB port or cable.
• ഹ്രസ്വ ബാറ്ററി ലൈഫ്: Ensure you are using fresh alkaline batteries or fully charged NiMH rechargeable batteries. Extreme temperatures can affect battery performance.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, product registration, and technical support, please visit the official TASCAM website or contact your authorized TASCAM dealer. It is recommended to keep your purchase receipt as proof of purchase for warranty claims.
