1. ആമുഖം
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your KING GATES Dynamos 24/400 Irreversible Sliding Gate Motor. This device is designed for automating sliding gates, ensuring reliable and secure access control. Please read this manual thoroughly before attempting any installation or operation.
2 സുരക്ഷാ വിവരങ്ങൾ
Your safety and the safety of others are paramount. Improper installation or use of this product can lead to serious injury or damage. Observe the following safety guidelines:
- Installation must be performed by qualified personnel in accordance with local electrical and safety regulations.
- ഏതെങ്കിലും അറ്റകുറ്റപ്പണികൾ അല്ലെങ്കിൽ സേവനം നടത്തുന്നതിന് മുമ്പ് വൈദ്യുതി വിച്ഛേദിക്കുക.
- Keep hands, feet, and clothing clear of the gate and motor mechanism during operation.
- Do not allow children to play with or near the gate or its controls.
- എല്ലാ സുരക്ഷാ ഉപകരണങ്ങളും (ഉദാ: ഫോട്ടോസെല്ലുകൾ, സുരക്ഷാ അരികുകൾ) ശരിയായി ഇൻസ്റ്റാൾ ചെയ്തിട്ടുണ്ടെന്നും പ്രവർത്തിക്കുന്നുണ്ടെന്നും ഉറപ്പാക്കുക.
- Regularly inspect the gate and motor for signs of wear, damage, or misalignment.
3. പാക്കേജ് ഉള്ളടക്കം
The specific contents of your package may vary. Please refer to the product packaging for a detailed list of included items. Typically, the package contains:
- KING GATES Dynamos 24/400 Motor Unit
- Mounting hardware (bolts, screws, etc.)
- Control unit (integrated or separate)
- മാനുവൽ റിലീസ് കീ
- Installation template (if applicable)
- ഈ ഉപയോക്തൃ മാനുവൽ
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of the Dynamos 24/400 motor requires technical expertise. It is strongly recommended that installation be carried out by a professional installer to ensure proper function and safety.
4.1 സൈറ്റ് തയ്യാറാക്കൽ
- Ensure the gate slides freely and smoothly without obstruction.
- Prepare a stable, level concrete base for mounting the motor unit.
- Route necessary electrical conduits for power supply and control wiring.
4.2 മോട്ടോർ യൂണിറ്റ് മൌണ്ട് ചെയ്യൽ
Use the provided mounting plate and hardware to securely fasten the motor unit to the prepared concrete base. Ensure the motor is correctly aligned with the gate rack (not included).

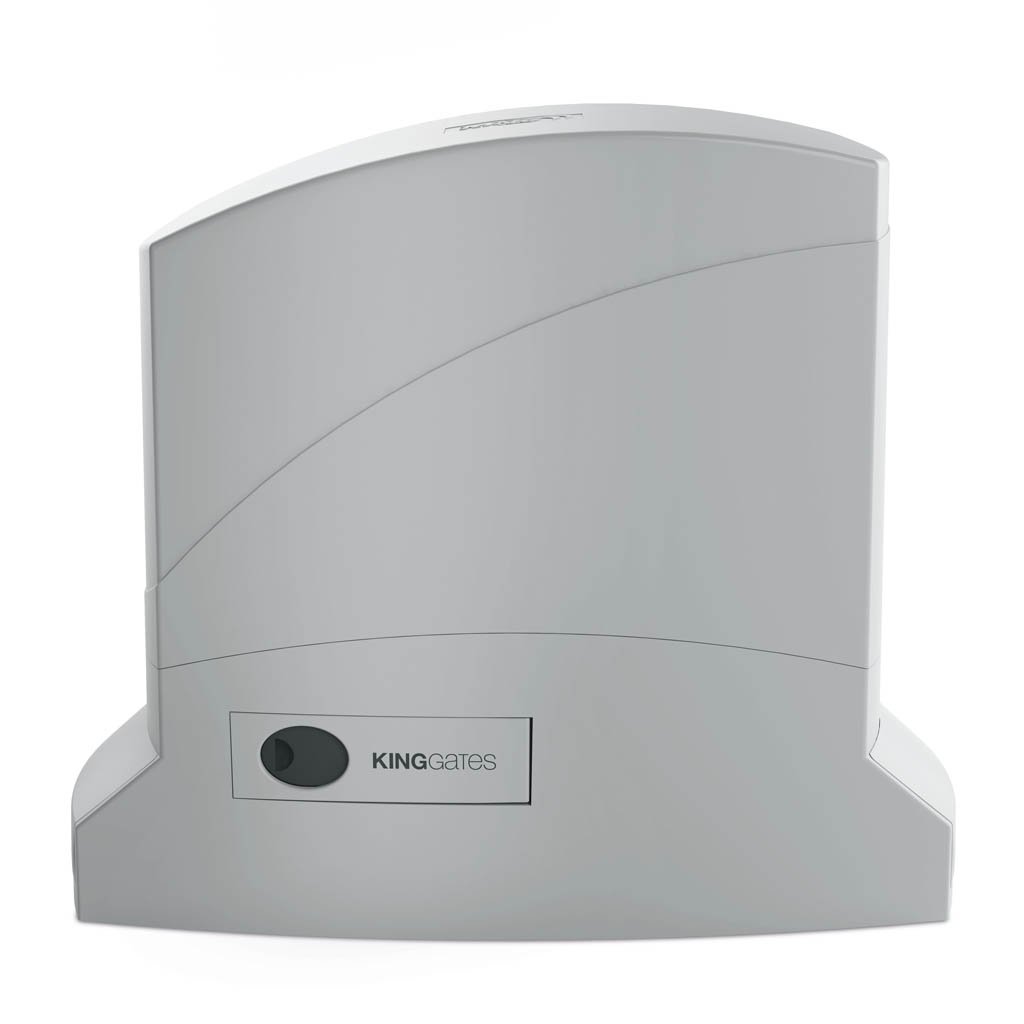

An image showing the main unit of the KING GATES Dynamos 24/400 irreversible sliding gate motor. The unit is light gray with a curved top and features the 'KING GATES' logo on the front panel.
4.3 ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ
Connect the power supply and control wiring according to the wiring diagram provided with the motor or control unit. Ensure all connections are secure and properly insulated. Test all safety devices before initial operation.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed and configured, the Dynamos 24/400 motor provides automated gate operation.
5.1 സ്റ്റാൻഡേർഡ് ഓപ്പറേഷൻ
Activate the gate motor using a compatible remote control, wall switch, or access control system. The gate will open or close automatically. Safety features will stop or reverse the gate if an obstruction is detected.
5.2 മാനുവൽ റിലീസ്
ഒരു പവർ ഈtage or malfunction, the gate can be operated manually. Locate the manual release mechanism on the motor unit (typically covered by a cap). Insert the provided key and turn it to disengage the motor, allowing the gate to be moved by hand. Remember to re-engage the motor after manual operation or power restoration.
6. പരിപാലനം
Regular maintenance ensures the longevity and reliable operation of your gate motor.
- പ്രതിമാസ: Inspect the gate for smooth movement, clear any debris from the gate track, and check for any loose connections or signs of wear on the motor and gate components.
- ത്രൈമാസിക: Clean the motor housing and ensure ventilation openings are clear. Check the lubrication of moving parts (if applicable, refer to specific product guidelines).
- വാർഷികം: Have a qualified technician perform a comprehensive inspection and service of the entire gate system, including the motor, safety devices, and electrical components.
7. പ്രശ്നപരിഹാരം
If you encounter issues with your Dynamos 24/400 motor, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| മോട്ടോർ പ്രതികരിക്കുന്നില്ല | No power, remote battery dead, safety device triggered | Check power supply, replace remote battery, inspect safety sensors for obstructions. |
| Gate stops or reverses unexpectedly | Obstruction detected, safety device malfunction | Remove any obstructions, clean safety sensors, check sensor alignment. |
| Gate moves slowly or with difficulty | Friction in gate mechanism, motor overload | Lubricate gate rollers/track, check for gate alignment, consult a technician. |
If the problem persists after attempting these solutions, contact a qualified technician or KING GATES customer support.
8 സ്പെസിഫിക്കേഷനുകൾ
| സ്പെസിഫിക്കേഷൻ | വിശദാംശങ്ങൾ |
|---|---|
| നിർമ്മാതാവ് | കിംഗ് ഗേറ്റ്സ് |
| മോഡൽ | Dynamos 24/400 |
| ASIN | B01MRAI821 |
| ഇനങ്ങളുടെ അളവ് | 1 |
| ബാറ്ററികൾ ഉൾപ്പെടുത്തിയിട്ടുണ്ട് | ഇല്ല |
| ബാറ്ററികൾ ആവശ്യമാണ് | ഇല്ല |
| സ്പെയർ പാർട്സ് ലഭ്യത | വിവരങ്ങൾ ലഭ്യമല്ല |
| ആദ്യ തീയതി ലഭ്യമാണ് | മെയ് 20, 2022 |
| നിർമ്മാതാവ് നിർത്തലാക്കി | ഇല്ല |
9. വാറൻ്റിയും പിന്തുണയും
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or service, please contact KING GATES customer service or an authorized service center. Always provide your product model (Dynamos 24/400) and ASIN (B01MRAI821) when seeking support.
