MTX 12 Inch 1200 Watt Dual Loaded Car Audio Subwoofer Package

1. ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of your MTX 12 Inch 1200 Watt Dual Loaded Car Audio Subwoofer Package. This comprehensive system is designed to significantly upgrade your vehicle's audio experience, delivering powerful and clear bass.

The package includes a dual 12-inch subwoofer enclosure, a high-performance monoblock amplifier, a power capacitor, and a complete wiring kit, ensuring a robust and immersive sound experience on the road.

Image 1.1: Complete MTX Car Audio Subwoofer Package including subwoofers, amplifier, capacitor, and wiring kit.

2. പാക്കേജ് ഉള്ളടക്കം

താഴെ പട്ടികപ്പെടുത്തിയിരിക്കുന്ന എല്ലാ ഘടകങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:

• Dual MTX 12-inch Subwoofers (pre-installed in enclosure)
• MTX Subwoofer Box (enclosure for dual 12-inch subwoofers)
• MTX Terminator TNA251 Amp / 1100-watt Monoblock A/B Ampജീവപര്യന്തം
• 8 ഗേജ് വയറിംഗ് കിറ്റ്
• 2-Farad Power Capacitor

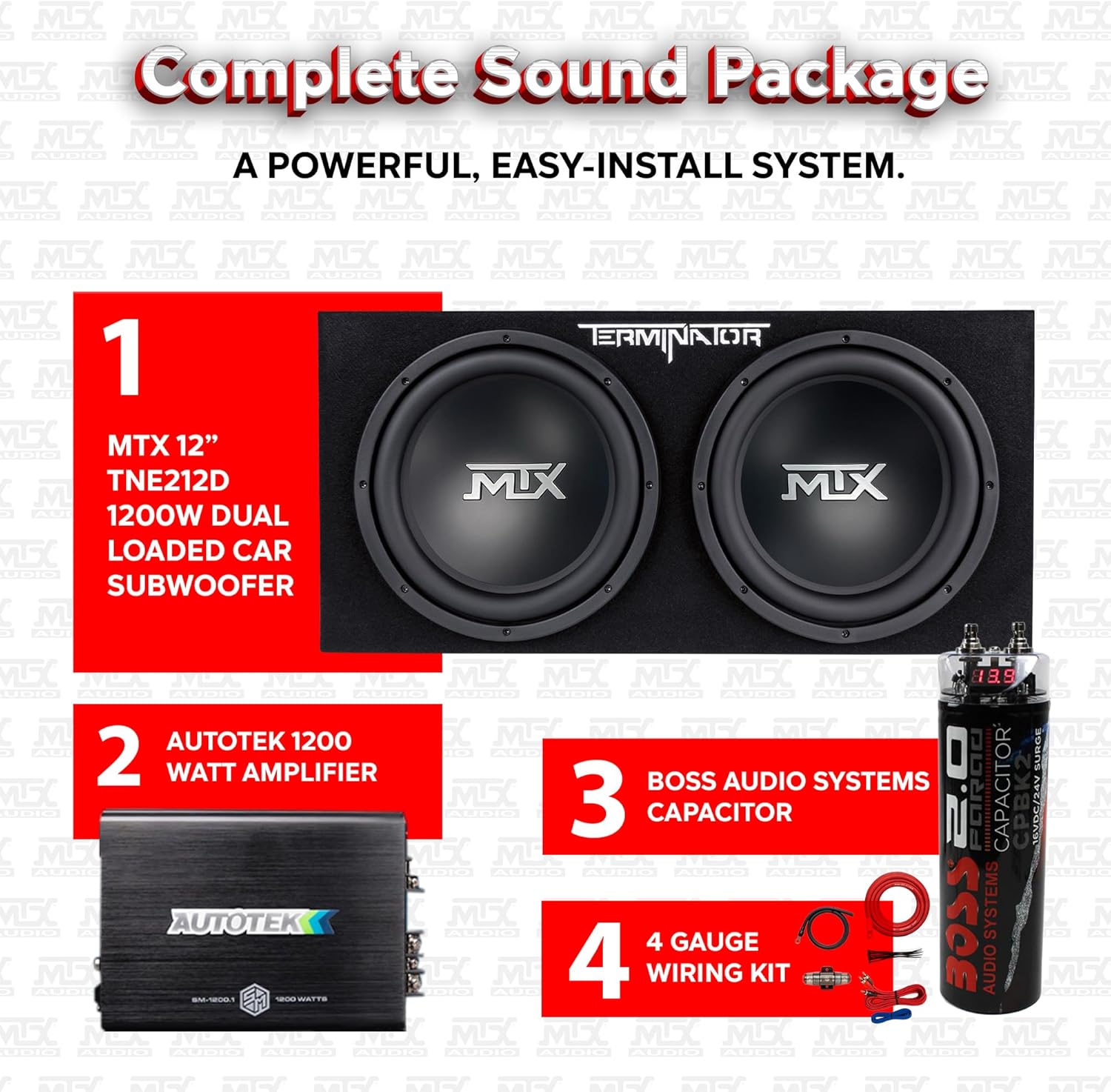

Image 2.1: Visual breakdown of the complete sound package components.

3. ഉൽപ്പന്ന സവിശേഷതകൾ

Detailed technical specifications for the MTX TNE212D Subwoofer Package:

Image 3.1: Detailed dimensions of the subwoofer enclosure and ampജീവൻ.

4. ഇൻസ്റ്റാളേഷൻ ഗൈഡ്

Proper installation is crucial for optimal performance and safety. It is recommended that installation be performed by a qualified professional. If you choose to install it yourself, proceed with caution and ensure your vehicle's battery is disconnected before starting.

4.1. ഇൻസ്റ്റലേഷന് മുമ്പുള്ള പരിഗണനകൾ

• വാഹന അനുയോജ്യത: Ensure adequate space in your vehicle's trunk or cargo area for the subwoofer enclosure (13.5"D x 29.69"W x 14"H).
• Head Unit Compatibility: If your car's stock stereo does not have RCA jack outputs, you will need a line-output converter (not included) to connect the ampജീവൻ.
• വയറിംഗ് കിറ്റ്: The included 8-gauge wiring kit is designed for this system. Ensure all wires are properly routed and secured to prevent damage or interference.

Image 4.1: The included 8-gauge wiring kit components.

4.2. വയറിംഗ് ഘട്ടങ്ങൾ

1. പവർ കേബിൾ: Run the main power cable from your car's battery to the amplifier location. Install an in-line fuse holder near the battery.
2. Ground Cable: നിന്ന് ഗ്രൗണ്ട് കേബിൾ ബന്ധിപ്പിക്കുക amplifier to a clean, unpainted metal surface on the vehicle's chassis. Ensure a solid connection.
3. Remote Turn-On Wire: Connect the remote turn-on wire from your head unit to the amplifier's remote input. This signals the amplifier to turn on/off with your stereo.
4. ആർസിഎ കേബിളുകൾ: Connect the RCA cables from your head unit (or line-output converter) to the ampലൈഫയറിന്റെ ഇൻപുട്ട്.
5. സ്പീക്കർ വയറുകൾ: ഇതിൽ നിന്ന് സ്പീക്കർ വയറുകൾ ബന്ധിപ്പിക്കുക amplifier's output to the subwoofer enclosure. Ensure correct polarity (+ to + and - to -).
6. കപ്പാസിറ്റർ ഇൻസ്റ്റാളേഷൻ: Install the 2-Farad capacitor in line with the amplifier's power input. The capacitor helps stabilize voltage and provide burst power for deep bass. Follow the capacitor's specific wiring diagram for proper connection and charging.

Image 4.2: The 2-Farad power capacitor with LED digital voltagഇ ഡിസ്പ്ലേ.

Image 4.3: The Autotek 1200 Watt Monoblock Ampജീവൻ.

4.3. അന്തിമ സ്ഥാനം

Securely place the subwoofer enclosure in your desired location within the vehicle. Ensure it does not obstruct any safety features or moving parts. The enclosure is designed to withstand typical trunk environments.

ചിത്രം 4.4: ഉദാample of the subwoofer enclosure installed in a vehicle's trunk.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once installed, you can begin operating your MTX subwoofer system. Proper adjustment of amplifier settings is key to achieving optimal sound quality and preventing damage.

5.1. പ്രാരംഭ പവർ-അപ്പ്

After all connections are secure and verified, reconnect your vehicle's battery. Turn on your car's ignition and stereo. The amplifier should power on, indicated by its status light.

5.2. Amplifier Settings Adjustment

Your monoblock amplifier features adjustable crossovers and gain controls. These settings allow you to fine-tune the bass output to match your vehicle's acoustics and personal preference.

• നിയന്ത്രണം നേടുക: Start with the gain control at its minimum setting. Gradually increase it until the bass output blends well with your main speakers without distortion. Avoid setting the gain too high, as this can lead to clipping and damage.
• ലോ-പാസ് ഫിൽട്ടർ (LPF): Adjust the LPF to filter out high frequencies, ensuring only bass frequencies are sent to the subwoofers. A common starting point is between 80Hz and 120Hz.
• ബാസ് ബൂസ്റ്റ്: Use the bass boost sparingly. Excessive bass boost can cause distortion and potentially damage the subwoofers.

Experiment with these settings while listening to various types of music to find the ideal balance for your system. The goal is clear, powerful bass that complements your existing audio, not overwhelms it.

6. പരിചരണവും പരിപാലനവും

To ensure the longevity and performance of your MTX subwoofer package, follow these care and maintenance guidelines:

• പതിവ് പരിശോധന: എല്ലാ വയറിംഗ് കണക്ഷനുകളുടെയും ഇറുകിയതും നാശവും ഇടയ്ക്കിടെ പരിശോധിക്കുക. അയഞ്ഞ കണക്ഷനുകൾ മോശം പ്രകടനത്തിനോ കേടുപാടുകൾക്കോ ​​കാരണമാകും.
• ശുചിത്വം: Keep the subwoofer enclosure and amplifier clean and free of dust and debris. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals or abrasive cleaners.
• Dust Caps: The polypropylene dust caps are durable, but avoid direct physical impact to prevent damage to the subwoofer cones.
• വെൻ്റിലേഷൻ: ഉറപ്പാക്കുക amplifier has adequate ventilation to prevent overheating. Do not cover the amplifier or place it in an enclosed space without airflow.
• പാരിസ്ഥിതിക ഘടകങ്ങൾ: Protect the system from extreme temperatures and moisture. While designed for car environments, excessive exposure can degrade components.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your MTX subwoofer package, refer to the following common problems and solutions:

Note: Some users have reported that the included amplifier and wiring kit may not meet their performance expectations. If you experience persistent issues with sound quality or power delivery after troubleshooting, consider consulting a professional installer or upgrading specific components.

8. വാറൻ്റിയും പിന്തുണയും

Your MTX 12 Inch 1200 Watt Dual Loaded Car Audio Subwoofer Package comes with a മുഴുവൻ വാറന്റി. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included in your product packaging or visit the official MTX webസൈറ്റ്.

If you require technical assistance, have questions about installation, or need to report a defect, please contact MTX customer support through their official channels. Be prepared to provide your product model number (TNE212D) and proof of purchase.

കൂടുതൽ ഉറവിടങ്ങൾക്കും ഉൽപ്പന്ന വിവരങ്ങൾക്കും, നിങ്ങൾക്ക് സന്ദർശിക്കാവുന്നതാണ് MTX Brand Store on Amazon.
