SMT Ultrasonic Homogenizer UH-50 Instruction Manual

1. ആമുഖം

This manual provides essential information for the safe and efficient operation of the SMT Ultrasonic Homogenizer UH-50. Please read this manual thoroughly before using the device and keep it for future reference.

The SMT Ultrasonic Homogenizer UH-50 is a compact and lightweight device designed for laboratory applications requiring ultrasonic homogenization. Its key features include a space-saving design, a lightweight vibrator (approximately 160g), and a hand pulser for convenient control of ultrasonic vibration. The system automatically adjusts output to maintain a constant amplitude, adapting to variations in sample load and pressure.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: This is a professional-use product. It should only be operated by trained personnel in a laboratory setting.

• No Dry Operation: Do not operate the ultrasonic vibrator without it being immersed in a liquid sample. Dry operation can cause damage to the device.
• ഉപകരണം ഒരു സ്ഥിരതയുള്ള, നിരപ്പായ പ്രതലത്തിൽ സ്ഥാപിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• Connect the device to a grounded power outlet with the specified voltage (AC100V, 50/60Hz).
• Avoid direct contact with the vibrating tip during operation.
• Do not disassemble or attempt to repair the unit yourself. Refer to qualified service personnel.
• Keep the unit away from flammable materials and excessive moisture.

3. ഉൽപ്പന്ന ഘടകങ്ങളും നിയന്ത്രണങ്ങളും

The SMT Ultrasonic Homogenizer UH-50 consists of a main control unit and an ultrasonic vibrator with a hand pulser. Familiarize yourself with the components and controls shown below.

Figure 1: SMT Ultrasonic Homogenizer UH-50 Overview

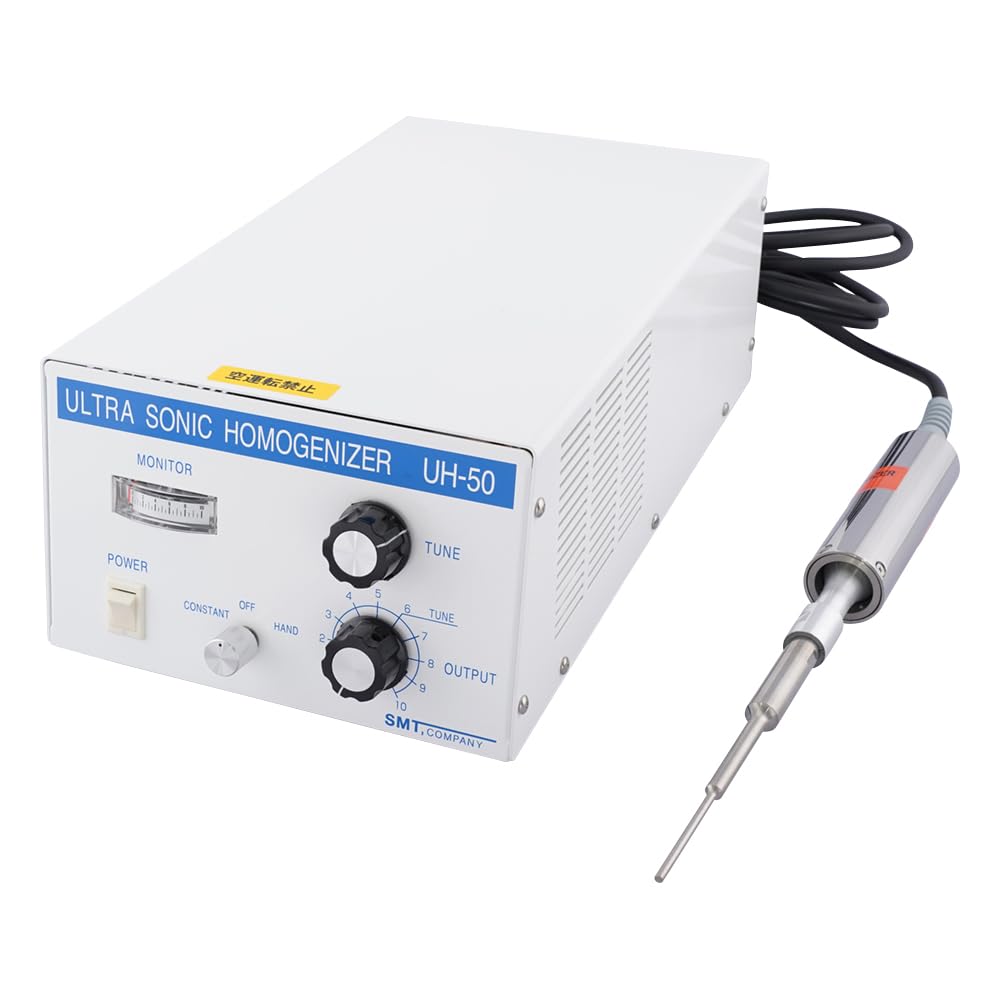

This image displays the main control unit of the SMT Ultrasonic Homogenizer UH-50 on the left, connected to the ultrasonic vibrator on the right. The control unit features a "MONITOR" display, a "POWER" switch, "CONSTANT" and "HAND" mode selector, "TUNE" and "OUTPUT" adjustment knobs. A yellow label on top of the main unit warns against dry operation. The vibrator is a slender, metallic component with a tip.

നിയന്ത്രണ പാനൽ വിവരണം:

• വൈദ്യുതി സ്വിച്ച്: യൂണിറ്റ് ഓണും ഓഫും ചെയ്യുന്നു.
• MONITOR Display: Shows the current output level or other operational parameters.
• CONSTANT/HAND Selector:
  • സ്ഥിരം: Continuous ultrasonic operation.
  • കൈ: Operation controlled by the hand pulser switch.
• ട്യൂൺ നോബ്: Adjusts the ultrasonic frequency for optimal performance.
• ഔട്ട്പുട്ട് നോബ്: Controls the ultrasonic power output (ampലിറ്റ്യൂഡ്).
• Hand Pulser: A switch located on the vibrator cable for convenient start/stop of ultrasonic vibration when in HAND mode.

4. സജ്ജീകരണം

1. അൺപാക്ക് ചെയ്യുന്നു: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക. പാക്കിംഗ് ലിസ്റ്റ് അനുസരിച്ച് എല്ലാ ഭാഗങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
2. പ്ലേസ്മെൻ്റ്: Place the main control unit on a stable, flat, and dry surface, ensuring adequate ventilation around the unit.
3. വൈബ്രേറ്റർ ബന്ധിപ്പിക്കുക: Connect the ultrasonic vibrator cable securely to the designated port on the main control unit.
4. പവർ കണക്ഷൻ: Ensure the POWER switch is in the "OFF" position. Connect the power cord to the main control unit and then to a grounded AC100V, 50/60Hz power outlet.
5. പ്രാഥമിക പരിശോധന: Before first use, visually inspect the vibrator tip for any damage or wear.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Always ensure the vibrator tip is immersed in the sample liquid before starting operation to prevent damage from dry running.

1. എസ് തയ്യാറാക്കുകampLe: നിങ്ങളുടെ എസ് സ്ഥാപിക്കുകample in an appropriate vessel. Ensure the vessel is suitable for ultrasonic treatment and can withstand the energy generated.
2. Immerse Vibrator: Carefully immerse the tip of the ultrasonic vibrator into the sample liquid. Ensure the tip is sufficiently submerged but not touching the bottom or sides of the vessel.
3. പവർ ഓൺ: Turn the POWER switch to the "ON" position. The MONITOR display should illuminate.
4. മോഡ് തിരഞ്ഞെടുക്കുക:
   • For continuous operation, set the selector to "CONSTANT".
   • For intermittent operation controlled by the hand pulser, set the selector to "HAND".
5. Adjust TUNE: Slowly adjust the TUNE knob until the MONITOR display shows the highest stable reading, indicating optimal resonance.
6. Set OUTPUT: Adjust the OUTPUT knob to the desired ultrasonic power level. The system will automatically control the output to maintain a constant ampലിറ്റ്യൂഡ്.
7. Start Homogenization:
   • In "CONSTANT" mode, homogenization will start immediately.
   • In "HAND" mode, press and hold the switch on the hand pulser to start homogenization. Release the switch to stop.
8. മോണിറ്റർ പ്രക്രിയ: Observe the homogenization process. Adjust OUTPUT or TUNE as necessary.
9. പൂർത്തീകരണം: Once homogenization is complete, turn the OUTPUT knob to minimum, then turn the POWER switch to "OFF".
10. Clean Vibrator: Carefully remove the vibrator from the sample and clean it immediately according to the maintenance instructions.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your SMT Ultrasonic Homogenizer UH-50.

• Cleaning the Vibrator Tip: After each use, thoroughly clean the vibrator tip to prevent sample residue buildup. Use appropriate cleaning agents for the materials being processed. Rinse with distilled water and dry completely.
• പ്രധാന യൂണിറ്റ് വൃത്തിയാക്കൽ: Wipe the exterior of the main control unit with a soft, damp cloth. Do not use abrasive cleaners or allow liquids to enter the unit.
• പരിശോധന: Periodically inspect the vibrator tip, cable, and connectors for any signs of wear, damage, or corrosion. Replace damaged parts immediately.
• സംഭരണം: Store the unit in a clean, dry environment when not in use.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your SMT Ultrasonic Homogenizer UH-50, refer to the following common problems and solutions:

• ശക്തിയില്ല:
  • Check if the power cord is securely connected to both the unit and the power outlet.
  • പവർ ഔട്ട്ലെറ്റ് പ്രവർത്തനക്ഷമമാണെന്ന് ഉറപ്പാക്കുക.
  • Verify the POWER switch is in the "ON" position.
• No Ultrasonic Vibration:
  • Ensure the vibrator tip is properly immersed in liquid.
  • Check the TUNE and OUTPUT knob settings. Adjust TUNE for optimal resonance.
  • If in "HAND" mode, ensure the hand pulser switch is pressed.
  • Inspect the vibrator cable for damage.
• കുറഞ്ഞതോ പൊരുത്തമില്ലാത്തതോ ആയ ഔട്ട്പുട്ട്:
  • Adjust the TUNE knob to find the optimal frequency.
  • Increase the OUTPUT knob setting.
  • Ensure the vibrator tip is clean and free of damage.
  • എസ് പരിശോധിക്കുകample volume and viscosity are within appropriate limits for the device.

If the problem persists after attempting these solutions, please contact SMT customer support or your local distributor for assistance.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

Specific warranty information for the SMT Ultrasonic Homogenizer UH-50 is not provided in this document. Please refer to your purchase agreement or contact your local SMT distributor for details regarding warranty coverage and technical support.

കൂടുതൽ സഹായത്തിന്, നിങ്ങൾക്ക് സന്ദർശിക്കാവുന്നതാണ് SMT Brand Store on Amazon.co.jp.
