Ewent EW7014 USB 3.1 Gen-1 ഡ്യുവൽ ഡോക്കിംഗ് സ്റ്റേഷൻ ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

The Ewent EW7014 USB 3.1 Gen-1 Dual Docking Station provides a convenient solution for connecting and accessing 2.5-inch and 3.5-inch SATA hard drives or Solid State Drives (SSDs). This device supports high-speed data transfer via USB 3.1 Gen-1 and features a standalone cloning function, allowing you to duplicate drives without a computer connection.

1.1. ഉൽപ്പന്നം കഴിഞ്ഞുview

Image 1.1: Ewent EW7014 Dual Docking Station with two hard drives.

1.2. പാക്കേജ് ഉള്ളടക്കം

• Ewent EW7014 Dual Docking Station
• USB 3.1 Gen-1 Cable
• പവർ അഡാപ്റ്റർ

Image 1.2: Contents of the Ewent EW7014 package.

2 പ്രധാന സവിശേഷതകൾ

• Dual Bay Design: Supports two 2.5-inch or 3.5-inch SATA I/II/III HDDs/SSDs simultaneously, up to 12.5 mm thickness.
• USB 3.1 Gen-1 Connectivity: Offers Super Speed data transfer rates up to 5 Gbps (backward compatible with USB 2.0).
• Standalone Cloning Function: Duplicate hard drives without requiring a computer connection.
• LED സൂചകങ്ങൾ: Provides status LEDs for power, data activity, and cloning progress.
• പ്ലഗ് ആൻഡ് പ്ലേ: മിക്ക ഓപ്പറേറ്റിംഗ് സിസ്റ്റങ്ങൾക്കും ഡ്രൈവർ ഇൻസ്റ്റാളേഷൻ ആവശ്യമില്ല.

Image 2.1: Visual representation of the docking station's backup and cloning capabilities.

3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

3.1. ഡോക്കിംഗ് സ്റ്റേഷൻ ബന്ധിപ്പിക്കുന്നു

1. Connect the provided power adapter to the 'Power' input port on the rear of the docking station. Plug the other end into a power outlet.
2. Connect one end of the supplied USB 3.1 Gen-1 cable to the 'USB 3.1' port on the rear of the docking station.
3. നിങ്ങളുടെ കമ്പ്യൂട്ടറിൽ ലഭ്യമായ USB പോർട്ടിലേക്ക് USB കേബിളിൻ്റെ മറ്റേ അറ്റം ബന്ധിപ്പിക്കുക.
4. Ensure the 'ON/OFF' switch on the rear of the docking station is in the 'OFF' position before inserting drives.

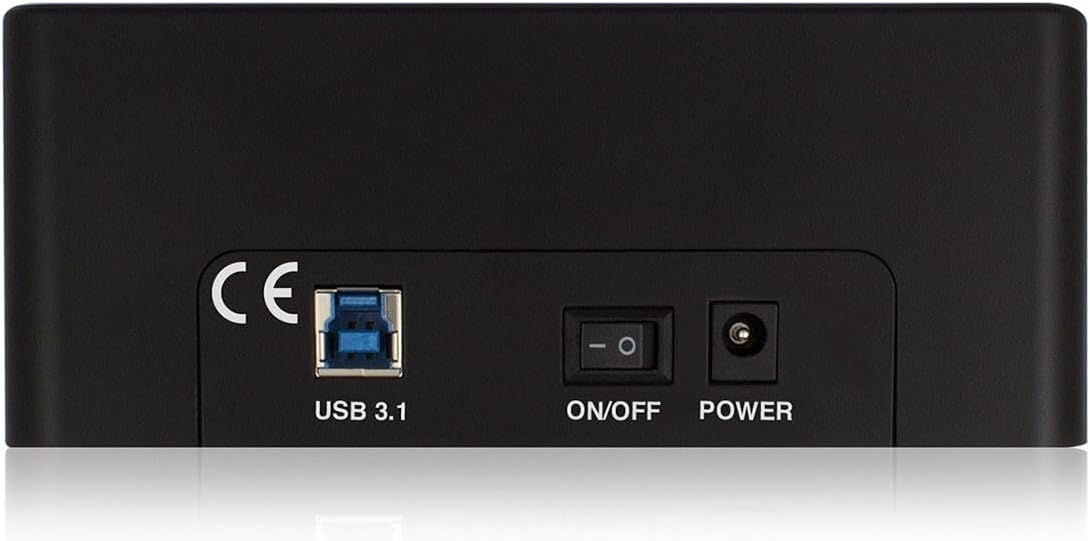

Image 3.1: Rear panel connections of the docking station.

3.2. Inserting Hard Drives / SSDs

1. Gently slide your 2.5-inch or 3.5-inch SATA HDD/SSD into an available drive bay (HDD1 or HDD2) until it is firmly seated. Ensure the SATA connector on the drive aligns with the connector in the bay.
2. If using 2.5-inch drives, ensure they are securely placed within the bay.
3. Once drives are inserted, switch the 'ON/OFF' button to the 'ON' position. The power LED will illuminate.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1. Data Transfer Mode (PC Connection)

When connected to a computer via USB, the docking station functions as an external drive enclosure. Inserted drives will appear as removable storage devices in your operating system.

1. Ensure the docking station is powered on and connected to your computer.
2. Insert your SATA HDD/SSD into either drive bay.
3. Your operating system should automatically detect the drive(s). You can then access, copy, or move fileമറ്റേതൊരു ബാഹ്യ സംഭരണ ​​ഉപകരണത്തിലും ചെയ്യുന്നതുപോലെ.
4. The data activity LEDs (HDD1, HDD2) will flash during read/write operations.
5. Always safely eject the drives from your operating system before powering off the docking station or removing the drives.

4.2. Standalone Cloning Function

The cloning function allows you to duplicate the contents of a source drive to a target drive without a computer connection. The target drive must be equal to or larger in capacity than the source drive.

Image 4.1: Top panel with drive bays and LED indicators for cloning progress.

Warning: All data on the target drive will be erased during the cloning process. Ensure you have backed up any important data from the target drive before proceeding.

1. ഡോക്കിംഗ് സ്റ്റേഷൻ ഓഫ് ചെയ്തിട്ടുണ്ടെന്നും നിങ്ങളുടെ കമ്പ്യൂട്ടറിൽ നിന്ന് വിച്ഛേദിക്കപ്പെട്ടിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
2. തിരുകുക source drive (the drive you want to copy FROM) into the HDD1 ഉൾക്കടൽ.
3. തിരുകുക ടാർഗെറ്റ് ഡ്രൈവ് (the drive you want to copy TO) into the HDD2 ഉൾക്കടൽ.
4. Power on the docking station using the 'ON/OFF' switch.
5. Press and hold the 'Clone' button (usually located near the drive bays) for approximately 3-5 seconds until the cloning progress LEDs (25%, 50%, 75%, 100%) begin to flash.
6. Release the 'Clone' button. The cloning process will begin. The progress LEDs will illuminate sequentially to indicate the completion percentage.
7. Once all progress LEDs are solid, the cloning process is complete.
8. Power off the docking station and safely remove both drives.

5 സാങ്കേതിക സവിശേഷതകൾ

6. പ്രശ്‌നപരിഹാരം

6.1. Drive Not Detected by Computer

• Ensure the docking station is powered on and the power adapter is securely connected.
• Verify the USB cable is firmly connected to both the docking station and your computer. Try a different USB port on your computer.
• Check if the hard drive/SSD is properly seated in the bay. Remove and re-insert it.
• If it's a new drive, it might need to be initialized, partitioned, and formatted in your operating system's Disk Management (Windows) or Disk Utility (macOS).
• Test with a different known-good hard drive/SSD to rule out a drive issue.

6.2. Cloning Process Does Not Start

• Ensure the docking station is disconnected from the computer before initiating cloning.
• Verify that the source drive is in HDD1 and the target drive is in HDD2.
• Confirm that the target drive's capacity is equal to or greater than the source drive's capacity.
• Press and hold the 'Clone' button for the required duration (3-5 seconds) until the progress LEDs start flashing.
• Ensure both drives are properly inserted and detected by the docking station (power on, then check if drive LEDs briefly illuminate).

6.3. മന്ദഗതിയിലുള്ള ഡാറ്റാ ട്രാൻസ്ഫർ വേഗത

• Ensure you are connected to a USB 3.1 Gen-1 (USB 3.0) port on your computer. Connecting to a USB 2.0 port will result in slower speeds.
• Verify that your computer's USB 3.1 Gen-1 drivers are up to date.
• The actual transfer speed can be limited by the speed of the hard drive/SSD itself.
• നിരവധി ചെറിയവ കൈമാറ്റം ചെയ്യുന്നത് ഒഴിവാക്കുക. files simultaneously, as this can reduce overall transfer speed.

7. പരിപാലനം

• Keep the docking station clean by wiping it with a soft, dry cloth. Avoid using liquid cleaners or solvents.
• Ensure the device is kept in a dry environment, away from direct sunlight and extreme temperatures.
• Do not block the ventilation openings (if any) to prevent overheating.
• Handle hard drives and SSDs with care when inserting or removing them to prevent damage to the connectors.

8. വാറന്റി, പിന്തുണ വിവരങ്ങൾ

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Ewent webസൈറ്റ്. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.

Ewent is committed to providing reliable products and customer assistance. If you encounter issues not covered in this manual, please contact Ewent customer support for further assistance.
