Raimondi A Frame Cart Model 169CML Instruction Manual

1. ആമുഖം

The Raimondi A Frame Cart, Model 169CML, is an advanced device designed for the efficient and safe transport and handling of large format tiles. It facilitates tasks such as moving tiles across a worksite and positioning them for back-buttering. This manual provides essential information for the proper assembly, operation, maintenance, and safety of your A Frame Cart.

For optimal safety and ease of use when handling large format tiles, it is recommended to use this transport cart in conjunction with the Raimondi EASY-MOVE or T-MOVE Vacuum Transport Systems.

2 സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety when operating the Raimondi A Frame Cart. Failure to follow these guidelines may result in injury or damage to the equipment or materials.

• മാനുവൽ വായിക്കുക: Before initial use, thoroughly read and understand all instructions in this manual.
• ഭാരം ശേഷി: Do not exceed the maximum weight capacity of 551 lbs (250 kg). Overloading can lead to instability and equipment failure.
• സ്ഥിരതയുള്ള ഉപരിതലം: Operate the cart on a level and stable surface. Avoid uneven terrain or inclines that could cause the cart to tip.
• സുരക്ഷിത ലോഡ്: Always ensure tiles are securely positioned and supported by the adjustable hooks and rubber supports before moving the cart.
• ബ്രേക്കുകൾ: Engage the wheel brakes when loading, unloading, or when the cart is stationary to prevent unintended movement.
• വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (PPE): Wear appropriate PPE, including safety gloves and footwear, when handling large tiles and operating the cart.
• Two-Person Operation: For very large or heavy tiles, always use two or more people for safe loading, unloading, and maneuvering.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Raimondi A Frame Cart is constructed from lightweight aluminum, ensuring durability and ease of movement. Key features include:

• ക്രമീകരിക്കാവുന്ന കൊളുത്തുകൾ: Two height-adjustable hooks are provided for securely holding T-MOVE or EASY-MOVE frames.
• Rubber Supports: Adjustable rubber-edged wooden planes provide secure support for tiles, preventing damage during transport and storage.
• Pivoting Wheels with Brakes: Equipped with pivoting wheels for easy maneuverability and integrated brakes for stability.
• ഒതുക്കമുള്ള സംഭരണം: The cart can be quickly disassembled for convenient storage and transport.

Figure 1: The Raimondi A Frame Cart (Model 169CML) in its empty configuration, highlighting its robust aluminum frame, adjustable hooks, and pivoting wheels with brakes.

ചിത്രം 2: വിശദമായി view of key components including the adjustable hook, a suction cup handle (part of an EASY-MOVE frame), and the tile support bracket.

4. സജ്ജീകരണവും അസംബ്ലിയും

The Raimondi A Frame Cart is designed for quick assembly and disassembly. While specific step-by-step instructions are typically provided with the product packaging, the general process involves:

1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഭാഗങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
2. ഫ്രെയിം കൂട്ടിച്ചേർക്കുക: Connect the main aluminum frame sections according to the provided diagrams, ensuring all fasteners are tightened securely.
3. ചക്രങ്ങൾ അറ്റാച്ചുചെയ്യുക: Securely attach the pivoting wheels to the base of the cart. Ensure brakes are functional.
4. Install Hooks and Supports: Mount the adjustable hooks and rubber-edged wooden supports onto the frame. Adjust their height and position as needed for the size of tiles you will be handling.

Figure 3: Close-up of a pivoting wheel and the base support, illustrating the robust construction.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 Transporting Large Format Tiles

1. Prepare the Cart: Ensure the cart is on a stable, level surface and the wheel brakes are engaged. Adjust the height of the hooks and supports to match the dimensions of your tile and the EASY-MOVE/T-MOVE frame.
2. Attach Tile to Frame: Securely attach the large format tile to a Raimondi EASY-MOVE or T-MOVE vacuum transport system frame.
3. Load Tile onto Cart: Carefully lift and position the tile (attached to its frame) onto the A Frame Cart. The adjustable hooks are designed to hold the transport frame, while the rubber supports cradle the tile itself. Ensure the tile is balanced and stable.
4. ലോഡ് സുരക്ഷിതമാക്കുക: Double-check that the tile and frame are firmly seated on the cart's supports and hooks. Make any necessary adjustments to prevent shifting during transport.
5. ഗതാഗതം: Disengage the wheel brakes. Slowly and carefully push or pull the cart to its destination. Use smooth movements to avoid sudden jolts.
6. അൺലോഡ് ചെയ്യുക: Once at the destination, engage the wheel brakes. Carefully remove the tile and frame from the cart.

Figure 4: A large format tile mounted on the A Frame Cart using a Raimondi EASY-MOVE frame, demonstrating secure transport.

Figure 5: Detail of a hand gripping a suction cup handle, illustrating the secure attachment of the tile to the transport frame.

5.2 Facilitating Back-Buttering

The A Frame Cart is designed to hold large format tiles in an upright, slightly angled position, making the back-buttering process more ergonomic and efficient.

1. Position Tile: Load the tile onto the cart as described in Section 5.1. Ensure it is stable and at a comfortable working height.
2. ബ്രേക്കുകൾ ഇടുക: Firmly engage all wheel brakes to prevent any movement during the back-buttering process.
3. പശ പ്രയോഗിക്കുക: Apply adhesive to the back of the tile using appropriate tools. The cart's design allows for easy access to the entire surface.
4. ക്ലീനപ്പ്: After back-buttering, carefully remove the tile from the cart for installation. Clean any adhesive residue from the cart immediately.

Figure 6: A worker preparing to back-butter a large tile held securely on the A Frame Cart.

Figure 7: Two workers simultaneously back-buttering large tiles, demonstrating the efficiency of using multiple A Frame Carts.

5.3 Tile Storage

The A Frame Cart can also be used for temporary, secure storage of large format tiles, preventing accidental damage.

1. Load Tiles: Carefully place tiles onto the cart, ensuring they rest firmly against the rubber-edged wooden supports.
2. ബ്രേക്കുകൾ ഇടുക: Engage all wheel brakes to keep the cart stationary.
3. ടിപ്പിംഗ് തടയുക: Ensure the cart is on a level surface and the tiles are balanced to prevent tipping.

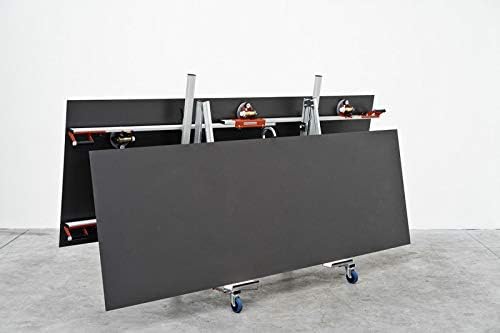

Figure 8: The A Frame Cart securely storing two large format tiles in an upright position.

6. പരിപാലനം

Regular maintenance ensures the longevity and safe operation of your Raimondi A Frame Cart.

• വൃത്തിയാക്കൽ: After each use, clean any dust, debris, or adhesive residue from the cart's frame, wheels, and rubber supports. Use a damp ആവശ്യമെങ്കിൽ തുണിയും മൃദുവായ ഡിറ്റർജന്റും.
• ഘടകങ്ങൾ പരിശോധിക്കുക: Periodically inspect all bolts, fasteners, and connections to ensure they are tight. Tighten any loose components.
• വീൽ ചെക്ക്: Check the wheels for smooth rotation and ensure the brakes engage and disengage properly. Lubricate moving parts of the wheels if needed.
• Rubber Supports: Inspect the rubber-edged wooden supports for wear or damage. Replace if they show signs of significant deterioration to maintain secure tile handling.
• സംഭരണം: When not in use, store the cart in a clean, dry place. If disassembling for storage, ensure all parts are kept together.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Raimondi A Frame Cart, consider the following common troubleshooting steps:

• Cart Instability: Ensure all frame connections are tight. Verify the cart is on a level surface. Check that tiles are balanced and centered on the supports.
• നീങ്ങാനുള്ള ബുദ്ധിമുട്ട്: Check for debris in the wheels. Ensure wheel brakes are fully disengaged. Lubricate wheel axles if necessary.
• Tiles Slipping: Confirm that the adjustable hooks are properly engaged with the transport frame (if used). Ensure the rubber supports are clean and free of slippery residue. Adjust the supports to firmly cradle the tile.
• Brakes Not Holding: Inspect the brake mechanism for wear or damage. Ensure the brake lever is fully engaged.

If problems persist after attempting these steps, please contact Raimondi customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For information regarding warranty coverage, technical support, or replacement parts for your Raimondi A Frame Cart, please refer to the warranty documentation included with your purchase or visit the official Raimondi website. You may also contact Raimondi customer service directly for assistance.

ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ: Please refer to your product packaging or the official Raimondi webഏറ്റവും പുതിയ ഉപഭോക്തൃ പിന്തുണ കോൺടാക്റ്റ് വിശദാംശങ്ങൾക്കായുള്ള സൈറ്റ്.
