EGO POWER+ 21" Electric Snow Blower (SNT2102) Instruction Manual

ആമുഖം

The EGO POWER+ 21" Electric Snow Blower (SNT2102) is a cordless snow removal tool designed for efficient clearing of snow. It utilizes Peak Power technology, combining the power of two EGO ARC Lithium batteries to handle heavy, wet snow. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your snow blower.

Figure 1: EGO POWER+ 21" Electric Snow Blower ready for operation.

പ്രധാന സവിശേഷതകൾ

• Peak Power Technology: Combines the power of two EGO POWER+ 56-volt batteries for enhanced performance.
• ഉയർന്ന കാര്യക്ഷമതയുള്ള ബ്രഷ്‌ലെസ് മോട്ടോർ: Provides reliable and powerful operation.
• 21-inch Clearing Width: Capable of clearing 8 inches of snow in a 10-car driveway.
• Up to 35 Feet Snow Throwing Distance: Efficiently disperses snow away from cleared areas.
• പുഷ്-ബട്ടൺ ആരംഭം: For quick and easy activation.
• Variable-Speed Control: Allows adjustment of auger speed for optimal snow throwing.
• LED ഹെഡ്‌ലൈറ്റുകൾ: Enhances visibility during early morning or late evening operation.
• Quick-Fold Handle: Facilitates compact storage.
• കാലാവസ്ഥയെ പ്രതിരോധിക്കുന്ന (IPX4): വിവിധ കാലാവസ്ഥകളെ നേരിടാൻ രൂപകൽപ്പന ചെയ്തിരിക്കുന്നത്.
• Robust Steel Construction: ഈടും ദീർഘായുസ്സും ഉറപ്പാക്കുന്നു.

Figure 2: The snow blower demonstrating its ability to throw snow up to 35 feet.

Figure 3: The snow blower clearing a 10-car driveway, highlighting its 21-inch clearing width.

സജ്ജമാക്കുക

ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

1. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ തുറക്കുക.
2. Insert two fully charged EGO 56V 5.0Ah ARC Lithium batteries into the designated slots until they click into place.
3. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ സുരക്ഷിതമായി അടയ്ക്കുക.

അസംബ്ലി കൈകാര്യം ചെയ്യുക

The handle assembly requires minor setup. Ensure all bolts are securely fastened for safe operation. The quick-fold handle allows for easy adjustment and compact storage.

Figure 4: EGO POWER+ Snow Blower with two 56V 5.0Ah batteries installed.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

സ്നോ ബ്ലോവർ ആരംഭിക്കുന്നു

1. Ensure batteries are fully charged and correctly installed.
2. Press the push-button start to power on the unit.
3. Engage the auger control lever to begin snow clearing.

Adjusting Snow Discharge

• Use the variable-speed control to adjust the auger's rotation speed, influencing throwing distance.
• Utilize the remote chute adjustment to direct the snow discharge left or right, up to 200 degrees.

ദൃശ്യപരത

Activate the LED headlights for improved visibility when operating in low-light conditions.

Figure 5: Close-up of the on-board chute control for directing snow discharge.

മെയിൻ്റനൻസ്

ജനറൽ കെയർ

• After each use, remove any remaining snow or ice from the auger and chute.
• Store the snow blower in a dry, protected area. The quick-fold handle allows for compact storage.
• Regularly inspect the unit for any loose parts or damage.

ബാറ്ററി കെയർ

• Always use the provided EGO Rapid Charger to charge the 56V ARC Lithium batteries.
• നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്ന് അകലെ തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് ബാറ്ററികൾ സൂക്ഷിക്കുക.

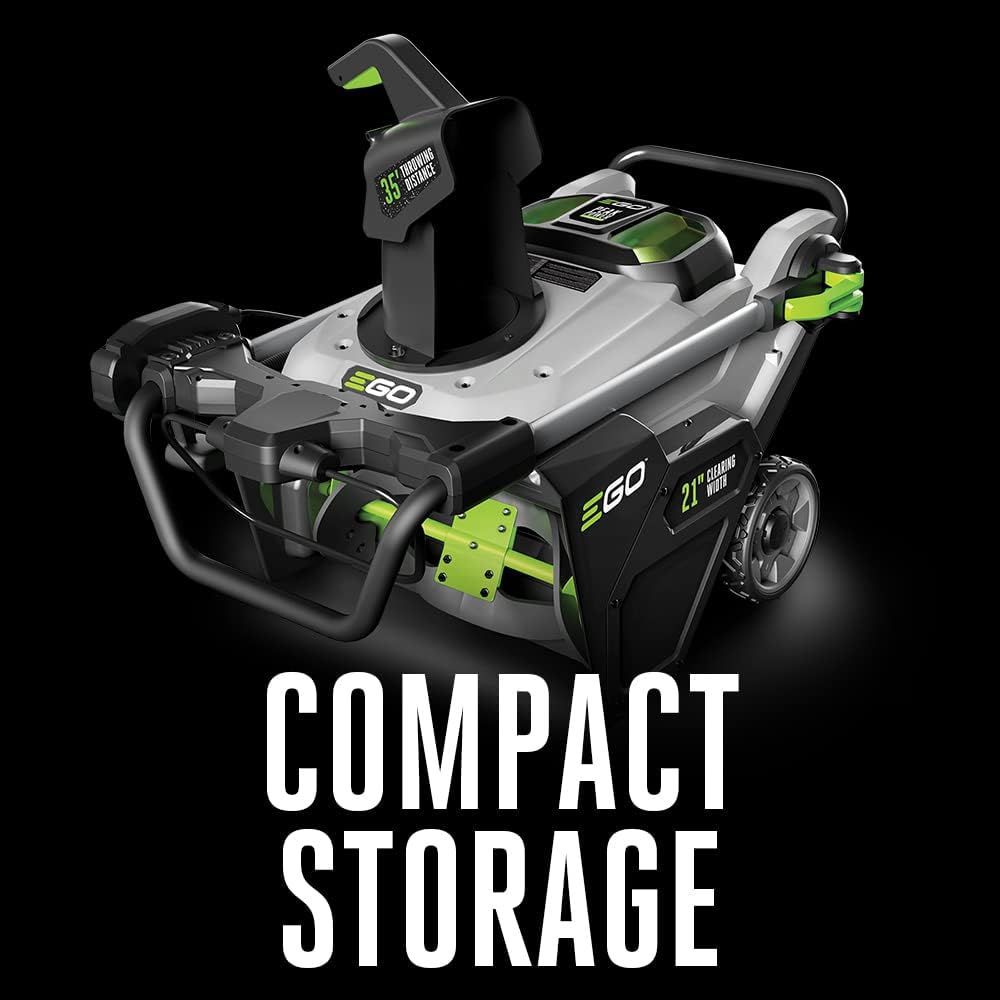

Figure 6: The quick-fold handle feature for compact storage of the snow blower.

Figure 7: EGO POWER+ 56V ARC Lithium battery and rapid charger included with the snow blower.

ട്രബിൾഷൂട്ടിംഗ്

Unit Shuts Off During Operation

• ഓവർലോഡ് സംരക്ഷണം: The unit may shut off if it encounters excessively heavy or wet snow, indicating an overload. Reduce the clearing width or slow down your pace.
• ബാറ്ററി ചാർജ്: Ensure batteries are fully charged. Low battery levels can cause the unit to stop.
• തടസ്സം: Check the auger and chute for any obstructions (e.g., ice, debris) that may be preventing proper operation. Always use the provided clearing tool.

Reduced Snow Throwing Distance

• Snow Type: Heavy, wet snow may not throw as far as light, powdery snow.
• Auger Speed: Increase the variable-speed control to maximize throwing distance.
• Chute Angle: Adjust the chute angle upwards to achieve greater throwing distance.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റി & പിന്തുണ

The EGO POWER+ 21" Electric Snow Blower (SNT2102) comes with a 5 വർഷത്തെ ഉപകരണ വാറന്റി. The included 56V 5.0Ah ARC Lithium batteries and Rapid Charger are covered by a 3-year battery & charger warranty.

Figure 8: Warranty information for the EGO POWER+ tool and its battery/charger components.

For customer support or further assistance, please refer to the official EGO Power+ webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുക.
