ഡാൻഫോസ് EVR 3 സോളിനോയ്ഡ് വാൽവ് (മോഡൽ 032F1204) ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of the Danfoss EVR 3 Solenoid Valve, model 032F1204. Please read this manual thoroughly before attempting any procedures to ensure proper function and to prevent potential hazards.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Danfoss EVR 3 is a normally closed (NC) solenoid valve designed for various industrial and refrigeration applications. It features 3/8 inch ODF (Outside Diameter Flared) connections, ensuring a secure and leak-tight fit. This valve is engineered for reliability and precise control of fluid flow.

ചിത്രം 2.1: ഫ്രണ്ട് view of the Danfoss EVR 3 Solenoid Valve with the solenoid coil installed. This image highlights the main body, ODF connections, and the attached coil with its specifications.

ചിത്രം 2.2: പിൻഭാഗം view of the Danfoss EVR 3 Solenoid Valve, indicating the flow direction with an arrow and displaying regulatory markings.

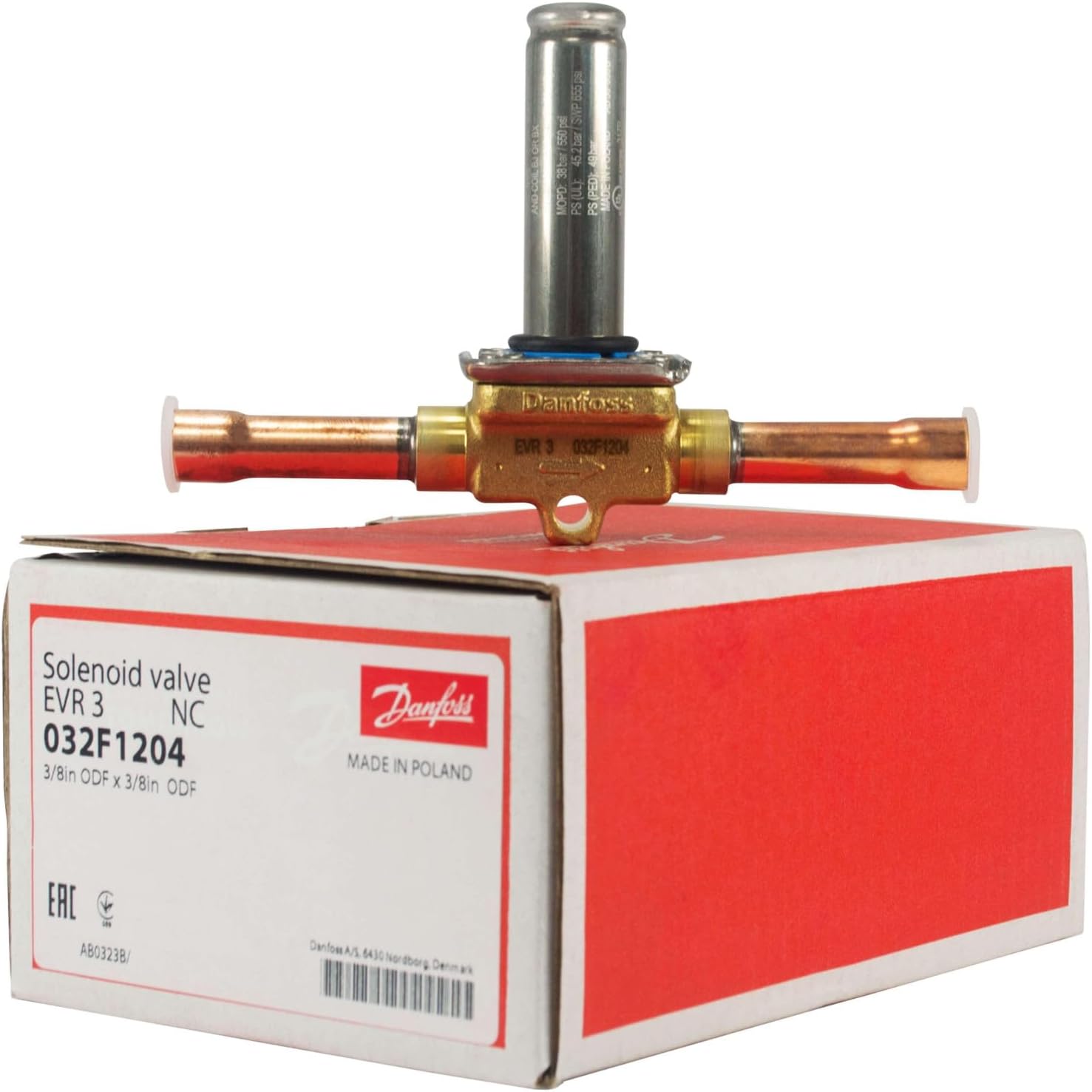

ചിത്രം 2.3: The Danfoss EVR 3 Solenoid Valve (032F1204) shown with its original packaging box, displaying product details and "Made in Poland" label.

3 സുരക്ഷാ വിവരങ്ങൾ

• Always disconnect power before installing, servicing, or removing the solenoid valve.
• Ensure the system pressure is relieved before working on the valve.
• സുരക്ഷാ ഗ്ലാസുകൾ, കയ്യുറകൾ പോലുള്ള ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ധരിക്കുക.
• ഇൻസ്റ്റാളേഷനും അറ്റകുറ്റപ്പണിയും യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥർ മാത്രമേ നടത്താവൂ.
• Verify that the valve's specifications (pressure, temperature, fluid compatibility) match the application requirements.
• Avoid exposing the valve to excessive mechanical stress or vibration.

4. ഇൻസ്റ്റലേഷൻ

4.1 പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ

• Inspect the valve for any signs of damage during shipping.
• Confirm that the model number (032F1204) and specifications match your order and application.
• Ensure all necessary tools and fittings are available.

4.2 Mounting and Connection

1. Mount the valve in a position that allows for easy access for maintenance and inspection. The valve can be installed in any position, but it is recommended to install with the coil upwards to prevent accumulation of debris.
2. Ensure the flow direction arrow on the valve body aligns with the system's fluid flow.
3. Connect the 3/8 inch ODF pipes to the valve's inlet and outlet ports. Use appropriate flaring tools and techniques to ensure a leak-free connection.
4. Tighten connections to the manufacturer's recommended torque specifications to prevent leaks without over-stressing the valve body.

4.3 ഇലക്ട്രിക്കൽ കണക്ഷൻ

• വൈദ്യുതി വിതരണം വോളിയം ഉറപ്പാക്കുകtage and frequency match the specifications of the solenoid coil.
• Connect the solenoid coil to the appropriate electrical circuit. Follow local electrical codes and safety standards.
• Secure all electrical connections to prevent accidental disconnection or short circuits.

5. ഓപ്പറേഷൻ

The Danfoss EVR 3 (032F1204) is a normally closed (NC) solenoid valve. This means that when the solenoid coil is de-energized (no power), the valve remains closed, preventing fluid flow. When the solenoid coil is energized (power applied), the valve opens, allowing fluid to pass through.

• കോയിലിനെ ഊർജ്ജസ്വലമാക്കുന്നു: Applying the specified voltage to the solenoid coil will open the valve.
• കോയിലിന്റെ ഊർജ്ജം കുറയ്ക്കൽ: Removing power from the solenoid coil will close the valve.

Monitor system pressure and flow rates after initial operation to ensure proper function and detect any anomalies.

6. പരിപാലനം

6.1 പതിവ് പരിശോധന

• Periodically check for external leaks around the connections and valve body.
• Inspect the solenoid coil for any signs of overheating, damage, or loose connections.
• Listen for unusual noises during operation, which may indicate internal issues.

6.2 വൃത്തിയാക്കൽ

• Keep the exterior of the valve clean and free from dust, dirt, and corrosive substances.
• If internal cleaning is required, consult a qualified technician or Danfoss service representative. Disassembly by untrained personnel can void warranty and cause damage.

6.3 Coil Replacement

If the solenoid coil fails, it can typically be replaced without removing the entire valve from the system. Ensure the power is disconnected before attempting coil replacement. Refer to the specific coil's instructions for detailed replacement procedures.

7. പ്രശ്‌നപരിഹാരം

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For information regarding product warranty, technical support, or service, please contact Danfoss directly or visit their official website. Danfoss provides comprehensive support for its products to ensure customer satisfaction and optimal performance.

Danfoss Official Webസൈറ്റ്: www.danfoss.com
