Nilight 42 Inch Curved LED Light Bar Instruction Manual

1. ആമുഖം

This manual provides instructions for the installation, operation, and maintenance of your Nilight 42 Inch Curved LED Light Bar. This product is designed to provide enhanced illumination for various vehicles and off-road applications. Please read this manual thoroughly before installation and use.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• സൂപ്പർ തെളിച്ചം: Equipped with 320 high-power LED chips, featuring a combo beam with triple row and nest reflector cup design for extreme light efficiency.
• Upgraded Reflector Cup: Broad reflective plates on both sides allow multi-angle refraction, ideal for ambient illumination.
• കാര്യക്ഷമമായ താപ വിസർജ്ജനം: Heavy-duty die-cast aluminum alloy housing ensures efficient cooling and a lifespan exceeding 50,000 hours.
• ക്രമീകരിക്കാവുന്ന മൗണ്ടിംഗ് ബ്രാക്കറ്റ്: Sturdy brackets can be adjusted and slid, offering flexibility in positioning.
• വിശാലമായ ആപ്ലിക്കേഷൻ: Compatible with various vehicles including Jeeps, 4x4s, Trucks, Cars, Motorcycles, SUVs, ATVs, UTVs, Golf Carts, and Boats. Can function as a driving light, fog light, or for emergency use.

Image: High-performance design showing 320 high-power LED chips, stable current inductance, and upgraded reflector cups for multi-angle refraction.

Image: Illustration of the product's 50,000-hour lifespan and a comparison of light output over time against other LED types.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉൾപ്പെടുന്നു:

• 1 x 42 Inch Curved LED Light Bar
• Mounting Brackets and Hardware (bolts, nuts, washers, Allen wrench)

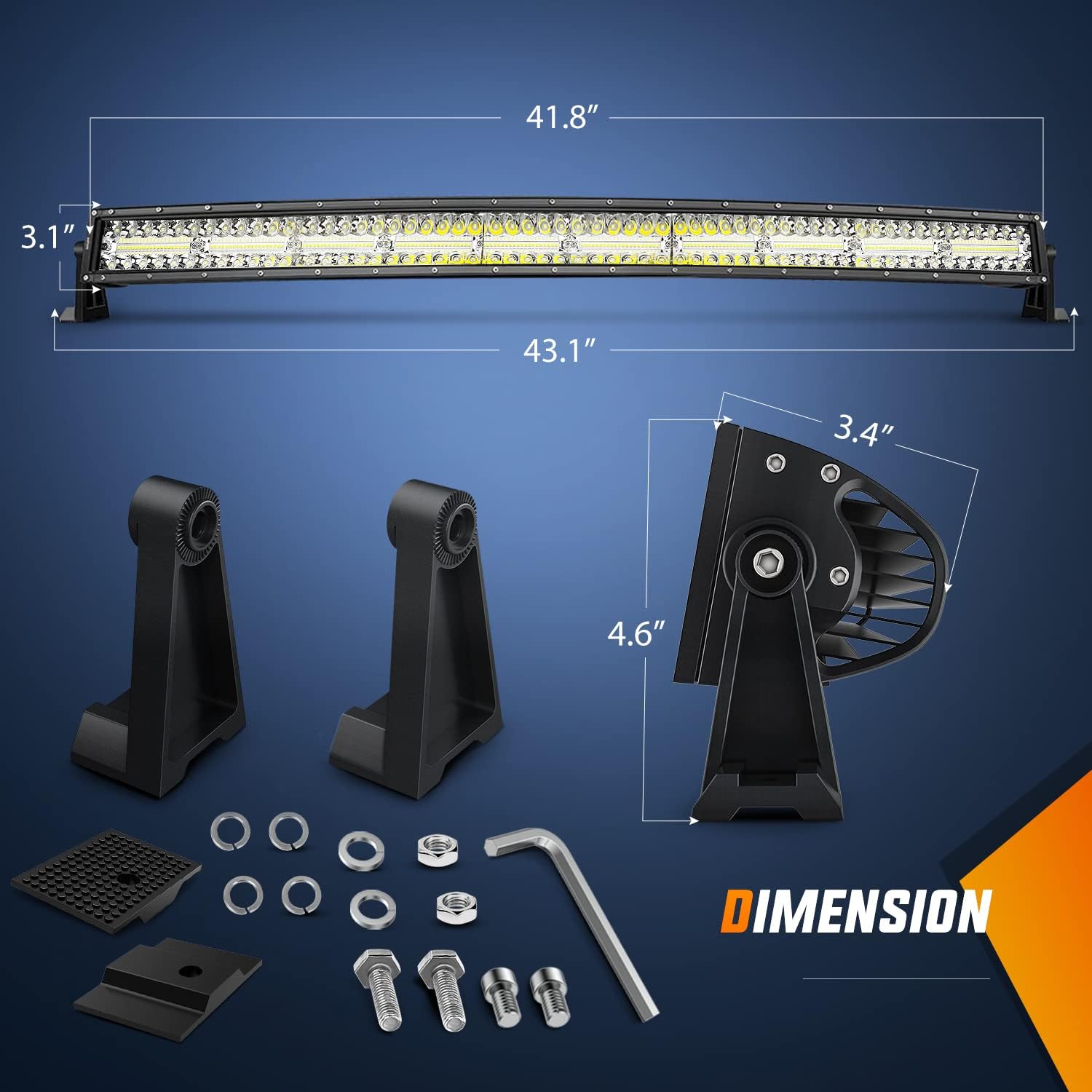

Image: Product dimensions (41.8" light bar, 43.1" with brackets, 3.4" depth, 4.6" height) and all included mounting hardware components.

4. ഇൻസ്റ്റലേഷൻ

Follow these general steps for installing your LED light bar. Specific vehicle requirements may vary.

1. മൗണ്ടിംഗ് ലൊക്കേഷൻ തയ്യാറാക്കുക: Identify a suitable, secure location on your vehicle for the light bar. Ensure it does not obstruct vision or interfere with other vehicle functions.
2. ബ്രാക്കറ്റുകൾ കൂട്ടിച്ചേർക്കുക: Attach the adjustable mounting brackets to the light bar using the provided bolts and Allen wrench. Ensure all connections are secure.
3. ലൈറ്റ് ബാർ മൌണ്ട് ചെയ്യുക: Secure the assembled light bar to your vehicle using the appropriate hardware. The brackets allow for 360-degree angle adjustment to direct the light beam.
4. വയറിംഗ്: Connect the light bar to your vehicle's 12V power system. It is recommended to use a wiring harness with a relay and fuse (not included) for safe and proper operation. Ensure correct polarity (red wire to positive, black wire to negative).
5. ടെസ്റ്റ് പ്രവർത്തനം: After installation, test the light bar to ensure it functions correctly and the beam is aimed as desired.

Image: Visual guide demonstrating the 360-degree adjustable brackets and a four-step installation process for the LED light bar on a vehicle.

5. ഓപ്പറേഷൻ

The Nilight 42 Inch Curved LED Light Bar features a spot and flood combo beam pattern, providing both long-distance illumination and wide-area coverage. Once properly wired to a switch, simply activate the switch to turn the light bar on or off.

ചിത്രം: വിശദമായത് view explaining the flood and spot beam patterns of the triple-row LED light bar, highlighting multi-angle reflection and high-density LEDs for efficient light output.

6. പരിപാലനം

To ensure optimal performance and longevity of your Nilight LED Light Bar, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Regularly clean the lens with a soft cloth and mild soap to remove dirt, dust, and debris. Avoid abrasive cleaners that could scratch the lens.
• പരിശോധന: Periodically check all mounting hardware for tightness. Inspect wiring for any signs of wear, fraying, or corrosion.
• വാട്ടർപ്രൂഫ് ഇന്റഗ്രിറ്റി: The light bar has an IP67 waterproof rating. While designed to withstand harsh conditions, avoid prolonged submersion. Ensure the rubber pads and seals are intact during installation to maintain water resistance.
• താപ വിസർജ്ജനം: The aluminum alloy housing is designed for effective heat dissipation. Ensure the cooling fins are free from obstructions like mud or debris to prevent overheating.

Image: Diagram illustrating the IP67 waterproof construction, including the waterproof silica gel strip, potting glue sealed wire, and rubber pad for enhanced water resistance.

Image: Visual explanation of the heat dissipation design, highlighting the aluminum alloy streamline design and 12PCS cooling fins for faster heat dissipation compared to other models.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Nilight LED Light Bar, consider the following:

• ലൈറ്റ് ബാർ ഓണാക്കുന്നില്ല:
  • Check power connections: Ensure positive and negative wires are correctly connected and secure.
  • Inspect fuse: Verify the fuse in your wiring harness (if used) is not blown. Replace if necessary.
  • Test switch: Ensure the switch is functioning correctly.
  • Verify power source: Confirm the vehicle's battery or power source is providing adequate voltagഇ (12V).
• മങ്ങിയ അല്ലെങ്കിൽ മിന്നുന്ന പ്രകാശം:
  • Check for loose connections: Tighten any loose wiring connections.
  • Inspect wiring for damage: Look for frayed or damaged wires that could cause intermittent contact.
  • വാല്യംtage drop: Ensure the wiring gauge is sufficient for the light bar's power draw to prevent voltagഇ ഡ്രോപ്പ്.
• ലെൻസിനുള്ളിലെ ഈർപ്പം:
  • While IP67 rated, extreme temperature changes can sometimes cause minor condensation. This usually dissipates.
  • If persistent, check seals and gaskets for damage or improper seating.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറണ്ടിയും പിന്തുണയും

This Nilight LED Light Bar comes with a 2 വർഷത്തെ വാറൻ്റി.

For technical support, warranty claims, or any questions regarding your product, please contact Nilight customer service through their official webഉൽപ്പന്നം വാങ്ങിയ സൈറ്റ് അല്ലെങ്കിൽ റീട്ടെയിലർ.
