Sky Viper v2450HD Streaming Drone Instruction Manual

1. ആമുഖം

The Sky Viper v2450HD Streaming Drone is designed for both beginners and experienced pilots, offering stable flight and high-definition video streaming capabilities. Its advanced features simplify operation, allowing users to focus on capturing aerial footage.

പ്രധാന സവിശേഷതകൾ:

• Professional-grade firmware provides simple and stable flight for beginners and hobbyists.
• Flight sensitivity allows you to choose the responsiveness to your controls based on your skill level.
• Adjustable wide-angle camera lens for video streaming.
• Micro SD card slot (card sold separately) enables direct video recording.

2. ബോക്സിൽ എന്താണുള്ളത്?

സജ്ജീകരണവുമായി മുന്നോട്ട് പോകുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Sky Viper HD Streaming Video Drone
• കൺട്രോളർ
• ഫോൺ മൗണ്ട് ഹോൾഡർ
• 3.7V 650mAh LiPo ബാറ്ററി
• യുഎസ്ബി ചാർജർ കേബിൾ
• മാറ്റിസ്ഥാപിക്കൽ ബ്ലേഡുകൾ (4)
• പ്രോ-സ്റ്റൈൽ തമ്പ് സ്റ്റിക്കുകൾ (2)
• ഗെയിം-സ്റ്റൈൽ തമ്പ് സ്റ്റിക്കുകൾ (2)
• സ്ക്രൂഡ്രൈവർ & അധിക സ്ക്രൂകൾ
• ഓപ്പറേറ്റർമാരുടെ മാനുവൽ

Image: All included components of the Sky Viper v2450HD Streaming Drone, including the drone, controller, battery, charger, phone mount, replacement blades, and tools.

3. സജ്ജീകരണം

3.1. ബാറ്ററി ഇൻസ്റ്റാളേഷനും ചാർജിംഗും

1. ഡ്റോൺ ബാറ്ററി: Insert the provided 3.7V 650mAh LiPo Battery into the drone's battery compartment. Ensure it is securely connected.
2. കൺട്രോളർ ബാറ്ററികൾ: The controller requires 3 AAA batteries (not included). Open the battery compartment on the back of the controller and insert the batteries, observing correct polarity.
3. ചാർജിംഗ്: Connect the LiPo battery to the USB Charger Cable. Plug the USB end into a compatible USB power source (e.g., computer USB port, USB wall adapter). The indicator light on the charger will show charging status. A full charge typically takes approximately 45 minutes.

3.2. Propeller Guards Installation

For beginner pilots or indoor flying, it is recommended to install the blade guards to protect the propellers from damage during collisions. Use the provided screwdriver and extra screws if needed.

Image: The Sky Viper v2450HD drone shown with its propeller guards attached, providing protection for the blades.

3.3. Pairing and Calibration

1. ഡ്രോൺ പരന്നതും ലെവൽ ഉപരിതലത്തിൽ വയ്ക്കുക.
2. Turn on the drone. The indicator lights will flash.
3. Turn on the remote controller. The indicator light on the controller will flash.
4. Push the throttle stick (left joystick) on the controller fully up, then fully down. The drone and controller lights should become solid, indicating successful pairing.
5. To calibrate, push both joysticks to the lower-right corner simultaneously. The drone's lights will flash rapidly and then become solid, confirming calibration.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1. അടിസ്ഥാന ഫ്ലൈറ്റ് നിയന്ത്രണങ്ങൾ

• ത്രോട്ടിൽ (ഇടത് ജോയ്‌സ്റ്റിക്ക് മുകളിലേക്കും താഴേക്കും): Controls the drone's altitude. Push up to ascend, pull down to descend.
• യാവ് (ഇടത് ജോയ്സ്റ്റിക്ക് ഇടത്/വലത്): Rotates the drone left or right on its vertical axis.
• Pitch (Right Joystick Up/Down): ഡ്രോൺ മുന്നോട്ടോ പിന്നോട്ടോ നീക്കുന്നു.
• Roll (Right Joystick Left/Right): Moves the drone sideways (strafe) left or right.

4.2. ടേക്ക് ഓഫും ലാൻഡിങ്ങും

• വൺ-കീ ടേക്ക്-ഓഫ്: Press the dedicated "Launch" button on the controller for automatic take-off and hover.
• മാനുവൽ ടേക്ക് ഓഫ്: Slowly push the throttle stick up to lift off.
• വൺ-കീ ലാൻഡിംഗ്: Press the dedicated "Land" button on the controller for automatic landing.
• മാനുവൽ ലാൻഡിംഗ്: Slowly pull the throttle stick down until the drone lands. Release the stick once landed.

4.3. Stunts and Flight Modes

• Flight Assist: The v2450HD features Flight Assist for stable hovering, making it easier to control.
• ക്രമീകരിക്കാവുന്ന സംവേദനക്ഷമത: Use the flight mode button (e.g., "Auto Flight Mode/Manual") to switch between different sensitivity levels, adapting to your skill.
• One-Touch Stunts: The drone supports one-touch stunts. Refer to the included Operator's Manual for specific button combinations to execute flips and rolls.

4.4. Video Streaming and Recording

The v2450HD features an adjustable wide-angle camera lens for live video streaming to your smartphone via a dedicated app (download required). Insert a Micro SD card (sold separately) into the drone's slot to record video directly.

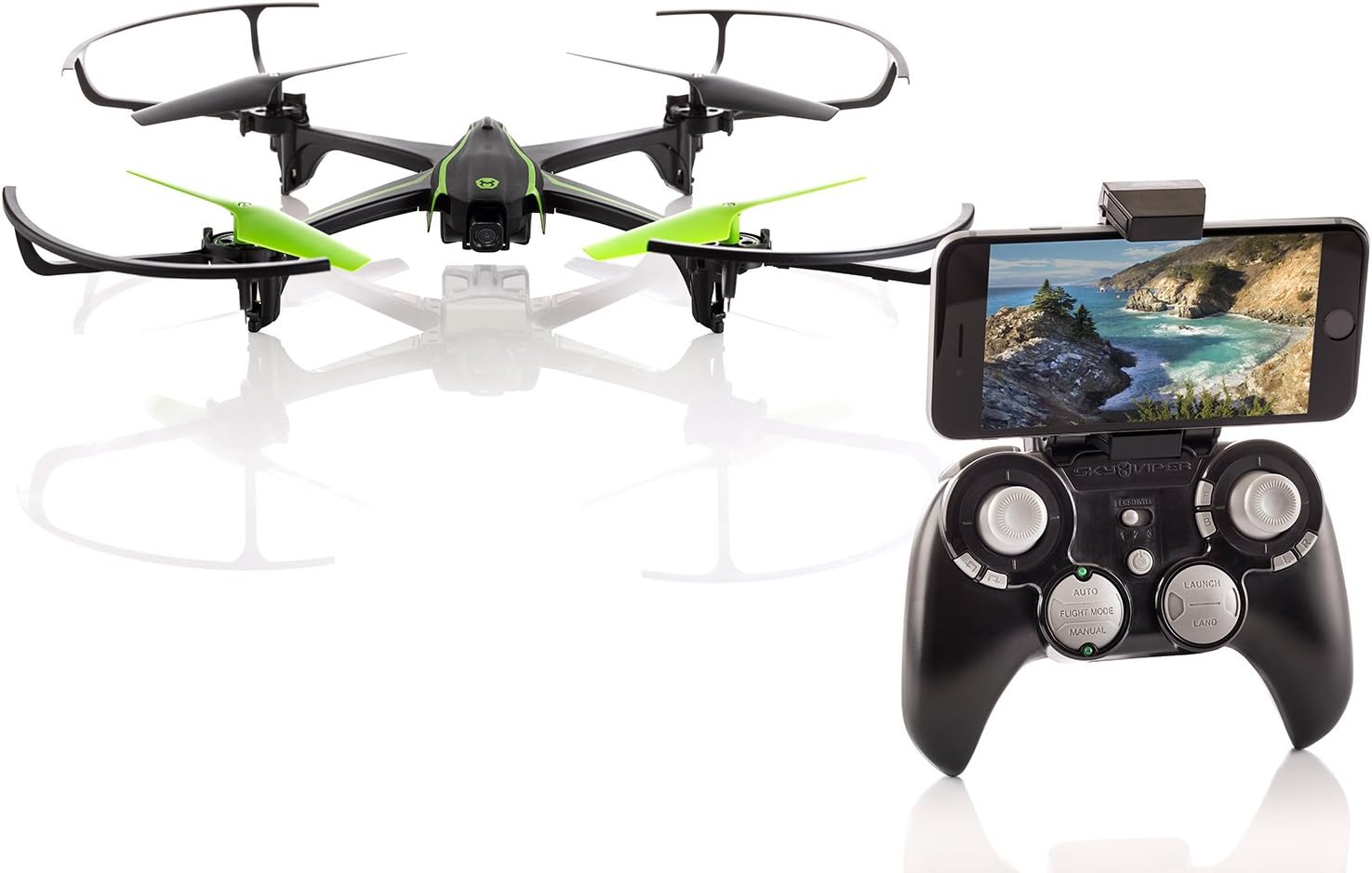

Image: The Sky Viper v2450HD drone and its controller with a smartphone attached, illustrating the video streaming feature.

5. പരിപാലനം

• ബ്ലേഡ് മാറ്റിസ്ഥാപിക്കൽ: If propellers are damaged, use the provided spanner tool to carefully remove the old blades and install new ones. Ensure correct orientation (A and B blades).
• വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the drone and controller. Avoid using harsh chemicals or solvents.
• സംഭരണം: Store the drone and its components in a cool, dry place away from direct sunlight. Remove batteries from the controller if storing for extended periods.

6. പ്രശ്‌നപരിഹാരം

• Drone not responding: Ensure both the drone and controller are powered on and successfully paired. Re-pair if necessary. Check battery levels.
• അസ്ഥിരമായ ഫ്ലൈറ്റ്: Re-calibrate the drone on a flat surface. Check for damaged propellers and replace if needed. Ensure no obstructions are interfering with the propellers.
• കുറഞ്ഞ ഫ്ലൈറ്റ് സമയം: Ensure the battery is fully charged. Flight time can be reduced in windy conditions or with aggressive flying.
• Video streaming issues: Ensure your smartphone is correctly connected to the drone's Wi-Fi network and the app is updated.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or to purchase replacement parts, please refer to the official Sky Viper website or contact their customer service directly. Contact details are typically found in the included Operator's Manual or on the product packaging.
