1. ആമുഖം
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Skandika Nordland 4-Person Tunnel Tent. Please read these instructions carefully before using the tent to ensure proper assembly and safe use. The Skandika Nordland is designed as a spacious and weather-resistant family tent, offering comfort and protection in various outdoor conditions.
2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ
- അഗ്നി സുരക്ഷ: Keep all flame and heat sources away from the tent fabric. The tent is made of flammable material.
- വെൻ്റിലേഷൻ: Ensure adequate ventilation, especially when using cooking equipment or heaters inside the tent, to prevent carbon monoxide poisoning.
- കാലാവസ്ഥാ സാഹചര്യങ്ങൾ: Do not set up the tent under trees that may drop heavy branches. In strong winds, ensure all guy lines are securely anchored and poles are stable. In heavy snow, regularly clear snow from the tent roof to prevent collapse.
- സൈറ്റ് തിരഞ്ഞെടുക്കൽ: Choose a level, dry site away from potential hazards like sharp objects, steep slopes, or flood-prone areas.
- കുട്ടികൾ: Keep children away from the tent during setup and takedown to prevent injury from poles or pegs.
- ഇലക്ട്രിക്കൽ കോഡുകൾ: Use caution with electrical cords. Ensure they are properly insulated and routed to prevent tripping hazards or damage.
3. പാക്കേജ് ഉള്ളടക്കം
അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ്, എല്ലാ ഘടകങ്ങളും ലഭ്യമാണെന്ന് ഉറപ്പാക്കുക:
- Skandika Nordland 4-Person Tunnel Tent (outer tent and inner tent with sewn-in groundsheet)
- Fiberglass and Steel Pole Set
- Pegs (stakes)
- Guy Lines (reflective)
- 4 Awning Poles for doors
- റിപ്പയർ കിറ്റ്
- സഞ്ചി
4. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
The estimated setup time for the Skandika Nordland tent is approximately 20 minutes with two people.
- അൺപാക്ക് ചെയ്ത് ലേ ഔട്ട് ചെയ്യുക: Remove the tent from its carry bag and lay the outer tent flat on your chosen campsite. Ensure the sewn-in groundsheet is spread out evenly.
- തൂണുകൾ കൂട്ടിച്ചേർക്കുക: Connect the sections of the fiberglass and steel poles. Identify the different pole lengths and types for their respective sleeves.
- തൂണുകൾ തിരുകുക: Slide the assembled poles through the corresponding sleeves on the outer tent. The tent features a tunnel design, so poles will arch over the tent.
- സുരക്ഷിത തൂണുകൾ: Once all poles are inserted, secure them at the base using the pins or rings provided at the tent corners.
- കൂടാരം ഉയർത്തുക: With the poles in place, carefully raise the tent structure.
- Peg Down the Base: Secure the four corners of the tent to the ground using pegs. Ensure the tent base is taut.
- ഗൈ ലൈനുകൾ ഘടിപ്പിക്കുക: Extend all reflective guy lines and peg them securely into the ground at an appropriate angle (approximately 45 degrees) to provide stability against wind. Adjust tension as needed.
- Install Inner Tent: The inner tent is pre-attached. If detached, clip or tie the inner tent to the designated loops inside the outer tent.
- Set Up Awning (Optional): Use the included awning poles to create sheltered entrances at the doors. Insert the poles into the grommets on the door flaps and secure with guy lines.
Image: The Skandika Nordland tent fully set up, demonstrating the use of the four included awning poles to create sheltered entryways. A close-up shows a weather-protected side entrance.
ചിത്രം: വിശദമായത് view of tent components including durable fiberglass and steel poles, reflective guy lines for visibility and safety, and ventilation openings for air circulation.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
5.1. Sleeping Cabin Features
The tent features a large sleeping cabin with a removable partition wall, allowing for flexible space configuration. This 'Sleeper Technology' design aims to provide a darker sleeping environment.
- Divisible Sleeping Cabin: Use the integrated partition wall to create two separate sleeping areas or remove it for one large space.
- Darkening: The sleeping cabin material is designed to reduce light penetration, promoting better sleep.
- Mosquito Nets: All entrances to the sleeping cabin are equipped with mosquito nets to keep insects out while allowing airflow.

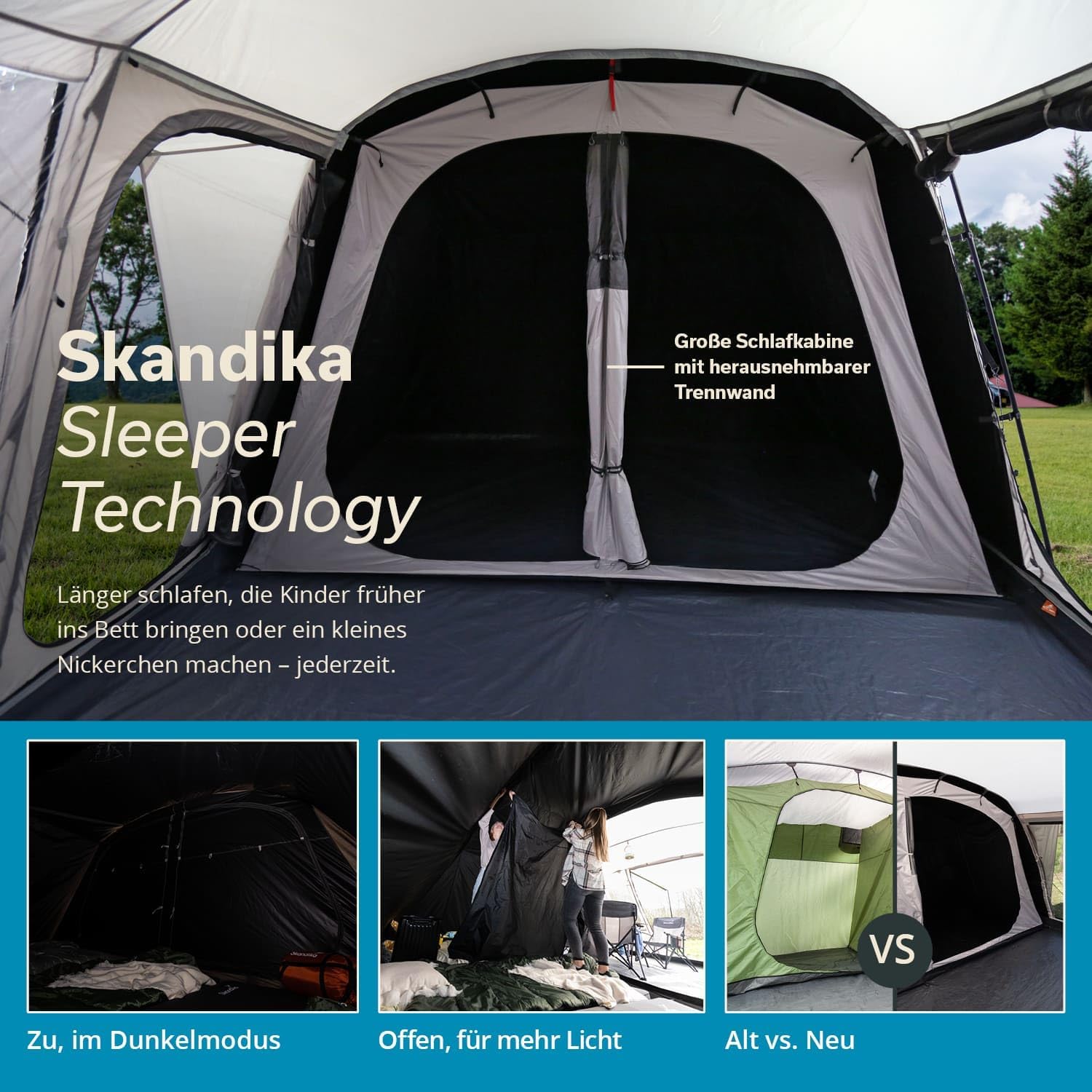

Image: The interior of the Skandika Nordland tent, highlighting the spacious sleeping cabin with its removable partition wall. Smaller images illustrate the cabin's dark mode when closed, its appearance when open for more light, and a visual comparison between an older tent design and the new Nordland Sleeper Technology.
5.2. Living Area and Ventilation
The tent offers a generous living area with panorama windows and multiple ventilation options.
- Panorama Windows: Large windows provide ample natural light and views. Each window includes a darkening cover for privacy and light control.
- വെന്റിലേഷൻ ഓപ്പണിംഗുകൾ: Strategically placed ventilation openings ensure continuous air circulation, reducing condensation.
- Mosquito Nets on Entrances: All three main entrances are fitted with mosquito nets, allowing you to keep doors open for airflow without inviting insects.
Image: The bright living area of the Skandika Nordland tent, showcasing its panorama windows and mosquito nets on all three entrances. Inset images detail the tent's ventilation openings, reflective guy lines, fiberglass/steel poles, and the darkening covers for windows and doors.
5.3. സൗകര്യ സവിശേഷതകൾ
- Cable Opening: A dedicated cable opening allows for safe and convenient routing of electrical cords into the tent.
- Hook for Campഇൻ എൽamp: A hook is provided in the ceiling for hanging a camping എൽamp, offering overhead illumination.
- Click Fasteners: The sleeping cabin features click fasteners for easy and secure attachment.
ചിത്രം: വിശദമായത് view of practical tent features, including a cable opening for electrical access, click fasteners on the sleeping cabin for secure closure, and a hook for hanging a camping എൽamp. The image also highlights the permanently sewn-in groundsheet.
6. പരിപാലനം
- വൃത്തിയാക്കൽ: Clean the tent with a soft brush or sponge and lukewarm water. Do not use harsh detergents, bleach, or solvents, as these can damage the waterproof coating.
- ഉണക്കൽ: പൂപ്പലും ദുർഗന്ധവും ഉണ്ടാകാതിരിക്കാൻ പായ്ക്ക് ചെയ്യുന്നതിനുമുമ്പ് എല്ലായ്പ്പോഴും ടെന്റ് പൂർണ്ണമായും ഉണങ്ങിയെന്ന് ഉറപ്പാക്കുക. നനഞ്ഞ പായ്ക്ക് ചെയ്യേണ്ടി വന്നാൽ, എത്രയും വേഗം പായ്ക്ക് അഴിച്ച് ഉണക്കുക.
- സംഭരണം: ടെന്റ് തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സൂക്ഷിക്കുക, നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും കടുത്ത താപനിലയിൽ നിന്നും അകറ്റി നിർത്തുക.
- പോൾ കെയർ: Inspect poles for damage before and after each use. Clean any dirt from pole sections and ensure elastic cords are in good condition.
- റിപ്പയർ കിറ്റ്: Use the included repair kit for minor tears or punctures in the fabric. For larger damage, professional repair may be necessary.
7. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| വെള്ളം ചോർച്ച | Improper setup, damaged fabric, worn seams, extreme weather exceeding tent's rating. | Ensure tent is taut and guy lines are properly tensioned. Check for tears and use repair kit. Re-seal seams if necessary. |
| Broken poles | Excessive force during setup, strong winds, manufacturing defect. | Use the repair kit to splice broken pole sections. Contact customer service for replacement parts if needed. |
| കൂടാരത്തിനുള്ളിൽ ഘനീഭവിക്കൽ | Lack of ventilation, high humidity, temperature difference between inside and outside. | Ensure all ventilation openings are open. If possible, open doors with mosquito nets for increased airflow. |
| Zippers sticking or difficult to close | Dirt, fabric caught in zipper, bent zipper teeth. | Clean zippers with a brush. Apply a zipper lubricant. Carefully free any caught fabric. |
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | 4028 |
| അധിനിവേശം | 4 വ്യക്തി |
| Dimensions (Total) | 580 x 320 x 200 സെ.മീ (നീളം x വീതി x ഉയരം) |
| നിൽക്കുന്ന ഉയരം | 200 സെ.മീ |
| ഭാരം | 20.5 കി.ഗ്രാം |
| പാക്ക് വലിപ്പം | 80 x 30 x 30 സെ.മീ |
| Water Column (Outer Tent) | 5,000 മി.മീ |
| മെറ്റീരിയൽ (പുറത്തെ കൂടാരം) | 100% Polyester 185T, PU-coated |
| മെറ്റീരിയൽ (ഉൾക്കടലാസ്) | 100% Polyester 185T, breathable |
| മെറ്റീരിയൽ (ഗ്രൗണ്ട്ഷീറ്റ്) | 100% PE 125 g/m² (sewn-in) |
| ധ്രുവങ്ങൾ | Fiberglass and Steel |
| ഫീച്ചറുകൾ | Waterproof, taped seams, mosquito nets on all entrances and sleeping cabin, divisible sleeping cabin, cable opening, hook for camping എൽamp, panorama windows with darkening. |
Image: An illustrative diagram detailing the key specifications of the Skandika Nordland tent, including its overall dimensions (580 cm length, 320 cm width, 200 cm standing height), estimated setup time of 20 minutes, 4-person occupancy, pack size, total weight, and water column ratings for the outer tent and groundsheet.
9. വാറൻ്റിയും പിന്തുണയും
Skandika products are designed for durability and performance. For any questions regarding your tent, spare parts, or warranty claims, please contact Skandika customer service. Support is available in multiple languages.
For further assistance, please visit the official Skandika webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലറെ ബന്ധപ്പെടുക.
