1. ആമുഖം
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your HEIMAN Mini Smoke Alarm Detector (Model: HS1SA). This device is designed to provide early warning of smoke and fire, enhancing the safety of your home or business. Please read this manual thoroughly before installation and keep it for future reference.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The HEIMAN Mini Smoke Alarm Detector is a compact and highly efficient photoelectric smoke detector featuring a 10-year lithium battery. Its small size allows for discreet placement while providing reliable fire detection.

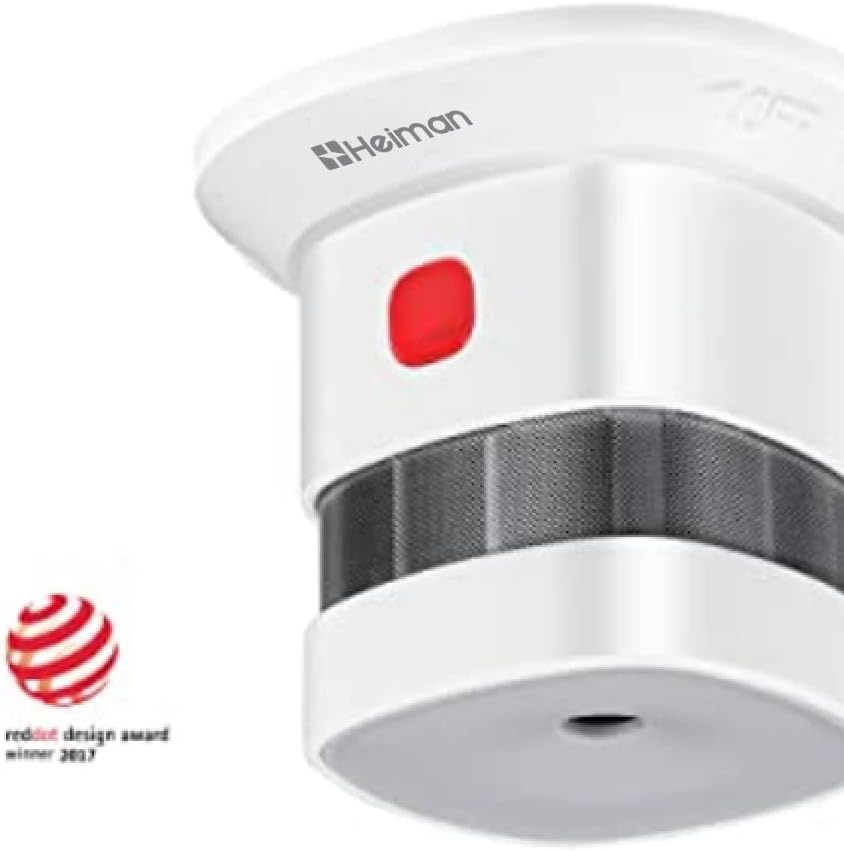

ചിത്രം 2.1: മുൻഭാഗം view of the HEIMAN Mini Smoke Alarm Detector. This image shows the compact, white cylindrical smoke alarm with a red test button on the top and a mesh sensor area below it.
Figure 2.2: The HEIMAN Mini Smoke Alarm Detector held in a hand, illustrating its small and compact size.
Figure 2.3: Infographic detailing the dimensions (6.0 cm diameter, 4.9 cm height) and key features of the HEIMAN Mini Smoke Alarm, including its Red Dot Award, 10-year battery life, and various certifications.
3 പ്രധാന സവിശേഷതകൾ
- ഫോട്ടോഇലക്ട്രിക് സെൻസർ: Quickly and accurately detects dangerous smoke, minimizing false alarms.
- 10 വർഷത്തെ ബാറ്ററി ലൈഫ്: Equipped with a long-lasting CR17335/CR123A lithium battery, providing continuous protection for up to 10 years without frequent battery replacement.
- ഉച്ചത്തിലുള്ള അലാറം: Emits an 85dB alarm within 3 meters to ensure timely notification of smoke detection.
- Red LED Flash: A red LED flashes once to indicate smoke detection, accompanying the audible alarm.
- കുറഞ്ഞ ബാറ്ററി അലേർട്ട്: Provides an alert when the battery is low, ensuring continuous protection.
- ടെസ്റ്റ് ബട്ടൺ: Includes a test button for easy verification of the alarm's functionality.
- കോംപാക്റ്റ് ഡിസൈൻ: Small and discreet, suitable for various placements in homes, stores, businesses, and schools.
- സർട്ടിഫിക്കേഷനുകൾ: CE certified, EN14604 compliant, and Red Dot Award winner, ensuring high quality and safety standards.
Figure 3.1: Visual representation of key features including 10-year battery life, flash alert, 85dB alarm, eco-friendly design, and suggested placement locations like living room, kitchen, bedroom, and cloakroom.
Figure 3.2: Image highlighting the 10-year battery life feature, showing the CR17335/CR123A lithium battery.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The HEIMAN Mini Smoke Alarm Detector is designed for easy installation. Follow these steps to properly set up your device:
- ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Select an appropriate location for installation. Smoke alarms should be installed on every level of your home, inside each bedroom, and outside each sleeping area. Avoid placing them near windows, doors, or air vents where drafts might interfere with smoke detection.
- മൗണ്ടിംഗ്:
- The package includes a screw and an anchor for mounting.
- Mark the desired mounting spot on the ceiling or wall.
- Drill a hole, insert the anchor, and then secure the mounting bracket (if separate) or the alarm itself with the provided screw.
- Alternatively, the device may come with a strong adhesive pad for drill-free installation. Ensure the surface is clean and dry before applying.
- ബാറ്ററി സജീവമാക്കൽ: The 10-year lithium battery (CR17335/CR123A) is pre-installed. The device is typically activated upon mounting or by removing a battery tab. Refer to the specific instructions on the device or packaging for activation.
- അലാറം പരീക്ഷിക്കുക: After installation, press and hold the test button on the alarm. The alarm should sound loudly (85dB) and the red LED should flash. This confirms the unit is functioning correctly.
പ്രധാനപ്പെട്ടത്: Do not paint the smoke alarm. Paint can clog the sensing chambers and prevent the alarm from operating correctly.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed and activated, the HEIMAN Mini Smoke Alarm Detector operates continuously to monitor for smoke.
- സാധാരണ പ്രവർത്തനം: The alarm will remain silent during normal operation. Some models may have a small LED that blinks periodically (e.g., every 30-60 seconds) to indicate it is powered and functioning.
- പുക കണ്ടെത്തൽ: When smoke is detected, the alarm will emit a loud, piercing sound (85dB) and the red LED will flash rapidly.
- Alarm Silence/Hush Feature: If the alarm sounds due to non-emergency conditions (e.g., cooking fumes), you may be able to temporarily silence it by pressing the test/hush button. The alarm will then enter a temporary silence mode for a few minutes before resetting. If smoke is still present, the alarm will reactivate.
- കുറഞ്ഞ ബാറ്ററി മുന്നറിയിപ്പ്: When the battery is nearing the end of its life, the alarm will chirp periodically (e.g., every 30-60 seconds) to indicate a low battery. This warning will continue for approximately 30 days before the battery is fully depleted.
6. പരിപാലനം
Regular maintenance ensures your smoke alarm remains in optimal working condition.
- പ്രതിമാസ പരിശോധന: Test your smoke alarm at least once a month by pressing and holding the test button until the alarm sounds. This confirms the electronics, battery, and horn are working.
- വൃത്തിയാക്കൽ: Dust and debris can accumulate on the smoke alarm and affect its performance. Gently vacuum or wipe the exterior of the alarm with a soft, damp cloth at least once a year. Do not use cleaning sprays or solvents.
- ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: The HEIMAN Mini Smoke Alarm Detector features a 10-year sealed lithium battery that is not user-replaceable. When the low battery warning sounds (chirping), the entire unit should be replaced. Do not attempt to open the unit or replace the battery.
- ജീവിതാവസാനം: After 10 years from the date of manufacture (or installation, if specified on the unit), the entire smoke alarm unit should be replaced, even if it appears to be working. The effectiveness of the sensor can degrade over time.
7. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Alarm chirps periodically (e.g., every 30-60 seconds). | കുറഞ്ഞ ബാറ്ററി മുന്നറിയിപ്പ്. | The battery is sealed and not user-replaceable. Replace the entire smoke alarm unit. |
| Alarm sounds without visible smoke or fire. |
|
|
| Alarm does not sound when test button is pressed. |
|
|
8 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | മൂല്യം |
|---|---|
| മോഡൽ നമ്പർ | HS1SA |
| സെൻസർ തരം | ഫോട്ടോഇലക്ട്രിക് |
| പവർ ഉറവിടം | Battery Powered (DC 3V) |
| ബാറ്ററി തരം | CR17335/CR123A Lithium (sealed, non-replaceable) |
| ബാറ്ററി ലൈഫ് | 10 വർഷം വരെ |
| അലാറം വോളിയം | 3 മീറ്ററിൽ 85 dB |
| പ്രവർത്തന താപനില | -10°C മുതൽ +50°C വരെ |
| ഉൽപ്പന്ന അളവുകൾ (D x W x H) | 6 സെ.മീ x 6 സെ.മീ x 4.9 സെ.മീ |
| ഇനത്തിൻ്റെ ഭാരം | 71 ഗ്രാം |
| മെറ്റീരിയൽ | എബിഎസ് |
| നിറം | വെള്ളി |
| സർട്ടിഫിക്കേഷനുകൾ | CE, EN14604, Red Dot Award |
| കവറേജ് | 20-40 ചതുരശ്ര മീറ്റർ |
9. വാറൻ്റിയും പിന്തുണയും
HEIMAN products are manufactured to high quality standards. This smoke alarm comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to the product packaging or contact HEIMAN customer support for specific warranty terms and conditions.
For technical support, troubleshooting assistance, or general inquiries, please visit the official HEIMAN webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുകയോ ചെയ്യുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
This manual is available in English. Additional language versions (German, French, Italian, Spanish) may be available from the manufacturer's website or upon request.
