Hatco HW-FUL-QS Food Pan Warmer Instruction Manual

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Please read this manual thoroughly before installation, operation, or maintenance of the Hatco HW-FUL-QS Food Pan Warmer. Failure to follow these instructions may result in property damage, personal injury, or death. Keep this manual for future reference.

• ഇലക്ട്രിക്കൽ സുരക്ഷ: This unit requires a 120V, 60Hz, single-phase electrical supply with a NEMA 5-15P plug. Ensure the power outlet is properly grounded and rated for 1200 watts. Do not use extension cords.
• ബേൺ അപകടം: The surfaces of the food warmer, especially the pan wells and surrounding areas, can become extremely hot during operation. Always use caution and wear appropriate protective gear when handling hot pans or cleaning the unit.
• Water Safety (Wet Operation): When operating in wet mode, ensure the water level does not exceed the maximum fill line. Do not overfill. Always disconnect power before adding or draining water.
• വൃത്തിയാക്കൽ: Disconnect the unit from the power supply before cleaning. Allow the unit to cool completely. Do not immerse the unit in water.
• നിർദ്ദേശം 65 മുന്നറിയിപ്പ്: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

ആമുഖം

The Hatco HW-FUL-QS is a countertop food pan warmer designed for commercial use, capable of holding one full-size (1/1) food pan. It offers both wet and dry operation modes to maintain food at safe and desirable serving temperatures. Constructed from durable stainless steel, this unit features thermostatic controls for precise temperature management.

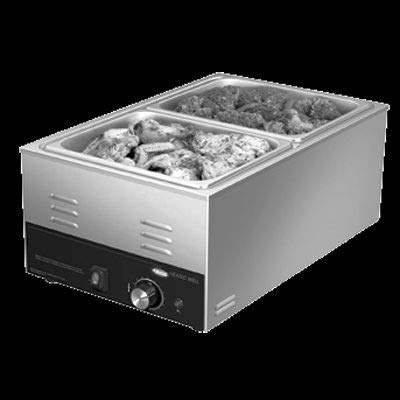

Image: The Hatco HW-FUL-QS countertop food pan warmer, shown with two half-size food pans inserted. The unit features a stainless steel exterior, a control panel on the front with a power switch and a thermostatic control knob.

സജ്ജമാക്കുക

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the food warmer from its packaging. Inspect the unit for any shipping damage. Report any damage immediately to the carrier and your dealer. Retain all packaging materials for inspection.
2. പ്ലേസ്മെൻ്റ്: Place the unit on a stable, level, non-combustible countertop surface. Ensure there is adequate clearance around the unit for proper ventilation (minimum 4 inches on all sides). Do not block the ventilation openings.
3. ഇലക്ട്രിക്കൽ കണക്ഷൻ: Ensure the electrical supply matches the specifications of the unit (120V, 60Hz, 1-phase, 1200W). Plug the NEMA 5-15P plug directly into a dedicated, grounded electrical outlet. Do not use adapters or extension cords.
4. പ്രാരംഭ ക്ലീനിംഗ്: Before first use, wipe down all surfaces of the unit with a damp തുണിയും വീര്യം കുറഞ്ഞ ഡിറ്റർജന്റും. നന്നായി കഴുകി പൂർണ്ണമായും ഉണക്കുക.
5. Wet or Dry Operation:
   • ഡ്രൈ ഓപ്പറേഷൻ: For dry operation, simply place food pans directly into the well. This mode is suitable for foods that do not require added moisture.
   • വെറ്റ് ഓപ്പറേഷൻ: For wet operation, fill the well with hot water (preferably pre-heated) up to the maximum fill line, which is approximately 1 inch below the top rim of the well. Do not overfill. Wet operation helps maintain food moisture and provides more even heating.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ: Ensure the unit is properly set up for either wet or dry operation. Flip the power switch located on the front control panel to the "ON" position. The indicator light will illuminate.
2. താപനില ക്രമീകരണം: Turn the thermostatic control knob clockwise to increase the temperature and counter-clockwise to decrease it. Start with a medium setting and adjust as needed to achieve the desired food holding temperature. Allow approximately 15-20 minutes for the unit to reach the set temperature.
3. Food Pan Placement: Carefully place pre-heated food pans into the well. The unit is designed to accommodate one full-size (1/1) food pan or various combinations of smaller pans (e.g., two half-size pans) with appropriate adapter bars (sold separately).
4. നിരീക്ഷണം: Regularly monitor food temperatures using a food thermometer to ensure they remain above 140°F (60°C) for safe holding.
5. പവർ ഓഫ്: When finished, turn the thermostatic control knob to the lowest setting, then flip the power switch to the "OFF" position. Unplug the unit from the electrical outlet.

മെയിൻ്റനൻസ്

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Hatco HW-FUL-QS Food Pan Warmer.

• പ്രതിദിന ശുചീകരണം:
  1. Ensure the unit is turned off and unplugged, and has cooled completely.
  2. If operating in wet mode, carefully drain the water from the well.
  3. Remove all food pans and adapter bars. Wash them separately.
  4. പരസ്യം ഉപയോഗിച്ച് അകത്തെയും പുറത്തെയും സ്റ്റെയിൻലെസ് സ്റ്റീൽ പ്രതലങ്ങൾ തുടയ്ക്കുക.amp തുണിയും വീര്യം കുറഞ്ഞതും ഉരച്ചിലുകൾ ഇല്ലാത്തതുമായ ഒരു ഡിറ്റർജന്റും.
  5. ഒരു വൃത്തിയുള്ള കഴുകുക, ഡിamp ഏതെങ്കിലും ഡിറ്റർജൻ്റ് അവശിഷ്ടങ്ങൾ നീക്കം ചെയ്യാനുള്ള തുണി.
  6. Dry all surfaces thoroughly to prevent water spots and corrosion.
• Descaling (Wet Operation Only): If mineral deposits build up in the well due to hard water, use a commercial descaling solution specifically designed for food service equipment. Follow the descaling product's instructions carefully. Rinse the well thoroughly after descaling.
• പരിശോധന: Periodically inspect the power cord for any signs of damage. If the cord is damaged, it must be replaced by a qualified service technician to avoid hazards.

ട്രബിൾഷൂട്ടിംഗ്

For issues not listed above or if troubleshooting steps do not resolve the problem, please contact Hatco customer service or a qualified service technician.

സ്പെസിഫിക്കേഷനുകൾ

• മോഡൽ: HW-FUL-QS
• തരം: Countertop Food Pan Warmer
• ശേഷി: (1) 1/1 Full-Size Food Pan
• പ്രവർത്തനം: വെറ്റ്/ഡ്രൈ
• നിയന്ത്രണങ്ങൾ: തെർമോസ്റ്റാറ്റിക്
• നിർമ്മാണം: സ്റ്റെയിൻലെസ്സ് സ്റ്റീൽ
• ഇലക്ട്രിക്കൽ: 120V, 60Hz, 1-Phase
• ശക്തി: 1200 വാട്ട്സ്
• പ്ലഗ് തരം: നെമ 5-15 പി
• അളവുകൾ (L x W x H): ഏകദേശം 24 x 14.5 x 9.75 ഇഞ്ച്
• ഭാരം: ഏകദേശം 29 പൗണ്ട്
• സർട്ടിഫിക്കേഷനുകൾ: cULus, UL EPH Classified, CE

വാറൻ്റിയും പിന്തുണയും

For specific warranty information regarding your Hatco HW-FUL-QS Food Pan Warmer, please refer to the warranty card included with your product or visit the official Hatco website. For technical support, parts, or service inquiries, please contact Hatco customer service directly. Ensure you have your model number and serial number available when contacting support.
