Rigol DL3031 Programmable DC Electronic Load

1. ആമുഖവും അവസാനവുംview

The Rigol DL3031 is a high-performance, single-channel programmable DC electronic load. It is an essential instrument for engineers and technicians involved in power supply testing, battery discharge testing, LED driver testing, and other applications requiring precise load simulation. This manual provides detailed instructions for setting up, operating, and maintaining your DL3031 electronic load.

പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:

• Single channel, DC150 V/60 A, total power up to 350 W.
• Dynamic mode: up to 15 kHz.
• Adjustable current rising speed: 0.001 A/µs to 5 A/µs.
• Min. readback resolution: 1 mV, 1 mA.
• 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously.
• ഓവർ വോൾtage/overcurrent/overpower/overtemperature/reverse voltagഇ സംരക്ഷണം.
• 4 static modes: CC, CV, CR, CP.
• 3 dynamic modes: continuous, pulsed, toggled.
• Built-in RS232/USB/LAN communication interface.
• Battery test function, OCP test, OPP test, factory test function, etc.

ചിത്രം 1.1: മുൻഭാഗം view of the Rigol DL3031 Programmable DC Electronic Load.

2. സജ്ജീകരണം

2.1 അൺപാക്കിംഗും പരിശോധനയും

Carefully unpack the DL3031 electronic load and all accessories from its packaging. Verify that all components listed below are present and undamaged. If any items are missing or damaged, please contact your Rigol distributor immediately.

• Rigol DL3031 Electronic Load Unit
• പവർ കോർഡ്
• USB കേബിൾ
• ദ്രുത ഗൈഡ്
• കാലിബ്രേഷൻ സർട്ടിഫിക്കറ്റ്

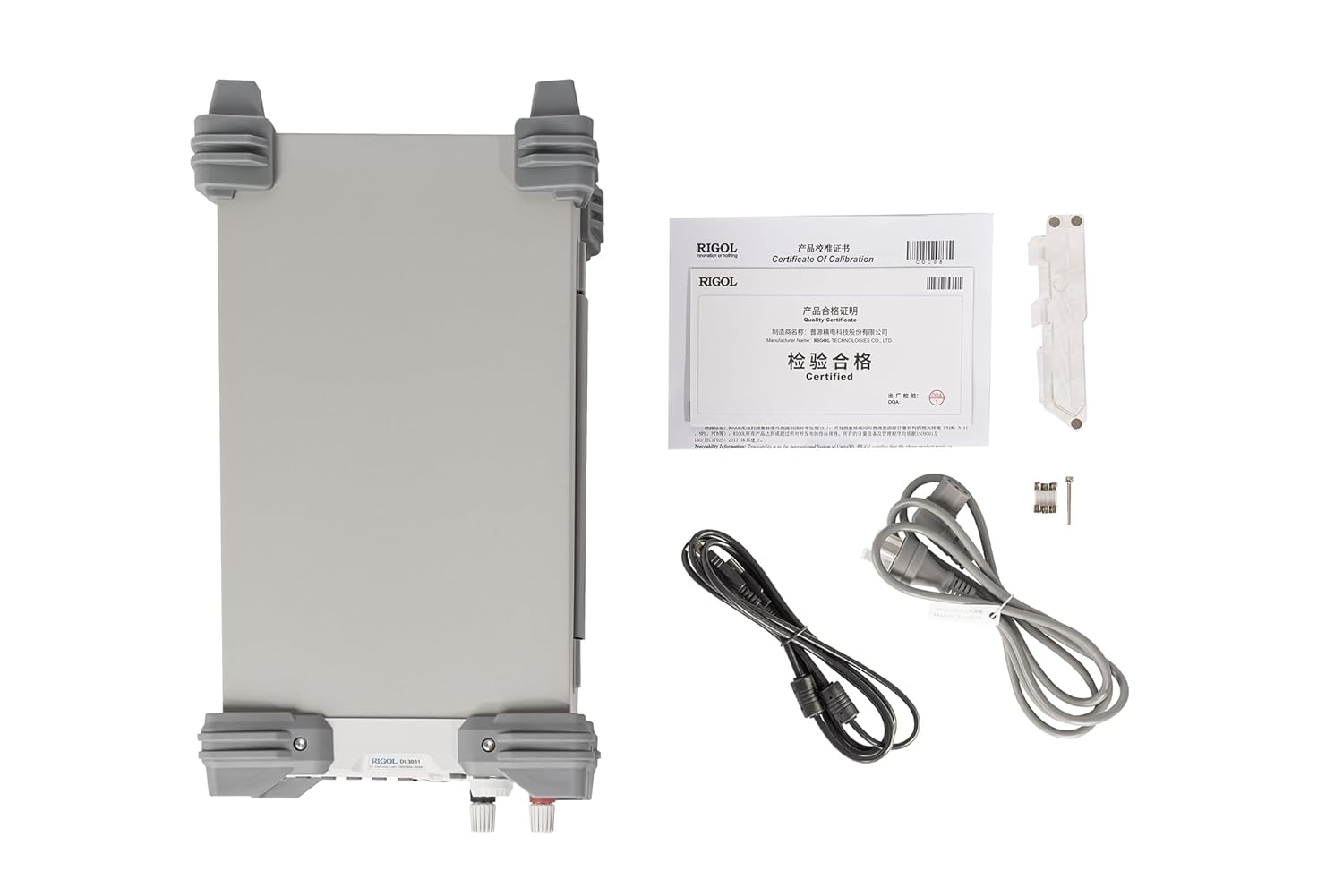

Figure 2.1: Typical package contents for the Rigol DL3031.

2.2 ഭൗതിക ബന്ധങ്ങൾ

Before powering on the device, ensure all necessary connections are made securely.

1. പവർ കണക്ഷൻ: Connect the supplied power cord to the AC power input on the rear panel and to a suitable AC power outlet. Ensure the voltage selector (if present) matches your local power supply.
2. Load Input Terminals: Connect the device under test (DUT) to the red (+) and black (-) input terminals on the front panel. For high current applications, use appropriate gauge wires to minimize voltagഇ ഡ്രോപ്പ്.
3. Sense Terminals (Optional): കൃത്യമായ വോള്യത്തിന്tage regulation at the DUT, connect the sense terminals (S+ and S-) to the DUT's output. This compensates for voltage drop across the load wires.
4. ആശയവിനിമയ ഇന്റർഫേസുകൾ: The DL3031 supports various communication interfaces for remote control and data logging.
• USB ഹോസ്റ്റ്: Located on the front panel, used for connecting USB storage devices.
• USB ഉപകരണം: Located on the rear panel, used for connecting to a PC for remote control.
• ലാൻ: Located on the rear panel, for network connectivity and remote control.
• ആർഎസ് -232: Located on the rear panel, for serial communication.
• ഡിജിറ്റൽ I/O: Located on the rear panel, for external triggering and control signals.

Figure 2.2: Rear panel connections of the Rigol DL3031.

2.3 പ്രാരംഭ പവർ ഓൺ

After making all physical connections, press the power key on the front panel to turn on the electronic load. The 4.3-inch TFT LCD will display the startup screen, followed by the main measurement interface.

3. Operating the DL3031

3.1 ഫ്രണ്ട് പാനൽ നിയന്ത്രണങ്ങൾ

The front panel of the DL3031 is designed for intuitive operation. Familiarize yourself with the various controls and their functions.

Figure 3.1: Labeled front panel of the Rigol DL3031.

• LCD: 4.3-inch TFT display for showing measurement data, settings, and waveforms.
• Function Keys (CC, CV, CR, CP, List): ആവശ്യമുള്ള ഓപ്പറേറ്റിംഗ് മോഡ് തിരഞ്ഞെടുക്കുക.
• Control Keys (Up, Down, Left, Right, OK): Navigate menus and adjust parameters.
• Input Control Keys (Numeric Keypad): Directly input numerical values.
• നോബ്: Fine-tune parameter values.
• System Function Keys (Local, Utility, Option, Store, Help): Access system settings, save/recall configurations, and view സഹായ വിവരങ്ങൾ.
• Waveform Display Key: Toggles the waveform display for real-time graphing of parameters.
• Application Key (APP): Accesses specialized application modes like Battery Test, OCP, and OPP.
• USB ഹോസ്റ്റ്: USB സംഭരണ ​​ഉപകരണങ്ങൾ ബന്ധിപ്പിക്കുന്നതിന്.
• പവർ കീ: യൂണിറ്റ് ഓൺ/ഓഫ് ചെയ്യുന്നു.
• Channel Terminals (S+, S-, Input +, Input -): Connect the DUT and sense lines.

3.2 ഓപ്പറേറ്റിംഗ് മോഡുകൾ

The DL3031 offers a variety of operating modes to suit different testing requirements.

3.2.1 Static Modes

These modes maintain a constant load condition.

• CC (Constant Current): Maintains a constant current draw from the DUT.
• CV (സ്ഥിരമായ വാല്യംtagഇ): സ്ഥിരമായ വോള്യം നിലനിർത്തുന്നുtage across the DUT.
• CR (Constant Resistance): Maintains a constant resistance load on the DUT.
• CP (Constant Power): Maintains a constant power dissipation from the DUT.

3.2.2 ചലനാത്മക മോഡുകൾ

These modes allow for varying load conditions over time.

• തുടർച്ചയായി: Provides a continuous dynamic load.
• പൾസ്ഡ്: Generates pulsed load changes.
• Toggled: Switches between two defined load levels.
• പട്ടിക: Allows programming a sequence of up to 512 steps with different load conditions and durations.

3.2.3 ആപ്ലിക്കേഷൻ മോഡുകൾ

Access these specialized tests via the APP താക്കോൽ.

• ബാറ്ററി ടെസ്റ്റ്: Designed for testing battery discharge characteristics.
• OCP Test (Over Current Protection): Tests the overcurrent protection of a power supply.
• OPP Test (Over Power Protection): Tests the overpower protection of a power supply.

3.3 Waveform Graphing

The DL3031 can display real-time waveforms of current, voltage, resistance, and power over time, similar to an oscilloscope. This feature is useful for analyzing dynamic load responses and identifying transient behaviors.

4. പരിപാലനം

Proper maintenance ensures the longevity and accuracy of your DL3031 electronic load.

• വൃത്തിയാക്കൽ: Regularly clean the exterior of the instrument with a soft, damp തുണി. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• വെൻ്റിലേഷൻ: Ensure the rear exhaust fan and ventilation slots are clear of obstructions to prevent overheating. The fan is crucial for dissipating heat generated during operation.
• ഫ്യൂസ് മാറ്റിസ്ഥാപിക്കൽ: If the unit does not power on, check the fuse located near the AC power input on the rear panel. Replace with a fuse of the same type and rating as indicated on the unit (e.g., T 15A/250V for 230V AC, T 30A/250V for 115V AC).

Figure 4.1: Rear panel showing the exhaust fan and fuse location.

5. പ്രശ്‌നപരിഹാരം

This section provides solutions to common issues you might encounter with the DL3031.

If the problem persists after attempting these solutions, please contact Rigol customer support.

6 സ്പെസിഫിക്കേഷനുകൾ

The following table outlines the key technical specifications for the Rigol DL3031 Electronic Load.

7. വാറൻ്റിയും പിന്തുണയും

7.1 വാറൻ്റി വിവരങ്ങൾ

The Rigol DL3031 Programmable DC Electronic Load is manufactured by RIGOL TECHNOLOGIES USA INC. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Rigol webസൈറ്റ്. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.

Extended protection plans may be available for purchase:

• 3-വർഷ സംരക്ഷണ പദ്ധതി
• 4-വർഷ സംരക്ഷണ പദ്ധതി
• കംപ്ലീറ്റ് പ്രൊട്ടക്റ്റ് (പ്രതിമാസ പുതുക്കൽ ഓപ്ഷൻ)

7.2 സാങ്കേതിക പിന്തുണ

For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact Rigol customer support. You can find contact information on the official Rigol website or through your local distributor. When contacting support, please have your product model number (DL3031) and serial number ready.
