1. ആമുഖം
The POWERTEC 71118 Universal Double-Cut Profile T-Tracks are designed to enhance your woodworking projects by providing versatile worktable configurations. These T-tracks are suitable for jigs, fixtures, drill press tables, router tables, and workbenches. Constructed from high-quality extruded anodized 6463 aluminum, they offer durability, corrosion resistance, and a lightweight design.
2 പ്രധാന സവിശേഷതകൾ
- Double-Cut Profile: Features a unique double-cut profile with an inside groove that accepts standard 1/4-inch hex bolts, 1/4-inch T-bolts, and 5/16-inch T-bolts, ensuring hardware versatility.
- നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Made from extruded anodized 6463 aluminum for impressive strength-to-weight ratio, corrosion resistance, and superior resilience.
- മുൻകൂട്ടി തുരന്ന മൗണ്ടിംഗ് ദ്വാരങ്ങൾ: Each track is equipped with pre-drilled mounting holes for straightforward installation.
- അളവുകൾ: Individual T-track measures 3/4-inch x 3/8-inch x 24-inch, allowing for easy and solid embedding without compromising surface integrity.
- ബഹുമുഖ ആപ്ലിക്കേഷൻ: Ideal for building or tailoring machine tables, jigs, and fixtures.
3 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| നിർമ്മാതാവ് | പവർടെക് |
| ഭാഗം നമ്പർ | 71118 |
| ഇനത്തിൻ്റെ ഭാരം | 10.9 ഔൺസ് |
| ഉൽപ്പന്ന അളവുകൾ | 24 x 1 x 0.5 ഇഞ്ച് |
| ഇനം മോഡൽ നമ്പർ | 71118 |
| വലിപ്പം | 24" T track (2PK) |
| നിറം | Anodized Blue |
| മെറ്റീരിയൽ | അലുമിനിയം |
| ഇൻസ്റ്റലേഷൻ രീതി | സ്ക്രൂ-ഇൻ |
| കഷണങ്ങളുടെ എണ്ണം | 2 |
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The POWERTEC Universal T-Tracks are designed for easy integration into your woodworking setup. They can be embedded into a workstation board or attached directly onto a tabletop.
4.1. മൗണ്ടിംഗ് ഉപരിതലം തയ്യാറാക്കൽ
Ensure your workstation board or tabletop has a flat, stable surface. If embedding the T-track, route a groove that matches the dimensions of the T-track (3/4-inch wide by 3/8-inch deep). For optimal stability, a minimum table thickness of 1 inch is recommended to provide sufficient material for screw engagement.
4.2. Cutting the T-Track (If Necessary)
The aluminum T-track can be cut to your desired length using a standard carbide blade on a miter saw. Measure carefully before cutting to ensure an accurate fit for your application.
4.3. Mounting the T-Track
- Position the T-track in the routed groove or on the surface where it will be installed.
- Align the pre-drilled mounting holes with the surface.
- Secure the T-track using #6 wood screws (not included). Ensure the screws are appropriate length for your material thickness to prevent damage.

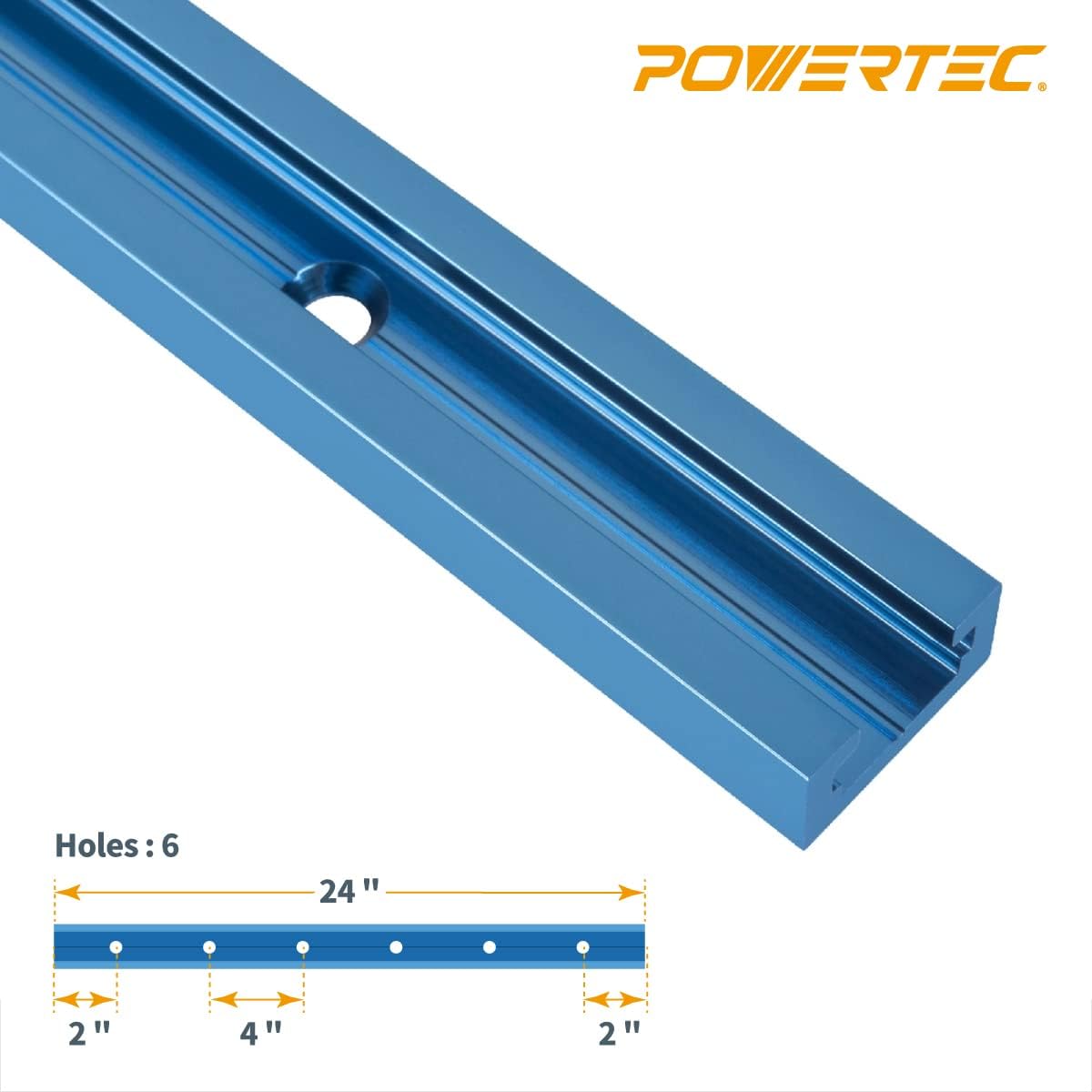

Image: POWERTEC 24-inch Universal T-Track showing pre-drilled mounting holes and overall profile.

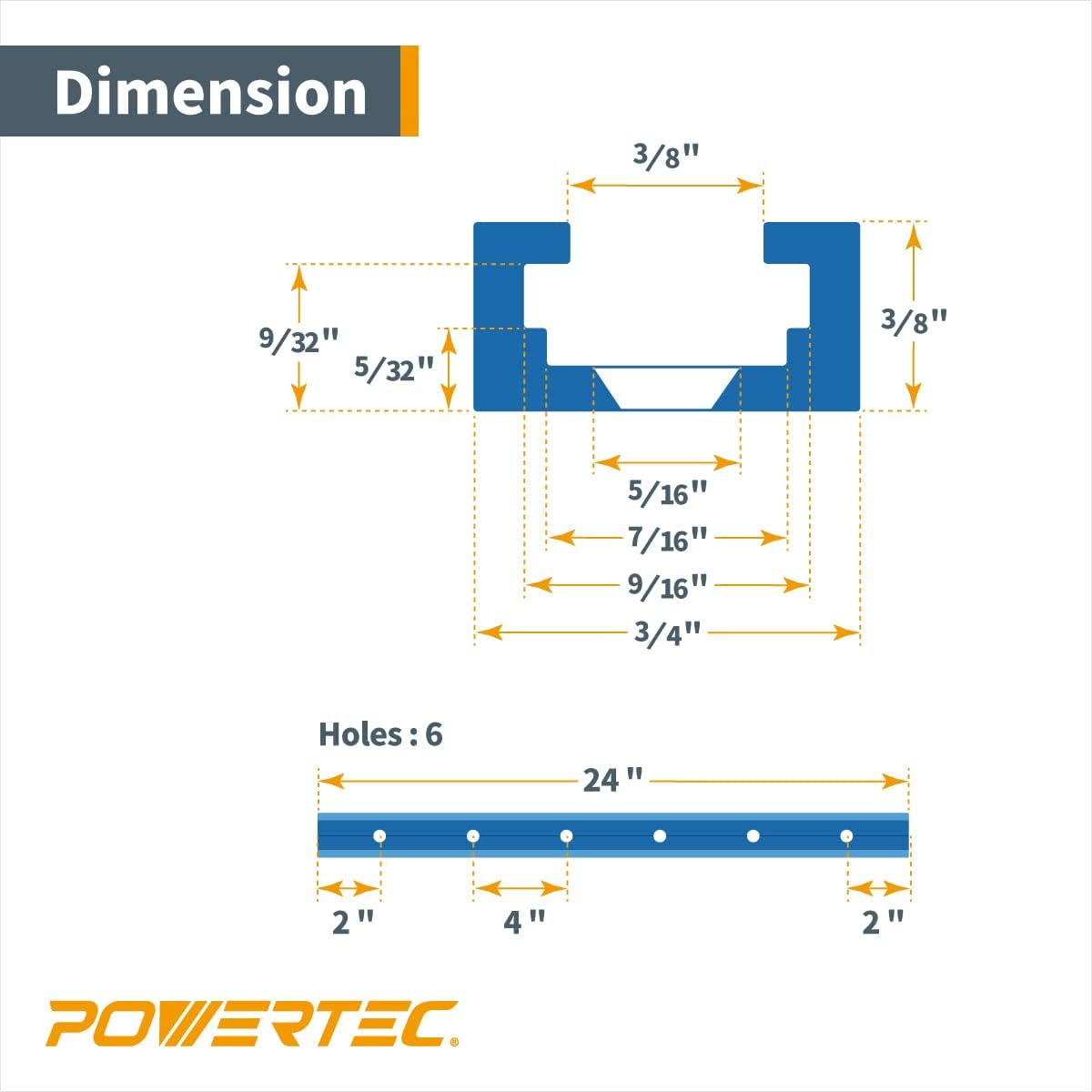

Image: Detailed dimensions of the POWERTEC Universal T-Track, including width, height, and hole spacing.
5. പ്രവർത്തനവും ഉപയോഗവും
The Universal T-Track provides a secure and adjustable system for various woodworking applications. Its double-cut profile allows for flexibility in hardware choice.
5.1. Compatible Hardware
The T-track is designed to accept three common types of hardware:
- 1/4-inch Hex Bolts
- 1/4-inch T-Bolts
- 5/16-inch T-Bolts
Image: Illustration showing how 5/16-inch T-bolts and 1/4-inch T-bolts fit into the Universal T-Track.
Image: Illustration showing how 1/4-inch hex bolts fit into the Universal T-Track.
5.2. Creating Jigs and Fixtures
Utilize the T-tracks to secure workpieces, featherboards, clamps, and other accessories. The ability to slide and lock various components allows for precise and repeatable operations in routing, drilling, and sanding tasks.
ചിത്രം: ഉദാample of the T-track in use with T-bolts and knobs to secure a workpiece. Note: T-bolts & Knobs NOT INCLUDED.
Image: A POWERTEC Universal T-Track integrated into a workbench, securing a workpiece with a clamp for sanding.
5.3. ഉൽപ്പന്ന വീഡിയോകൾ
വീഡിയോ: ഒരു ഓവർview of POWERTEC Universal T-Tracks, demonstrating their features and applications in woodworking setups.
Video: A short demonstration of the POWERTEC Double-Cut Profile Universal T-track in various woodworking applications, highlighting its versatility.
6. പരിപാലനം
To ensure the longevity and smooth operation of your POWERTEC T-tracks, follow these simple maintenance guidelines:
- വൃത്തിയാക്കൽ: Regularly clean the T-track grooves to remove sawdust, debris, and any accumulated grime. A dry brush or compressed air can be used. For stubborn residue, a damp വീര്യം കുറഞ്ഞ സോപ്പുള്ള തുണി ഉപയോഗിക്കാം, തുടർന്ന് നന്നായി ഉണക്കാം.
- ലൂബ്രിക്കേഷൻ: While not strictly necessary for aluminum, a light application of dry lubricant (e.g., silicone spray) can help ensure smooth sliding of bolts and accessories, especially in high-use environments.
- പരിശോധന: Periodically inspect the T-tracks for any signs of damage, bending, or excessive wear. Ensure all mounting screws remain tight.
7. പ്രശ്നപരിഹാരം
7.1. Hardware Not Fitting
- ഇഷ്യൂ: T-bolts or hex bolts do not slide smoothly or fit into the track.
- പരിഹാരം: Verify that you are using compatible hardware sizes (1/4-inch hex bolts, 1/4-inch T-bolts, or 5/16-inch T-bolts). Ensure the track is free of debris or obstructions.
7.2. Loose T-Track
- ഇഷ്യൂ: The T-track feels loose or shifts during use.
- പരിഹാരം: Check and tighten all mounting screws. If the screws are stripped, consider using slightly larger screws or relocating the T-track if possible. Ensure the routed groove (if applicable) is snug and provides adequate support.
8. പിന്തുണ
For further assistance, product inquiries, or to explore additional POWERTEC accessories, please visit the official POWERTEC webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.
POWERTEC is committed to providing high-quality woodworking tools and accessories.
