ആമുഖം
This user manual provides essential information for the safe and effective operation of your Uten Sonic Ultrasonic Cleaner 750ml. Please read this manual thoroughly before first use and retain it for future reference.
The Uten Ultrasonic Cleaner utilizes ultrasonic waves to provide a powerful yet gentle cleaning action for a variety of items, including jewelry, eyeglasses, watches, and more.
പാക്കേജ് ഉള്ളടക്കം
പാക്കേജ് തുറക്കുമ്പോൾ, എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ദയവായി പരിശോധിക്കുക:
- 1 x Uten Sonic Ultrasonic Cleaner
- 1 x ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
- 1 x ക്ലീനിംഗ് ബാസ്കറ്റ്
- 1 x Watch Stand

Image: The Uten Sonic Ultrasonic Cleaner, showing the main unit, cleaning basket, and watch stand.
സജ്ജമാക്കുക
- അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the ultrasonic cleaner and all accessories from the packaging.
- പ്ലേസ്മെൻ്റ്: Place the unit on a stable, flat, and dry surface, away from heat sources and direct sunlight. Ensure adequate ventilation around the unit.
- പവർ കണക്ഷൻ: Connect the power cord to the unit and then plug it into a suitable AC power outlet (AC100-120V, 50Hz or AC220-240V, 50Hz, depending on your region).

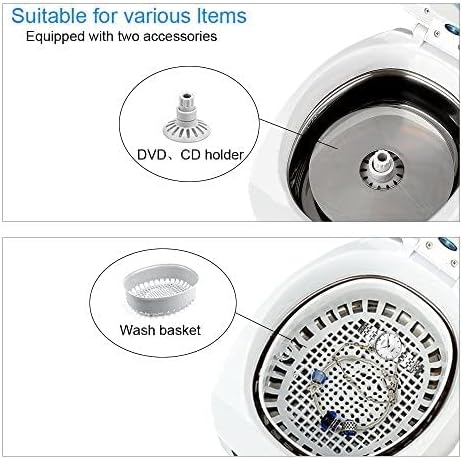

ചിത്രം: വിശദമായത് view of the cleaner's tank, highlighting the DVD/CD holder and the wash basket, which are included accessories.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
- ടാങ്ക് നിറയ്ക്കുക: Open the lid and fill the stainless steel tank with water. Do not exceed the "MAX" fill line. For enhanced cleaning, warm water is recommended.
- ഡിറ്റർജന്റ് ചേർക്കുക (ഓപ്ഷണൽ): For stubborn stains or improved cleaning effect, a small amount of professional detergent can be added to the water.
- സ്ഥല ഇനങ്ങൾ: Place the items to be cleaned into the cleaning basket. If cleaning glasses that are too large for the basket, the basket can be removed, and the glasses placed directly into the stainless steel tank. For watches, use the provided watch stand.
- ലിഡ് അടയ്ക്കുക: ലിഡ് സുരക്ഷിതമായി അടയ്ക്കുക.
- വൃത്തിയാക്കൽ ആരംഭിക്കുക: Press the "ON" button to start the cleaning cycle. The unit has a preset timer of 3 minutes and will auto power-off.
- വൃത്തിയാക്കിയ ശേഷം: Once the cycle is complete, open the lid, carefully remove the cleaning basket or items, and rinse them under clean water. Dry the items thoroughly.
- ശൂന്യമായ ടാങ്ക്: After each use, empty the water from the tank and wipe it clean.

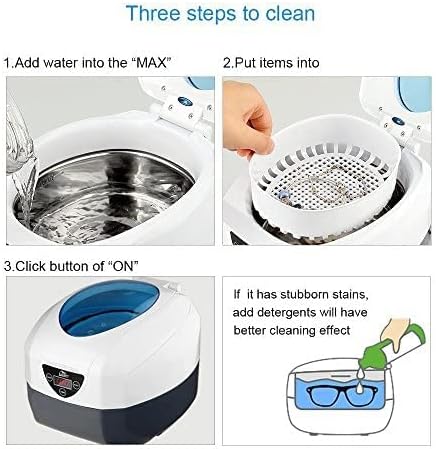

Image: Visual guide demonstrating the three main steps for cleaning: filling the tank with water, placing items in the basket, and pressing the 'ON' button to start the cleaning process.
Suitable Items for Cleaning
The Uten Sonic Ultrasonic Cleaner is suitable for a wide range of items and applications:
- ആഭരണങ്ങൾ: Necklaces, Rings, Earrings, Bracelets.
- Glasses and Timepieces: Contact Lens accessories, Eyeglasses, Sunglasses, Waterproof Watches.
- Personal items: Electric Shaver Heads, Razor Blades, Dentures, Combs, Toothbrushes.
- Stationary Items: Printer-heads, Pen heads, Inject Cartridges, Seals.
- Lab tools: Instruments and fittings.
- Metal pieces: Ancient Coins, Badges, Valves, Machine Nozzles.
- Metal dishware: Forks, Knives, Spoons, Teacups.

Image: A collage illustrating various items suitable for cleaning with the ultrasonic cleaner, including baby bottles, cutlery, small metal parts, eyeglasses, CDs, watches, dentures, electric shaver heads, and bracelets.
Cleaning Effectiveness

Image: Comparison images showing the 'Before' and 'After' state of eyeglasses, a watch, an electric shaver head, and a bracelet after being cleaned with the ultrasonic cleaner, demonstrating its effectiveness.
മെയിൻ്റനൻസ്
- യൂണിറ്റ് വൃത്തിയാക്കൽ: After each use, unplug the unit and empty the water from the tank. Wipe the stainless steel tank and the exterior of the unit with a soft, damp തുണി. അബ്രാസീവ് ക്ലീനറുകൾ ഉപയോഗിക്കരുത് അല്ലെങ്കിൽ പ്രധാന യൂണിറ്റ് വെള്ളത്തിൽ മുക്കരുത്.
- സംഭരണം: Store the ultrasonic cleaner in a cool, dry place when not in use.
- കേടുപാടുകൾ ഒഴിവാക്കുക: Ensure the cleaning basket and watch stand are used to prevent direct contact of items with the transducer, which can reduce cavitation and potentially damage the unit.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| യൂണിറ്റ് ഓണാക്കുന്നില്ല. | വൈദ്യുതി ഇല്ല; കണക്ഷൻ നഷ്ടപ്പെട്ടു. | Check if the power cord is securely plugged into the unit and the wall outlet. Ensure the outlet has power. |
| മോശം വൃത്തിയാക്കൽ ഫലങ്ങൾ. | Insufficient water; no detergent; items too dirty; incorrect cleaning time. | Ensure water level is adequate. Add professional detergent for stubborn stains. Pre-rinse heavily soiled items. Run multiple cycles if necessary. |
| യൂണിറ്റ് അപ്രതീക്ഷിതമായി നിർത്തുന്നു. | Auto power-off timer activated. | This is normal operation. The unit is designed to auto power-off after 3 minutes. Restart if further cleaning is needed. |
സാങ്കേതിക സവിശേഷതകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ക്ലീനിംഗ് തത്വം | അൾട്രാസോണിക് |
| അൾട്രാസോണിക് ഫ്രീക്വൻസി | 40 kHz |
| വൈദ്യുതി ഉപഭോഗം | 35 W |
| ടാങ്ക് മെറ്റീരിയൽ | സ്റ്റെയിൻലെസ്സ് സ്റ്റീൽ SUS304 |
| ഉൽപ്പന്ന അളവുകൾ (L x W x H) | 200 x 140 x 130 മിമി (ഏകദേശം 7.87 x 5.51 x 5.12 ഇഞ്ച്) |
| ടാങ്ക് വലുപ്പം (L x W x H) | 155 x 95 x 52 മിമി (ഏകദേശം 6.10 x 3.74 x 2.05 ഇഞ്ച്) |
| ടാങ്ക് കപ്പാസിറ്റി | 750 മില്ലി |
| ടൈമർ ക്രമീകരണം | 3 minutes Auto Power-off |
| വൈദ്യുതി വിതരണം | AC100-120V, 50Hz / AC220-240V, 50Hz |
| മെയിൻ ഫ്യൂസ് | 3A |

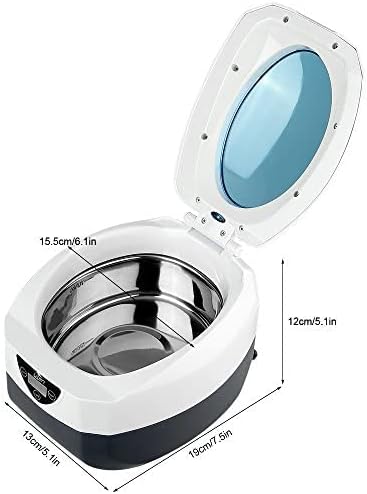

Image: Diagram showing the key dimensions of the Uten Sonic Ultrasonic Cleaner, including height, width, and tank depth.
വാറൻ്റിയും പിന്തുണയും
Uten provides a full 1-year guarantee for this professional ultrasonic cleaner. For any questions, technical support, or warranty claims, please contact Uten customer service through the retailer where the product was purchased or visit the official Uten store online.
നിങ്ങൾക്ക് സന്ദർശിക്കാം Uten Store on Amazon കൂടുതൽ വിവരങ്ങൾക്ക്.
