Allen-Bradley 1756-OW16I

ALLEN BRADLEY 1756-OW16I ControlLogix Relay Output Module

Model: 1756-OW16I, Series A

ആമുഖം

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the Allen-Bradley 1756-OW16I ControlLogix Relay Output Module. This module is designed for industrial control systems, providing reliable relay output capabilities within a ControlLogix chassis.

സജ്ജമാക്കുക

അൺപാക്കിംഗും പരിശോധനയും

Carefully remove the module from its packaging. Inspect the module for any signs of physical damage during transit. Do not install a damaged module. Ensure all components are present as per the packing list.

മൗണ്ടിംഗ്

The 1756-OW16I module is designed for DIN Rail Mount installation within a ControlLogix chassis. Ensure the chassis is powered off before inserting or removing modules.

  1. Align the module with an available slot in the ControlLogix chassis.
  2. Gently push the module into the slot until it clicks securely into place. Ensure the module is fully seated to establish proper electrical connections.
  3. Secure the module using any retaining clips or screws provided by the chassis.
ഫ്രണ്ട് view of the Allen-Bradley 1756-OW16I module
ചിത്രം 1: മുൻഭാഗം view of the 1756-OW16I module, showing the 'RELAY OUTPUT' label and 'ST' indicators.
വശം view of the Allen-Bradley 1756-OW16I module with product label

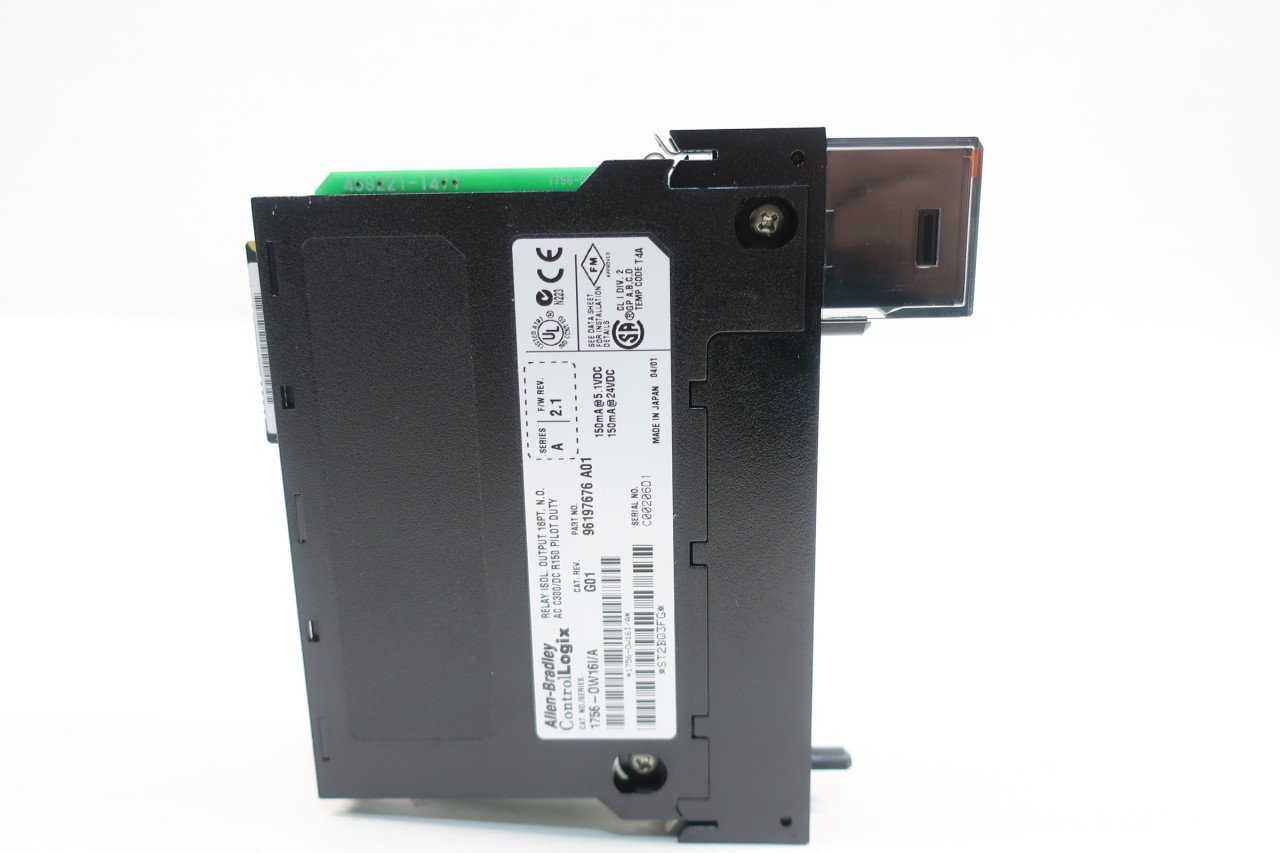

ചിത്രം 2: വശം view of the 1756-OW16I module, displaying the product label with model number, series, and other technical details.

വയറിംഗ്

The module utilizes screw-type connectors for relay output wiring. Refer to the system's wiring diagrams and local electrical codes for proper connection procedures. Ensure all connections are secure to prevent intermittent operation or damage.

മുകളിൽ view of the Allen-Bradley 1756-OW16I module showing internal components
ചിത്രം 3: മുകളിൽ view of the 1756-OW16I module, providing a perspective on its internal structure and connection points.

പ്രവർത്തിക്കുന്നു

പ്രവർത്തനക്ഷമത

The 1756-OW16I is a 16-point isolated relay output module. It provides discrete output control for various industrial applications. The module receives commands from the ControlLogix processor and activates its internal relays to control external devices.

സൂചകങ്ങൾ

The module features status indicators (e.g., 'ST' for status) on its front panel. These indicators provide visual feedback on the module's operational status and the state of individual output channels. Consult the ControlLogix system documentation for a detailed explanation of indicator states.

മെയിൻ്റനൻസ്

ജനറൽ കെയർ

To ensure optimal performance and longevity of the module, follow these general maintenance guidelines:

  • Keep the module and surrounding area clean and free from dust, dirt, and moisture.
  • Ensure proper ventilation around the ControlLogix chassis to prevent overheating.
  • Periodically check all wiring connections for tightness and integrity.

പരിശോധന

Regularly inspect the module for any signs of wear, corrosion, or damage. Pay close attention to the connectors and the module's housing. If any damage is observed, replace the module immediately.

ട്രബിൾഷൂട്ടിംഗ്

This section provides basic troubleshooting steps for common issues. For more complex problems, refer to the comprehensive ControlLogix system documentation or contact technical support.

ലക്ഷണംസാധ്യമായ കാരണംപരിഹാരം
Module status indicator (ST) is off or red.No power to module, module not seated correctly, module fault.Verify chassis power. Re-seat the module. Check ControlLogix controller diagnostics for fault codes.
Output relay not activating.Incorrect programming, wiring error, external device fault, faulty relay.Verify PLC logic. Check wiring to the external device. Test the external device. Consider replacing the module if other checks fail.
Intermittent output operation.Loose wiring connection, electrical noise, module overheating.Check and tighten all wiring connections. Ensure proper grounding and shielding. Verify adequate ventilation.

സ്പെസിഫിക്കേഷനുകൾ

The following table outlines the key technical specifications for the Allen-Bradley 1756-OW16I ControlLogix Relay Output Module.

ആട്രിബ്യൂട്ട്മൂല്യം
മോഡൽ നമ്പർ1756-OW16I
പരമ്പരA
ഉൽപ്പന്ന അളവുകൾ6 x 6 x 2 ഇഞ്ച്; 14.4 ഔൺസ്
നിർമ്മാതാവ്അല്ലെൻ ബ്രാഡ്‌ലി
കണക്റ്റർ തരംസ്ക്രൂ
കോൺടാക്റ്റ് മെറ്റീരിയൽവെള്ളി
ബന്ധപ്പെടാനുള്ള തരംസാധാരണയായി തുറന്നിരിക്കുന്നു
മൗണ്ടിംഗ് തരംDIN റെയിൽ മ .ണ്ട്
Close-up of the Allen-Bradley 1756-OW16I product label
ചിത്രം 4: വിശദമായി view of the product label on the 1756-OW16I module, showing part numbers, series, and certifications.

വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the official Allen-Bradley documentation or contact your authorized distributor. When seeking support, it is helpful to have the module's serial number and part number readily available.

Relevant codes for documentation or support: ST2BQ3FG ഒപ്പം 607615.
