1. ആമുഖം
This manual provides detailed instructions for the safe and efficient use of the Walfront 1200W DC-DC Constant Current Boost Converter. This module is designed to step up a DC input voltagഉയർന്ന DC ഔട്ട്പുട്ട് വോള്യത്തിലേക്ക് etage, offering both constant voltage and constant current capabilities. It is suitable for various applications, including driving high-power LEDs, charging batteries, and as a general voltagഇ റെഗുലേറ്റർ.
2 സുരക്ഷാ വിവരങ്ങൾ
WARNING: Improper use of this module can result in electric shock, fire, or damage to the device and connected equipment. Always follow these safety guidelines:
- Ensure all connections are secure and correct before applying power.
- Do not exceed the specified input or output voltagഇ, നിലവിലെ പരിധികൾ.
- Always connect the input power supply with the correct polarity. Reverse input polarity protection is present but should not be relied upon for continuous operation.
- Ensure adequate ventilation and heat dissipation, especially when operating at high power levels. The integrated fan will activate at 55°C.
- Keep the module away from moisture, dust, and flammable materials.
- Only qualified personnel should perform installation and adjustments.
- Disconnect power before making any adjustments or connections.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Walfront 1200W DC-DC Boost Converter is a high-performance power module featuring a robust design with a large heat sink and an integrated cooling fan for efficient thermal management. It provides a wide range of adjustable output voltage and current, making it versatile for various power conversion needs.
ചിത്രം 1: ജനറൽ view of the Walfront 1200W DC-DC Boost Converter module.
പ്രധാന സവിശേഷതകൾ:
- ഇൻപുട്ട് വോളിയംtage Range: DC 10V to 60V
- Putട്ട്പുട്ട് വോളിയംtage Range: DC 12V to 83V (continuously adjustable)
- Maximum Input Current: 20A (up to 25A with enhanced cooling at 12V-24V)
- Maximum Output Current: 18A (dependent on voltage difference and heat dissipation)
- Constant Current Range: 0.5A to 18A (adjustable)
- High Conversion Efficiency: 92% to 97%
- Integrated Heat Sink and Cooling Fan for optimal thermal performance.
- Screw terminals for easy and secure wire connections.
- Features include reverse input protection (150A MOS), lower voltage protection (9V to 50V adjustable), input over-current protection (25A), and short circuit protection (30A input).
അളവുകൾ:
ചിത്രം 2: Dimensions of the boost converter module. Length: 130mm, Width: 64mm, Height: 52mm.
The module measures approximately 130mm (length) x 64mm (width) x 52mm (height).
4 സ്പെസിഫിക്കേഷനുകൾ
| പരാമീറ്റർ | മൂല്യം |
|---|---|
| ടൈപ്പ് ചെയ്യുക | Non-isolated boost module |
| ഇൻപുട്ട് വോളിയംtage | DC 10V മുതൽ 60V വരെ |
| ഇൻപുട്ട് കറൻ്റ് | 20A (25A max at 12V-24V with cooling) |
| ക്വിസെൻ്റ് കറൻ്റ് | 15mA (increases with voltagഇ പരിവർത്തനം) |
| Putട്ട്പുട്ട് വോളിയംtage | 12V to 83V (continuously adjustable, default 19V) |
| ഔട്ട്പുട്ട് കറൻ്റ് | 18A (max, depends on voltage difference and heat dissipation) |
| Constant Current Range | 0.5A to 18A (+/-0.3A) |
| Reverse Input Protection | Yes (150A MOS) |
| ലോവർ വോളിയംtagഇ സംരക്ഷണം | Yes (9V to 50V adjustable) |
| താപനില നിയന്ത്രണ ഫാൻ | Yes (starts > 55°C) |
| പ്രവർത്തന താപനില | -40°C to 85°C (enhance heat dissipation if high) |
| ആവൃത്തി | 150KHz |
| പരിവർത്തന കാര്യക്ഷമത | 92% to 97% (depends on voltage/current difference) |
| Input Over-current Protection | Yes (auto when input > 25A) |
| ഷോർട്ട് സർക്യൂട്ട് സംരക്ഷണം | Yes (30A input) |
| വയറിംഗ് രീതി | Terminals (use large current copper wire) |
| അളവുകൾ | 130 × 64 × 52mm / 5.12 × 2.52 × 2.04 inches |
| ഭാരം | ഏകദേശം 10.6 ഔൺസ് (0.66 പൗണ്ട്) |
5. സജ്ജീകരണം
Before connecting the module, ensure your power source and load are within the specified operating ranges.
5.1. വയറിംഗ് കണക്ഷനുകൾ
The module features screw terminals for input and output connections. Use appropriate gauge copper wire for high current applications.
- ഇൻപുട്ട്: Connect your DC power source to the "VIN+" (positive input) and "VIN-" (negative input) terminals.
- ഔട്ട്പുട്ട്: Connect your load to the "VOUT+" (positive output) and "VOUT-" (negative output) terminals.
ചിത്രം 3: Input (VIN) and Output (VOUT) screw terminals for wiring connections.
Important: Double-check all wiring for correct polarity and secure connections before applying power. Loose connections can cause arcing and damage.
5.2. Initial Adjustment (No Load Recommended)
It is recommended to perform initial voltage adjustments without a load connected to prevent damage to your load if the output voltage is set too high.
- Connect the input power supply (within 10V-60V).
- ഒരു മൾട്ടിമീറ്റർ ഉപയോഗിച്ച് വോള്യം അളക്കുകtage across the VOUT+ and VOUT- terminals.
- ക്രമീകരിക്കുക വാല്യംtage Adjustment Potentiometer (labeled "CV" or "V-ADJ") clockwise to increase the output voltage, or counter-clockwise to decrease it, until the desired output voltage is reached. The default output voltage 19V ആണ്.
- ദി Current Adjustment Potentiometer (labeled "CC" or "I-ADJ") should be set to its minimum (fully counter-clockwise) during initial voltage setup to ensure constant current mode does not interfere.

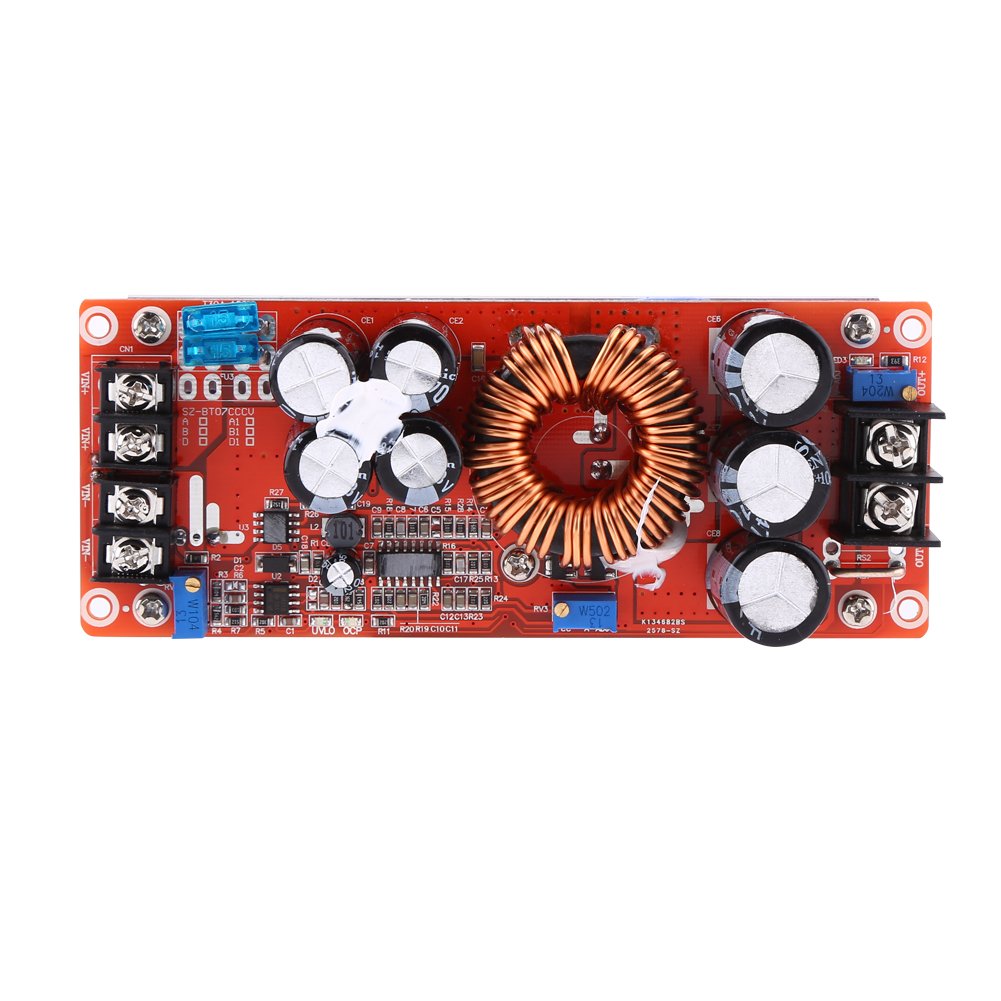

ചിത്രം 4: വോള്യത്തിന്റെ സ്ഥാനംtage (CV) and Current (CC) adjustment potentiometers.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
6.1. putട്ട്പുട്ട് വോളിയംtagഇ അഡ്ജസ്റ്റ്മെൻ്റ്
After initial setup, you can fine-tune the output voltage. Connect your load and monitor the output voltage with a multimeter. Turn the വാല്യംtage Adjustment Potentiometer (CV) clockwise to increase voltage or counter-clockwise to decrease it. Ensure the output voltage does not exceed the maximum rating of your load.
6.2. Constant Current (CC) Adjustment
This module can operate in constant current mode, useful for charging batteries or driving LEDs. To set the constant current limit:
- First, set the desired output voltage as described above.
- Connect a suitable load that will draw more current than your desired limit (e.g., a power resistor or a discharged battery).
- തിരിയുക Current Adjustment Potentiometer (CC) clockwise to increase the current limit. Monitor the output current with an ammeter in series with the load.
- Adjust the potentiometer until the desired constant current value is reached. Once the load attempts to draw more current than this set limit, the module will automatically switch to constant current mode, limiting the output current to the set value.
Note: When operating in constant current mode, the output voltage will drop to maintain the set current, depending on the load's resistance.
6.3. Lower Voltage Protection (LVP) Adjustment
The module includes an adjustable lower voltage protection feature to prevent the input source (e.g., a battery) from being over-discharged.
- Connect the input power supply.
- ഇൻപുട്ട് വോളിയം ക്രമീകരിക്കുകtage to the desired LVP threshold (e.g., 10V for a 12V battery).
- തിരിയുക ലോവർ വോളിയംtage Protection Potentiometer (labeled "LVP" or "UVLO") counter-clockwise until the output voltage drops to zero or the output indicator LED turns off.
- Slowly turn the potentiometer clockwise until the output voltage reappears. This sets the LVP. When the input voltage drops below this threshold, the module will stop outputting power.
Caution: Incorrect LVP setting can lead to premature shutdown or over-discharge of your input source.
7. പരിപാലനം
The Walfront 1200W DC-DC Boost Converter is designed for reliable operation with minimal maintenance. However, proper care ensures longevity and performance.
- താപ വിസർജ്ജനം: The module is equipped with a heat sink and a temperature-controlled fan. Ensure the fan is not obstructed and that there is sufficient airflow around the module, especially when operating at high power. The fan will automatically start when the module temperature exceeds 55°C.
- വൃത്തിയാക്കൽ: Periodically inspect the module for dust accumulation on the fan and heat sink. Use compressed air or a soft brush to gently clean these components. Ensure power is disconnected before cleaning.
- കണക്ഷനുകൾ: Regularly check all wiring connections for tightness and signs of corrosion. Re-tighten if necessary.
- പരിസ്ഥിതി വ്യവസ്ഥകൾ: Operate the module within its specified temperature range (-40°C to 85°C) and avoid environments with high humidity or corrosive gases.
ചിത്രം 5: താഴെ view showing the integrated cooling fan for heat dissipation.
8. പ്രശ്നപരിഹാരം
If you encounter issues with your boost converter, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ട്ട്പുട്ട് വോളിയം ഇല്ലtage. |
|
|
| Putട്ട്പുട്ട് വോളിയംtage is unstable or fluctuates. |
|
|
| Module overheats. |
|
|
| Output current is lower than expected. |
|
|
9. വാറൻ്റി വിവരങ്ങൾ
Walfront products are manufactured to high-quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, unauthorized modifications, or operation outside the specified parameters.
10. പിന്തുണ
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Walfront customer support through your original point of purchase or visit the official Walfront webബന്ധപ്പെടാനുള്ള വിവരങ്ങൾക്കുള്ള സൈറ്റ്.
Please refer to the Walfront Store on Amazon for additional product information and support resources: Walfront Store
