Tekonsha T-One® T-Connector Harness (Model 118756) Instruction Manual

1. ആമുഖം

This manual provides detailed instructions for the proper installation, operation, and maintenance of the Tekonsha T-One® T-Connector Harness, Model 118756. This product is designed to provide a 4-way flat trailer wiring connection for select Toyota C-HR vehicles, enabling trailer lighting functions without cutting or splicing vehicle wires.

2 സുരക്ഷാ വിവരങ്ങൾ

• Always disconnect the vehicle's battery before beginning any electrical installation to prevent electrical shock or damage to the vehicle's electrical system.
• ഷോർട്ട് സർക്യൂട്ടുകൾ തടയുന്നതിന് എല്ലാ കണക്ഷനുകളും സുരക്ഷിതമാണെന്നും ശരിയായി ഇൻസുലേറ്റ് ചെയ്തിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
• Route wiring away from hot surfaces, sharp edges, and moving parts to prevent damage.
• Verify proper function of all trailer lights before towing.
• ഇൻസ്റ്റലേഷൻ പ്രക്രിയയുടെ ഏതെങ്കിലും ഘട്ടത്തെക്കുറിച്ച് നിങ്ങൾക്ക് ഉറപ്പില്ലെങ്കിൽ, യോഗ്യതയുള്ള ഒരു ഓട്ടോമോട്ടീവ് ടെക്നീഷ്യനെ സമീപിക്കുക.

3. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

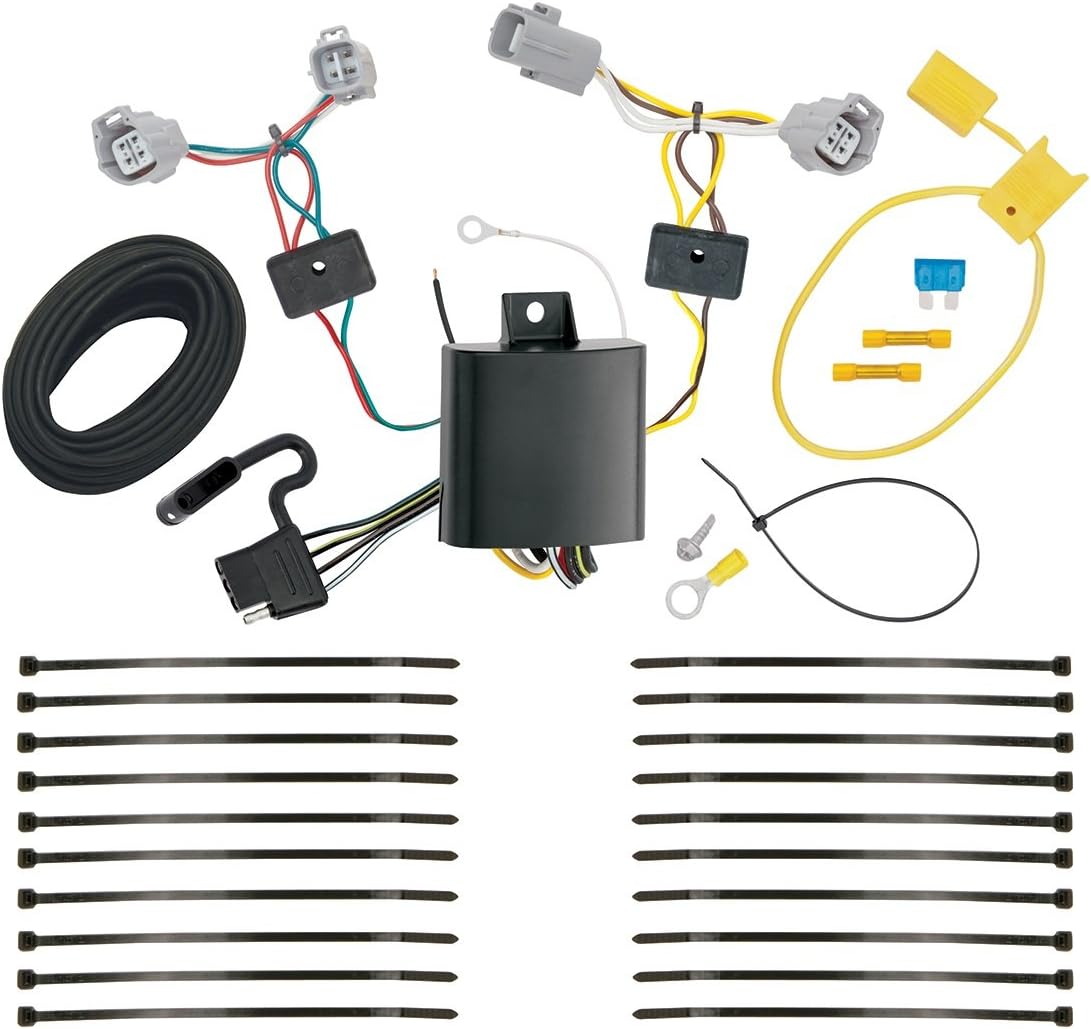

• Tekonsha T-One® T-Connector Harness with integrated control module
• 4-Way Flat Connector
• Power wire with fuse holder and fuse
• Ground wire with ring terminal
• Assorted zip ties
• ബട്ട് കണക്ടറുകൾ

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Tekonsha T-One® T-Connector Harness is designed for a "Plug & Play" installation, requiring no cutting, splicing, or taping of your vehicle's wires. The installation process typically involves accessing the vehicle's taillight wiring harness.

1. വാഹനം തയ്യാറാക്കുക: Ensure the vehicle is turned off and the parking brake is engaged. Disconnect the negative terminal of the vehicle's battery.
2. Access Taillight Wiring: Depending on your Toyota C-HR model, you may need to remove interior trim panels or access panels in the trunk or cargo area to reach the taillight wiring harness connectors. Refer to your vehicle's owner's manual for specific panel removal instructions.
3. Locate Vehicle Harness: Identify the vehicle's taillight wiring harness connectors. These are typically located behind the taillight assemblies.
4. Connect T-Connectors: Unplug the vehicle's existing taillight harness connector. Insert the corresponding Tekonsha T-Connector into the vehicle's harness, ensuring a secure connection. Then, plug the vehicle's original harness into the other end of the Tekonsha T-Connector. Repeat this process for both sides of the vehicle if applicable.
5. Mount Control Module: Find a secure, dry location within the vehicle's cargo area or behind the trim panels to mount the control module. Use the provided zip ties or double-sided tape (not included) to secure it, ensuring it is away from moving parts or areas prone to moisture.
6. Connect Power Wire: Route the power wire from the control module to the vehicle's battery. This may involve routing it through the vehicle's interior and firewall. Connect the fuse holder in-line near the battery, but do not insert the fuse until all connections are complete. Connect the power wire to the positive terminal of the battery.
7. ഗ്രൗണ്ട് വയർ ബന്ധിപ്പിക്കുക: Connect the white ground wire from the control module to a clean, unpainted metal surface on the vehicle's chassis using the provided ring terminal and a self-tapping screw. Ensure a good electrical ground.
8. Route 4-Way Flat Connector: Route the 4-way flat connector to the exterior of the vehicle, typically near the trailer hitch. Secure it using zip ties, ensuring it is protected from road debris and heat.
9. അന്തിമ പരിശോധനകൾ: Reconnect the vehicle's battery. Insert the fuse into the fuse holder. Test all trailer light functions (turn signals, brake lights, running lights) with a trailer or a trailer light tester before reassembling any removed trim panels.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once installed, the Tekonsha T-One® T-Connector Harness provides a standard 4-way flat connector for your trailer. To operate:

• Connect your trailer's 4-way flat plug to the vehicle's 4-way flat connector.
• Ensure the connection is secure and free from dirt or corrosion.
• Verify that all trailer lights (running lights, turn signals, brake lights) are functioning correctly before driving.
• When not in use, protect the 4-way flat connector with a dust cap (if provided or purchased separately) to prevent corrosion.

6. പരിപാലനം

Minimal maintenance is required for the T-One® T-Connector Harness:

• Periodically inspect the 4-way flat connector for dirt, corrosion, or damage. Clean with electrical contact cleaner if necessary.
• Check all wiring for signs of wear, fraying, or loose connections, especially where wires pass through grommets or along the chassis.
• Ensure the control module remains securely mounted in a dry location.

7. പ്രശ്‌നപരിഹാരം

If you experience issues with your trailer lights, consider the following troubleshooting steps:

• No Trailer Lights:
  • Check the fuse in the in-line fuse holder connected to the vehicle's battery. Replace if blown.
  • Ensure the vehicle's battery is properly reconnected and charged.
  • Verify all T-Connector connections are fully seated and secure.
  • Check the ground wire connection for corrosion or looseness. Ensure it is connected to a clean, unpainted metal surface.
  • Inspect the 4-way flat connector for dirt, corrosion, or bent pins.
• Specific Trailer Light Not Working (e.g., only turn signals, no brake lights):
  • Check the corresponding bulb on the trailer.
  • Inspect the wiring on the trailer itself for damage or loose connections.
  • Verify the vehicle's taillights are functioning correctly.
• Fuses Blow Repeatedly: This indicates a short circuit. Carefully inspect all wiring for pinched, cut, or exposed wires. Ensure the control module is not damaged.

If troubleshooting steps do not resolve the issue, contact Tekonsha customer support or a qualified automotive electrician.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

Tekonsha products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official Tekonsha website. For technical assistance or support, please contact Tekonsha customer service.

ടെകോൺഷ Webസൈറ്റ്: www.tekonsha.com
