Webasto 1324050C Parking Heater Mounting Kit Instruction Manual

1. ആമുഖം

This manual provides essential information for the proper installation, operation, and maintenance of your Webasto 1324050C Parking Heater Mounting Kit. Please read these instructions carefully before proceeding with installation or use to ensure safe and efficient operation. This kit is designed to be equivalent to original parts in performance and meets automotive manufacturer requirements.

2 സുരക്ഷാ വിവരങ്ങൾ

Always prioritize safety during installation and operation. Failure to follow safety guidelines can result in injury or damage to the product or vehicle.

• Ensure the vehicle's power supply is disconnected before beginning any installation work.
• കയ്യുറകൾ, കണ്ണ് സംരക്ഷണം എന്നിവയുൾപ്പെടെ ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ ധരിക്കുക.
• All electrical connections must be secure and properly insulated to prevent short circuits.
• Refer to your vehicle's service manual for specific instructions related to its systems.
• Do not modify the components of the mounting kit. Use only genuine Webasto parts or approved equivalents.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

ദി Webasto 1324050C is a mounting kit for parking heaters, designed to facilitate the secure and correct installation of a Webasto parking heater in compatible vehicles. This kit includes necessary components for a robust setup.

പ്രധാന സവിശേഷതകൾ:

• Webasto Parking Heater Mounting Kit.
• Equivalent to original parts in performance.
• Meets automotive manufacturer quality requirements.

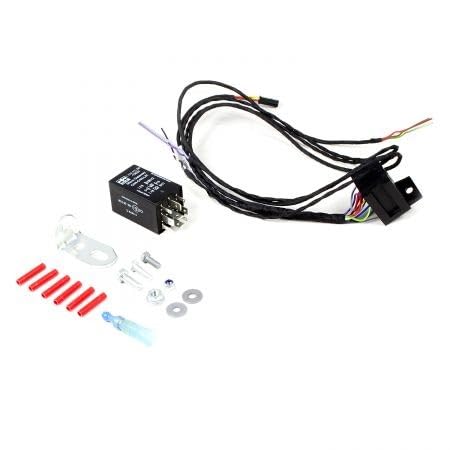

ചിത്രം: Webasto 1324050C Parking Heater Mounting Kit. This image displays the primary components included in the kit, which are essential for the installation of a Webasto parking heater.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the functionality and safety of the parking heater system. It is recommended that installation be performed by a qualified technician.

പൊതു ഇൻസ്റ്റാളേഷൻ ഘട്ടങ്ങൾ:

1. വാഹന അനുയോജ്യത പരിശോധന: Before starting, please select your vehicle from the dropdown list (if applicable) or consult the Webasto compatibility guide to ensure this mounting kit is suitable for your specific vehicle model.
2. തയ്യാറാക്കൽ: Disconnect the vehicle's battery. Identify the optimal mounting location for the parking heater and its components, considering space, ventilation, and proximity to fuel and exhaust lines.
3. ഹീറ്റർ ഘടിപ്പിക്കുന്നു: Securely attach the parking heater unit using the provided brackets and fasteners from the kit. Ensure it is stable and free from vibrations.
4. ഇന്ധന സംവിധാന കണക്ഷൻ: Carefully connect the fuel line to the vehicle's fuel tank and the heater, ensuring all connections are leak-free and properly clamped.
5. എക്‌സ്‌ഹോസ്റ്റ് സിസ്റ്റം: Install the exhaust pipe, ensuring it is routed away from heat-sensitive components and exits the vehicle safely, preventing exhaust gases from entering the passenger compartment.
6. എയർ ഇൻടേക്ക്: Connect the combustion air intake, ensuring it draws fresh air and is free from obstructions.
7. ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ: Connect the wiring harness according to the wiring diagram provided with your specific parking heater. Pay close attention to power, control, and diagnostic connections.
8. പരിശോധന: Reconnect the vehicle battery. Perform initial tests as per the parking heater's specific instructions to verify correct operation and detect any leaks or malfunctions.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

ഇൻസ്റ്റാൾ ചെയ്തുകഴിഞ്ഞാൽ, ദി Webasto parking heater operates according to the controls provided with the heater unit itself (e.g., timer, remote control, or mobile app). This mounting kit facilitates the physical installation.

• Refer to the specific operating manual of your Webasto parking heater for detailed instructions on how to program and activate the heating function.
• Ensure the vehicle's battery is sufficiently charged, as the parking heater draws power from it.
• Do not operate the parking heater in enclosed spaces without adequate ventilation, such as garages, due to the risk of carbon monoxide poisoning.

6. പരിപാലനം

Regular maintenance ensures the longevity and reliable operation of your parking heater system.

• വിഷ്വൽ പരിശോധന: Periodically inspect all components of the mounting kit, including brackets, hoses, and electrical connections, for signs of wear, corrosion, or damage.
• ഇന്ധന ലൈനുകൾ: Check fuel lines for leaks or cracks. Ensure clamps ഇറുകിയതാണ്.
• എക്‌സ്‌ഹോസ്റ്റ് സിസ്റ്റം: Inspect the exhaust pipe for blockages, damage, or loose connections. Clear any debris.
• എയർ ഇൻടേക്ക്: Ensure the combustion air intake is clear of obstructions.
• പ്രൊഫഷണൽ സേവനം: It is recommended to have the parking heater system serviced by an authorized Webasto service center at least once a year, especially before the cold season.

7. പ്രശ്‌നപരിഹാരം

If your parking heater system is not functioning correctly, consider the following common issues. For complex problems, consult a qualified technician.

• Heater Fails to Start: Check the vehicle's battery charge. Ensure there is sufficient fuel in the tank. Verify all electrical connections are secure.
• ഹീറ്റ് ഔട്ട്പുട്ട് ഇല്ല: Confirm the heater is receiving fuel and power. Check for blockages in the air intake or exhaust.
• അസാധാരണമായ ശബ്ദങ്ങൾ അല്ലെങ്കിൽ ദുർഗന്ധം: Immediately shut down the heater. Inspect for loose components, leaks, or exhaust system damage. Do not operate until the issue is resolved.
• പിശക് കോഡുകൾ: If your heater unit displays an error code, refer to the specific Webasto heater manual for the meaning of the code and recommended actions.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For information regarding the warranty of your Webasto 1324050C Parking Heater Mounting Kit, please refer to the documentation provided with your purchase or contact Webasto customer support directly. Specific warranty terms and conditions may vary by region and retailer.

For technical support, spare parts inquiries, or professional assistance, please visit the official Webast website or contact an authorized Webasto service partner.
