BIKEVEE Wired Bicycle Computer BKV-04 User Manual

1. ആമുഖം

Thank you for choosing the BIKEVEE Wired Bicycle Computer BKV-04. This device is designed to provide accurate and essential cycling data, enhancing your riding experience. This manual will guide you through the installation, operation, and maintenance of your new bicycle computer. Please read it carefully before use to ensure optimal performance and longevity of the product.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

പ്രധാന സവിശേഷതകൾ

• ക്ലോക്ക്: 12H/24H format display.
• സ്റ്റോപ്പ് വാച്ച്: Integrated timer for tracking ride duration.
• യൂണിറ്റ് തിരഞ്ഞെടുപ്പ്: Metric (km/h) or Imperial (m/h) alternative.
• സ്കാൻ മോഡ്: Automatic circulation through various data displays.
• സ്വയമേവ ഓൺ/ഓഫ്: Automatically powers on and off with bicycle movement.
• തത്സമയ ഡാറ്റ: Displays Current Speed, Average Speed, and Maximum Speed.
• യാത്രാ ഡാറ്റ: Tracks Ride Time and Trip Distance.
• ഓഡോമീറ്റർ: Records total accumulated distance (ODO meter).
• LED ബാക്ക്ലൈറ്റ്: Green LED backlight for visibility in low-light conditions.
• വാട്ടർപ്രൂഫ് ഡിസൈൻ: എല്ലാ കാലാവസ്ഥയിലും ഉപയോഗിക്കാവുന്ന മോടിയുള്ള നിർമ്മാണം.
• ഡിസ്പ്ലേ: Big and bright display for easy readability.
• ബാറ്ററി ലൈഫ്: Designed for long battery life.

പാക്കേജ് ഉള്ളടക്കം

The BIKEVEE BKV-04 bicycle computer unit, featuring a clear LCD display showing time, speed, odometer, ride time, and distance.

The bicycle computer display illuminated with its green LED backlight, enhancing visibility in dim conditions.

All components included in the package: the computer unit, wired sensor, mounting bracket, magnet, rubber ring, rubber slice, and cable ties.

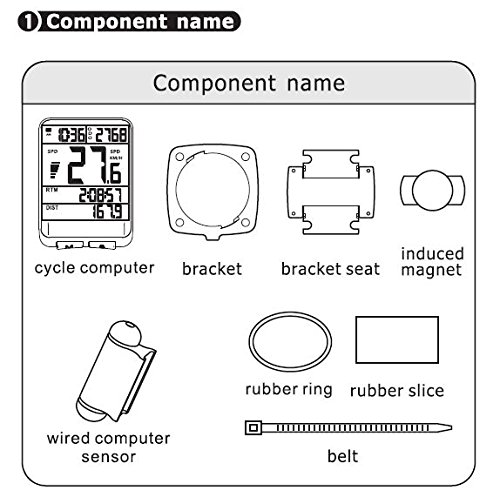

A diagram illustrating each component and its name: cycle computer, bracket, bracket seat, induced magnet, wired computer sensor, rubber ring, rubber slice, and belt (cable tie).

• BIKEVEE Bicycle Computer Unit
• Wired Speed Sensor
• Mounting Bracket and Bracket Seat
• വീൽ മാഗ്നറ്റ്
• റബ്ബർ റിംഗ്
• Rubber Slice (for padding)
• Cable Ties (Belt)
• Battery (CR2032, pre-installed or included separately)

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

3.1 ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

The computer uses a CR2032 button cell battery. If not pre-installed, open the battery cover on the back of the unit (usually by twisting counter-clockwise with a coin) and insert the battery with the positive (+) side facing up. Close the cover securely.

പിൻഭാഗം view of the computer unit, showing the twist-lock battery compartment for the CR2032 battery.

3.2 ബ്രാക്കറ്റ് മൌണ്ട് ചെയ്യുന്നു

1. Choose a suitable location on your handlebar or stem for the bracket seat.
2. Place the rubber slice (if provided) between the bracket seat and the handlebar to prevent slipping and protect the surface.
3. Secure the bracket seat using the provided cable ties (belts). Ensure it is firmly attached and does not rotate.
4. Slide the main bracket onto the bracket seat until it clicks into place.

3.3 Installing the Sensor and Magnet

1. Attach the wired speed sensor to the front fork of your bicycle using cable ties. Position it so that the sensor head is aligned with the wheel spokes.
2. Mount the magnet onto a spoke of the front wheel. Ensure the magnet is positioned to pass directly in front of the sensor head with a gap of approximately 1-3 mm. The magnet should not touch the sensor.
3. Route the sensor wire neatly along the fork and up to the handlebar, securing it with cable ties to prevent it from interfering with moving parts.
4. Plug the sensor wire into the port on the back of the computer's mounting bracket.

3.4 Attaching the Computer Unit

Slide the BIKEVEE computer unit onto the mounted bracket until it locks securely. Ensure it is facing you for easy viewനിങ്ങളുടെ യാത്രയ്ക്കിടെ.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

താഴെ view of the computer unit, showing the 'M' (Mode) and 'S' (Set) buttons for navigation and settings.

4.1 ബട്ടൺ പ്രവർത്തനങ്ങൾ

• 'M' (മോഡ്) ബട്ടൺ: Press to cycle through different display modes (e.g., ODO, DST, MXS, AVS, TM). In setting mode, it confirms selections.
• 'S' (Set) Button: Press to enter setting mode or adjust values within setting mode. In normal display, it can activate the backlight or reset certain values.

4.2 Initial Settings (Wheel Circumference, Time, Units)

Upon first use or after battery replacement, you may need to set the wheel circumference, time, and measurement units.

1. Wheel Circumference: Refer to your bicycle tire's sidewall for its size (e.g., 700x23C, 26x1.95). Consult a wheel circumference chart (available online) to find the corresponding value in millimeters (mm). Enter this value into the computer. This is crucial for accurate speed and distance readings.
2. യൂണിറ്റ് ക്രമീകരണം: Select between Kilometers per Hour (KM/H) or Miles per Hour (M/H) as your preferred unit of speed and distance.
3. ക്ലോക്ക് ക്രമീകരണം: Set the current time (12H or 24H format).

Typically, you enter setting mode by pressing and holding the 'M' or 'S' button (refer to specific instructions in your included manual if different). Use 'S' to change values and 'M' to confirm and move to the next setting.

4.3 Display Modes and Functions

• SPD (Current Speed): Displays your real-time cycling speed.
• ODO (ഓഡോമീറ്റർ): Shows the total accumulated distance. This value is usually stored even when the battery is removed.
• DST (Trip Distance): Displays the distance covered during the current ride. Can be reset for each trip.
• MXS (Maximum Speed): Shows the highest speed achieved during the current ride.
• AVS (Average Speed): Calculates the average speed for the current ride.
• TM (Ride Time): Displays the duration of the current ride.
• സ്കാൻ: Automatically cycles through DST, MXS, AVS, and TM displays.
• ബാക്ക്ലൈറ്റ്: Press the 'S' button (or as per specific model instructions) to activate the green LED backlight for a few seconds.

4.4 Resetting Trip Data

To reset Trip Distance (DST), Maximum Speed (MXS), Average Speed (AVS), and Ride Time (TM) for a new ride, typically press and hold the 'S' button while in the DST or TM display mode until the values reset to zero. The Odometer (ODO) cannot be reset.

5. പരിപാലനം

• വൃത്തിയാക്കൽ: Wipe the computer unit and sensor with a soft, damp തുണി. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: Replace the CR2032 battery when the display becomes dim or erratic. Follow the battery installation steps.
• സംഭരണം: If storing the bicycle computer for an extended period, consider removing the battery to prevent leakage. Store in a cool, dry place.
• Sensor/Magnet Alignment: Periodically check the alignment of the sensor and magnet to ensure the 1-3mm gap is maintained for accurate readings.

6. പ്രശ്‌നപരിഹാരം

7 സാങ്കേതിക സവിശേഷതകൾ

8. വാറൻ്റിയും പിന്തുണയും

വാറന്റി വിവരങ്ങൾക്കും ഉപഭോക്തൃ പിന്തുണയ്ക്കും, വാങ്ങുന്ന സമയത്ത് നൽകിയിരിക്കുന്ന ഡോക്യുമെന്റേഷൻ പരിശോധിക്കുകയോ നിങ്ങളുടെ റീട്ടെയിലറെ ബന്ധപ്പെടുകയോ ചെയ്യുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.

For further assistance or technical queries, please reach out to BIKEVEE customer service through their official channels.
