1. ആമുഖം
The Sure-Lites SEL50 Emergency Light is a UL certified solution designed to provide reliable emergency egress coverage during power outages. Featuring a durable polycarbonate housing, long-life LED sources, and a maintenance-free NiCad battery, this unit ensures safety and compliance. Its user-friendly design includes an external battery disconnect and EZ Hang features for simplified installation, reducing both time and cost.

2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
ഈ ഉൽപ്പന്നം ഇൻസ്റ്റാൾ ചെയ്യുന്നതിനോ പ്രവർത്തിപ്പിക്കുന്നതിനോ മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും വായിച്ച് മനസ്സിലാക്കുക. ഈ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് വൈദ്യുതാഘാതം, തീപിടുത്തം അല്ലെങ്കിൽ സ്വത്ത് നാശത്തിനോ വ്യക്തിപരമായ പരിക്കിനോ കാരണമായേക്കാവുന്ന മറ്റ് അപകടങ്ങൾക്ക് കാരണമായേക്കാം.
- ഇൻസ്റ്റാളേഷൻ അല്ലെങ്കിൽ സർവീസ് ചെയ്യുന്നതിന് മുമ്പ് സർക്യൂട്ട് ബ്രേക്കറിൽ എല്ലായ്പ്പോഴും വൈദ്യുതി വിച്ഛേദിക്കുക.
- ദേശീയ, പ്രാദേശിക ഇലക്ട്രിക്കൽ കോഡുകൾക്ക് അനുസൃതമായി യോഗ്യതയുള്ള ഒരു ഇലക്ട്രീഷ്യനാണ് ഇൻസ്റ്റാളേഷൻ നടത്തേണ്ടത്.
- ഗ്യാസ് അല്ലെങ്കിൽ ഇലക്ട്രിക് ഹീറ്ററുകൾക്ക് സമീപം കയറ്റരുത്.
- എല്ലാ കണക്ഷനുകളും സുരക്ഷിതവും ശരിയായി ഇൻസുലേറ്റ് ചെയ്തതുമാണെന്ന് ഉറപ്പാക്കുക.
- Do not allow power supply cords to be pinched or damaged.
- The unit is designed for indoor and outdoor use, but ensure proper sealing for outdoor applications as per local codes.
3. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജ് തുറക്കുമ്പോൾ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക:
- Sure-Lites SEL50 Emergency Light Unit
- ഇൻസ്റ്റലേഷൻ ഹാർഡ്വെയർ (സ്ക്രൂകൾ, ആങ്കറുകൾ)
- നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
4.1 നിങ്ങൾ ആരംഭിക്കുന്നതിന് മുമ്പ്
Before starting installation, ensure the power supply to the installation area is turned off at the circuit breaker. Gather all necessary tools, including a screwdriver, wire strippers, and a drill.
4.2 മൗണ്ടിംഗ് ഓപ്ഷനുകൾ
The SEL50 unit features a universal mounting hole pattern, allowing for both wall and ceiling mount applications. The EZ Hang feature simplifies power connections during installation.

The compact design allows for discreet installation in various environments, including offices, classrooms, and hallways, providing essential emergency lighting.


4.3 വയറിംഗ് നിർദ്ദേശങ്ങൾ
The unit operates on 120 Volts AC. Connect the appropriate wires from your electrical supply to the terminals inside the unit. Ensure the EZ Key external power disconnect is properly engaged to prevent battery cycling and drainage during initial setup.

4.4 പ്രാരംഭ പവർ-അപ്പ്
After completing all wiring and mounting, restore power to the circuit. The unit's indicator light should illuminate, signifying that the battery is charging. Allow the unit to charge for at least 24 hours before performing any tests to ensure full battery capacity.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
5.1 എമർജൻസി മോഡ്

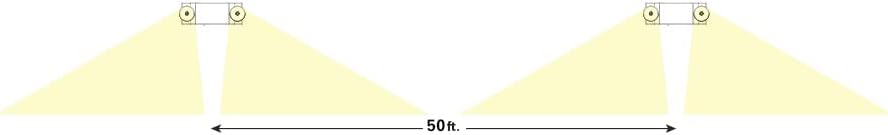

ഒരു പവർ ഈ സാഹചര്യത്തിൽtage, the Sure-Lites SEL50 will automatically switch to emergency mode, illuminating its two LED light heads. The unit is designed to provide 50 feet of emergency egress coverage for a minimum of 90 minutes, ensuring safe evacuation paths.

5.2 Self-Diagnostics and Testing
The SEL50 features self-diagnostics to ensure optimal performance. The low-voltage disconnect and brownout circuitry offer added protection for the battery and activate the emergency light heads when needed. A test button is typically located on the unit for manual testing of the emergency function. Press and hold the test button to simulate a power outage; the lights should illuminate. Release the button, and the lights should turn off, indicating normal operation and battery charging.
6. പരിപാലനം
6.1 ബാറ്ററി കെയർ
The nickel cadmium (NiCad) battery is long-lasting and requires no maintenance. However, it is recommended to perform a monthly 30-second test and an annual 90-minute discharge test to ensure the battery and lights are functioning correctly. If the unit fails to operate for the full 90 minutes, the battery may need replacement.
6.2 വൃത്തിയാക്കൽ
യൂണിറ്റിന്റെ പുറംഭാഗം ഇടയ്ക്കിടെ മൃദുവായ, ഡി-ക്ലാസ്സർ ഉപയോഗിച്ച് വൃത്തിയാക്കുക.amp cloth. Do not use abrasive cleaners or solvents, as these can damage the polycarbonate housing.
7. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Lights do not illuminate during power outage. | യൂണിറ്റിലേക്ക് എസി പവർ ഇല്ല. ബാറ്ററി ബന്ധിപ്പിച്ചിട്ടില്ല അല്ലെങ്കിൽ തകരാറുണ്ട്. ബാറ്ററി പൂർണ്ണമായി ചാർജ് ചെയ്തിട്ടില്ല. | സർക്യൂട്ട് ബ്രേക്കർ പരിശോധിക്കുക. Ensure battery is properly connected. Allow 24 hours for initial charge. ആവശ്യമെങ്കിൽ ബാറ്ററി മാറ്റിസ്ഥാപിക്കുക. |
| Lights dim or do not last 90 minutes. | ബാറ്ററി ഹോൾഡിംഗ് ചാർജ് അല്ല. ബാറ്ററി ലൈഫ് അവസാനിക്കാൻ പോകുന്നു. | Perform annual discharge test. If issue persists, replace battery. |
| ഇൻഡിക്കേറ്റർ ലൈറ്റ് ഓഫാണ്. | എസി പവർ ഇല്ല. തകരാറുള്ള ഇൻഡിക്കേറ്റർ ലൈറ്റ്. | വൈദ്യുതി വിതരണം പരിശോധിക്കുക. Contact customer support if power is present but light is off. |
8 സാങ്കേതിക സവിശേഷതകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | Sure-Lites |
| മോഡലിൻ്റെ പേര് | SEL50 |
| ഭാഗം നമ്പർ | SEL50 |
| നിറം | വെള്ള |
| മെറ്റീരിയൽ | പോളികാർബണേറ്റ് |
| ഉൽപ്പന്ന അളവുകൾ | 14"L x 1.75"W x 4.75"H |
| ഇനത്തിൻ്റെ ഭാരം | 1.4 പൗണ്ട് |
| പവർ ഉറവിടം | Battery Powered (AC input for charging) |
| ഇൻസ്റ്റലേഷൻ തരം | Wall and Ceiling Mount (Universal) |
| പ്രകാശ സ്രോതസ്സ് തരം | എൽഇഡി |
| പ്രകാശ സ്രോതസ്സുകളുടെ എണ്ണം | 2 |
| വാല്യംtage | 120 വോൾട്ട് |
| ബാറ്ററി സെൽ തരം | നികാഡ് |
| Emergency Egress Coverage | 50 അടി |
| അടിയന്തര പ്രവർത്തന സമയം | കുറഞ്ഞത് 90 മിനിറ്റ് |
| അസംബ്ലി ആവശ്യമാണ് | അതെ |
| നിർമ്മാതാവ് | കൂപ്പർ ലൈറ്റിംഗ് പരിഹാരങ്ങൾ |
| യു.പി.സി | 080083733347 |
| മാതൃരാജ്യം | ചൈന |
| ആദ്യ തീയതി ലഭ്യമാണ് | ഒക്ടോബർ 17, 2017 |
9. വാറൻ്റി വിവരങ്ങൾ
The Sure-Lites SEL50 Emergency Light comes with a 5-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For full warranty terms and conditions, please refer to the documentation included with your product or contact customer support.
10. ഉപഭോക്തൃ പിന്തുണ
If you have any questions, require technical assistance, or need to report an issue with your Sure-Lites SEL50 Emergency Light, please contact Sure-Lites customer support. Have your model number (SEL50) and purchase date ready when contacting support for faster service.
For additional resources and frequently asked questions, visit the official Sure-Lites webസൈറ്റ്.
