1. ആമുഖം
This manual provides comprehensive instructions for the MINELAB Earbud Headphones, Model 3011-0297. These earbuds are specifically designed for use with MINELAB GO-FIND Series Metal Detectors, enhancing your metal detecting experience by providing clear audio and effective noise isolation. Please read this manual thoroughly before using the product to ensure proper setup, operation, and maintenance.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The MINELAB Earbud Headphones are engineered to deliver high-quality sound directly to your ears, allowing you to discern faint or deep treasure signals with clarity. Their design incorporates rubber pads that effectively block external noise, such as wind, traffic, and interference from other detectors, ensuring an undisturbed listening experience.
പ്രധാന സവിശേഷതകൾ:
- അനുയോജ്യത: Exclusively designed for MINELAB GO-FIND Series Metal Detectors.
- നോയ്സ് ഐസൊലേഷൻ: Rubber pads provide effective blocking of external ambient noise.
- ഓഡിയോ മായ്ക്കുക: High-quality sound reproduction for detecting subtle signals.
- സുഖപ്രദമായ ഫിറ്റ്: In-ear design with rounded tips for extended use.
ബോക്സിൽ എന്താണുള്ളത്:
- MINELAB Earbud Headphones (Model 3011-0297)
- Ear Cushions (pre-installed or as spares)

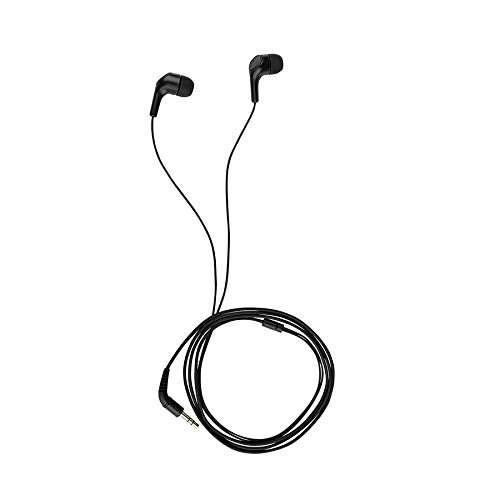

ചിത്രം 1: മുൻഭാഗം view of the MINELAB Earbud Headphones.
3. സജ്ജീകരണം
Follow these steps to connect your MINELAB Earbud Headphones to your GO-FIND Series Metal Detector:
- Locate the Headphone Jack: Identify the headphone jack on your MINELAB GO-FIND Series Metal Detector. This is typically a 6.35 mm (1/4 inch) jack.
- ഇയർബഡുകൾ ബന്ധിപ്പിക്കുക: Insert the 3.5 mm audio plug of the MINELAB Earbud Headphones into the metal detector's headphone jack. Ensure the connection is firm and secure. Note: An adapter may be required if your detector's jack is 6.35mm and the earbud plug is 3.5mm, and such an adapter is not included with the earbuds. Please verify your detector's requirements.
- Position Earbuds: Gently place the earbuds into your ears. Adjust them for a comfortable and secure fit to maximize sound isolation and audio clarity.
Figure 2: Earbud headphones showing the cable and plug for connection.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once connected, the MINELAB Earbud Headphones are ready for use. The primary function is to provide clear audio feedback from your metal detector while minimizing external distractions.
- ഓഡിയോ മോണിറ്ററിംഗ്: Listen carefully for the distinct audio signals generated by your GO-FIND metal detector. The high-quality audio drivers are designed to make even faint signals discernible.
- നോയ്സ് ഐസൊലേഷൻ: The rubber pads on the earbuds are crucial for blocking ambient noise. Ensure they are properly seated in your ears to achieve optimal sound isolation. This allows you to focus solely on the detector's audio cues without interference from wind, traffic, or other environmental sounds.
- വോളിയം ക്രമീകരണം: Adjust the volume directly on your MINELAB GO-FIND Series Metal Detector to a comfortable listening level. The earbuds do not feature independent volume controls.
5. പരിപാലനം
Proper care and maintenance will extend the lifespan of your MINELAB Earbud Headphones.
- വൃത്തിയാക്കൽ: Regularly clean the rubber ear pads with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials. Ensure the earbuds are completely dry before storage or next use.
- സംഭരണം: Store the earbuds in a clean, dry place away from extreme temperatures and direct sunlight. Avoid tangling the cable to prevent damage.
- കേബിൾ കെയർ: Do not pull on the cable to disconnect the earbuds. Always grasp the plug firmly. Inspect the cable periodically for any signs of wear or damage.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your MINELAB Earbud Headphones, refer to the following common solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഇയർബഡുകളിൽ നിന്ന് ശബ്ദമൊന്നുമില്ല. |
|
|
| Poor sound quality or intermittent audio. |
|
|
| External noise is not blocked effectively. |
|
|
7 സ്പെസിഫിക്കേഷനുകൾ
The following are the technical specifications for the MINELAB Earbud Headphones (Model 3011-0297):
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | മിനലാബ് |
| മോഡൽ നമ്പർ | 3011-0297 |
| കണക്റ്റിവിറ്റി ടെക്നോളജി | വയർഡ് |
| ഹാർഡ്വെയർ ഇന്റർഫേസ് | 3.5mm Audio (plug) |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Minelab GO-FIND metal detectors |
| ചെവി പ്ലേസ്മെൻ്റ് | ചെവിയിൽ |
| ഫോം ഫാക്ടർ | ചെവിയിൽ |
| ശബ്ദ നിയന്ത്രണം | Sound Isolation (via rubber pads) |
| മെറ്റീരിയൽ | റബ്ബർ |
| ഇനത്തിൻ്റെ ഭാരം | 2.08 ഔൺസ് (ഏകദേശം 0.06 കി.ഗ്രാം) |
| ഉൽപ്പന്ന അളവുകൾ | 3.5 x 7.5 x 0.5 ഇഞ്ച് (പാക്കേജിംഗ് അളവുകൾ) |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | ചെവി തലയണകൾ |
| യു.പി.സി | 009068003800 |
8. വാറൻ്റിയും പിന്തുണയും
For detailed warranty information, product support, or to contact customer service, please visit the official MINELAB website or refer to the documentation provided with your MINELAB GO-FIND Series Metal Detector. Keep your purchase receipt as proof of purchase for warranty claims.
MINELAB Official Webസൈറ്റ്: www.minelab.com
