1. ആമുഖം
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Palram - Canopia Olympia Patio Cover. Please read all instructions carefully before beginning assembly or use to ensure safe and efficient installation and long-term enjoyment of your product.
2 സുരക്ഷാ വിവരങ്ങൾ
Always prioritize safety during assembly and use. Failure to follow these safety guidelines may result in injury or damage to the product.
- എല്ലാ നിർദ്ദേശങ്ങളും വായിക്കുക: Ensure you understand each step before proceeding.
- സംരക്ഷണ ഗിയർ: Wear appropriate personal protective equipment, including gloves, safety glasses, and sturdy footwear, during assembly.
- രണ്ട് പേരുടെ അസംബ്ലി: This product requires at least two adults for safe assembly due to the size and weight of components.
- സൈറ്റ് തയ്യാറാക്കൽ: Ensure the installation site is level and clear of obstructions. Verify the structural integrity of the wall where the patio cover will be attached.
- ആങ്കറിംഗ്: Securely anchor the patio cover to a solid surface as instructed to prevent wind damage.
- ഇലക്ട്രിക്കൽ സുരക്ഷ: If installing near electrical outlets or wiring, ensure all electrical work is performed by a qualified electrician and complies with local codes.
3. ഭാഗങ്ങളുടെ പട്ടിക
Refer to the detailed parts list provided in your product packaging for all components. Key components include:
- അലുമിനിയം ഫ്രെയിം വിഭാഗങ്ങൾ
- പോളികാർബണേറ്റ് മേൽക്കൂര പാനലുകൾ
- പിന്തുണാ പോസ്റ്റുകൾ
- Gutter System Components
- Mounting Hardware (screws, bolts, anchors)
- Sealing Strips and Gaskets
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Follow these general steps for assembling your Olympia Patio Cover. Detailed diagrams and specific part numbers are in your enclosed manual.
4.1. സൈറ്റ് തയ്യാറാക്കൽ
Clear the installation area. Ensure the wall where the patio cover will attach is structurally sound and can support the weight. Mark the desired location for the wall connection and support posts.
4.2. ഫ്രെയിം അസംബ്ലി
Assemble the main aluminum frame sections according to the numbered parts and diagrams. Ensure all connections are secure before proceeding.
Figure 1: Assembled Palram - Canopia Olympia Patio Cover.

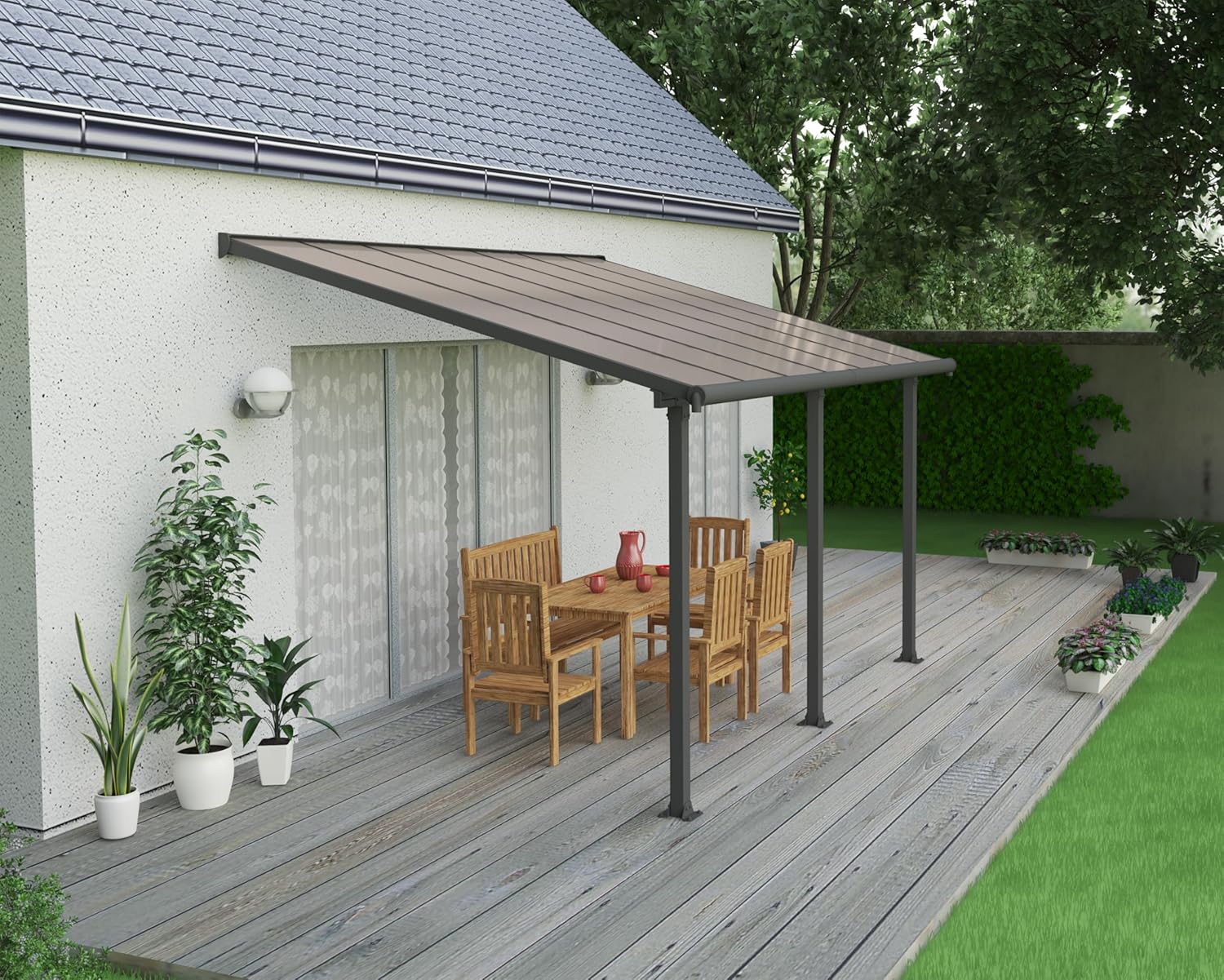

Figure 2: Olympia Patio Cover providing shade over an outdoor seating area.
ചിത്രം 3: വശം view of the Olympia Patio Cover, highlighting its lean-to design.
4.3. Attaching to Wall and Posts
Mount the wall connector profile to your house wall using appropriate fasteners for your wall type. Attach the support posts to the front beam and secure them to the ground using the provided base plates and anchors.
Figure 4: Detail of the robust base plate for secure anchoring of the support post.
Figure 5: Close-up of the frame connection points, indicating secure fastening.
4.4 പാനൽ ഇൻസ്റ്റാളേഷൻ
Carefully slide the polycarbonate roof panels into the designated channels. Ensure the panels are oriented correctly (UV protected side facing outwards). Secure the panels with the provided sealing strips and locking mechanisms.
Figure 6: Illustration of polycarbonate panel installation, showing the overlapping design.
4.5. Gutter System
Install the gutter header and downspouts. Ensure proper alignment for effective water drainage away from your patio area.

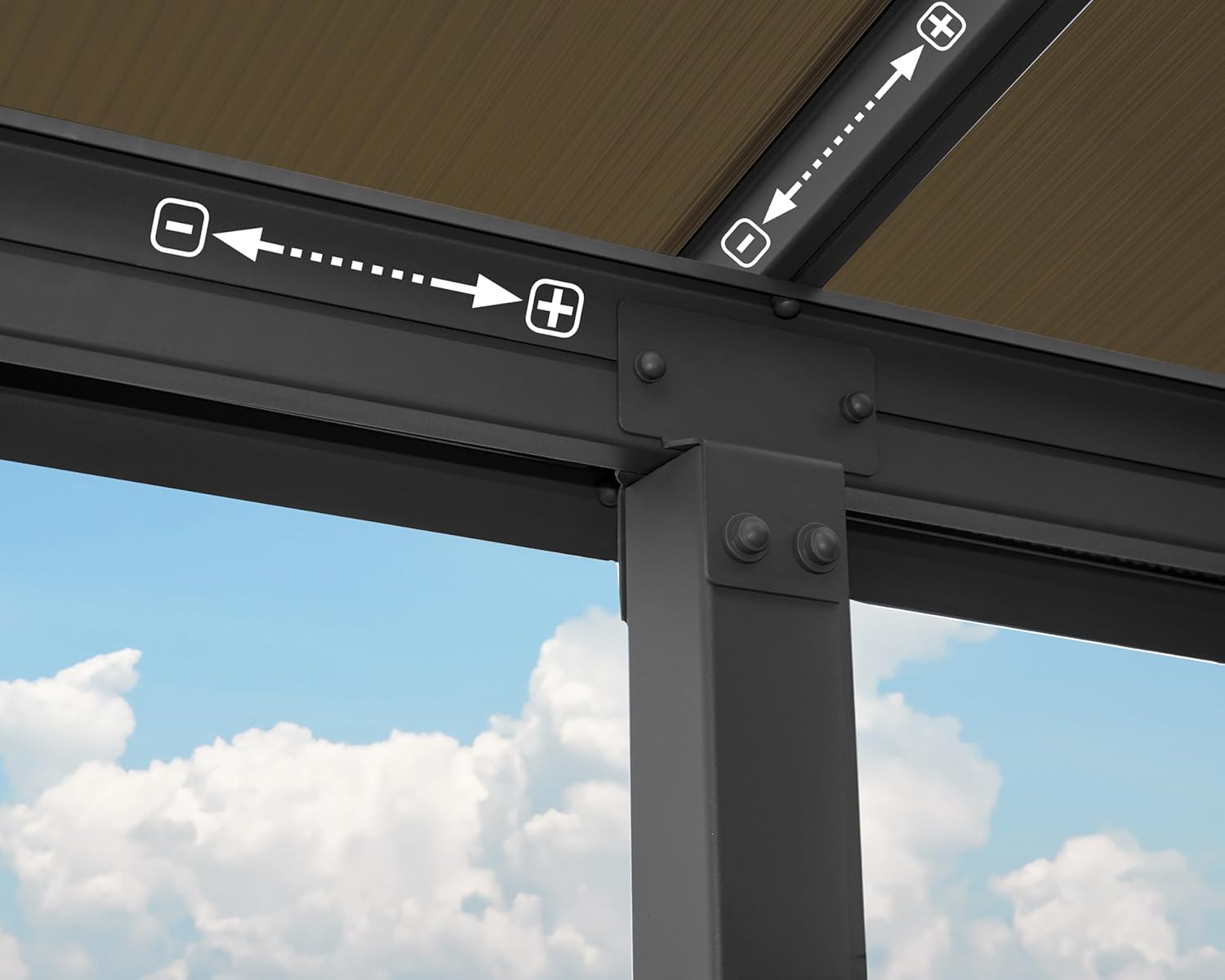

Figure 7: Adjustable gutter system for efficient water drainage.
4.6. അന്തിമ പരിശോധനകൾ
Double-check all bolts, screws, and connections for tightness. Ensure the structure is stable and level. Refer to the dimensional diagram for verification.
Figure 8: Dimensional diagram for custom fitting and planning.
4.7. ഇൻസ്റ്റലേഷൻ വീഡിയോ
For a visual guide on the features and installation process, please watch the official product video below:
Video 1: Palram - Canopia Olympia Features. This video highlights key aspects of the Olympia Patio Cover and provides an overview of its assembly.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once properly installed, your Palram - Canopia Olympia Patio Cover is designed to provide shade and protection from various weather conditions. No specific operational steps are required beyond its passive function as a shelter.
- ആസ്വാദനം: Utilize your newly covered patio for relaxation, dining, or other outdoor activities, protected from direct sunlight and light precipitation.
- കാലാവസ്ഥ സംരക്ഷണം: The robust design offers protection against UV rays, rain, and snow within its specified limits.
6. പരിപാലനം
Regular maintenance will extend the lifespan and preserve the appearance of your patio cover.
- ക്ലീനിംഗ് പാനലുകൾ: Clean polycarbonate panels with a soft cloth, mild soap, and water. Avoid abrasive cleaners or brushes that could scratch the surface. Rinse thoroughly with clean water.
- ഫ്രെയിം ക്ലീനിംഗ്: പരസ്യം ഉപയോഗിച്ച് അലുമിനിയം ഫ്രെയിം തുടയ്ക്കുകamp തുണി. കഠിനമായ അഴുക്കിന്, നേരിയ ഡിറ്റർജന്റ് ഉപയോഗിക്കുക.
- കണക്ഷനുകൾ പരിശോധിക്കുക: Periodically check all bolts, screws, and anchors for tightness. Re-tighten as necessary to maintain structural integrity.
- ഗട്ടർ അറ്റകുറ്റപ്പണികൾ: Keep the gutter system clear of leaves and debris to ensure proper water flow.
- ശീതകാല പരിചരണം: While designed for snow load, it is advisable to remove excessive snow accumulation to prevent potential damage, especially during heavy snowfall.
7. പ്രശ്നപരിഹാരം
നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഇതാ:
| ഇഷ്യൂ | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| മേൽക്കൂരയിൽ നിന്ന് വെള്ളം ചോർച്ച | Loose panel seals, damaged panels, clogged gutters. | Check and re-secure panel seals. Inspect panels for cracks and replace if necessary. Clear gutters of debris. |
| ഘടന അസ്ഥിരമായി തോന്നുന്നു | Loose bolts or anchors, improper installation. | Inspect all connections and tighten any loose bolts. Verify anchors are securely fastened to the ground/wall. Review ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ. |
| Panels appear cloudy or discolored | Accumulated dirt/grime, improper cleaning agents. | Clean panels with mild soap and water. Avoid harsh chemicals. |
8 സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: Palram
- മോഡൽ നമ്പർ: HG8814
- മെറ്റീരിയൽ: Aluminum Frame, Polycarbonate Panels
- ഉൽപ്പന്ന അളവുകൾ: 116.1"L x 167.3"W x 102.36"H
- ഇനത്തിൻ്റെ ഭാരം: 182.1 പൗണ്ട്
- ജല പ്രതിരോധ നില: വെള്ളത്തെ പ്രതിരോധിക്കുന്ന
- അൾട്രാവയലറ്റ് രശ്മികളിൽ നിന്നുള്ള സംരക്ഷണം: യുവി സംരക്ഷണം
- കാറ്റിൻ്റെ പ്രതിരോധം: 120 km/hr | 75 mph
- Snowload: 170 kg/m² | 35 lb/ft²
- ഫ്ലോർ ഏരിയ: 135.01 ചതുരശ്ര അടി
- അസംബ്ലി ആവശ്യമാണ്: അതെ
9. വാറൻ്റി
The Palram - Canopia Olympia Patio Cover comes with a 12 വർഷത്തെ പരിമിത വാറൻ്റി. Please retain your proof of purchase for any warranty claims. For full details on warranty coverage and terms, refer to the warranty card included with your product or visit the official Palram webസൈറ്റ്.
10. പിന്തുണ
For further assistance, technical support, or to inquire about replacement parts, please contact Palram customer service:
- ഫോൺ: 877-627-8476
- ഓൺലൈൻ: Visit the Palram webപതിവുചോദ്യങ്ങൾക്കും പിന്തുണാ ഉറവിടങ്ങൾക്കുമുള്ള സൈറ്റ്.
