ENGWE 4-വീൽ ഫോൾഡിംഗ് മൊബിലിറ്റി സ്കൂട്ടർ യൂസർ മാനുവൽ

1. പൊതു സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ

Before operating your ENGWE Mobility Scooter, please read and understand all safety instructions. Failure to follow these guidelines may result in injury or damage to the scooter.

• Always operate the scooter on stable, level surfaces. Avoid steep inclines or uneven terrain.
• അപ്രതീക്ഷിതമായ വൈദ്യുതി നഷ്ടം തടയാൻ ഓരോ ഉപയോഗത്തിനും മുമ്പ് ബാറ്ററി പൂർണ്ണമായും ചാർജ്ജ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• പരമാവധി ഭാര ശേഷി 265 പൗണ്ട് (120 കിലോഗ്രാം) കവിയരുത്.
• Use the headlight and horn as necessary to ensure visibility and alert others, especially in low-light conditions.
• Always engage the brake when stopping or parking the scooter.
• കൈകളും കാലുകളും ചലിക്കുന്ന ഭാഗങ്ങളിൽ നിന്ന് അകറ്റി നിർത്തുക.
• Consult local regulations regarding mobility scooter use in public spaces.

2. സജ്ജീകരണവും അസംബ്ലിയും

Your ENGWE Mobility Scooter requires minimal assembly. Follow these steps to get your scooter ready for use:

1. ആംഗിൾ ക്രമീകരിക്കുക: Begin by adjusting the angle of the tiller (handlebar column) to a comfortable position.
2. ബാറ്ററി ഇൻസ്റ്റാൾ ചെയ്യുക: Carefully install the battery into its designated compartment. Ensure it is securely connected.
3. സീറ്റ് ഇൻസ്റ്റാൾ ചെയ്യുക: Place the seat onto the main frame, ensuring it locks into place. The seat is designed for 360° swivel for easy boarding.
4. Install the Basket: Attach the front basket to the tiller for convenient storage of personal items.

Figure 2.1: The ENGWE 4-Wheel Folding Mobility Scooter in its assembled state, showcasing അതിന്റെ ഒതുക്കമുള്ള രൂപകൽപ്പനയും ഫ്രണ്ട് ബാസ്‌ക്കറ്റും.

Figure 2.2: Visual guide illustrating the four simple steps for assembling the mobility scooter.

After assembly, charge the battery using the included charger until the indicator shows a full charge. Familiarize yourself with the controls before your first ride.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Operating your ENGWE Mobility Scooter is intuitive. Here's how to use its main features:

3.1 കൺട്രോൾ പാനൽ ഓവർview

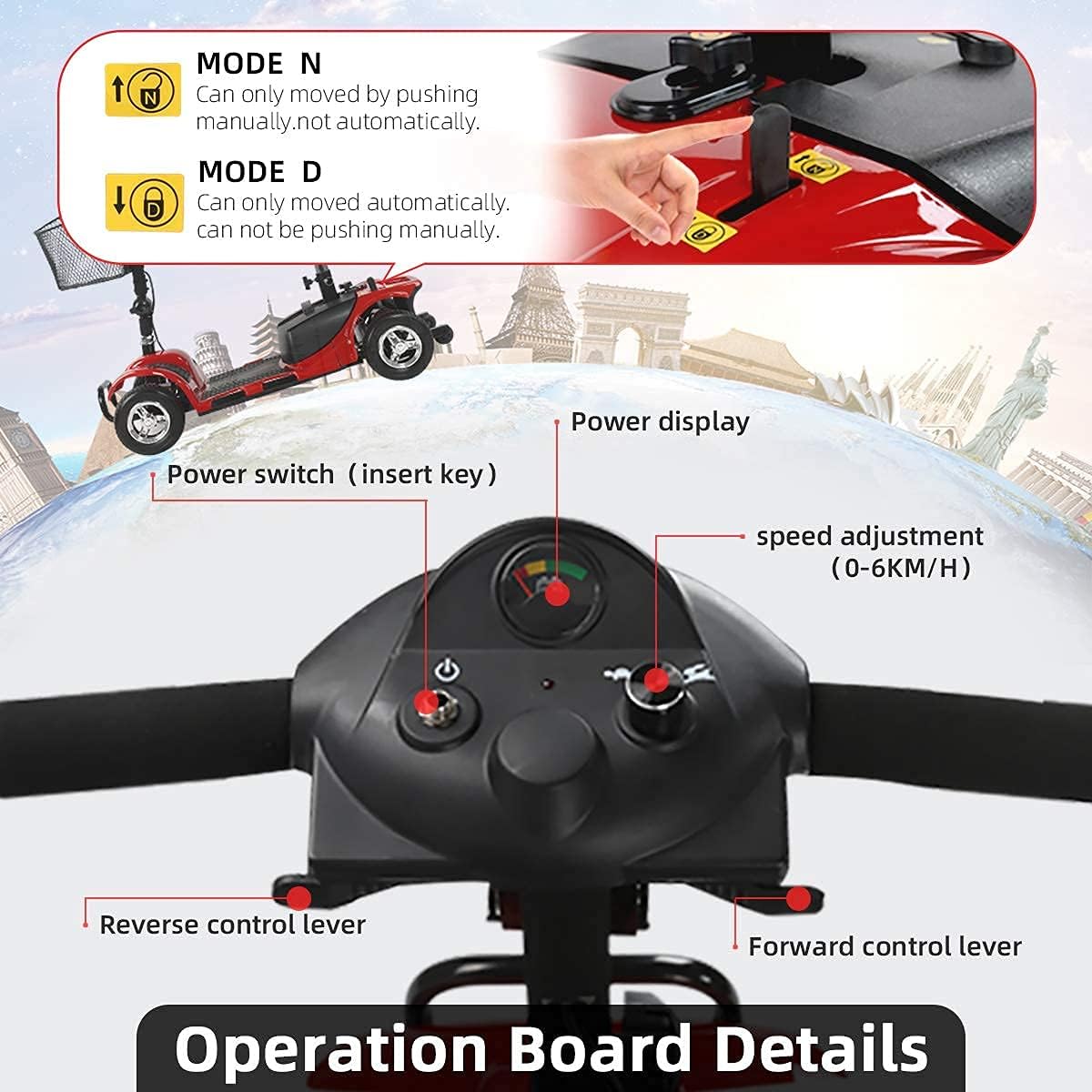

Figure 3.1: The main control panel of the scooter, highlighting key operational components.

• Power Switch (Insert Key): Insert the key and turn to power on/off the scooter.
• പവർ ഡിസ്പ്ലേ: Indicates the current battery level. Ensure sufficient charge before use.
• Speed Adjustment (0-6 KM/H): Use the dial to set your desired maximum speed.
• Forward Control Lever: Press to move the scooter forward.
• Reverse Control Lever: Press to move the scooter backward.

3.2 Driving Modes

The scooter features two driving modes, controlled by a lever near the front:

• Mode N (Neutral): In this position, the scooter can be manually pushed or pulled. This is useful for moving the scooter without power.
• Mode D (Drive): In this position, the scooter is engaged for powered operation and cannot be pushed manually. This mode also activates the auto-braking feature.

Figure 3.2: The auto-braking switchable lever, controlling the scooter's drive and neutral modes.

3.3 Adjustable Features

• സീറ്റ് ക്രമീകരണം: The seat is adjustable for height and can swivel 360 degrees, providing comfort and ease of access.
• കൈത്തണ്ടകൾ: The armrests are adjustable to suit individual user preferences.

Figure 3.3: Illustration of the adjustable seat and tiller for personalized comfort.

3.4 സുരക്ഷാ സവിശേഷതകൾ

• Headlight and Horn: Integrated headlight for improved visibility and a horn to alert pedestrians or other users.
• Anti-Tipper Wheels: Dual rear anti-tipper wheels provide additional stability and prevent the scooter from tipping backward, especially on inclines.
• Heavy Duty Front Bumper: Provides protection against minor collisions.
• Reflective Tape: Rear taillights are equipped with night reflective tape for enhanced safety during low-light operation.

Figure 3.4: Key safety components including the front bumper, reflective tape, and anti-tipper wheels.

4. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your ENGWE Mobility Scooter.

• ബാറ്ററി കെയർ: Always charge the battery fully after each use. Avoid completely draining the battery. If storing the scooter for an extended period, ensure the battery is fully charged and periodically recharge it.
• വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിച്ച് സ്കൂട്ടർ തുടയ്ക്കുകamp cloth. Avoid using harsh chemicals or abrasive cleaners. Do not spray water directly onto electrical components.
• ടയറുകൾ: The scooter is equipped with 8-inch solid anti-slip tires, which require minimal maintenance. Periodically check for debris or damage.
• പൊതു പരിശോധന: Regularly check all nuts, bolts, and connections to ensure they are secure. Inspect the frame for any signs of damage.

Figure 4.1: The dual 12V 12Ah battery system, crucial for the scooter's power and range.

5. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your ENGWE Mobility Scooter.

5.1 Scooter Stops Moving

If your scooter unexpectedly stops moving, consider the following:

• ബാറ്ററി നില പരിശോധിക്കുക: Ensure the battery has sufficient charge. A low battery can cause the scooter to stop.
• Check Drive Mode: Verify that the scooter is in 'D' (Drive) mode and not 'N' (Neutral) mode. In 'N' mode, the scooter can be pushed manually and will not operate under power.
• പവർ സൈക്കിൾ: Turn the scooter off, remove the key, wait a few seconds, then reinsert the key and turn it on again.
• ഓവർലോഡ് സംരക്ഷണം: The scooter may have stopped due to an overload. Reduce the load and try again.

5.2 മറ്റ് പ്രശ്നങ്ങൾ

• ശക്തിയില്ല: Ensure the key is fully inserted and turned to the 'ON' position. Check battery connections.
• അസാധാരണമായ ശബ്ദങ്ങൾ: If you hear unusual noises, stop the scooter immediately and inspect for loose parts or obstructions.

ട്രബിൾഷൂട്ടിംഗ് ഘട്ടങ്ങൾ പ്രശ്നം പരിഹരിക്കുന്നില്ലെങ്കിൽ, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

6 സ്പെസിഫിക്കേഷനുകൾ

Key technical specifications for the ENGWE 4-Wheel Folding Mobility Scooter:

ചിത്രം 6.1: ഡൈമൻഷണൽ ഓവർview of the scooter, including length, height, and weight capacity.

ചിത്രം 6.2: ആന്തരിക view highlighting the powerful 24V 180W motor.

Figure 6.3: Detail of the durable 7.5-inch solid wheels, designed for various terrains.

7. വാറൻ്റിയും പിന്തുണയും

ENGWE is committed to providing exceptional customer support and reliable after-sales service.

• വിൽപ്പനാനന്തര സേവനം: Our dedicated 24/7 professional support team is available to answer any pre-sale inquiries and provide reliable after-sales service.
• ഉപഭോക്തൃ പിന്തുണ: For any questions, concerns, or assistance, please refer to the customer support information provided at the time of purchase or visit the official ENGWE store.
• ഉപയോക്തൃ ഗൈഡ് (PDF): A detailed PDF user guide is available for download ഇവിടെ കൂടുതൽ വിവരങ്ങൾക്ക്.
