1. ആമുഖം
These Easy@home Carbon Electrode Pads are designed for use with Transcutaneous Electrical Nerve Stimulators (TENS) and Electrical Muscle Stimulators (EMS). They feature a self-adhesive, reusable design with 2mm pin connectors, compatible with various TENS units, including Easy@home models EHE009 and EHE012PRO. This manual provides essential information for the correct application, maintenance, and storage of your electrode pads.
ചിത്രം: മുന്നിലും പിന്നിലും view of the Easy@home TENS unit carbon electrode pads, showing their square shape and integrated lead wire connectors.
2. സജ്ജീകരണവും പ്രയോഗവും
Follow these steps for proper setup and application of the electrode pads:
- ചർമ്മം തയ്യാറാക്കുക: Clean the skin thoroughly where the electrodes will be applied. Ensure the area is free of lotions, oils, make-up, or dirt, as these can reduce adhesion.
- വയറുകൾ ബന്ധിപ്പിക്കുക: Insert the pins of the lead wire from your TENS or EMS device into the electrode wire connectors on the pads.
- പാഡുകൾ പ്രയോഗിക്കുക: Carefully remove the electrodes from their protective liner and apply them firmly to the skin. Adhesion typically improves as the electrodes reach skin temperature.
- സഹായകരമായ സൂചന: For improved adhesion and extended service life, moisten the skin with a damp towel prior to applying the electrodes.
Image: Illustration demonstrating common placement areas for electrode pads on the body, such as the back, shoulders, and legs.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once the electrode pads are correctly applied and connected to your TENS or EMS device, operate the device according to its specific instruction manual. The pads facilitate the electrical impulses from the device to the targeted area.
Image: A person using TENS electrode pads on their shoulder, illustrating a typical application during use.
4. പരിപാലനവും സംഭരണവും
Proper maintenance and storage will extend the life of your electrode pads:
- സംഭരണം: After each use, place the electrodes back onto their protective liners and store them in the original PE (polyethylene) bag. Keep the bag in a cool, dry place.
- Pad Longevity: The lifespan of the electrodes varies based on factors such as skin condition, storage environment, frequency of use, type of stimulation, and body part applied to. Following the application and storage instructions carefully can help maximize electrode life.
Image: Easy@home TENS electrode pads shown in their original sealed packaging, ready for storage.
5. Troubleshooting and Cautions
Observe the following cautions and troubleshooting tips:
- മോശം അഡീഷൻ: If electrodes do not stick well, ensure the skin is thoroughly cleaned and free of any lotions, oils, make-up, or dirt prior to application. Moistening the skin slightly with a damp towel can also improve adhesion.
- Single-Person Use: These electrodes are intended for single-person use only to maintain hygiene and effectiveness.
- Avoid Broken Skin: Do not apply electrodes to broken, irritated, or damaged skin.
- ചർമ്മ പ്രകോപനം: Should a skin rash or irritation occur, discontinue use immediately and consult a physician.
- Activity Restrictions: Do not use the TENS unit and electrodes while driving a motorized vehicle or operating heavy machinery.
- പവർ പരിധി: Do not exceed a stimulation intensity of 0.1 watts/cm.
6 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | ETP-505 |
| പാഡ് അളവുകൾ | 2" x 2" (Individual) |
| കണക്റ്റർ തരം | 2mm Pin Connectors |
| മെറ്റീരിയൽ | Reusable Carbon Adhesive Gel, Flexible White Backing |
| പാക്കേജ് ഉള്ളടക്കം | 8 Individual Electrode Pads (2 packs of 4) |
| FDA ക്ലിയറൻസ് | Cleared for OTC (Over-The-Counter) use |
| പാക്കേജ് അളവുകൾ | 6.81 x 5.83 x 0.67 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 2.12 ഔൺസ് |
| നിർമ്മാതാവ് | ഈസി@ഹോം |
| ആദ്യ തീയതി ലഭ്യമാണ് | ഫെബ്രുവരി 2, 2018 |

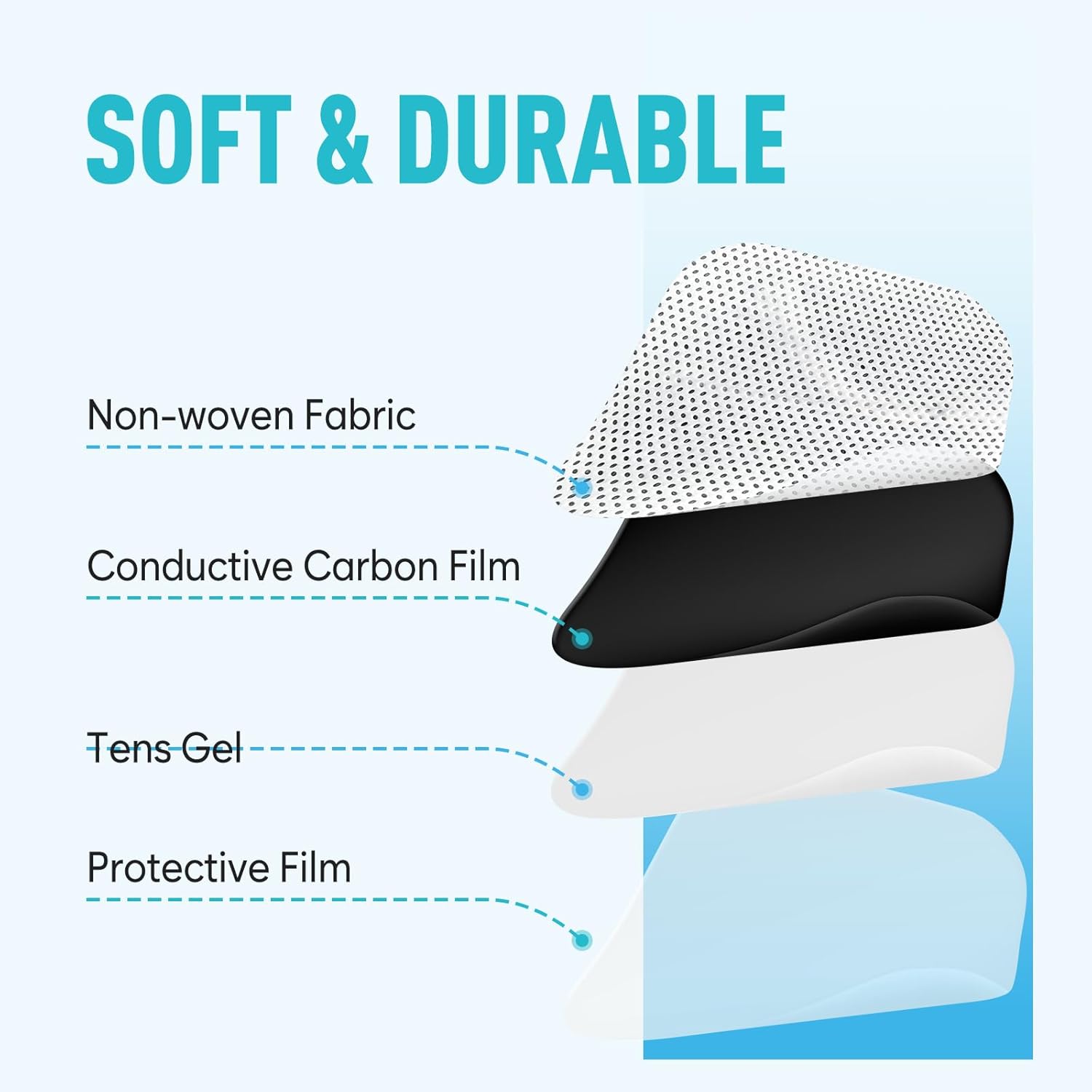

ചിത്രം: പൊട്ടിത്തെറിച്ചു view diagram showing the internal layers of the electrode pad, including the non-woven fabric, conductive carbon film, TENS gel, and protective film.
7 അനുയോജ്യത
These electrode pads are designed for broad compatibility:
- കണക്റ്റർ: Features standard 2mm pin connectors.
- ഉപകരണങ്ങൾ: Compatible with most Transcutaneous Electrical Nerve Stimulators (TENS) and Electrical Muscle Stimulators (EMS) that utilize 2mm pin connectors.
- Easy@Home Units: Specifically compatible with Easy@Home TENS units models EHE009, EHE010, and EHE012PRO.
ചിത്രം: വിശദമായത് view of the 2mm pin connector, highlighting its design for universal compatibility with TENS units.
Image: Easy@home TENS units (EHE009 and EHE012PRO) shown alongside the electrode pads, illustrating their direct compatibility.
8. പിന്തുണാ വിവരങ്ങൾ
For questions, comments, or support, please contact Easy Healthcare Corporation:
- ടോൾ ഫ്രീ ഫോൺ: 1-855-822-6999 (Monday - Friday, 9 a.m. - 5 p.m. CST)
- ഇമെയിൽ: service@healthcare-manager.com
- നിർമ്മാതാവിൻ്റെ വിലാസം: Easy Healthcare Corporation, 360 Shore Dr, Unit B, Burr Ridge, IL 60527, Made in China
