1. ആമുഖം
This manual provides detailed instructions for the proper installation, operation, and maintenance of the Hitachi 372472 Cable Clamp, specifically designed for the C10Fshc power tool. This component is a genuine Hitachi replacement part, ensuring compatibility and optimal performance. Please read this manual thoroughly before attempting any installation or maintenance to ensure safe and effective use.
കുറിപ്പ്: Hitachi Power Tools has transitioned its brand name to Metabo HPT. The quality and design of genuine parts remain consistent under the new branding.
2 സുരക്ഷാ വിവരങ്ങൾ
Always adhere to general power tool safety guidelines when handling replacement parts. Failure to do so may result in injury or damage to the tool.
- Ensure the power tool is disconnected from its power source before attempting any installation or removal of parts.
- സുരക്ഷാ ഗ്ലാസുകൾ, കയ്യുറകൾ പോലുള്ള ഉചിതമായ വ്യക്തിഗത സംരക്ഷണ ഉപകരണങ്ങൾ (പിപിഇ) ധരിക്കുക.
- Use only genuine replacement parts to maintain tool integrity and warranty.
- ഏതെങ്കിലും നടപടിക്രമത്തെക്കുറിച്ച് നിങ്ങൾക്ക് ഉറപ്പില്ലെങ്കിൽ, യോഗ്യതയുള്ള ഒരു ടെക്നീഷ്യനെ സമീപിക്കുക.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Hitachi 372472 Cable Clamp is a small, durable component designed to secure electrical cabling within the C10Fshc power tool, preventing movement and potential damage to wires. Its precise design ensures a snug fit and reliable performance.

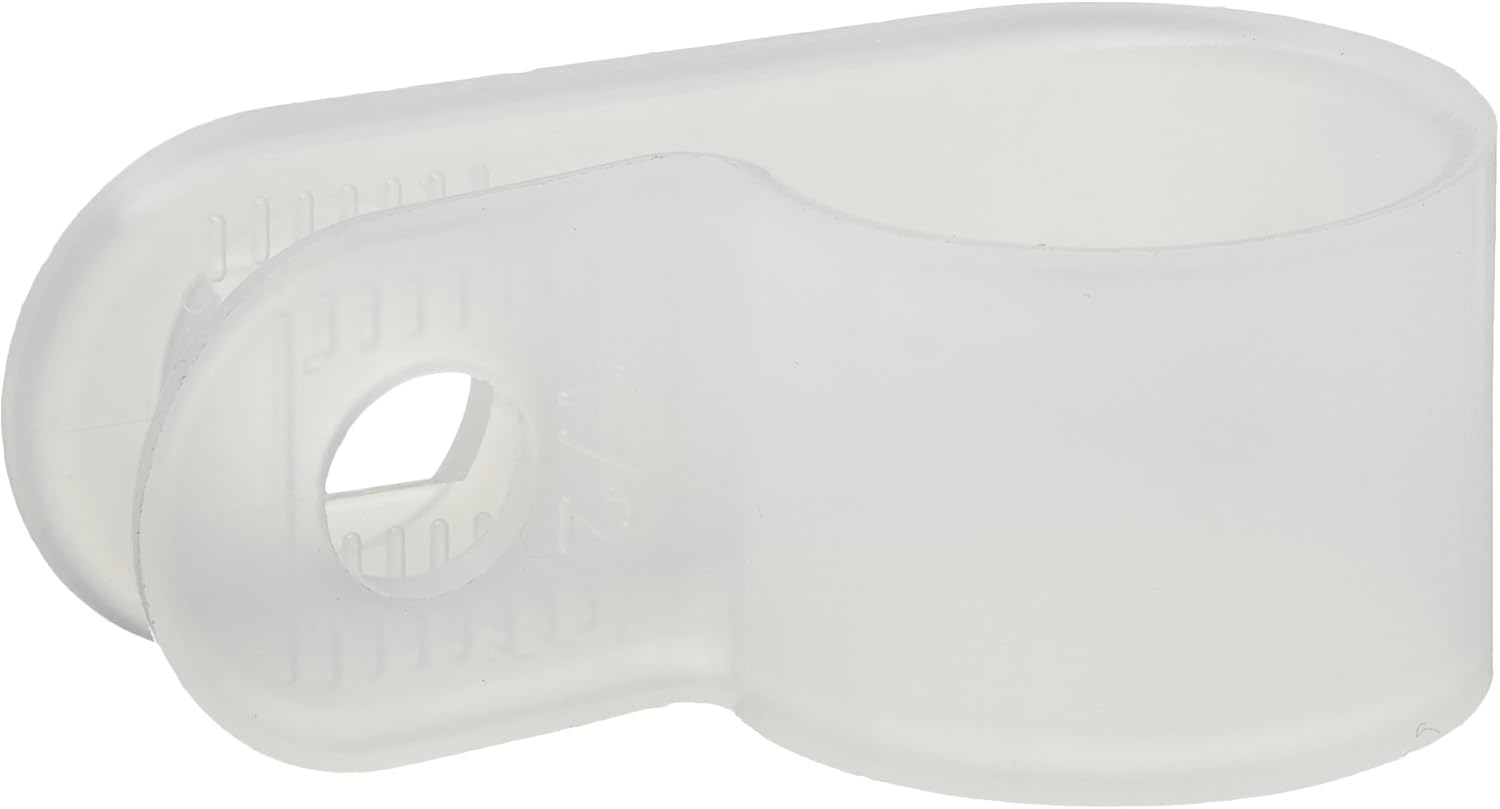

ചിത്രം 1: The Hitachi 372472 Cable Clamp. This image displays the translucent, C-shaped plastic clamp with a small circular opening on one side, designed to secure cables within a power tool.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Follow these steps to properly install the 372472 Cable Clamp into your Hitachi C10Fshc power tool:
- പവർ വിച്ഛേദിക്കുക: Ensure the C10Fshc power tool is completely disconnected from its power source to prevent accidental startup.
- Access Area: Carefully open the tool casing or access panel to expose the internal wiring and the designated location for the cable clamp. Refer to your C10Fshc tool's primary service manual for specific access instructions.
- Position Cable: Route the electrical cable(s) through the intended path within the tool's housing.
- Cl ഇൻസ്റ്റാൾ ചെയ്യുകamp: Place the 372472 Cable Clamp around the cable(s) at the designated securing point. The clamp is designed to snap into place or be secured by a screw (if applicable to your tool model). Ensure the cable is held firmly without being pinched or damaged.
- സുരക്ഷ പരിശോധിക്കുക: Gently tug on the cable to confirm that the clamp is securely holding it in position. The cable should not move freely.
- വീണ്ടും കൂട്ടിച്ചേർക്കൽ ഉപകരണം: Carefully reassemble the tool casing or close the access panel, ensuring no wires are pinched during the process.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The 372472 Cable Clamp is a passive component that functions by securing internal wiring within the C10Fshc power tool. Once correctly installed, no further operational steps are required for the clamp itself. Its purpose is to maintain the integrity and safety of the tool's electrical system during normal operation.
- Ensure the tool is operated within its specified parameters.
- Avoid dropping or subjecting the tool to severe impacts, which could dislodge internal components, including the cable clamp.
6. പരിപാലനം
The Hitachi 372472 Cable Clamp requires minimal maintenance. Regular inspection during routine tool servicing is recommended.
- വിഷ്വൽ പരിശോധന: Periodically inspect the cable clamp for any signs of wear, cracking, or damage. Ensure it remains securely in place.
- ശുചിത്വം: Keep the interior of the tool clean and free from dust and debris, which can accumulate around wiring and components.
- മാറ്റിസ്ഥാപിക്കൽ: കേബിൾ cl എങ്കിൽamp shows any signs of damage or becomes loose, replace it immediately with a new genuine Hitachi 372472 part to prevent potential electrical issues.
7. പ്രശ്നപരിഹാരം
If you encounter issues that you suspect are related to the cable clamp, ഇനിപ്പറയുന്നവ പരിഗണിക്കുക:
- Loose Wires: If internal wires appear loose or are moving freely, the cable clamp may be dislodged or damaged. Re-secure or replace the clamp.
- ഇടവിട്ടുള്ള ശക്തി: While unlikely to be directly caused by the clamp, a severely damaged or improperly installed clamp could indirectly contribute to wire damage leading to intermittent power. Inspect the wiring path.
- ശാരീരിക ക്ഷതം: എങ്കിൽ clamp itself is visibly broken or cracked, it must be replaced.
For complex electrical issues or if troubleshooting does not resolve the problem, it is recommended to consult a certified power tool repair technician.
8 സ്പെസിഫിക്കേഷനുകൾ
| സ്പെസിഫിക്കേഷൻ | വിശദാംശങ്ങൾ |
|---|---|
| ഭാഗം നമ്പർ | 372472 |
| ഇനത്തിൻ്റെ ഭാരം | 0.634 ഔൺസ് |
| ഉൽപ്പന്ന അളവുകൾ | 1 x 1 x 1 ഇഞ്ച് |
| ഇനം മോഡൽ നമ്പർ | 372472 |
| ഇനത്തിൻ്റെ പാക്കേജ് അളവ് | 1 |
| അളക്കൽ സംവിധാനം | മെട്രിക് |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | Hitachi 372472 CABLE CLAMP C10FSHC |
| ബാറ്ററികൾ ആവശ്യമുണ്ടോ? | ഇല്ല |
| നിർമ്മാതാവ് | കോക്കി ഹോൾഡിംഗ്സ് അമേരിക്ക, ലിമിറ്റഡ് |
9. വാറൻ്റിയും പിന്തുണയും
As a genuine Hitachi replacement part, the 372472 Cable Clamp is manufactured to high standards. For specific warranty information regarding genuine Hitachi (now Metabo HPT) parts, please refer to the official warranty documentation provided with your original power tool or visit the official Metabo HPT webസൈറ്റ്.
For further assistance or to purchase additional genuine parts, you may visit the Hitachi (Metabo HPT) Brand Store അല്ലെങ്കിൽ അംഗീകൃത സർവീസ് സെന്ററുകളുമായി ബന്ധപ്പെടുക.
