Mount-It! MI-430 Lockable RV TV Wall Mount Instruction Manual

1. ആമുഖം

Thank you for choosing the Mount-It! MI-430 Lockable RV TV Wall Mount. This full-motion bracket is designed to provide a secure and versatile viewing experience for your television in mobile environments such as RVs, campers, motorhomes, trailers, and boats. Its robust construction and locking mechanism ensure your TV remains stable during travel, while the full-motion capabilities allow for optimal viewകോണുകൾ.

2 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: ഈ നിർദ്ദേശങ്ങൾ വായിക്കുന്നതിലും പാലിക്കുന്നതിലും പരാജയപ്പെടുന്നത് ഗുരുതരമായ വ്യക്തിപരമായ പരിക്ക്, സ്വത്ത് നാശനഷ്ടം അല്ലെങ്കിൽ നിങ്ങളുടെ വാറന്റി അസാധുവാക്കലിന് കാരണമായേക്കാം.

• Ensure the mounting surface can safely support the combined weight of the mount and your TV.
• പരമാവധി ഭാര ശേഷി 77 പൗണ്ട് (35 കിലോഗ്രാം) കവിയരുത്.
• 23 മുതൽ 55 ഇഞ്ച് വരെ വലിപ്പമുള്ള ടിവികൾക്കായി ഈ മൗണ്ട് രൂപകൽപ്പന ചെയ്‌തിരിക്കുന്നു.
• Always use the provided hardware and follow all installation steps carefully.
• Before moving your vehicle, ensure the TV is securely locked into its travel position to prevent damage.
• ഇൻസ്റ്റലേഷൻ ഏരിയയിൽ നിന്ന് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അകറ്റി നിർത്തുക.

3. പാക്കേജ് ഉള്ളടക്കം

Verify that all components are present and undamaged before beginning installation. If any parts are missing or defective, contact Mount-It! customer support.

The package typically includes the wall plate, articulating arm, VESA TV plate, mounting hardware (screws, anchors, washers), and an instruction manual.

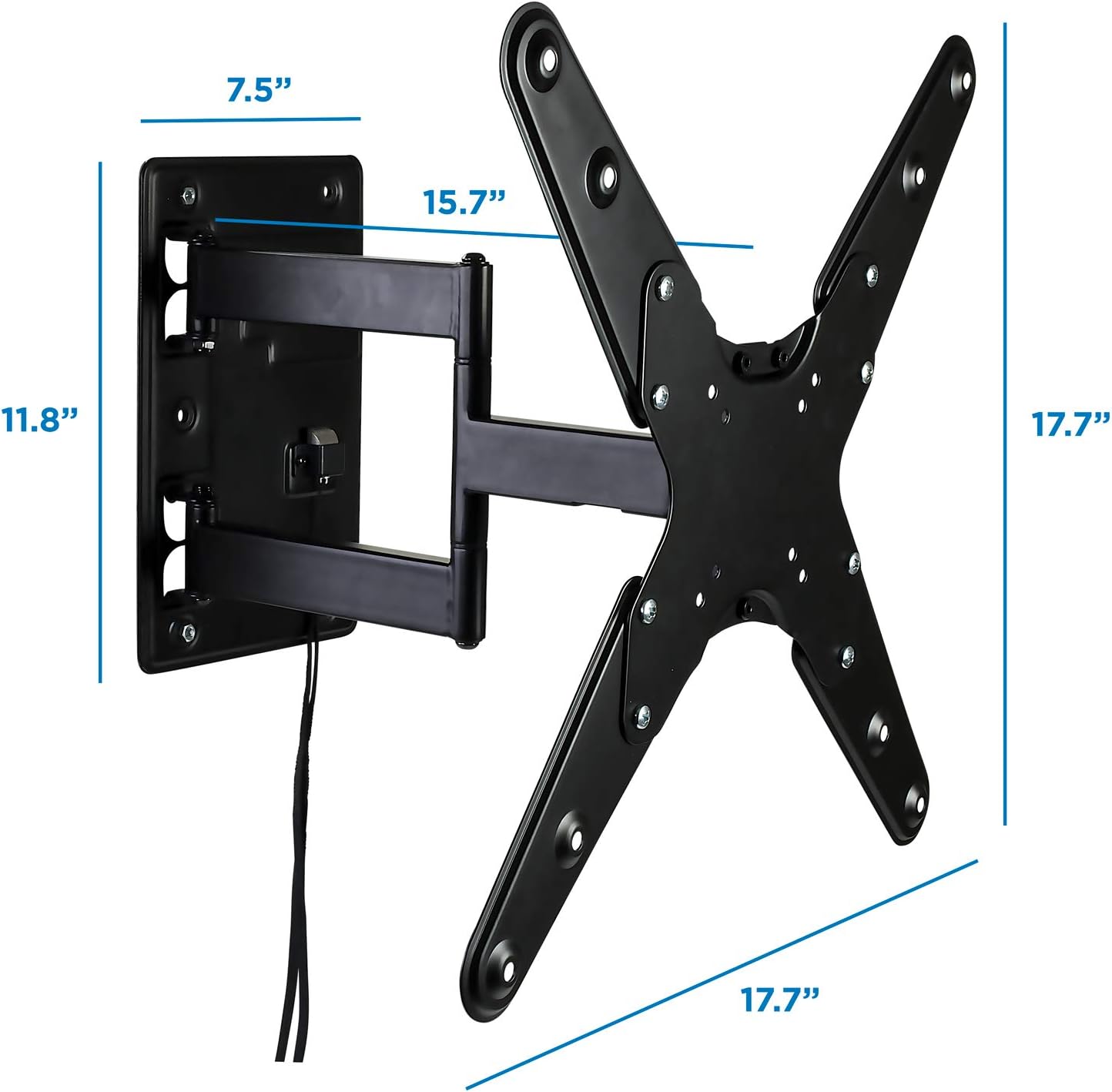

4 സ്പെസിഫിക്കേഷനുകൾ

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Mount-It! MI-430 is designed for easy installation. Ensure you have the necessary tools (e.g., drill, screwdriver, stud finder) and follow these steps:

1. വാൾ പ്ലേറ്റ് തയ്യാറാക്കുക:
   Locate a suitable mounting spot on a sturdy surface (e.g., a wooden stud in an RV). The wall plate includes a built-in bubble level to assist with accurate positioning. Mark the pilot holes.
2. വാൾ പ്ലേറ്റ് മൌണ്ട് ചെയ്യുക:
   Drill pilot holes at the marked locations. Secure the wall plate to the surface using the appropriate screws and washers. Ensure it is firmly attached and level.
3. Attach VESA Plate to TV:
   Identify your TV's VESA pattern (the spacing of the mounting holes on the back of your TV). Attach the VESA TV plate to the back of your television using the provided screws that match your TV's specifications. The quick-release design allows for easy attachment and detachment.
4. Hang TV on Wall Mount:
   Carefully lift your TV with the attached VESA plate and slide it onto the articulating arm's receiver. The quick-release mechanism will secure it in place.
5. യാത്രയ്ക്ക് സുരക്ഷിതം:
   For travel, push the TV arm fully back towards the wall plate until the locking mechanism engages. Use the pull rope to release the lock when you want to adjust the TV.

ഇൻസ്റ്റലേഷൻ വീഡിയോ ഗൈഡ്

Video: A detailed installation guide for the Mount-It! MI-432 Camper/RV TV Mount, demonstrating the steps to securely install the mount and attach the TV.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The MI-430 mount offers full motion capabilities for optimal viewing.

• Adjusting Swivel: Gently push or pull the TV to swivel it left or right up to ±90 degrees, depending on your TV size and wall clearance.
• ടിൽറ്റ് ക്രമീകരിക്കുന്നു: Loosen the tilt adjustment knobs on the VESA plate, adjust the TV to your desired +10°/-15° tilt angle, and then tighten the knobs to secure.
• Extending/Retracting: Pull the TV away from the wall to extend the arm up to 15.7 inches, or push it back to retract it to a minimum of 2.3 inches.
• Locking for Travel: Before driving, ensure the TV is fully retracted and pushed against the wall, engaging the locking mechanism. This prevents movement and potential damage.

ഉൽപ്പന്ന സവിശേഷതകൾ വീഡിയോ

വീഡിയോ: ഒരു ഓവർview of the Mount-It! Lockable RV TV Wall Mount, highlighting its key features and benefits for mobile use.

7. പരിപാലനം

To ensure the longevity and safe operation of your Mount-It! MI-430 TV Wall Mount, follow these maintenance guidelines:

• പതിവ് പരിശോധന: Periodically check all screws and bolts to ensure they are tight. Vibrations during travel can loosen fasteners over time.
• ശുചിത്വം: Wipe the mount with a soft, dry cloth to remove dust and debris. Avoid using abrasive cleaners or solvents.
• ലൂബ്രിക്കേഷൻ: If the articulating arm becomes stiff, apply a small amount of silicone-based lubricant to the moving joints.
• ലോക്കിംഗ് മെക്കാനിസം: Ensure the locking mechanism functions smoothly. If the pull string shows signs of wear, consider replacing it to prevent breakage.

8. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഇതാ:

• ടിവി നിലവാരമില്ലാത്തതാണ്: Use the built-in bubble level on the wall plate during installation. If already installed, some mounts allow for minor post-installation leveling adjustments. Otherwise, re-adjust the wall plate.
• മൗണ്ട് അയഞ്ഞതായി തോന്നുന്നു: Tighten all mounting screws on both the wall plate and the VESA plate. Ensure the wall surface is sturdy enough.
• Locking mechanism not engaging/releasing: Ensure the TV is fully pushed back against the wall for the lock to engage. If the pull string is stuck or broken, gently inspect for obstructions or replace the string.
• Arm is stiff: Apply a small amount of silicone lubricant to the joints of the articulating arm.
• TV shakes during travel: Ensure the locking mechanism is fully engaged. For added stability, some users place soft bumpers or foam blocks between the TV and the wall.

9. വാറണ്ടിയും പിന്തുണയും

The Mount-It! MI-430 Lockable RV TV Wall Mount is backed by Mount-It!'s manufacturer lifetime warranty, ensuring long-term reliability. For technical assistance, missing parts, or warranty claims, please contact our US-based technical support team. Refer to the contact information provided in your product packaging or visit the official Mount-It! webകൂടുതൽ വിവരങ്ങൾക്ക് സൈറ്റ്.
