User Manual: My4Sons Adjustable Telescoping Wand

1. ആമുഖം

Thank you for choosing the My4Sons Adjustable Telescoping Wand. This manual provides essential information for the safe and effective use of your new product. This telescoping wand is designed to extend your reach for various spraying tasks, compatible with backpack and handheld sprayers featuring a 3/8" hose connection. Its adjustable length and included accessories make it suitable for a wide range of applications, from garden care to high-reach cleaning.

ചിത്രം 1: The My4Sons 14-ft Adjustable Telescoping Wand, shown with its complete set of nozzles and adapters, ready for connection to a sprayer.

ചിത്രം 2: The telescoping wand illustrating its adjustable length capability, ranging from 22 inches to 14 feet.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read and understand all safety instructions before operating the telescoping wand. Failure to follow these instructions may result in injury or property damage.

• Always follow safety guidelines when using pressure washers and sprayers.
• Keep hands and face away from the spray nozzle during operation.
• Wear appropriate protective gear, including eye protection, gloves, and suitable clothing, to prevent exposure to sprayed materials.
• Dispose of chemicals responsibly according to local regulations and product instructions.
• Always follow the manufacturer's instructions for your specific sprayer or pressure washer.
• Ensure all connections are secure before operating to prevent leaks and loss of pressure.
• Do not use the wand near electrical lines or equipment.
• Maintain a stable footing when operating the wand, especially when extended to its full length.

3. പാക്കേജ് ഉള്ളടക്കം

താഴെ കൊടുത്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 14-ft Adjustable Telescoping Wand
• Nozzle Kit (various spray patterns)
• 3/8" Barb Adapters
• ഹോസ് Clamps

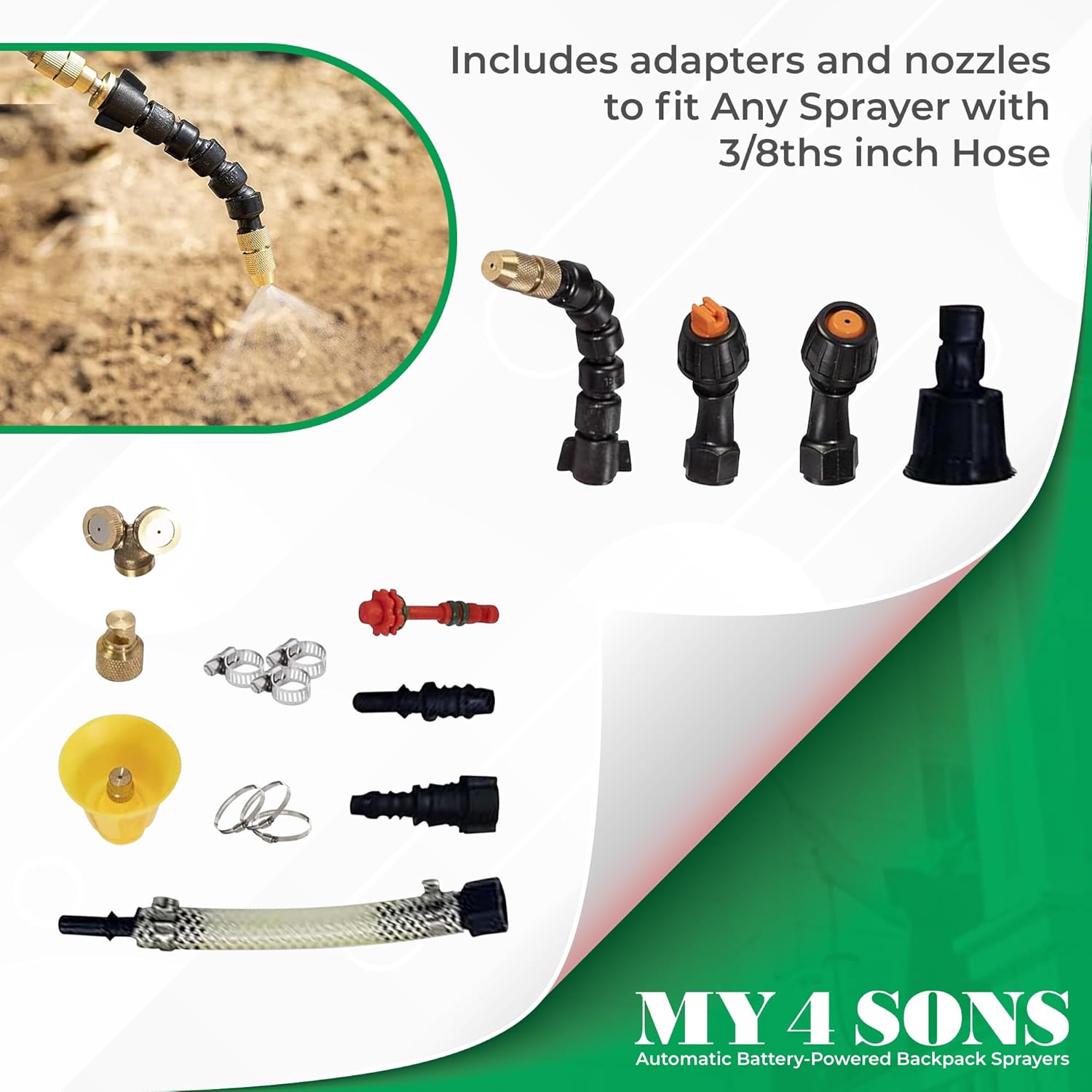

ചിത്രം 3: വിശദമായി view of the nozzle kit, 3/8" barb adapters, and hose clamps provided for versatile use.

4. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

Follow these steps to prepare your telescoping wand for use:

1. Attach Adapters: Select the appropriate 3/8" barb adapter from the kit that matches your sprayer's hose. Securely attach it to the wand's inlet connection.
2. ഹോസ് ബന്ധിപ്പിക്കുക: Connect your sprayer's 3/8" hose to the barb adapter on the telescoping wand. Use the provided hose clamps to ensure a tight, leak-free connection.
3. നോസൽ തിരഞ്ഞെടുക്കുക: Choose a nozzle from the nozzle kit based on your spraying requirements (e.g., fine mist, jet stream, wide fan). Attach it firmly to the end of the telescoping wand.
4. പ്രാരംഭ പരിശോധന: Before introducing chemicals, connect the wand to your sprayer with water and test for any leaks or loose connections. Adjust clamps or connections as necessary.

ചിത്രം 4: The telescoping wand properly connected to a backpack sprayer, demonstrating compatibility.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The My4Sons Adjustable Telescoping Wand is designed for user-friendly operation, allowing you to reach elevated areas with ease.

1. നീളം ക്രമീകരിക്കുന്നു: To extend the wand, loosen the locking collars on each section, carefully pull the sections to the desired length (from 22 inches to 14 feet), and then firmly tighten the locking collars to secure the extension. Ensure each section is fully locked before use.
2. സ്പ്രേ ചെയ്യുന്നത്: Once connected to your sprayer and extended, activate your sprayer's pump. Use the wand's handle to direct the spray towards the target area. The ergonomic design allows for comfortable use over extended periods.
3. High-Reach Applications: This wand is ideal for reaching high surfaces such as rooftops, gutters, tall trees, and exterior walls without the need for ladders. Maintain a safe distance from the target and ensure stability.

ചിത്രം 5: An individual demonstrating the use of the extended telescoping wand to reach and spray a high roof peak.

ചിത്രം 6: A user holding the wand, highlighting the comfortable grip and the 3/8ths hose adapter connection.

6. പരിപാലനം

Proper maintenance ensures the longevity and reliable performance of your telescoping wand.

• വൃത്തിയാക്കൽ: After each use, especially when spraying chemicals, flush the wand thoroughly with clean water to prevent residue buildup and corrosion.
• പരിശോധന: Regularly inspect the wand for any signs of wear, damage, or leaks. Check hose connections, nozzles, and locking collars for integrity.
• സംഭരണം: Store the wand in a clean, dry place, preferably in its retracted position, away from direct sunlight and extreme temperatures.
• നോസൽ കെയർ: Clean nozzles regularly to prevent clogging. If a nozzle becomes clogged, remove it and clear any obstructions.

7. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your telescoping wand.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please contact My 4 Sons customer service. Details regarding specific warranty periods and terms are typically provided with your purchase documentation or can be found on the official My 4 Sons webസൈറ്റ്.

നിർമ്മാതാവ്: My 4 Sons

കൂടുതൽ സഹായത്തിന്, ദയവായി സന്ദർശിക്കുക M4 Store on Amazon അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിനൊപ്പം നൽകിയിരിക്കുന്ന കോൺടാക്റ്റ് വിവരങ്ങൾ പരിശോധിക്കുക.
