ആമുഖം
Welcome to the user manual for your new Lavazza Jolie Milk LM700 Coffee Machine. This machine combines the functionality of a coffee maker and a milk frother, allowing you to prepare a variety of coffee and fresh milk specialties, including authentic Italian espresso and creamy cappuccinos, with ease.
Key features of your Lavazza Jolie Milk LM700 include a stylish and compact design, two programmable selection options for customized beverages, an integrated cappuccino frother for soft and creamy milk foam, and compatibility with the Lavazza A Modo Mio Capsules System.

ചിത്രം: മുൻഭാഗം view of the Lavazza Jolie Milk LM700 Coffee Machine, showcasing its sleek black design and integrated milk frother.
പ്രധാനപ്പെട്ട സുരക്ഷാ നിർദ്ദേശങ്ങൾ
Please read all safety instructions carefully before using the appliance to prevent personal injury or damage. Keep this manual for future reference.
- വോളിയം ഉറപ്പാക്കുകtagഉപകരണത്തിൽ സൂചിപ്പിച്ചിരിക്കുന്ന e നിങ്ങളുടെ മെയിൻ വോള്യവുമായി യോജിക്കുന്നുtagബന്ധിപ്പിക്കുന്നതിന് മുമ്പ് ഇ.
- ഉപകരണമോ പവർ കോർഡോ വെള്ളത്തിലോ മറ്റേതെങ്കിലും ദ്രാവകത്തിലോ മുക്കരുത്.
- Always unplug the appliance from the power outlet before cleaning, maintenance, or if it is not in use for an extended period.
- Keep children away from the appliance during operation, as hot surfaces and steam can cause burns.
- കേടായ ഒരു കോർഡ് അല്ലെങ്കിൽ പ്ലഗ് ഉപയോഗിച്ച് ഉപകരണം പ്രവർത്തിപ്പിക്കരുത്, അല്ലെങ്കിൽ ഉപകരണം തകരാറിലായതിന് ശേഷം അല്ലെങ്കിൽ ഏതെങ്കിലും വിധത്തിൽ കേടായി.
- Use only Lavazza A Modo Mio capsules with this machine. Using other capsules may damage the machine and void the warranty.
- Never open the capsule compartment during brewing.
- Always ensure the water tank is filled to the appropriate level before brewing.
സജ്ജീകരണവും ആദ്യ ഉപയോഗവും
1 അൺപാക്ക് ചെയ്യുന്നു
- Carefully remove the coffee machine and all accessories from the packaging.
- ഉപകരണത്തിൽ നിന്ന് ഏതെങ്കിലും സംരക്ഷണ ഫിലിമുകളോ സ്റ്റിക്കറുകളോ നീക്കം ചെയ്യുക.
- Place the machine on a stable, flat, and heat-resistant surface, away from water splashes and heat sources.
2. പ്രാരംഭ ക്ലീനിംഗ്
- Wash the water tank, drip tray, and used capsule container with warm water and a mild detergent. Rinse thoroughly and dry.
- പരസ്യം ഉപയോഗിച്ച് മെഷീൻ്റെ പുറംഭാഗം തുടയ്ക്കുകamp തുണി.

ചിത്രം: വശം view of the Lavazza Jolie Milk LM700, highlighting the transparent water tank and the compact design.
3. വാട്ടർ ടാങ്ക് നിറയ്ക്കൽ
- യന്ത്രത്തിന്റെ പിൻഭാഗത്ത് നിന്ന് വാട്ടർ ടാങ്ക് നീക്കം ചെയ്യുക.
- Fill the tank with fresh, cold drinking water up to the MAX level indicator.
- Place the water tank back securely onto the machine.
4. Power Connection and Priming
- അനുയോജ്യമായ ഒരു മതിൽ ഔട്ട്ലെറ്റിലേക്ക് പവർ കോർഡ് പ്ലഗ് ചെയ്യുക.
- Press the ON/OFF button to switch on the machine. The button will flash while heating up and become steady when ready.
- Before first use, or if the machine has not been used for a long time, prime the circuit:
- Place a container under the coffee dispenser.
- Without inserting a capsule, press the espresso button.
- Allow water to flow through until the tank is almost empty.
- വാട്ടർ ടാങ്ക് വീണ്ടും നിറയ്ക്കുക. മെഷീൻ ഇപ്പോൾ പ്രൈം ചെയ്തിട്ടുണ്ട്, ഉപയോഗത്തിന് തയ്യാറാണ്.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
1. എസ്പ്രെസോ ഉണ്ടാക്കൽ
- Ensure the machine is switched on and the water tank is filled.
- Lift the lever and insert a Lavazza A Modo Mio capsule into the capsule compartment.
- Close the lever firmly.
- Place a cup on the drip tray under the dispenser.
- Press the desired coffee button (e.g., short espresso or long espresso). The button will flash during brewing and become steady when finished.
- Once brewing is complete, lift the lever to eject the used capsule into the collection container.

Image: The Lavazza Jolie Milk LM700 machine dispensing espresso into a glass cup, with a separate glass of cappuccino showing the frothing capability.
2. Using the Integrated Milk Frother
The integrated milk frother allows you to prepare hot or cold milk foam for cappuccinos, lattes, and other milk-based beverages.
- Ensure the milk frother jug is clean.
- Pour fresh, cold milk into the frother jug, observing the MIN and MAX fill lines for frothing.
- Place the lid securely on the frother jug.
- Place the frother jug onto its base.
- Press the button on the frother base to start:
- 1 ക്ലിക്ക്: For hot milk foam (e.g., cappuccino).
- 2 ക്ലിക്കുകൾ: For hot milk (less foam, e.g., latte).
- 3 സെക്കൻഡ് അമർത്തിപ്പിടിക്കുക: For cold milk foam (e.g., iced coffee).
- The frother will automatically stop when the milk is ready.
- നുരഞ്ഞുപൊന്തിയ പാൽ നിങ്ങളുടെ കാപ്പിയിലേക്ക് ഒഴിക്കുക.

ചിത്രം: വിശദമായത് view of the Lavazza milk frother's control panel, illustrating the single-click, double-click, and long-press options for different milk preparations.
3. Programmable Selection Options
The machine allows you to program the desired quantity of coffee for each button.
- Insert a capsule and place a cup under the dispenser.
- Press and hold the coffee button you wish to program.
- Release the button when the desired amount of coffee has been dispensed into the cup. The new quantity is now saved.
പരിപാലനവും ശുചീകരണവും
Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your Lavazza Jolie Milk LM700. Always unplug the machine before cleaning.
1. ദിവസേനയുള്ള ശുചീകരണം
- ഡ്രിപ്പ് ട്രേയും ഉപയോഗിച്ച കാപ്സ്യൂൾ കണ്ടെയ്നറും: Empty and rinse the drip tray and used capsule container daily. Wash with warm, soapy water, rinse, and dry thoroughly.
- വാട്ടർ ടാങ്ക്: Empty any remaining water and rinse the tank daily. Refill with fresh water before each use.
- പാൽ സഹോദരൻ: Immediately after each use, rinse the milk frother jug and whisk with water. For a more thorough clean, disassemble the whisk and wash all parts with warm, soapy water. Ensure all milk residue is removed to prevent blockages and odors.
- പുറം: Wipe the exterior surfaces of the machine with a soft, damp തുണി. ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
2. ഡെസ്കലിംഗ്
Over time, mineral deposits (limescale) can build up in the machine, affecting performance and taste. Descale your machine regularly, depending on water hardness and usage (e.g., every 2-3 months).
- വാട്ടർ ടാങ്കും ഉപയോഗിച്ച കാപ്സ്യൂൾ കണ്ടെയ്നറും കാലിയാക്കുക.
- Fill the water tank with a descaling solution specifically designed for coffee machines, following the manufacturer's instructions.
- Place a large container under the coffee dispenser.
- Run several brewing cycles without a capsule until the water tank is empty.
- വാട്ടർ ടാങ്ക് നന്നായി കഴുകി ശുദ്ധജലം നിറയ്ക്കുക.
- Run several cycles with fresh water to rinse out any descaling solution residue.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter any issues with your Lavazza Jolie Milk LM700, please refer to the following common problems and solutions before contacting customer service.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| കാപ്പി വിതരണം ചെയ്യുന്നില്ല. | Water tank empty; machine not primed; capsule blocked; machine not heated. | Fill water tank; prime the machine; check capsule insertion; wait for machine to heat up (button steady). |
| Coffee is too cold or weak. | Machine not fully heated; descaling needed; incorrect capsule. | Wait for machine to heat; descale the machine; ensure correct Lavazza A Modo Mio capsule is used. |
| പാൽ നുരയെ ഉത്പാദിപ്പിക്കാത്ത യന്ത്രം. | Incorrect milk type/temperature; frother whisk dirty/missing; milk level too low/high. | Use fresh, cold milk (full-fat recommended); clean whisk and jug; ensure milk is between MIN/MAX lines. |
| മെഷീനിൽ നിന്ന് വെള്ളം ചോരുന്നു. | Water tank not correctly seated; drip tray full; internal seal issue. | Ensure water tank is firmly in place; empty drip tray; if problem persists, contact customer service. |
| മെഷീൻ ഓണാക്കുന്നില്ല. | No power; power cord not plugged in correctly. | Check power outlet and ensure power cord is securely plugged into both the machine and the wall. |
സ്പെസിഫിക്കേഷനുകൾ
Below are the technical specifications for the Lavazza Jolie Milk LM700 Coffee Machine.
| ബ്രാൻഡ് | ലാവാസ |
| മോഡൽ നമ്പർ | 18000214 |
| നിറം | ബ്ലാക്ക്വൺ |
| ഉൽപ്പന്ന അളവുകൾ | 33 x 21.5 x 21.8 സെ.മീ |
| ഇനത്തിൻ്റെ ഭാരം | 3.5 കി.ഗ്രാം |
| ശേഷി | 0.6 ലിറ്റർ |
| പവർ / വാട്ട്tage | 1710 വാട്ട്സ് |
| വാല്യംtage | 240 വോൾട്ട് |
| മെറ്റീരിയൽ | അക്രിലോണിട്രൈൽ ബ്യൂട്ടാഡൈൻ സ്റ്റൈറൈൻ |
| പ്രത്യേക ഫീച്ചർ | വേർപെടുത്താവുന്ന ടാങ്ക് |
| കോഫി മേക്കർ തരം | എസ്പ്രെസോ മെഷീൻ |

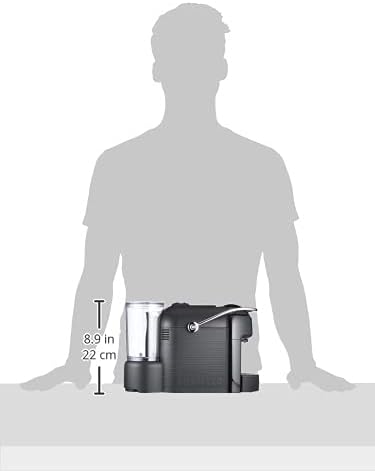

Image: A diagram showing the dimensions of the Lavazza Jolie Milk LM700 Coffee Machine, indicating a height of 22 cm (8.9 inches).
വാറൻ്റിയും ഉപഭോക്തൃ പിന്തുണയും
Your Lavazza Jolie Milk LM700 Coffee Machine is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or any questions regarding your product, please contact Lavazza Customer Service. Contact details can typically be found on the official Lavazza webനിങ്ങളുടെ പ്രദേശത്തിനായുള്ള സൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.

Image: A graphic indicating Lavazza customer support, with the text "È SEMPRE CON TE!" (Always with you!) and a phone number "011 3020300". Please note this number may be specific to Italy. For local support, refer to your regional Lavazza webസൈറ്റ്.
