Renogy Flexible Solar Panel 50W 12V Monocrystalline Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Renogy 50 Watt 12 Volt Monocrystalline Flexible Solar Panel is designed for versatile off-grid power solutions. Unlike traditional rigid panels, its ultra-flexible and lightweight design allows for installation on curved surfaces, making it ideal for marine, RV, cabin, van, car, and boat applications. This panel provides efficient solar charging for your 12V systems.

2 പ്രധാന സവിശേഷതകൾ

• വളരെ ഫ്ലെക്സിബിൾ: Capable of flexing up to 248 degrees, allowing installation on a wide range of curved surfaces where standard panels are impractical.

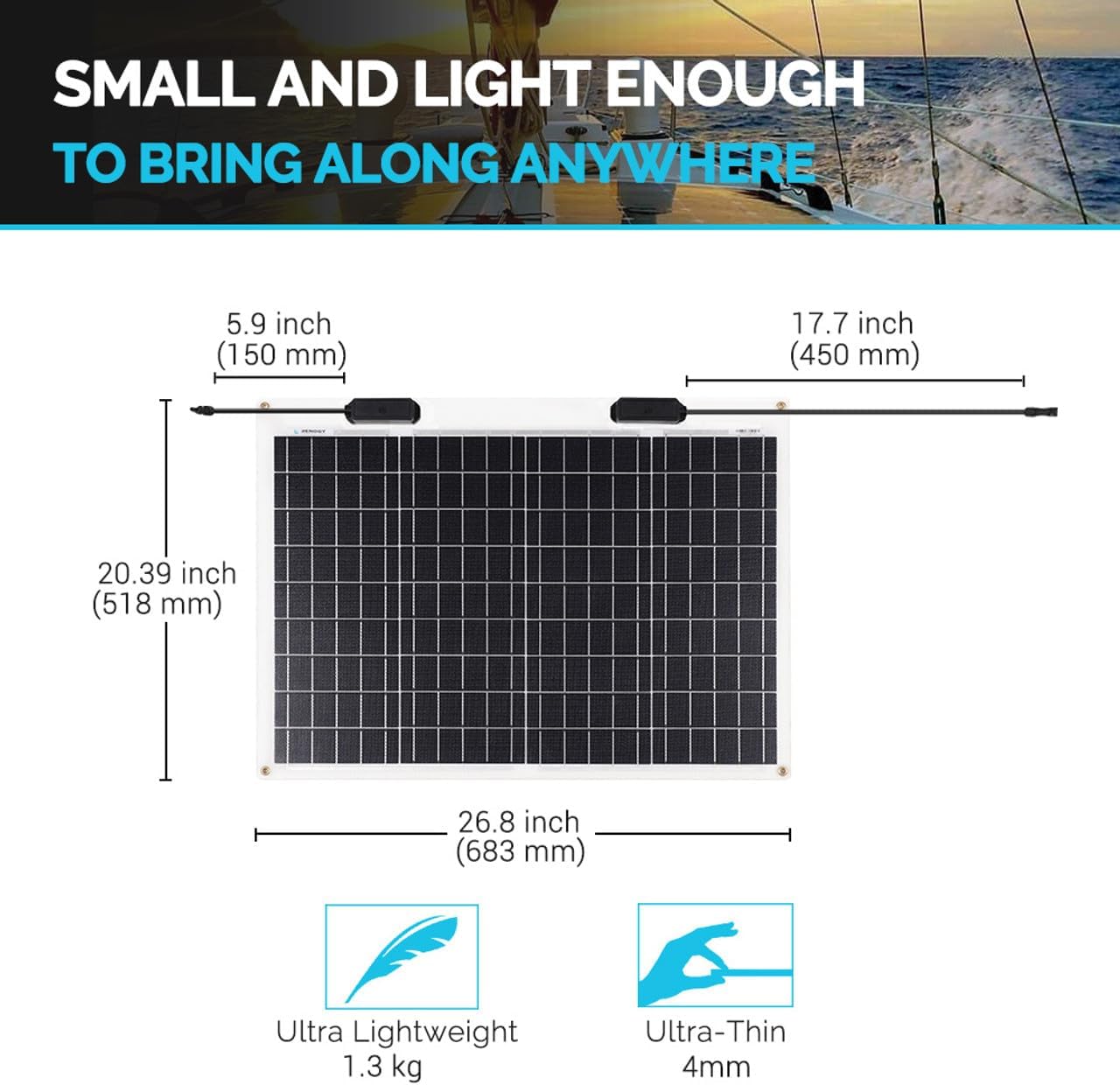

• അൾട്രാ ലൈറ്റ്‌വെയ്റ്റ്: Weighs only 2.87 pounds (approximately 1.3 kg), making transportation and installation significantly easier compared to conventional solar panels.
• Super Thin Lamination: With a thickness of only 0.16 inches (4mm), it is approximately 95% thinner than rigid counterparts, enabling a discreet solar setup.
• ഉയർന്ന മോടിയുള്ള: Rigorously tested to withstand extreme wind loads of up to 2400 Pa and snow loads of up to 5400 Pa, ensuring long-term reliability.

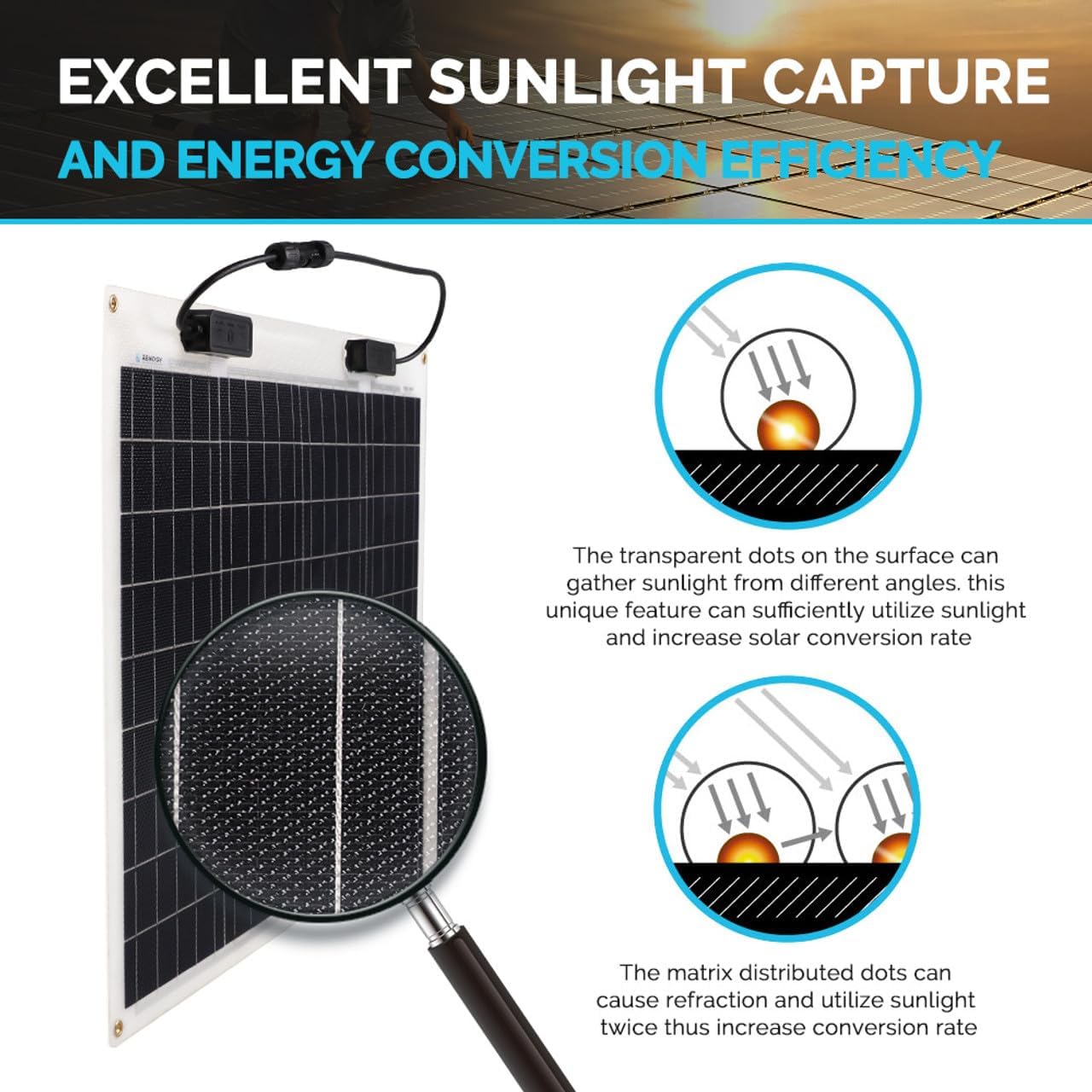

• ഉയർന്ന കാര്യക്ഷമത: Features monocrystalline cells with 22% efficiency for optimal power generation.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for optimal performance and longevity of your Renogy Flexible Solar Panel. Follow these guidelines for secure and efficient setup.

3.1 അൺബോക്‌സിംഗും പരിശോധനയും

1. Carefully remove the solar panel from its packaging.
2. Inspect the panel for any signs of physical damage during transit.
3. Ensure all components, including connectors and cables, are intact.

3.2 മൗണ്ടിംഗ് ശുപാർശകൾ

For detailed installation methods, it is recommended to consult a local contractor for guidance, especially for mobile applications. Modules must be mounted using silicone structural adhesive on the backside of the panel. Grommets are primarily for non-mobile applications.

3.3 Wiring Configurations

The Renogy Flexible Solar Panel can be wired in series or parallel depending on your system's voltage and current requirements. Always ensure correct polarity (+ to + and - to -) when making connections.

3.4 ഇൻസ്റ്റലേഷൻ വീഡിയോ ഗൈഡ്

For a visual guide on installing flexible solar panels, refer to the official Renogy installation video:

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once installed, your Renogy Flexible Solar Panel will begin converting sunlight into electricity. To maximize performance:

• Ensure the panel is exposed to direct sunlight for the majority of the day.
• Avoid shading from trees, buildings, or other obstructions, as even partial shading can significantly reduce output.
• Connect the panel to a compatible charge controller and battery bank for efficient power storage and usage.

5. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your solar panel.

• വൃത്തിയാക്കൽ: Periodically clean the panel surface with a soft cloth and mild, non-abrasive cleaner to remove dirt, dust, and debris. Ensure the panel is cool before cleaning.
• പരിശോധന: Regularly check for any physical damage, loose connections, or corrosion on the wiring and connectors.
• ഷേഡിംഗ്: Monitor the installation area for new sources of shading (e.g., growing trees) and address them to maintain full sun exposure.

6. പ്രശ്‌നപരിഹാരം

If your solar panel is not performing as expected, consider the following:

• കുറഞ്ഞ പവർ ഔട്ട്പുട്ട്: Check for shading on the panel surface. Verify all connections are secure and free from corrosion. Ensure the charge controller settings are appropriate for your battery type.
• പവർ ഔട്ട്പുട്ട് ഇല്ല: Confirm that the panel is receiving direct sunlight. Check all wiring for disconnections or damage. Test the open-circuit voltage (Voc) of the panel to ensure it is generating power.
• ബാറ്ററി ചാർജുചെയ്യുന്നില്ല: Verify the charge controller is functioning correctly. Check battery health and connections.

For further assistance, refer to the product's official support channels.

7 സ്പെസിഫിക്കേഷനുകൾ

8. Durability and Testing

The Renogy Flexible Solar Panel undergoes rigorous testing to ensure its durability and performance in various conditions.

8.1 Solar Panel Stress Testing

8.2 ഉൽപ്പന്നം കഴിഞ്ഞുview വീഡിയോ

9. വാറൻ്റിയും പിന്തുണയും

The Renogy Flexible Solar Panel comes with a 5 വർഷത്തെ വാറൻ്റി. For any questions, technical support, or warranty claims, please contact Renogy customer service directly.
