ELAC ഡെബട്ട് സബ് 3010 സബ് വൂഫർ ഉപയോക്തൃ മാനുവൽ

ആമുഖം

The ELAC DEBUT SUB 3010 is an active subwoofer designed to provide powerful and deep bass for both music and home cinema systems. Featuring a 10-inch long-throw woofer, a 10-inch passive radiator, and a 400-watt BASH amplifier, this subwoofer integrates seamlessly into any audio setup. Its advanced DSP and app-controlled auto-equalization allow for precise tuning and optimization from your smartphone.

ഉൽപ്പന്നം കഴിഞ്ഞുview

ചിത്രം 1: കോണാകൃതിയിലുള്ള മുൻഭാഗം view of the ELAC DEBUT SUB 3010 Subwoofer. This image shows the black finish and the large front-firing driver with its protective grille.

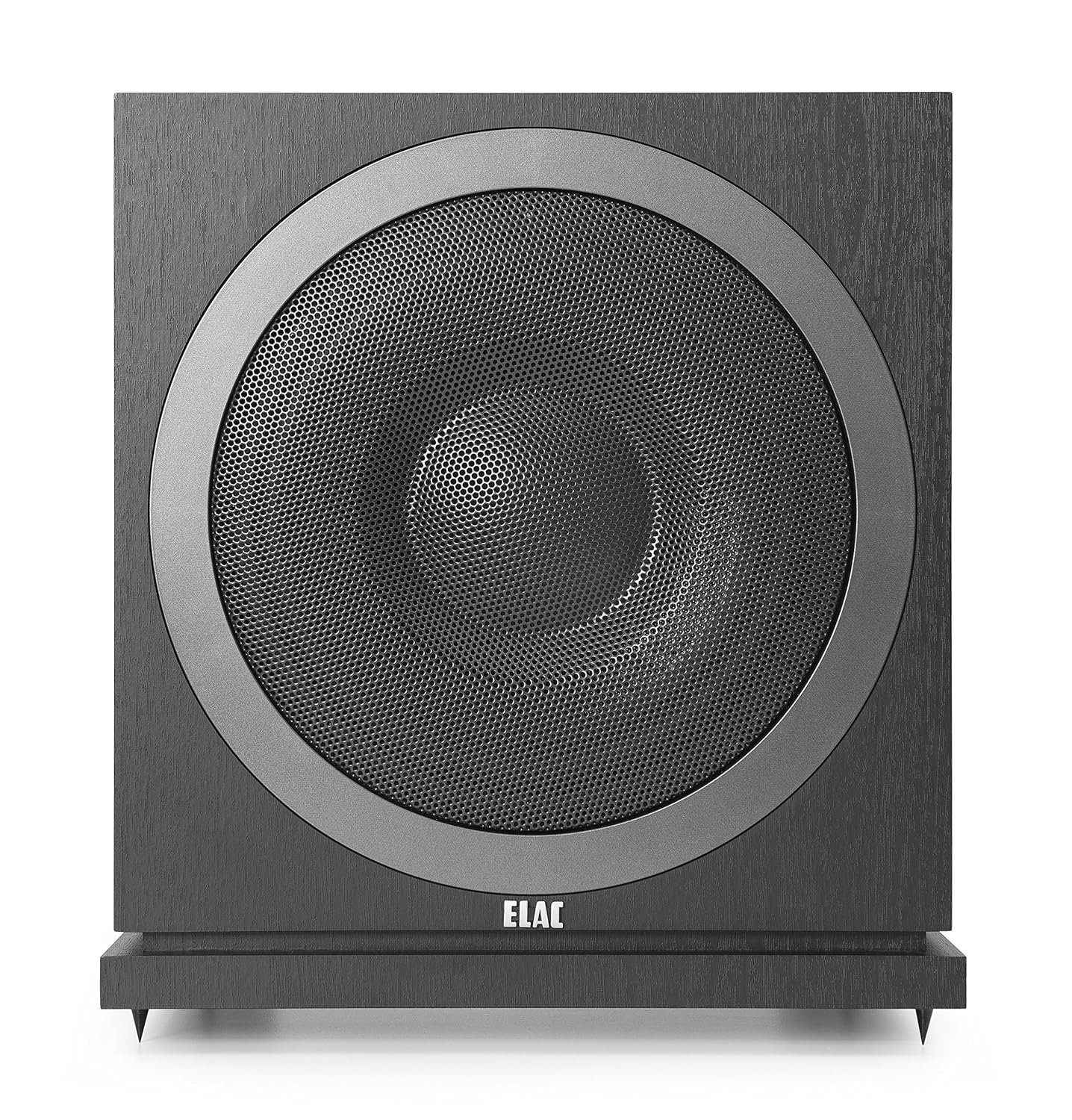

ചിത്രം 2: നേർരേഖ view of the ELAC DEBUT SUB 3010 Subwoofer, highlighting the central driver and the ELAC logo at the bottom.

Figure 3: Rear panel of the ELAC DEBUT SUB 3010 Subwoofer, showing the input connections (RCA L/R/LFE), power input, and service/reset ports. Model number SUB3010 is visible.

സജ്ജമാക്കുക

1 അൺപാക്ക് ചെയ്യുന്നു

Carefully remove the subwoofer from its packaging. Retain all packaging materials for future transport or storage. Inspect the unit for any signs of damage during transit.

2. പ്ലേസ്മെന്റ്

Subwoofer placement significantly impacts sound quality. Experiment with different locations in your room to find the optimal position. Generally, placing the subwoofer in a corner can enhance bass output, but may also lead to boomy sound. Placing it along a wall can provide a more balanced response. Avoid placing it directly against a wall if possible, to allow for proper air circulation and reduce unwanted vibrations.

• For optimal performance, consider the "subwoofer crawl" method: Place the subwoofer in your primary listening position, then crawl around the room to find where the bass sounds best. This is where the subwoofer should be placed.
• യൂണിറ്റിന് ചുറ്റും മതിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക.
• The reinforced MDF cabinet is designed to reduce vibrations, but using the included spikes or optional rubber feet can further isolate the unit from the floor.

3. കണക്ഷനുകൾ

Connect the subwoofer to your audio system using the appropriate RCA inputs. The SUB 3010 features two RCA inputs (L, R/LFE).

• LFE Input (Low-Frequency Effects): For home cinema receivers with a dedicated subwoofer output (LFE or Sub Out), connect a single RCA cable from the receiver's LFE output to the subwoofer's LFE input (typically labeled R/LFE).
• സ്റ്റീരിയോ RCA ഇൻപുട്ടുകൾ: For stereo systems or receivers without a dedicated LFE output, connect RCA cables from your pre-amplifier's or receiver's stereo pre-out to both the L and R RCA inputs on the subwoofer.

Once connected, plug the power cord into the subwoofer and then into a suitable wall outlet.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. പവർ ഓൺ/ഓഫ്

The subwoofer features an auto-on/off function. It will automatically power on when an audio signal is detected and enter standby mode after a period of inactivity to conserve energy. The LED on the rear panel indicates the power status.

2. ആപ്പ് നിയന്ത്രണം (ബ്ലൂടൂത്ത്)

The ELAC DEBUT SUB 3010 is designed for convenient control and calibration via a dedicated smartphone application. This app allows you to adjust various settings, including volume, crossover frequency, phase, and auto-equalization.

• Download the official ELAC Sub Control app from your device's app store (iOS or Android).
• നിങ്ങളുടെ സ്മാർട്ട്ഫോണിൽ ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• Open the app and follow the on-screen instructions to connect to your SUB 3010.

3. Initial Calibration and Settings

The app provides powerful tools for optimizing the subwoofer's performance in your room.

Figure 4: Screenshot of the ELAC Sub Control app, illustrating the "Cutoff Frequency" adjustment interface. This allows you to set the upper frequency limit for the subwoofer's output.

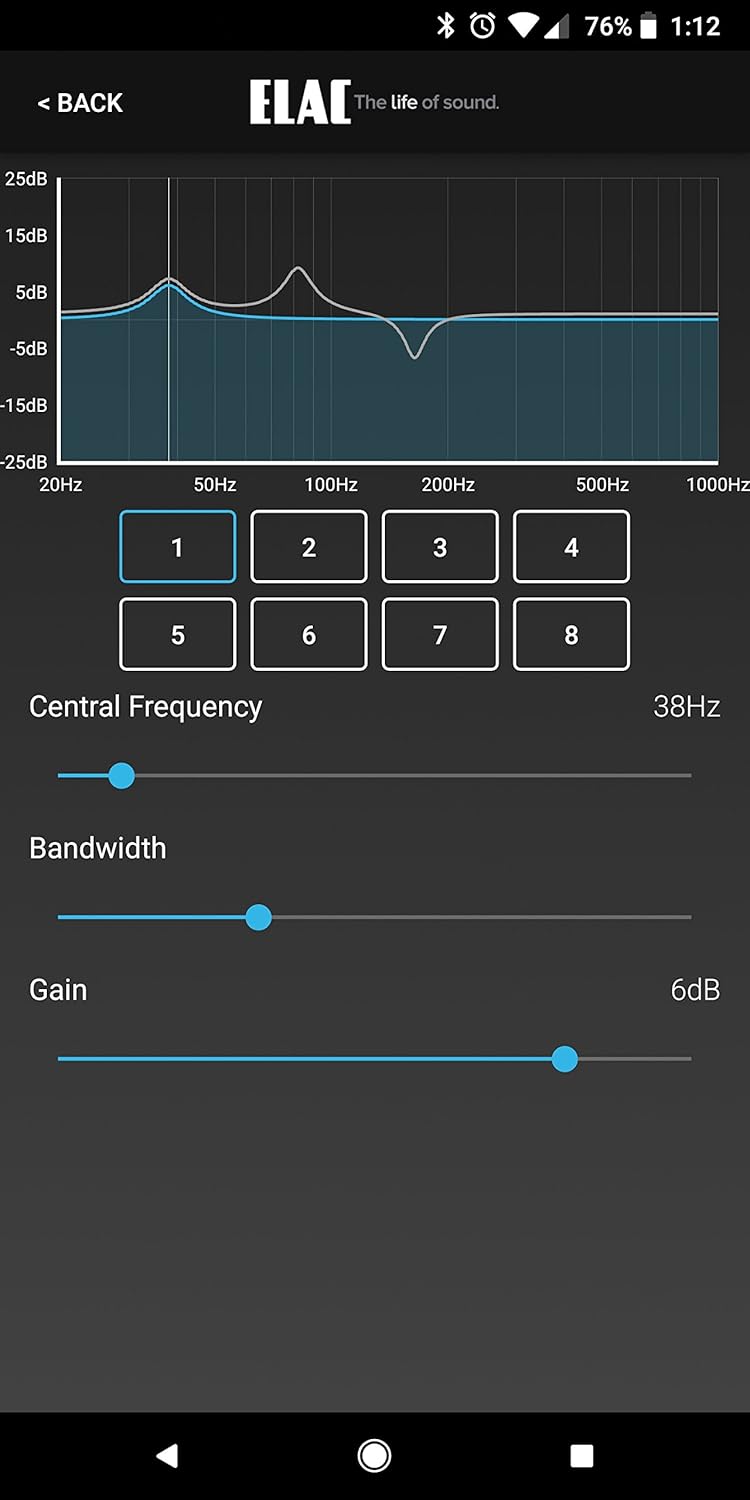

Figure 5: Screenshot of the ELAC Sub Control app, displaying the equalizer (EQ) settings. Users can adjust central frequency, bandwidth, and gain for multiple EQ bands to fine-tune the sound.

• AutoEQ: Utilize the app's AutoEQ feature to automatically measure your room's acoustics and optimize the subwoofer's frequency response for your listening environment.
• ക്രോസ്ഓവർ ഫ്രീക്വൻസി: Adjust the crossover frequency (50-150 Hz) to seamlessly blend the subwoofer's output with your main speakers. A good starting point is typically around 80 Hz, but this may vary depending on your main speakers' low-frequency capabilities.
• ഘട്ടം നിയന്ത്രണം: Adjust the phase (0° or 180°) to ensure the subwoofer's sound waves align correctly with your main speakers, preventing cancellation or reinforcement issues.
• വോളിയം: Set the overall volume level of the subwoofer to achieve a balanced sound with your main speakers.
• EQ ക്രമീകരണങ്ങൾ: The app provides detailed equalizer controls to further fine-tune the sound to your preference or to address specific room modes.

മെയിൻ്റനൻസ്

The ELAC DEBUT SUB 3010 requires minimal maintenance to ensure long-term performance.

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to wipe the cabinet. Avoid abrasive cleaners, solvents, or chemical sprays, as these can damage the finish.
• വെൻ്റിലേഷൻ: Ensure the rear panel and any ventilation openings remain clear of obstructions to prevent overheating.
• സംഭരണം: If storing the subwoofer for an extended period, disconnect it from power and store it in a cool, dry place, ideally in its original packaging.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For detailed warranty information and technical support, please refer to the documentation included with your product or visit the official ELAC webസൈറ്റ്. വാറന്റി നിബന്ധനകൾ പ്രദേശത്തിനും റീട്ടെയിലർക്കും അനുസരിച്ച് വ്യത്യാസപ്പെടാം.

If you require assistance with setup, operation, or troubleshooting that is not covered in this manual, please contact ELAC customer service or your authorized dealer.
