Kingston Brass VTAP543022R Aqua Eden 54-Inch Alcove Bathtub User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

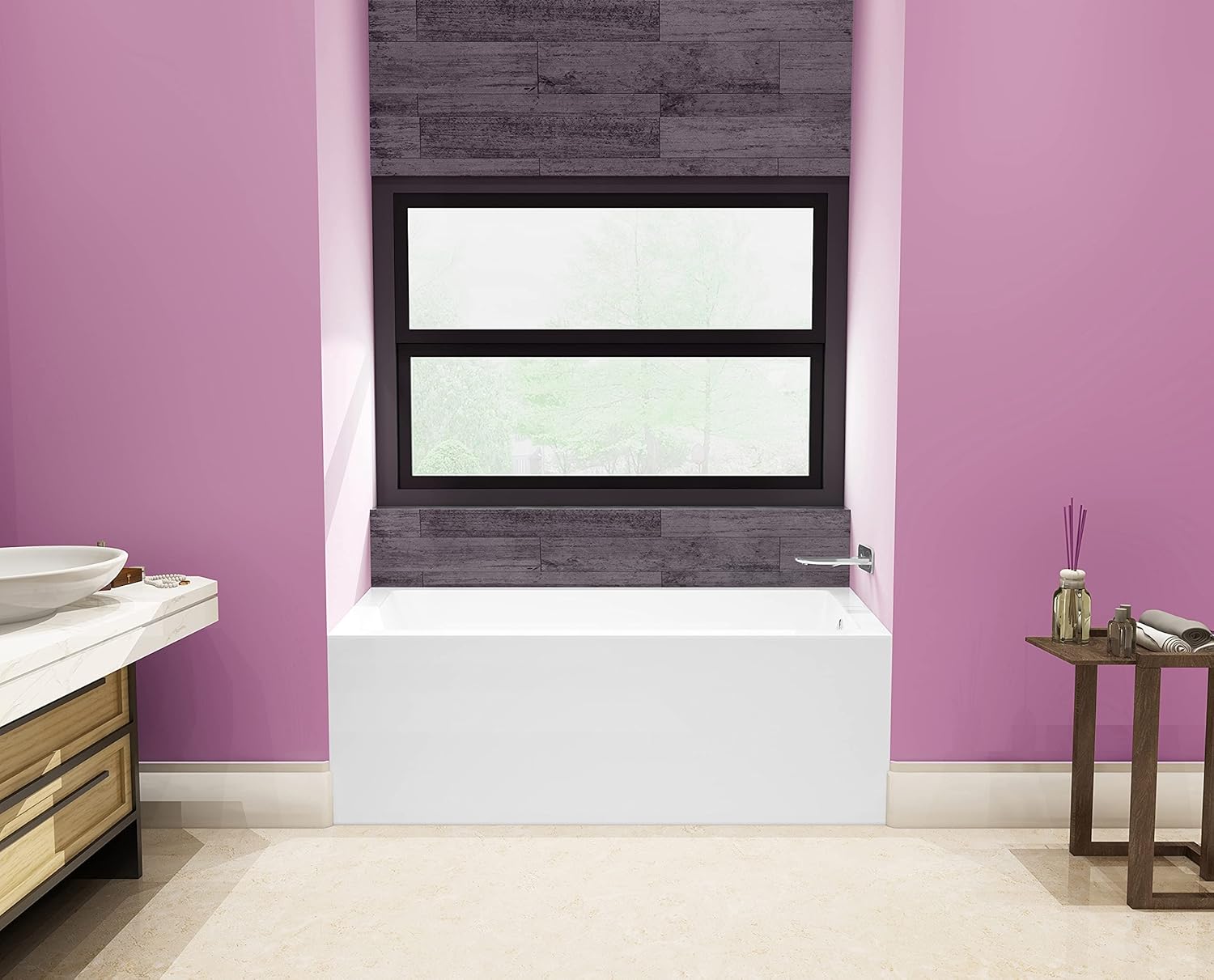

The Kingston Brass VTAP543022R Aqua Eden 54-inch alcove bathtub is designed for comfort and durability. Constructed from acrylic with fiberglass and resin reinforcement, this tub features a high-gloss white finish for easy maintenance and a clean aesthetic. It is designed for a three-wall alcove installation with a right-hand drain placement.

ചിത്രം 1.1: മുകളിൽ view of the Kingston Brass VTAP543022R Aqua Eden 54-inch alcove bathtub, showing the right-hand drain and overflow.

പ്രധാന സവിശേഷതകൾ:

• Acrylic construction with fiberglass and resin reinforcement for durability.
• Alcove tub design with an integrated apron.
• Overall dimensions: 54" (L) x 30" (W) x 21-5/8" (H).
• Water depth to overflow: 14-3/8".
• Capacity: 55.6 gallons.
• Finished in brilliant glossy white on all exposed sides.
• Right-handed drain placement.
• Designed for three-wall alcove installation with a tile flange.
• Ergonomic design for enhanced comfort.

Image 1.2: Diagram illustrating key features such as acrylic material, three-wall installation, water depth, and drain placement options.

2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the functionality and longevity of your bathtub. This model is designed for a three-wall alcove installation. It is recommended that installation be performed by a qualified professional.

2.1 പ്രീ-ഇൻസ്റ്റലേഷൻ ചെക്ക്‌ലിസ്റ്റ്

• Inspect the tub for any damage prior to installation. Do not install a damaged tub.
• Ensure the alcove dimensions are appropriate for the 54" (L) x 30" (W) tub.
• Confirm all necessary plumbing connections (drain and overflow) are accessible and correctly positioned for a right-hand drain.
• Gather all required tools and materials, including drain assembly components.

2.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. സ്ഥാനനിർണ്ണയം: Carefully place the tub into the alcove. Ensure the tile flange is correctly aligned with the wall studs.
2. ലെവലിംഗ്: The tub features adjustable feet. Adjust these feet to ensure the tub is perfectly level. This may require multiple adjustments, moving the tub in and out of position until stable and level.
3. ഡ്രെയിൻ അസംബ്ലി: Install the drain and overflow assembly according to the manufacturer's instructions for those components. Ensure a watertight seal.
4. ജല പരിശോധന: Before sealing the tub into place or finishing the surrounding walls, fill the tub with water and allow it to sit for a period to check for any leaks around the drain and overflow. Verify proper drainage.
5. സുരക്ഷിതമാക്കുന്നു: Secure the tub to the wall studs through the tile flange.
6. പൂർത്തിയാക്കുന്നു: Complete the wall tiling and sealing around the tub.

ചിത്രം 2.1: എക്സ്പ്ലോഡഡ് view diagram showing the bathtub and its associated parts, including the adjustable feet (Item 3) and drain components (Item 2).

2.3 Drain Orientation

This model features a right-hand drain. To determine drain orientation, stand facing the front apron (skirt) of the tub. If the drain opening is on your right side, it is a right-hand drain tub.

Image 2.2: Visual guide for identifying left and right drain orientations. This tub is a right-hand drain model.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Using your Aqua Eden alcove tub is straightforward. Ensure the drain stopper is closed before filling the tub. The tub has a water depth of 14-3/8 inches to the overflow and a capacity of 55.6 gallons.

• പൂരിപ്പിക്കൽ: Use a wall-mount tub filler (not included) to fill the tub with water to your desired level, ensuring it does not exceed the overflow opening.
• ഡ്രെയിനിംഗ്: Open the drain stopper to allow water to empty from the tub.
• സുരക്ഷ: Always test water temperature before entering the tub to prevent scalding. For children or individuals with mobility issues, consider using a non-slip mat and grab bars for safe entry and exit.

4. പരിചരണവും പരിപാലനവും

Regular care will maintain the brilliant high-gloss white finish and extend the life of your Kingston Brass bathtub. The acrylic surface is designed for easy cleaning.

4.1 ക്ലീനിംഗ് നിർദ്ദേശങ്ങൾ

• Use only non-abrasive cleaners specifically designed for acrylic surfaces.
• Avoid harsh chemicals, abrasive pads, or scouring powders, as these can scratch or dull the finish.
• For general cleaning, a soft cloth or sponge with mild soap and water is sufficient.
• Rinse thoroughly after cleaning to remove all soap residue.
• വെള്ളക്കറകൾ ഉണ്ടാകാതിരിക്കാൻ മൃദുവായ തുണി ഉപയോഗിച്ച് തുടച്ചു ഉണക്കുക.

4.2 കേടുപാടുകൾ തടയുന്നു

• Do not drop heavy or sharp objects into the tub, as this can chip or crack the acrylic.
• Avoid prolonged contact with strong dyes or chemicals that could stain the surface.
• Minor scratches on the acrylic surface can often be buffed out with a specialized acrylic repair kit.

5. പ്രശ്‌നപരിഹാരം

നിങ്ങളുടെ ബാത്ത് ടബ്ബിൽ നിങ്ങൾ നേരിട്ടേക്കാവുന്ന സാധാരണ പ്രശ്നങ്ങളെയാണ് ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നത്.

5.1 Water Not Draining Completely

• ഇഷ്യൂ: Water pools in the drain recess or drains slowly.
• പരിഹാരം:
  • Ensure the tub was properly leveled during installation. Uneven installation can cause water to pool.
  • Check the drain assembly for obstructions or improper sealing. The drain ring should be appropriately sized and installed correctly to prevent water from sitting.
  • Clear any hair or debris from the drain stopper mechanism.

5.2 Visible Marks or Scratches on Surface

• ഇഷ്യൂ: Small marks, scratches, or imperfections are noticed on the tub's finish.
• പരിഹാരം:
  • Always inspect the tub thoroughly upon delivery and before installation.
  • For minor surface scratches, specialized acrylic repair or buffing kits may be used. Follow the product instructions carefully.
  • For significant damage, contact a professional for assessment and repair.

6. ഉൽപ്പന്ന സവിശേഷതകൾ

Detailed specifications for the Kingston Brass VTAP543022R Aqua Eden Alcove Bathtub.

Image 6.1: Technical drawing providing precise dimensions and drain hole size for the VTAP543022R model.

7. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or to order replacement parts, please contact Kingston Brass directly. Refer to your purchase documentation or the Kingston Brass official website for the most current warranty details and contact information.

Kingston Brass Contact Information:

• Webസൈറ്റ്: www.kingstonbrass.com
• കസ്റ്റമർ സർവീസ്: റഫർ ചെയ്യുക website for current phone numbers and email contacts.
