Duluth Forge Dual Fuel Ventless Gas Fireplace System

1. ആമുഖം

The Duluth Forge Ventless Gas Fireplace System (Model FDI32R-M-WN) is designed to provide efficient heating and a realistic flame experience. This system features a furniture-grade mantel and a dual-fuel ventless gas fireplace insert, capable of operating on either Natural Gas or Liquid Propane. It produces up to 32,000 BTU of heat, suitable for heating areas up to 1,500 square feet.

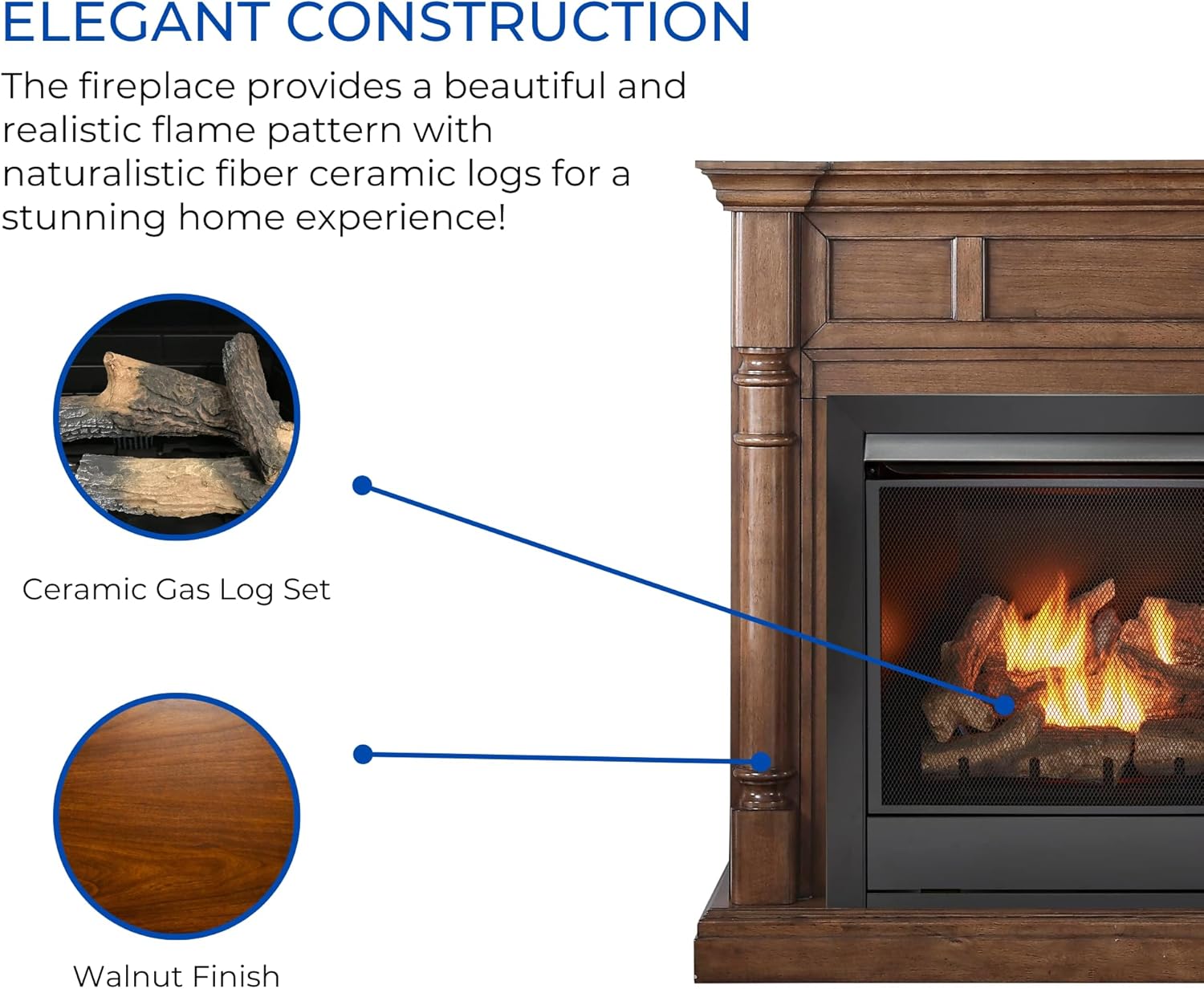

The rich walnut finish of the fireplace mantel complements various home decors. The system includes nine hand-painted ceramic fiber logs for a natural appearance.

പ്രധാന സവിശേഷതകൾ:

• Ventless Dual Fuel Technology: Operates on Natural Gas or Liquid Propane with 99.9% efficiency. No external venting or chimney required.
• റിമോട്ട് കൺട്രോൾ: Includes a remote with an LCD screen for On/Off control and temperature adjustment (Manual/Thermostat modes).
• Realistic Logs: Features 9 hand-painted ceramic fiber logs for an authentic fire appearance.
• Furniture-Grade Mantel: Walnut finish with light distressing and burnishing on edges, complemented by a mesh screen.
• സുരക്ഷാ സവിശേഷതകൾ: Equipped with a battery-assisted Piezo ignition and an Oxygen Depletion Sensor (ODS) for automatic shut-off in case of carbon monoxide detection or low oxygen levels.

2 സുരക്ഷാ വിവരങ്ങൾ

Read and understand all safety warnings and instructions before installing or operating this appliance. Failure to follow these instructions may result in fire, explosion, property damage, personal injury, or loss of life.

പ്രധാനപ്പെട്ട സുരക്ഷാ മുന്നറിയിപ്പുകൾ:

• ഈ ഉൽപ്പന്നം ഇൻഡോർ റെസിഡൻഷ്യൽ ഉപയോഗത്തിന് മാത്രമുള്ളതാണ്.
• Ensure proper ventilation as per local codes.
• ഈ അല്ലെങ്കിൽ മറ്റേതെങ്കിലും ഉപകരണത്തിൻ്റെ പരിസരത്ത് ഗ്യാസോലിൻ അല്ലെങ്കിൽ മറ്റ് കത്തുന്ന നീരാവി, ദ്രാവകങ്ങൾ എന്നിവ സൂക്ഷിക്കുകയോ ഉപയോഗിക്കുകയോ ചെയ്യരുത്.
• If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open windows. 4. If odor persists, immediately call your gas supplier.
• Keep children and pets away from the fireplace during operation.
• Maintain a minimum clearance of 42 inches from the top of the fireplace to the ceiling.
• The Oxygen Depletion Sensor (ODS) is a critical safety device. Do not tamper with or bypass it.

നിർദ്ദേശം 65 മുന്നറിയിപ്പ്: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

3. എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Fireplace Wood Mantel - Qty. 1
• Vent Free Fireplace Insert - Qty. 1
• Hand Painted Ceramic Fiber Logs - Qty. 9
• Remote Control - Qty. 1
• Receiver - Qty. 1
• AAA Battery - Qty. 3
• AA Battery - Qty. 4
• Hardware Pack - Qty. 1

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Some assembly of the mantel is required. Follow the detailed instructions provided in the separate assembly guide for the wood mantel (CM500-2-WN) and the fireplace insert (FDI32R-A).

ഇന്ധന കണക്ഷൻ: This unit operates off Natural Gas or Liquid Propane. Ensure that the correct fuel type is connected and that all gas connections are performed by a qualified professional in accordance with local codes and regulations. The patented Dual Fuel Technology allows for conversion between fuel types; refer to the specific instructions for conversion if needed.

ലോഗ് പ്ലേസ്മെൻ്റ്: The 9 hand-painted ceramic fiber logs are numbered and pinned for proper placement. Carefully arrange them as indicated in the assembly guide to ensure optimal flame appearance and safety.

5. ഓപ്പറേഷൻ

Your Duluth Forge fireplace system can be operated using the included remote control or via manual controls on the unit.

റിമോട്ട് കൺട്രോൾ ഓപ്പറേഷൻ:

• നൽകിയിരിക്കുന്ന AAA ബാറ്ററികൾ റിമോട്ട് കൺട്രോളിലേക്ക് തിരുകുക.
• Use the 'On/Off' buttons to ignite or extinguish the flames.
• The remote features a temperature control function. Toggle between 'Manual' and 'Thermostat' modes to set your desired room temperature. The system will automatically adjust to maintain the set temperature.

മാനുവൽ പ്രവർത്തനം: For manual ignition, refer to the controls located on the fireplace insert. This typically involves turning a gas knob to the 'Pilot' position, pressing it in, and using the Piezo ignitor button until the pilot light ignites. Once the pilot is lit, you can turn the knob to the 'On' position to ignite the main burner.

ആദ്യ ഉപയോഗം: During initial startup, it may take a few minutes for the pilot light to ignite due to air in the gas lines. This is normal. If the pilot does not light after several attempts, consult the troubleshooting section.

6. പരിപാലനം

Regular maintenance ensures the longevity and safe operation of your fireplace system.

• വൃത്തിയാക്കൽ: Periodically clean the exterior of the mantel with a soft, damp തുണി. ഉരച്ചിലുകൾ ഉള്ള ക്ലീനറുകൾ ഒഴിവാക്കുക.
• Log Inspection: Inspect the ceramic logs for any damage or displacement. Ensure they are correctly positioned as per the assembly guide.
• Burner Area: Keep the burner area free from dust, lint, and debris. Use a vacuum cleaner with a soft brush attachment if necessary.
• പ്രൊഫഷണൽ പരിശോധന: It is recommended to have the gas connections and burner system inspected annually by a qualified service technician.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your fireplace system, refer to the following common troubleshooting steps:

• ഇഗ്നിഷൻ ഇല്ല: Check if the gas supply is on. Ensure batteries in the remote and receiver are fresh. Verify the pilot light is clean and unobstructed.
• Pilot Light Goes Out: This could indicate an issue with the ODS sensor or insufficient oxygen. Ensure the room is adequately ventilated. If the problem persists, contact a qualified technician.
• പൊരുത്തമില്ലാത്ത ചൂടാക്കൽ: Check the remote control's temperature settings. Ensure the fireplace is not obstructed.
• അസാധാരണമായ ഗന്ധം: If you detect a gas odor, immediately shut off the gas supply and ventilate the area. Do not operate the appliance. Contact your gas supplier or a qualified technician.

For complex issues, always consult a qualified service professional.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റി വിവരങ്ങൾ

This Duluth Forge fireplace system comes with a 1 വർഷത്തെ പരിമിത വാറൻ്റി. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക. നിർദ്ദിഷ്ട നിബന്ധനകൾക്കും വ്യവസ്ഥകൾക്കും, നിങ്ങളുടെ ഉൽപ്പന്നത്തിനൊപ്പം ഉൾപ്പെടുത്തിയിരിക്കുന്ന വാറന്റി ഡോക്യുമെന്റേഷൻ പരിശോധിക്കുക അല്ലെങ്കിൽ ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

10. ഉപഭോക്തൃ പിന്തുണ

For further assistance, technical support, or to inquire about replacement parts, please contact Duluth Forge customer service. You can also visit the official Duluth Forge store online for additional product information and resources.

ഓൺലൈൻ സ്റ്റോർ: Visit the Duluth Forge Store
