Amacam AM-T22 GPS Tracker User Manual

1. ആമുഖം

Thank you for choosing the Amacam AM-T22 GPS Tracker. This device is designed to provide precise, real-time global positioning for your vehicle, offering enhanced security and monitoring capabilities. This manual will guide you through the installation, setup, and operation of your tracker to ensure optimal performance.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

The Amacam AM-T22 GPS Tracker offers a range of features to keep your vehicle secure and trackable:

• അവാർഡ് നേടിയ ഡിസൈൻ: Recognized for ease of installation and user-friendly application.
• Free GPS Tracking Platform: Access real-time tracking via the Amatrac webസൈറ്റ് (gps.amatrac.com) and a dedicated smartphone application, both free to use.
• ഒതുക്കമുള്ളതും വിവേകപൂർണ്ണവുമായ ഡിസൈൻ: Small form factor (45 x 22 x 30 mm) allows for unobtrusive installation in the OBD port, minimizing detection by potential thieves.
• Anti-Theft Alarm Features: Receive alerts on your smartphone if vehicle movement is detected while parked, enabling real-time tracking in case of theft.
• Precise Global Positioning: Utilizes GPS signals for location accuracy within 10 meters, crucial for vehicle recovery.
• ബിൽറ്റ്-ഇൻ ബാറ്ററി: Provides backup power.
• പ്ലഗ് & പ്ലേ ഇൻസ്റ്റലേഷൻ: Connects directly to the vehicle's OBD port.

3. സജ്ജീകരണ ഗൈഡ്

Follow these steps to set up your Amacam AM-T22 GPS Tracker:

1. സിം കാർഡ് ചേർക്കൽ:

   Carefully open the tracker unit using the provided tool. Insert a 2G-compatible Nano-SIM card into the designated slot. Ensure the SIM card has sufficient credit or data for tracking. Close the unit securely.



   Image: The Amacam AM-T22 tracker showing its dimensions and the process of opening it with a tool to insert a SIM card.
2. ഉപകരണ ഇൻസ്റ്റാളേഷൻ:

   Locate your vehicle's OBD (On-Board Diagnostics) port, typically found under the dashboard on the driver's side. Plug the AM-T22 tracker firmly into the OBD port. The device is designed for a snug fit. In some vehicles, like certain Ford Focus models, you may need to adjust the OBD port's position slightly to allow the tracker to fit and the cover to close.



   Image: A hand inserting the Amacam AM-T22 GPS tracker into a vehicle's OBD port, demonstrating the installation process.



   Image: A diagram illustrating the compact Amacam AM-T22 tracker being plugged into a car's OBD port, highlighting its unobtrusive design and built-in battery for 24/7 tracking.
3. Platform Registration and App Download:

   Register your device on the Amacam website (details provided in the product manual). Download the official tracking application to your smartphone. Ensure you download the correct application (e.g., 'Tracksolid' if specified, not 'Tracksolid PRO' unless instructed, as some users have reported issues with the 'PRO' version). Log in using your registered details. You may need to set the server to 'HK' from 'EU' in the app settings if you encounter login or tracking issues.



   Image: A person using the Amacam tracking platform on a laptop and smartphone, with the AM-T22 device visible, demonstrating access from both mobile app and web പ്ലാറ്റ്ഫോം.

4. Operating Your Tracker

Once set up, you can utilize the following functions:

• തത്സമയ ട്രാക്കിംഗ്: View your vehicle's exact location and movement in real-time on the web platform or smartphone app. The system uses both GPS and LBS (Location Based Service) for accurate positioning.
• Geo-Fencing: Set up virtual boundaries (geo-fences) on the map. You will receive alerts when your vehicle enters or exits these predefined areas.
• Movement and Anti-Theft Alerts: Configure alerts for unauthorized movement of your vehicle. This feature provides immediate notification if your parked vehicle is disturbed.
• Over-Speed Alerts: Set speed limits and receive notifications if the vehicle exceeds them.
• Playback History: Review past routes and travel history for up to 180 days.

Image: A diagram illustrating GPS and LBS dual global positioning for fast and accurate tracking, with a car icon and a smartphone displaying a map.

Image: A collage of features including 180-day playback history, geo-fence alerts, over-speed alerts, and street view, centered around the AM-T22 device.

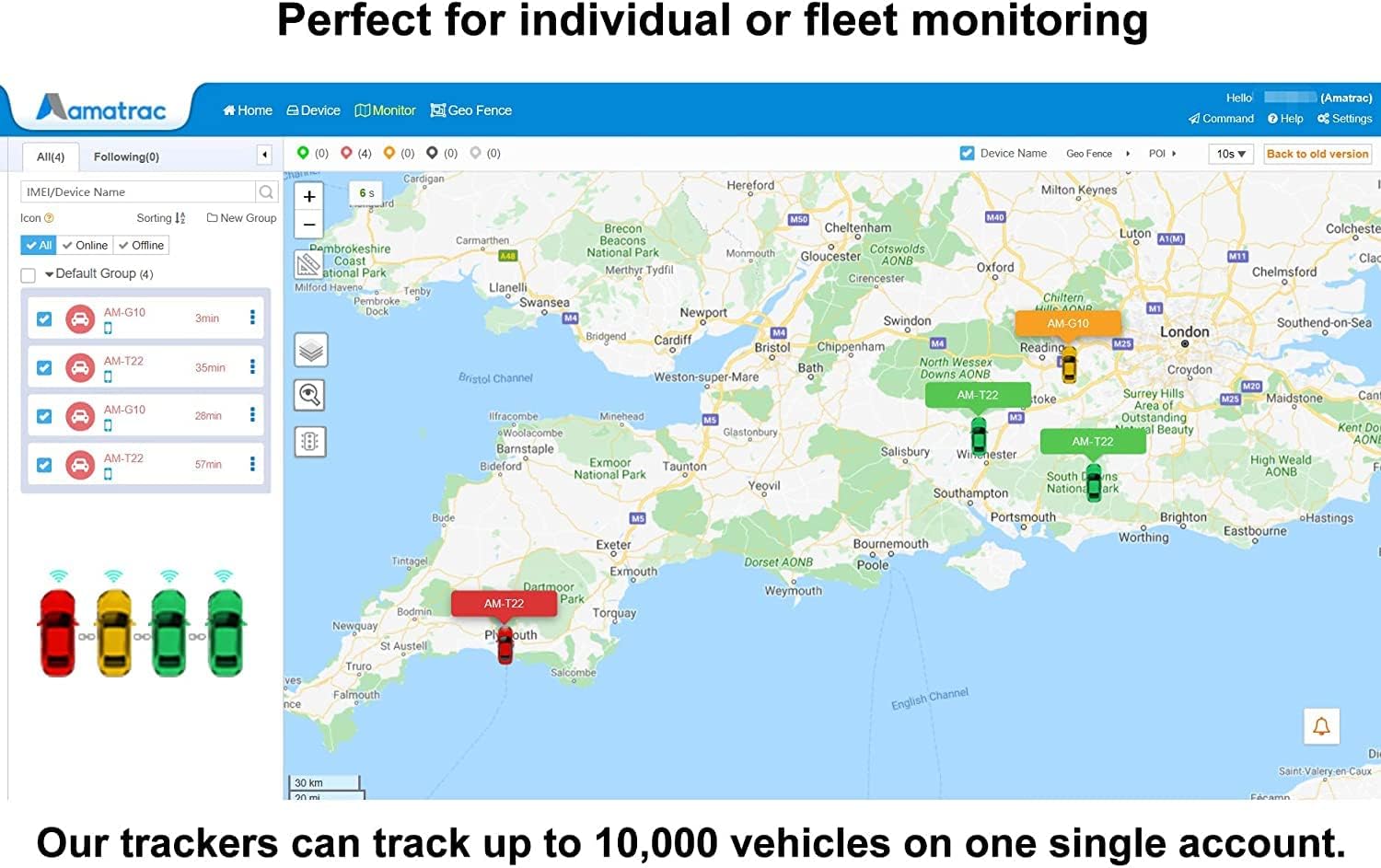

Image: A screenshot of the Amacam tracking platform displaying multiple vehicle locations on a map of the UK, indicating its suitability for individual or fleet monitoring.

5. പരിപാലനം

• വൃത്തിയാക്കൽ: Wipe the device with a dry, soft cloth. Avoid using liquid cleaners or solvents.
• ബാറ്ററി: The device contains a Lithium-ion battery. This battery is not user-rechargeable or replaceable. The device draws power from the OBD port when the vehicle is in use.
• സിം കാർഡ് മാനേജ്മെന്റ്: Regularly check your SIM card's data balance to ensure continuous tracking. Data usage is minimal, but consistent tracking requires an active SIM.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Amacam AM-T22 tracker, consider the following:

• No Tracking Data / Device Offline:
  • Ensure your SIM card is correctly inserted and has an active 2G data plan.
  • Verify that your region still supports 2G mobile networks. Some carriers have phased out 2G/3G, which can affect device functionality.
  • Check the device's LED indicators for status (e.g., network signal, GPS signal).
• ആപ്പ് ലോഗിൻ പ്രശ്നങ്ങൾ:
  • Confirm you are using the correct tracking application (e.g., 'Tracksolid' and not 'Tracksolid PRO' unless specified).
  • Reset your password if you cannot log in.
  • In the app settings, try changing the server from 'EU' to 'HK' if you experience connectivity problems.
• കൃത്യമല്ലാത്ത സ്ഥാനനിർണ്ണയം:
  • വാഹനം തുറന്നതും തെളിഞ്ഞതുമായ ഒരു സ്ഥലത്താണെന്ന് ഉറപ്പാക്കുക. view ഒപ്റ്റിമൽ ജിപിഎസ് സിഗ്നൽ സ്വീകരണത്തിനായി ആകാശത്തിൻ്റെ.
  • Signal interference within certain vehicles may affect accuracy.
• Physical Fit in OBD Port:
  • If the tracker does not fit or prevents the OBD port cover from closing, you may need to gently adjust the OBD port's position within the dashboard.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the official Amacam webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
